Cruise Test - Part 3

1. Confirm overdrive control switch is in ON position.
2. Confirm selector lever is in D position.
3. Accelerate vehicle using half-throttle to D4.

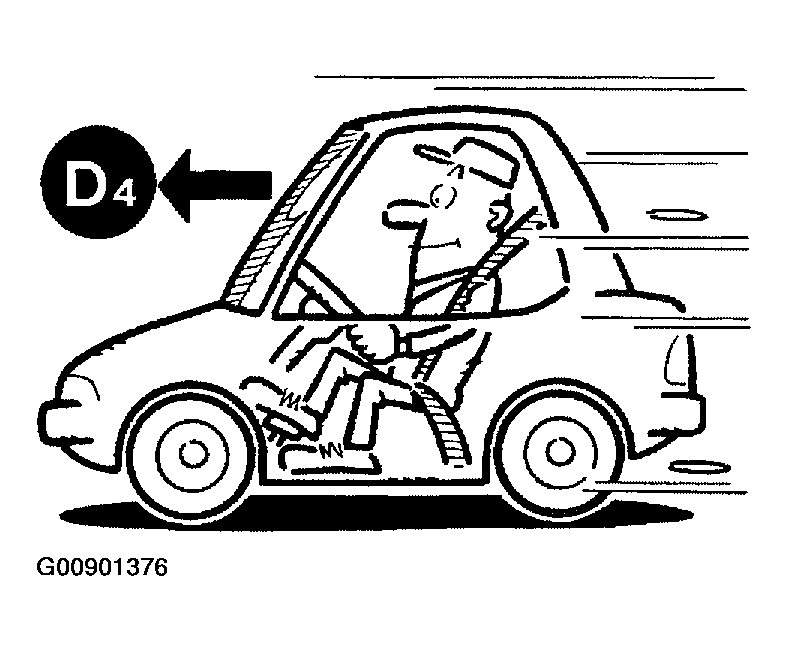

   Fig 1: Accelerating Vehicle Using Half-Throttle To D4

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Release accelerator pedal.
5. Set overdrive control switch to OFF position while driving in D4.
6. Does A/T shift from D4 to D3 (O/D OFF)?
   1. Read gear position and vehicle speed.

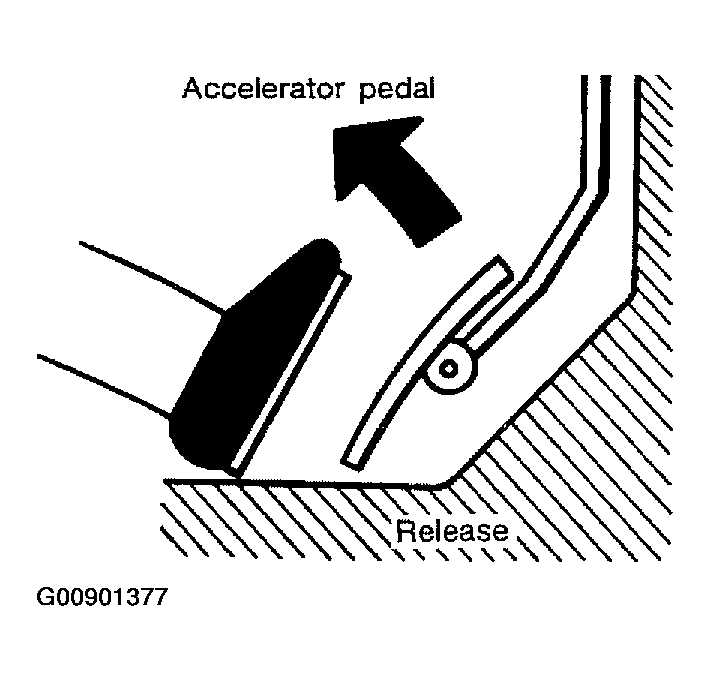

Fig 2: Releasing Accelerator Pedal

Courtesy of NISSAN MOTOR CO., U.S.A.

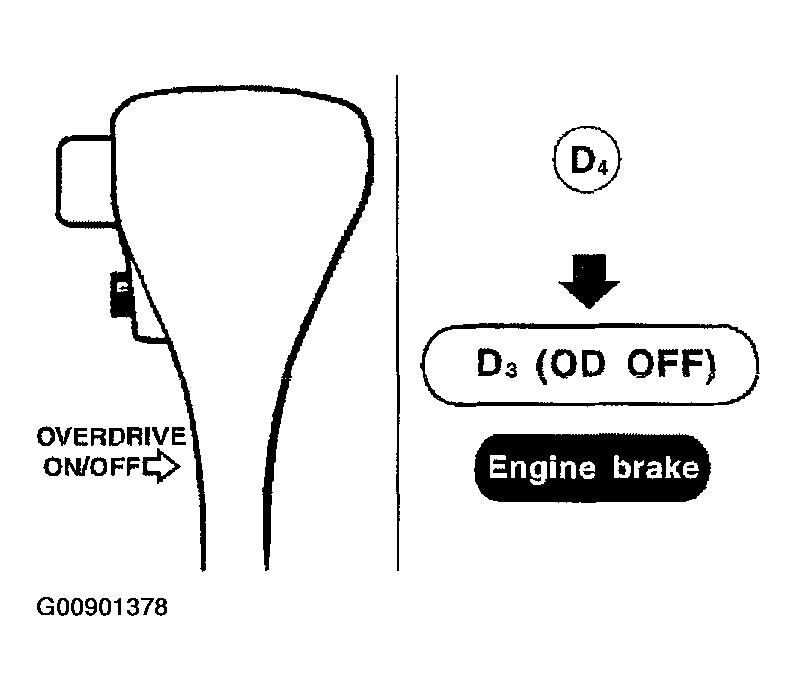

Fig 3: Checking Shift Down (D4 To D3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: GO TO 2.
2. No: Go to "17. A/T Does Not Shift: D4 --> D3, When Overdrive Control Switch ON --> OFF ". Continue ROAD TEST.

Does vehicle decelerate by engine brake?

Yes or No

1. Yes: GO TO 3.
2. No: Go to "15. Engine Speed Does Not Return To Idle (Light Braking D4 --> D3) ". Continue ROAD TEST.

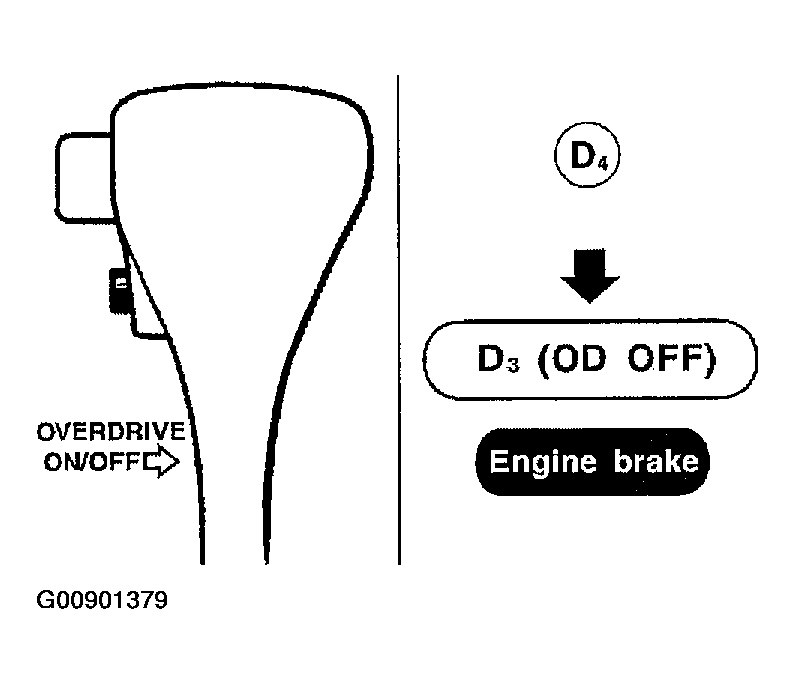

Fig 4: Checking Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Move selector lever from D to 2 position while driving in D3 (O/D OFF).
2. Does A/T shift from D3 (O/D OFF) to 22?
   1. Read gear position.

Yes or No

1. Yes: GO TO 4.
2. No: Go to "18. A/T Does Not Shift: D3 --> 22, When Selector Lever D --> 2 Position ". Continue ROAD TEST.

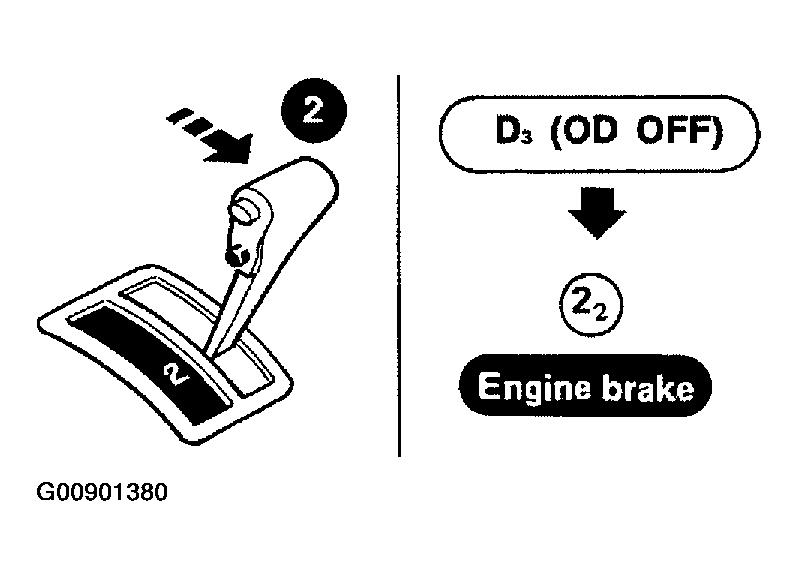

Fig 5: Checking Shift Down (D3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Does vehicle decelerate by engine brake?

Yes or No

1. Yes: GO TO 5.
2. No: Go to "15. Engine Speed Does Not Return To Idle (Light Braking D4 --> D3) ". Continue ROAD TEST.

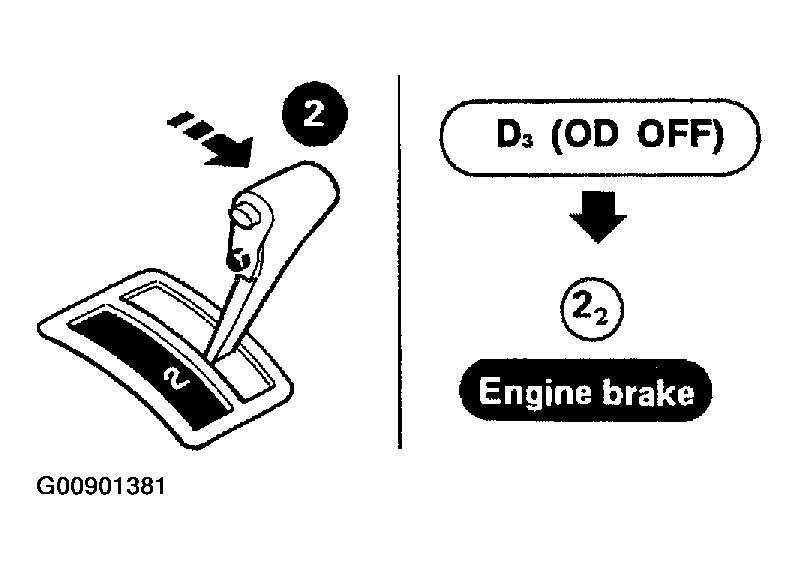

Fig 6: Checking Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Move selector lever from 2 to 1 position while driving in 22.
2. Does A/T shift from 22 to 11 position?
   1. Read gear position.

Yes or No

1. Yes: GO TO 6.
2. No: Go to "19. A/T Does Not Shift: 22 --> 11, When Selector Lever 2 --> 1 Position ". Continue ROAD TEST.

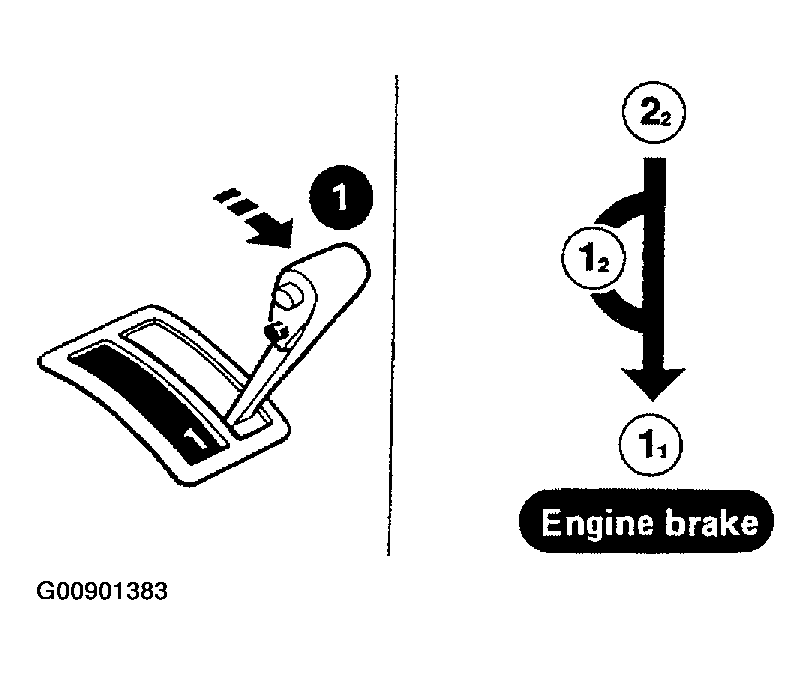

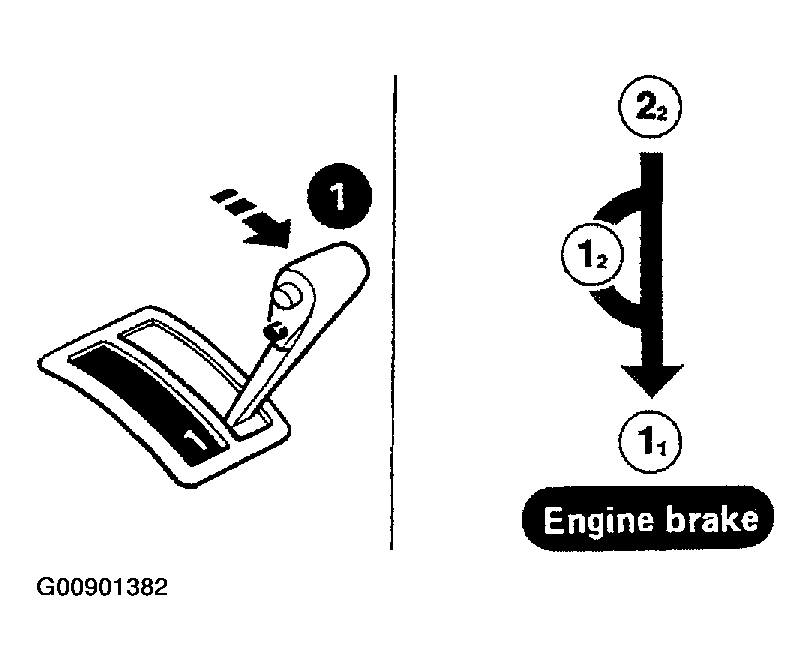

Fig 7: Moving A/T Selector Lever From "2" To "1" Position While Driving In 2

Courtesy of NISSAN MOTOR CO., U.S.A.

Does vehicle decelerate by engine brake?

Yes or No

1. Yes:
   1. Stop vehicle.
   2. Perform self-diagnosis. Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
2. No: Go to "20. VEHICLE DOES NOT DECELERATE BY ENGINE BRAKE ". Continue ROAD TEST.
