CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector, which is located in left side dash panel.
Turn ignition switch ON.

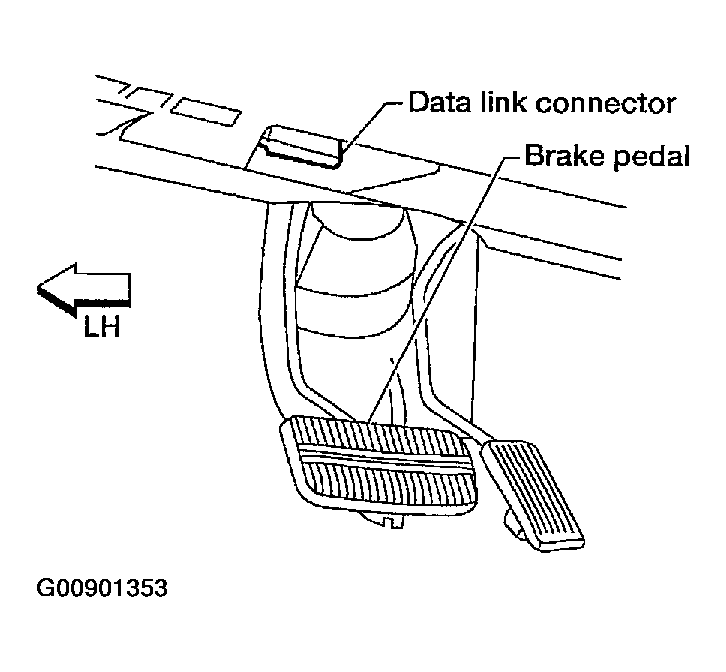

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

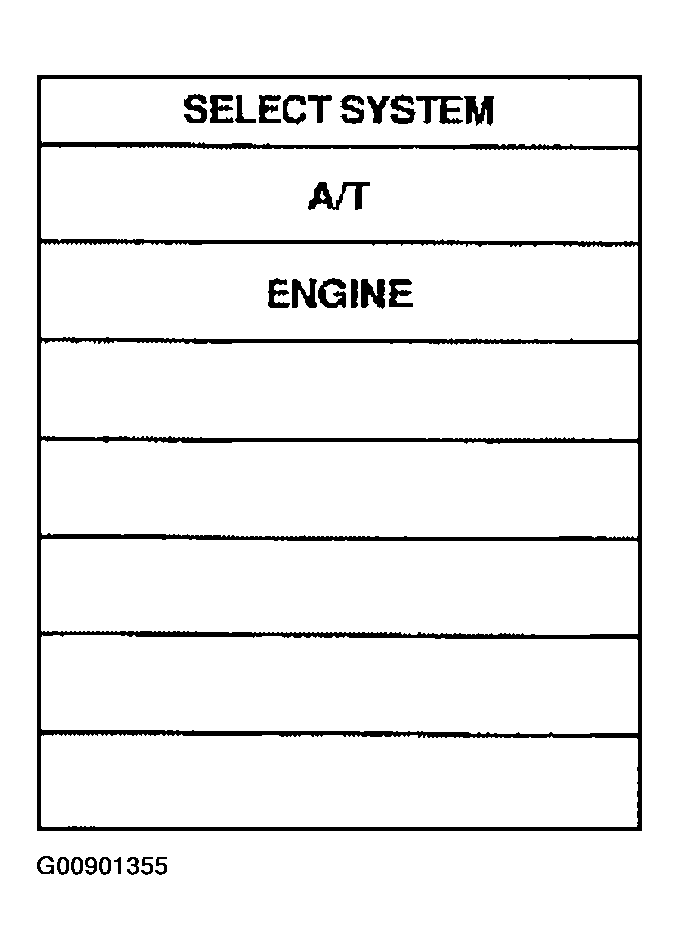

Fig 2: Consult II Display (1 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".

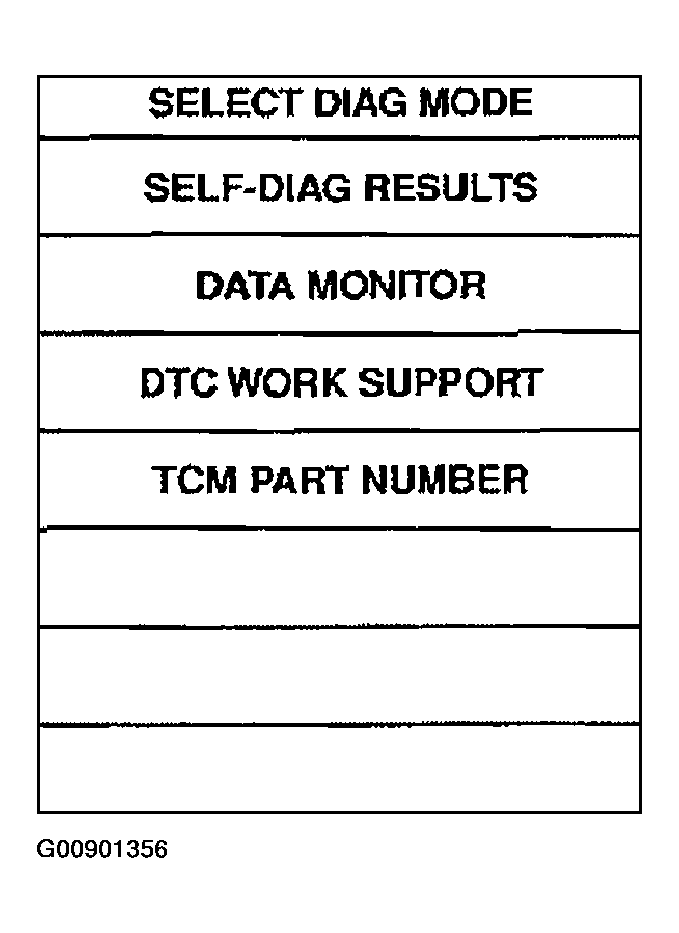

Fig 3: Consult II Display (2 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

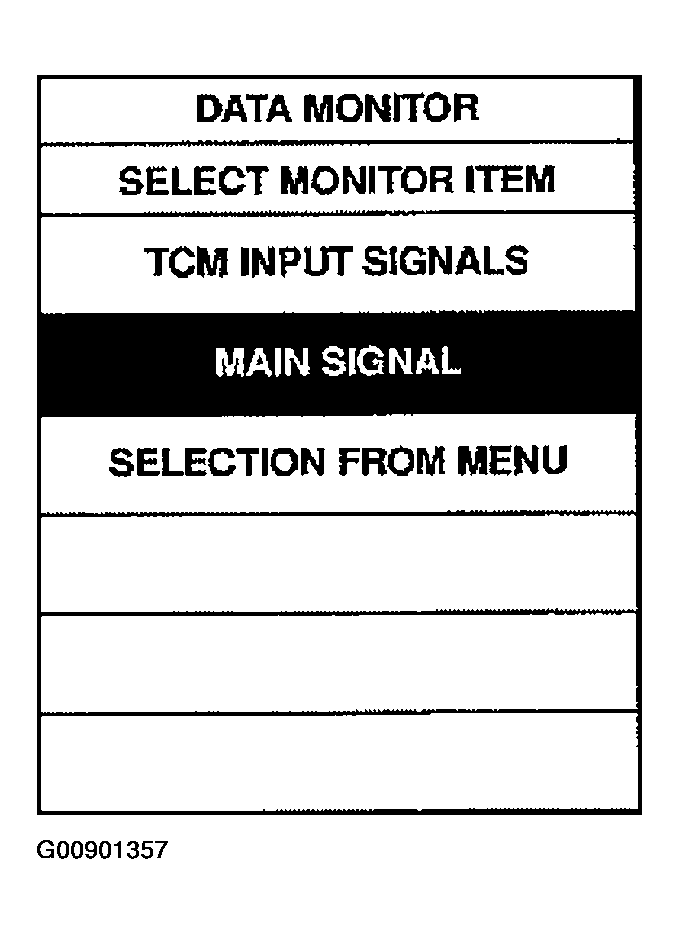

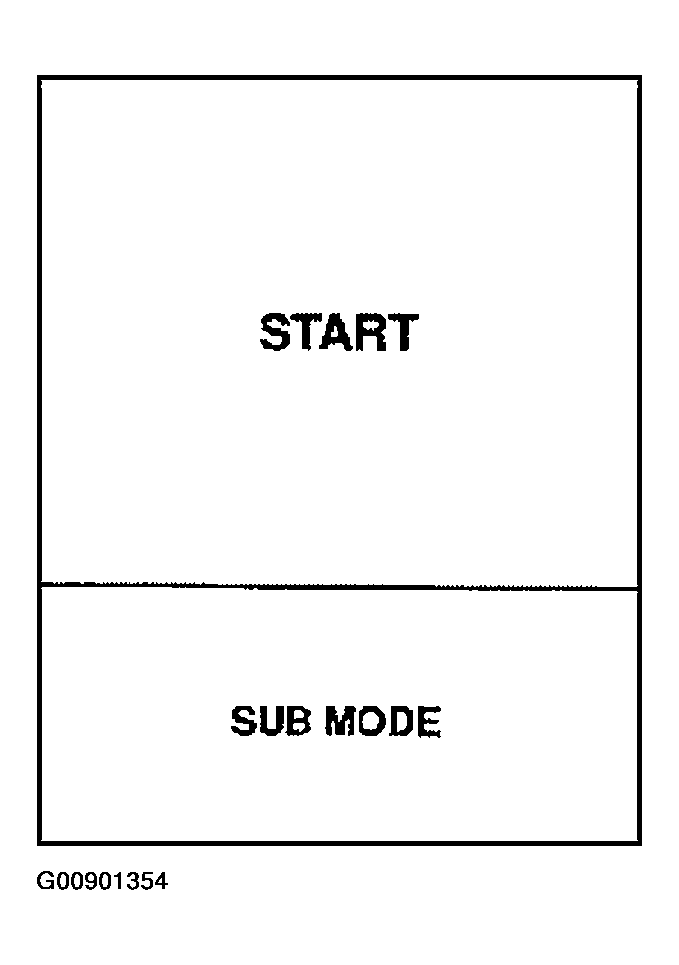

Fig 4: Consult II Display (3 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MAIN SIGNAL" or "TCM INPUT SIGNALS".
See "BARCHART DISPLAY" or "LINE GRAPH DISPLAY".

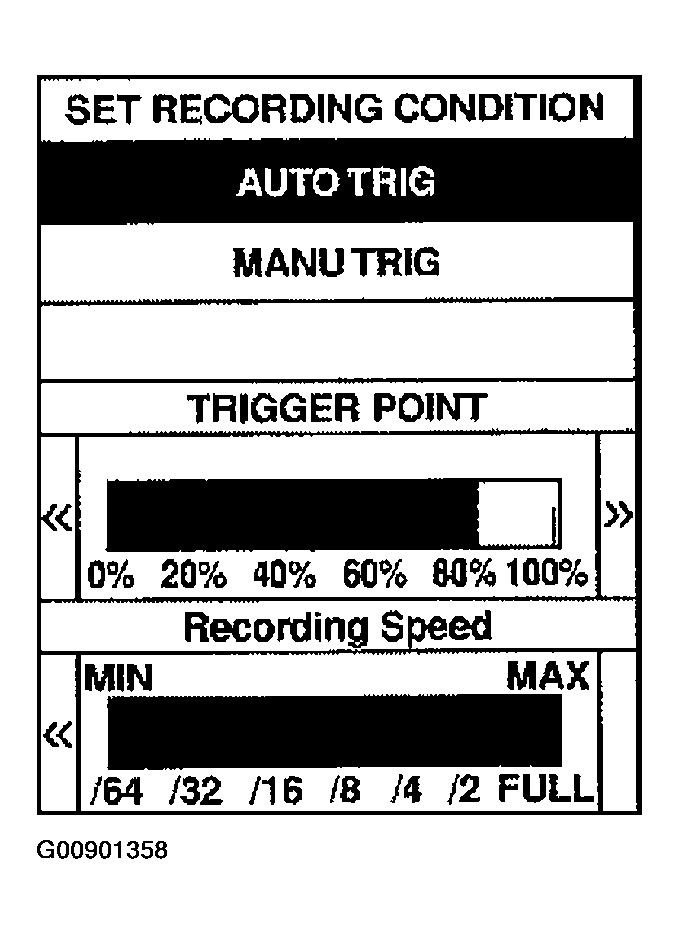

Fig 5: Consult II Display (4 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "START".

Fig 6: Consult II Display (5 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

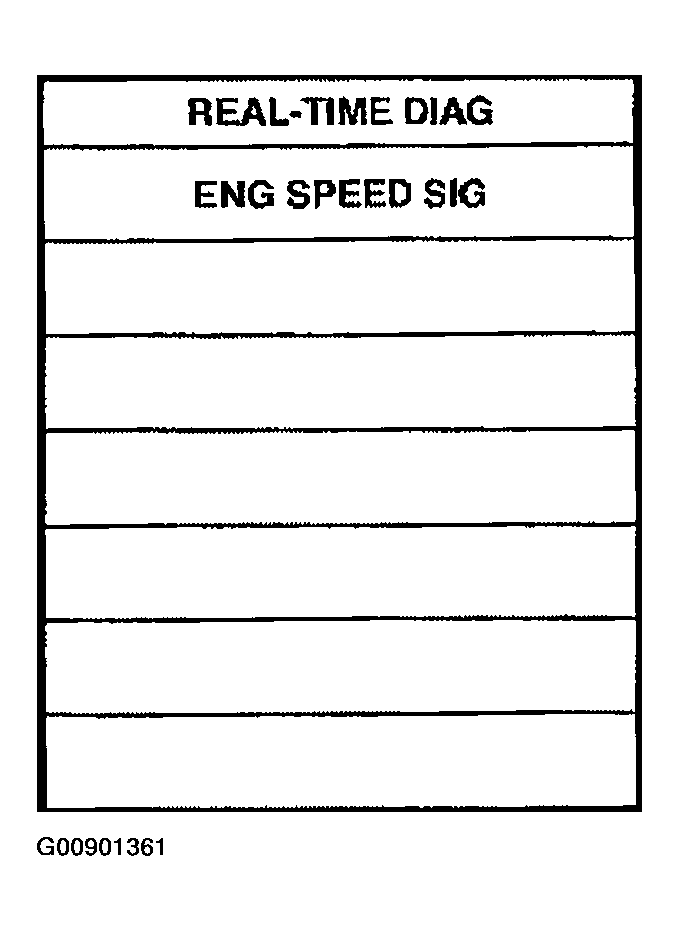

Fig 7: Consult II Display (6 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP".

Fig 8: Consult II Display (7 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

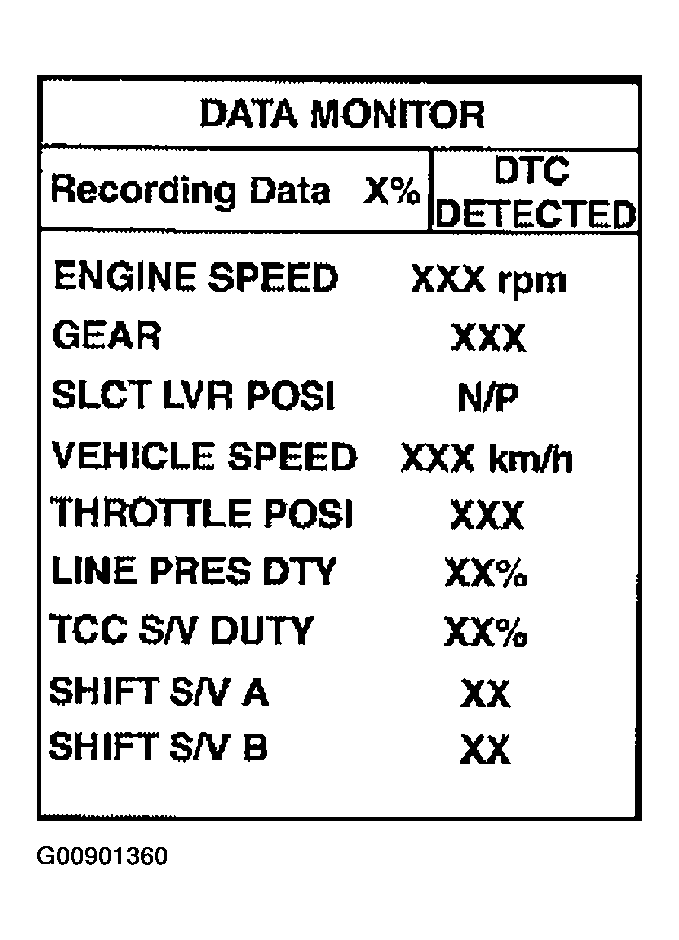

Fig 9: Consult II Display (8 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DISPLAY".
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.

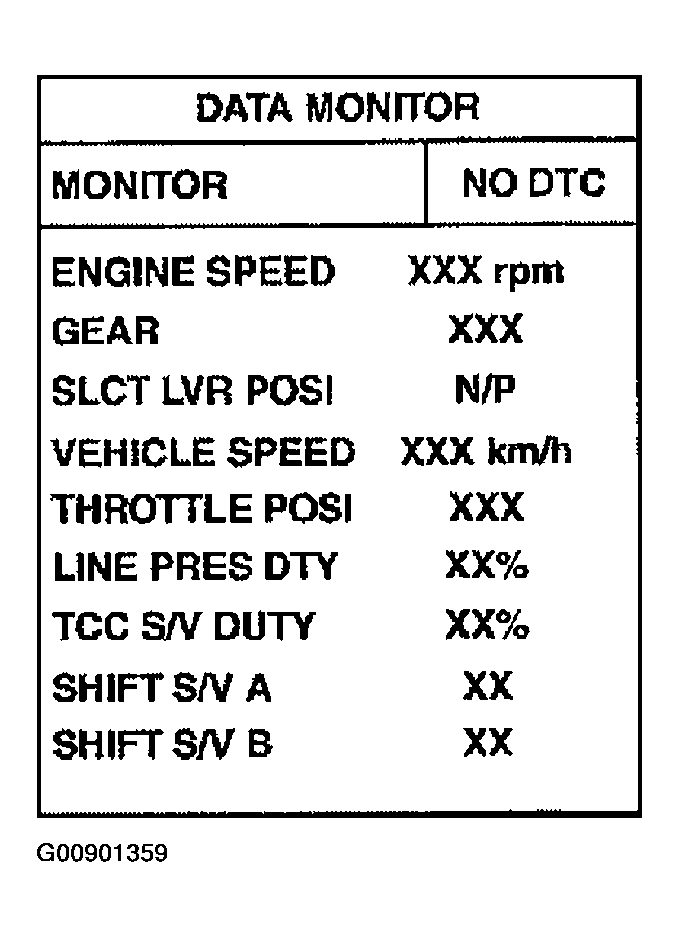

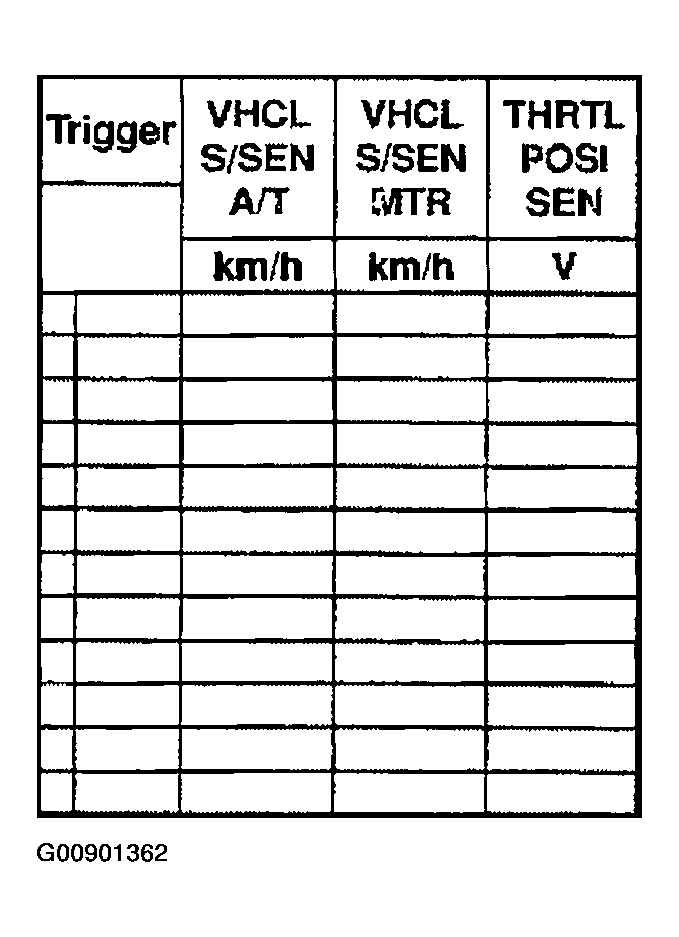

Fig 10: Consult II Display (9 Of 9)
