Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub: Components

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

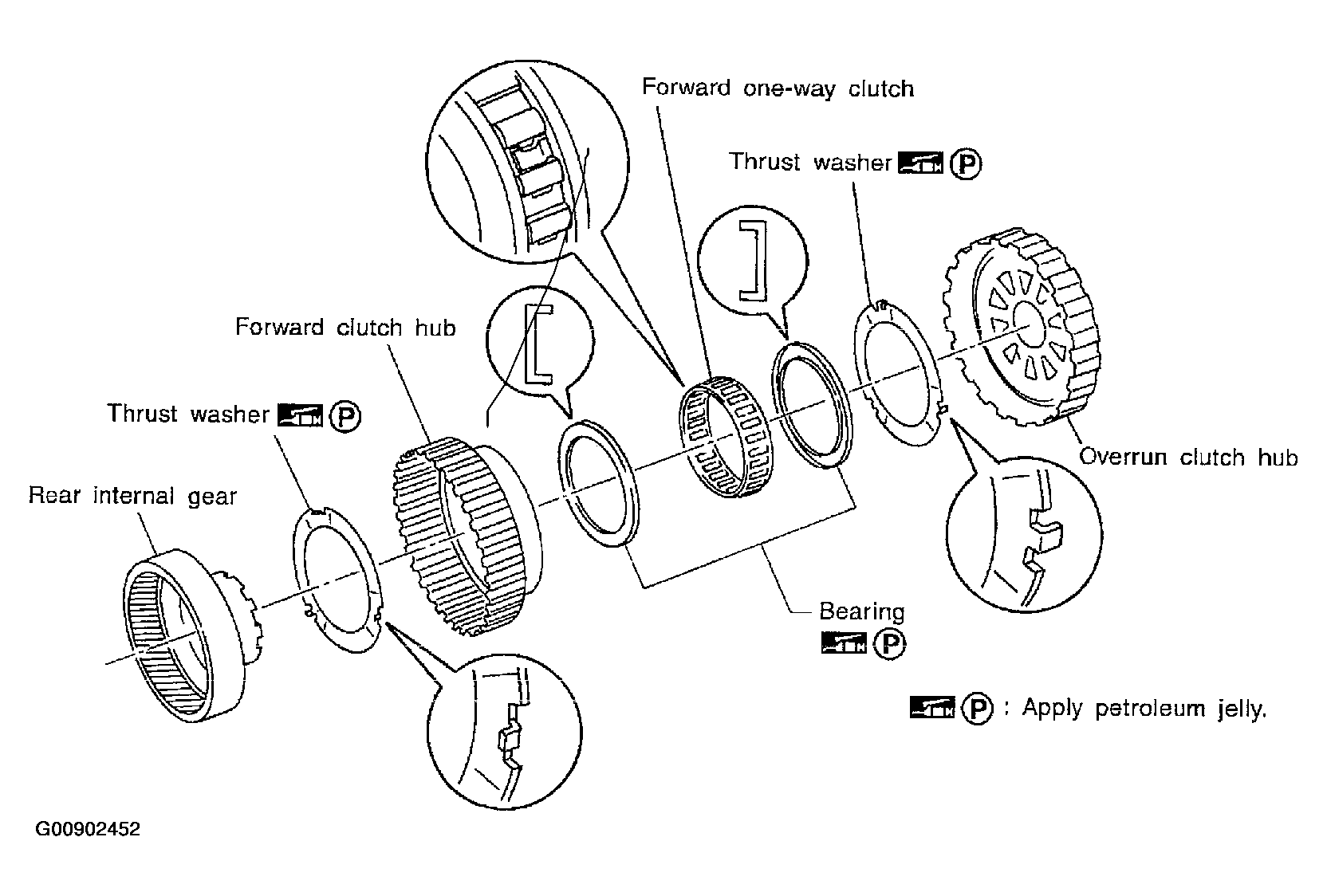

Fig 1: Identifying Rear Internal Gear, Forward Clutch Hub And Overrun Clutch Hub Components
G00902452Courtesy of NISSAN MOTOR CO., U.S.A.
