Manual Shaft: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove detent spring from transmission case.

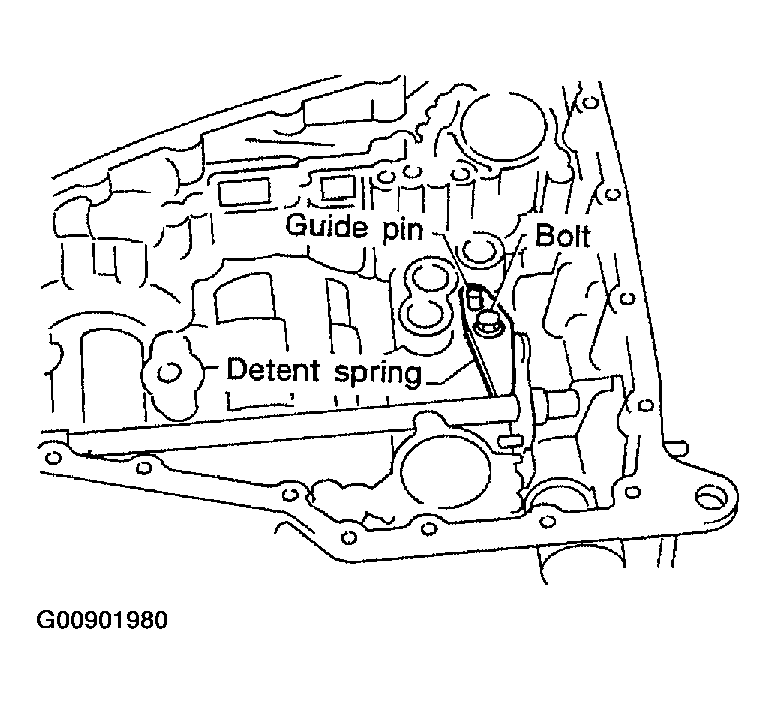

    Fig 1: Removing Detent Spring From Transmission Case
    G00901980Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin.

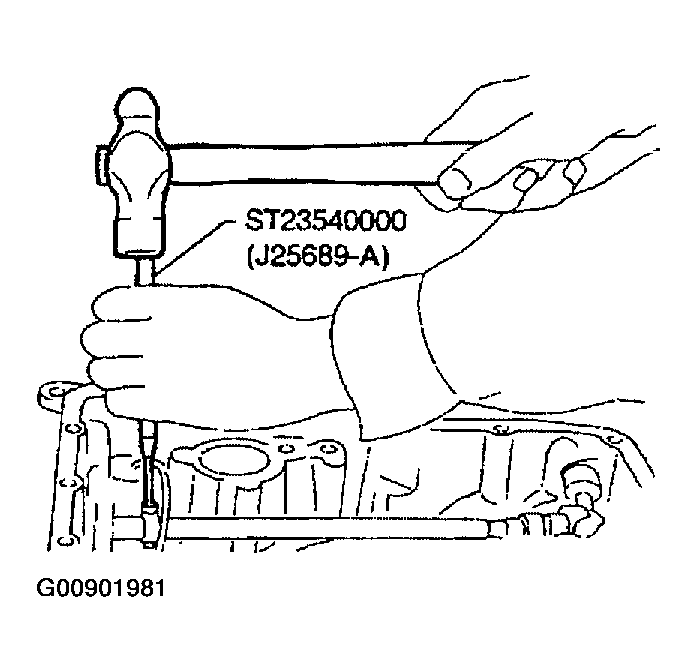

    Fig 2: Driving Out Manual Plate Retaining Pin
    G00901981Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transmission case.

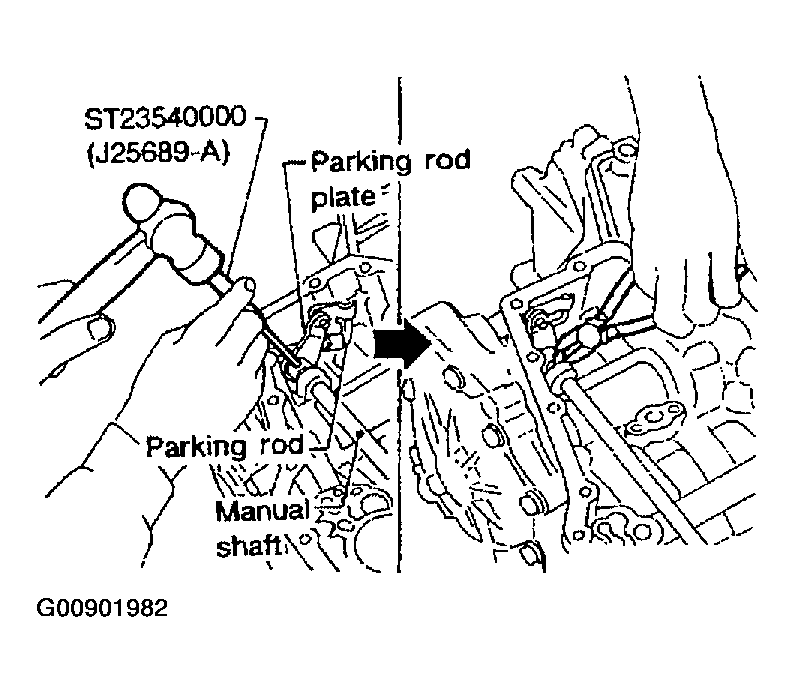

    Fig 3: Removing Parking Rod From Transmission Case
    G00901982Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Pull out manual shaft retaining pin.
  7. Remove manual shaft and manual plate from transmission case.

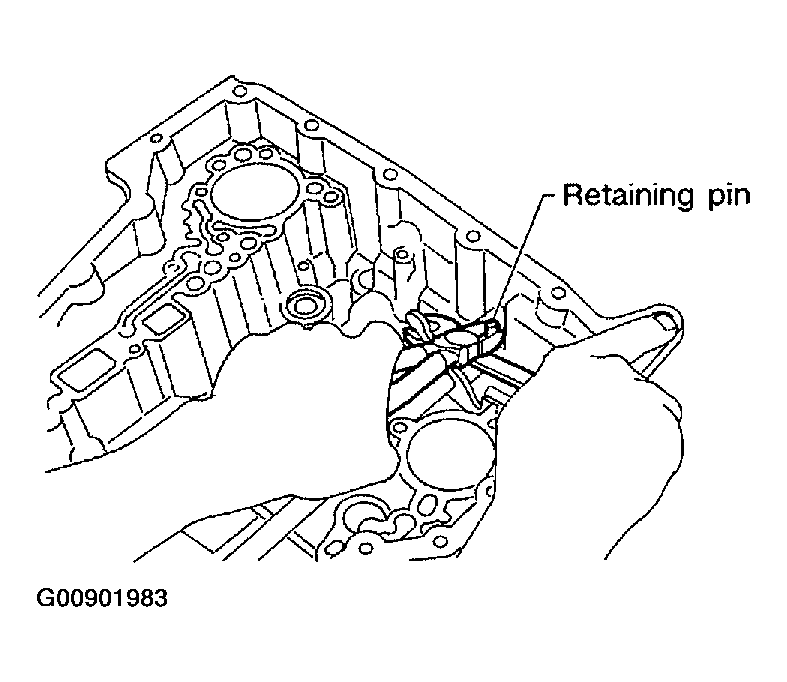

    Fig 4: Removing Manual Shaft Retaining Pin
    G00901983Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove manual shaft oil seal.

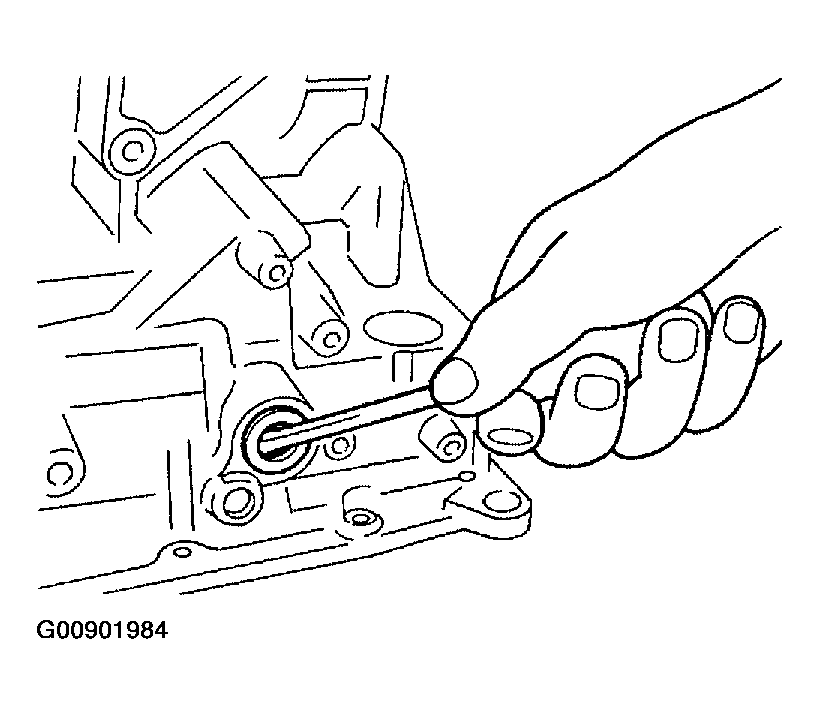

    Fig 5: Removing Manual Shaft Oil Seal
    G00901984Courtesy of NISSAN MOTOR CO., U.S.A.
