Low and Reverse Brake Drive Plate

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check facing for burns, cracks or damage.
Measure thickness of facing.
1. Thickness of drive plate
2. Standard value: 1.8 mm (0.071 in)
3. Wear limit: 1.6 mm (0.063 in)
If not within wear limit, replace.

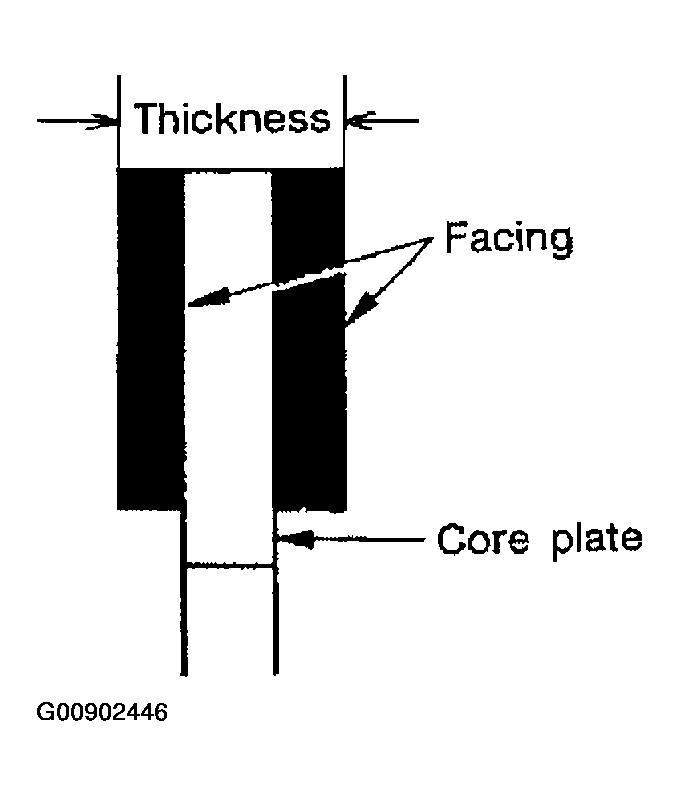

Fig 1: Identifying Thickness Of Low & Reverse Brake Drive Plates

Courtesy of NISSAN MOTOR CO., U.S.A.
