Forward Clutch and Overrun Clutch Drive Plates

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check facing for burns, cracks or damage.
Measure thickness of facing.
1. Thickness of drive plate:
2. Forward clutch
3. Standard value: 1.6 mm (0.063 in)
4. Wear limit: 1.4 mm (0.055 in)
5. Overrun clutch
6. Standard value: 1.6 mm (0.063 in)
7. Wear limit: 1.4 mm (0.055 in)
If not within wear limit, replace.

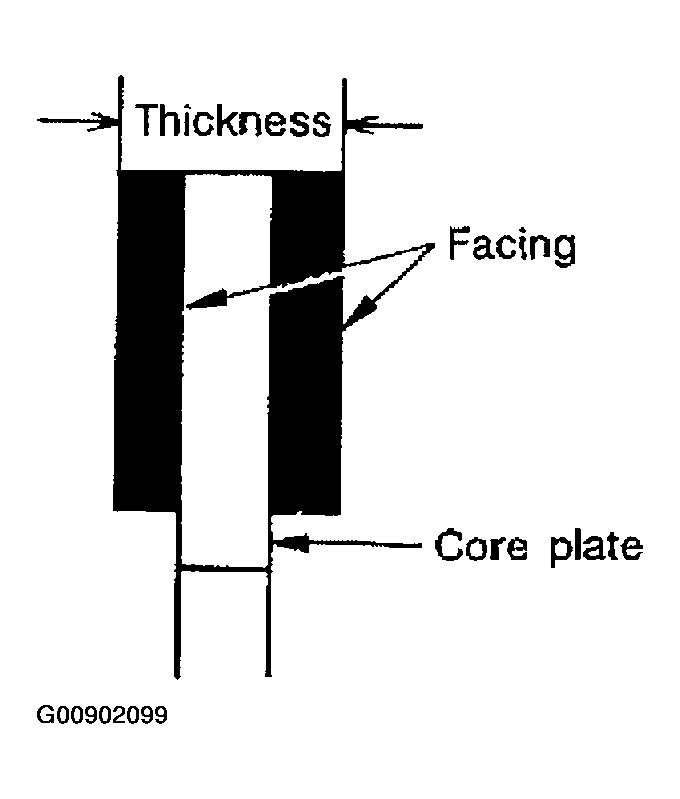

Fig 1: Identifying Thickness Of Forward Clutch And Overrun Clutch Drive Plates

Courtesy of NISSAN MOTOR CO., U.S.A.
