Retainer Plate (Lower Body)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

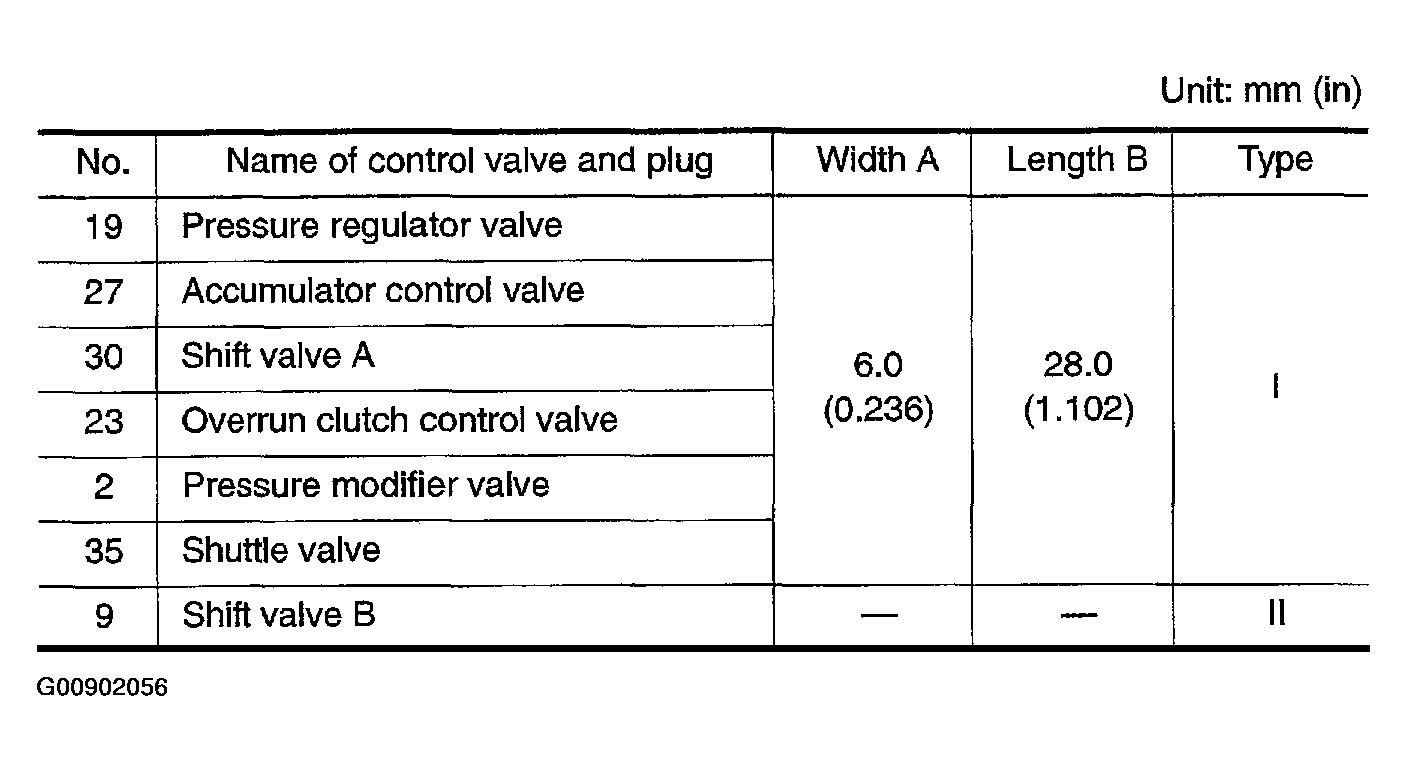

Fig 1: Retainer Plate Dimensions (For Control Valve Lower Body)

Courtesy of NISSAN MOTOR CO., U.S.A.

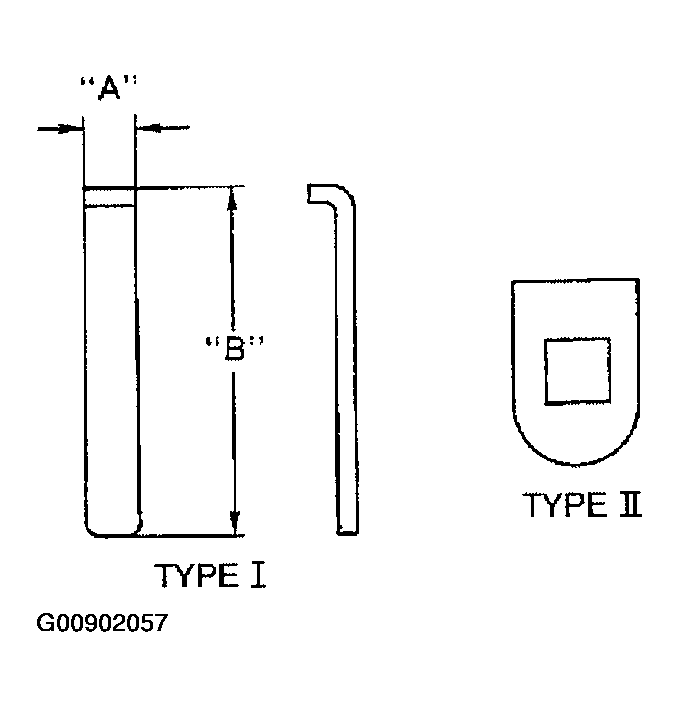

Fig 2: Identifying Retainer Plate Dimensions (For Control Valve Lower Body)

Courtesy of NISSAN MOTOR CO., U.S.A.

Install proper retainer plates.
Refer to "CONTROL VALVE LOWER BODY ".
