P and N Positions
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- P position

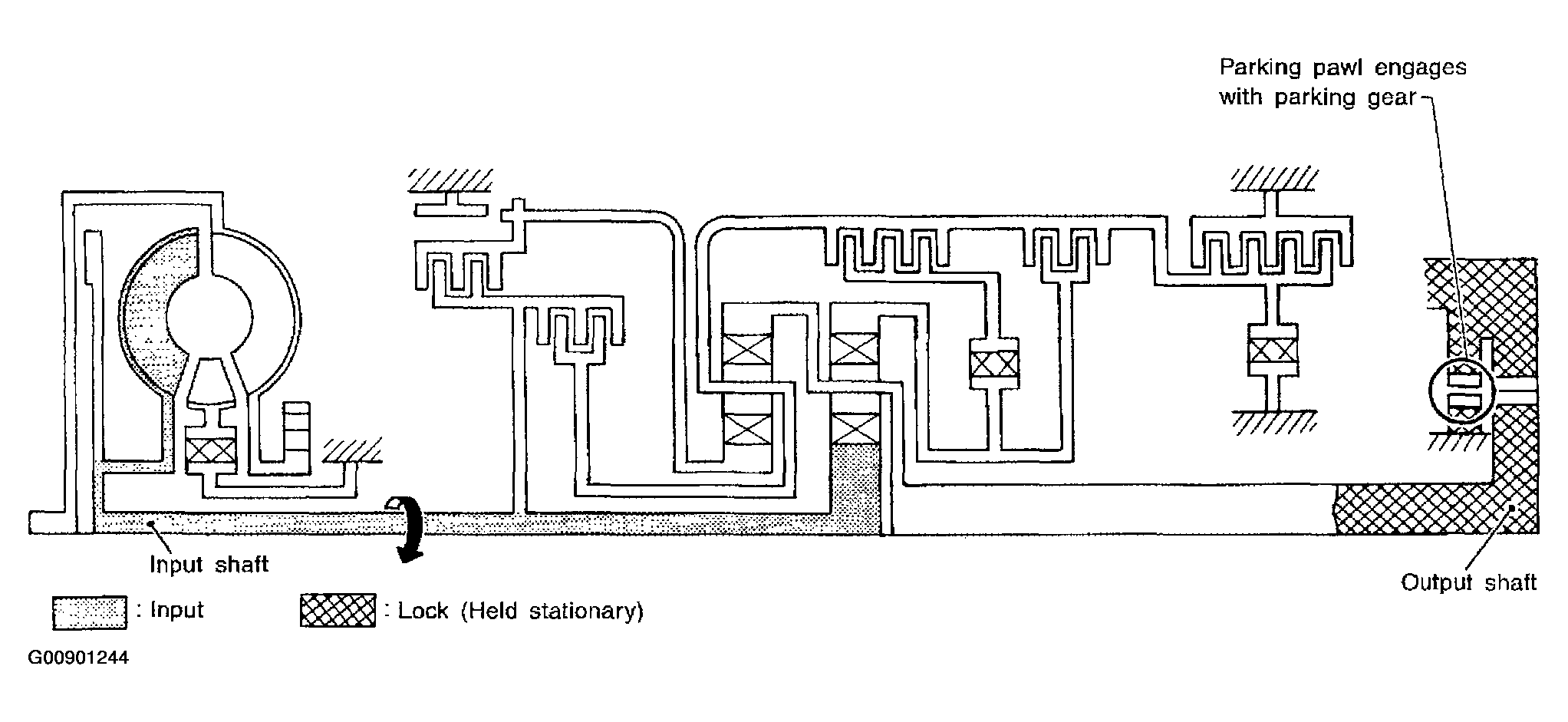

Similar to the N position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the powertrain is locked.
- N position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.
