D3 and 33 Positions

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

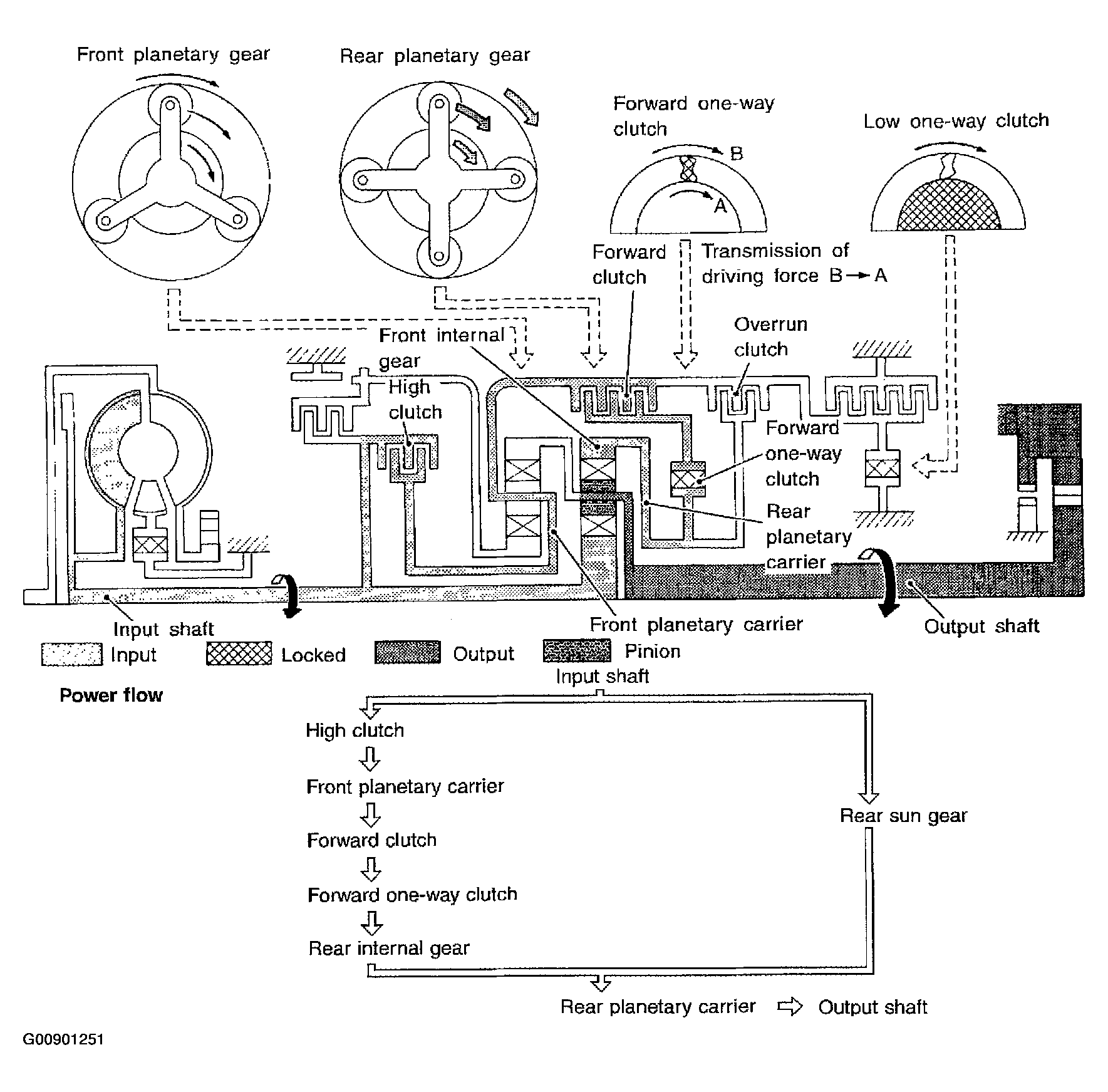

Fig 1: Power Transmission - "D3" and "33" Position (1 Of 2)
G00901251Courtesy of NISSAN MOTOR CO., U.S.A.

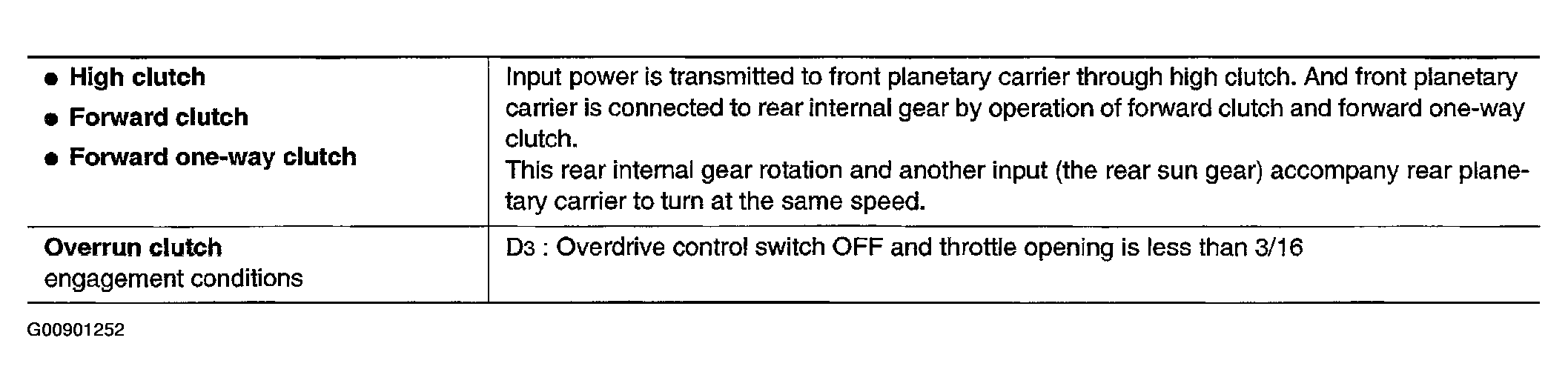

Fig 2: Power Transmission - "D3" and "33" Position (2 Of 2)
G00901252Courtesy of NISSAN MOTOR CO., U.S.A.
