Section 1175 (Automatic Transaxle - Re4F04B)
>>
Overall System
>>
A/T Electrical Parts Location
A/T Electrical Parts Location
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

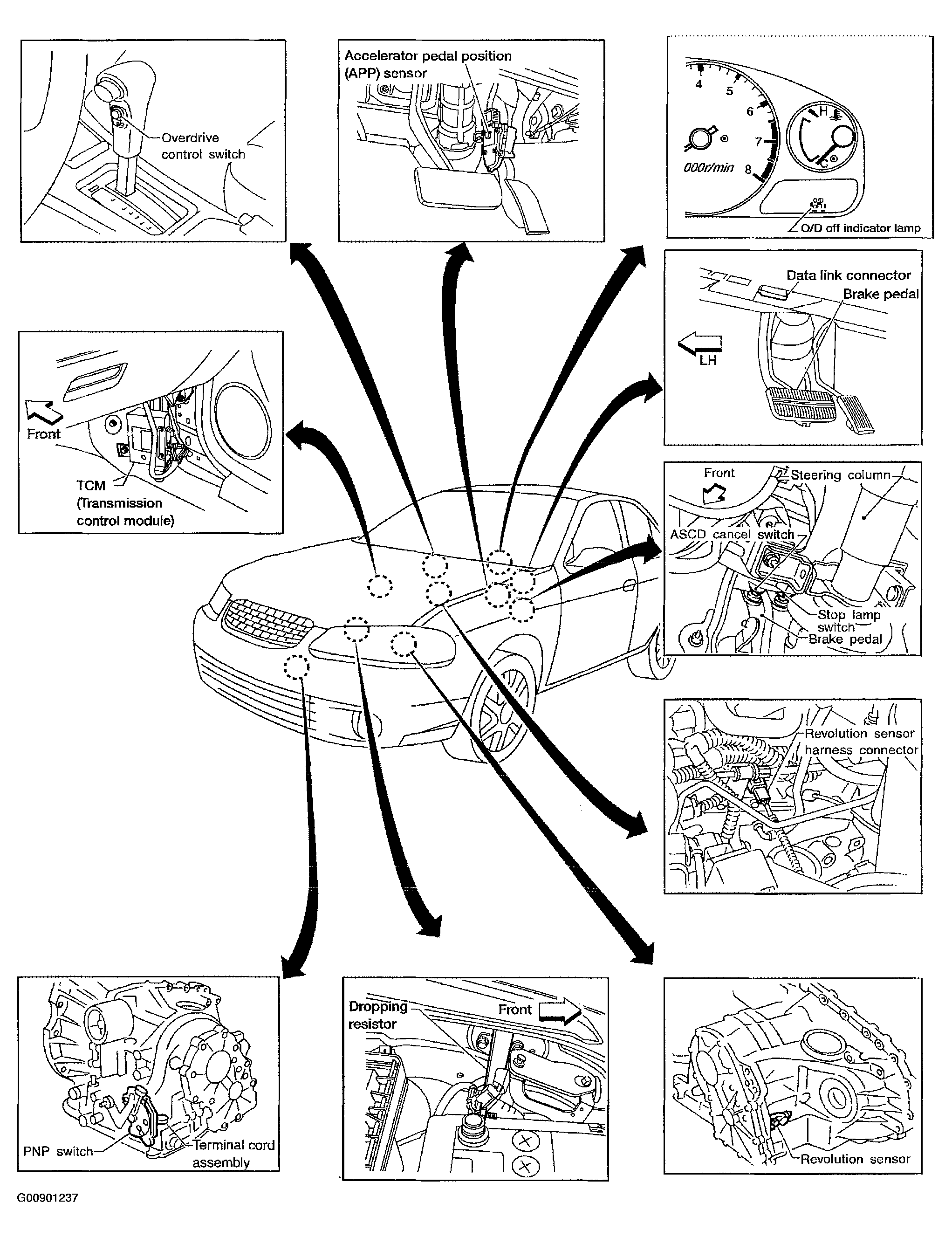

Fig 1: Identifying A/T Electrical Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
