Self-Diagnostic Procedure (With Consult-II)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

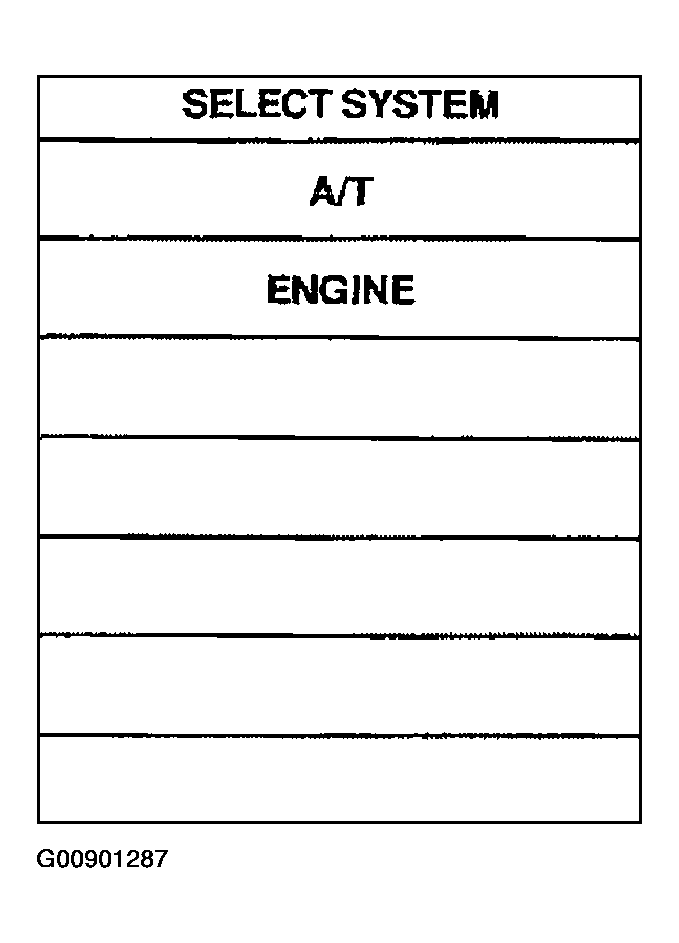

Turn on CONSULT-II and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground circuit. Refer to TROUBLE DIAGNOSIS FOR POWER SUPPLY , POWER DISTRIBUTION , GROUND DISTRIBUTION and TRANSMISSION .

Fig 1: Consult II Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF DIAGNOSIS".
Display shows malfunction experienced since the last erasing operation.

CONSULT-II performs "Real Time Diagnosis".

Also, any malfunction detected while in this mode will be displayed at real time.

Fig 2: Consult II Display (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
