Data Monitor Mode (A/T)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

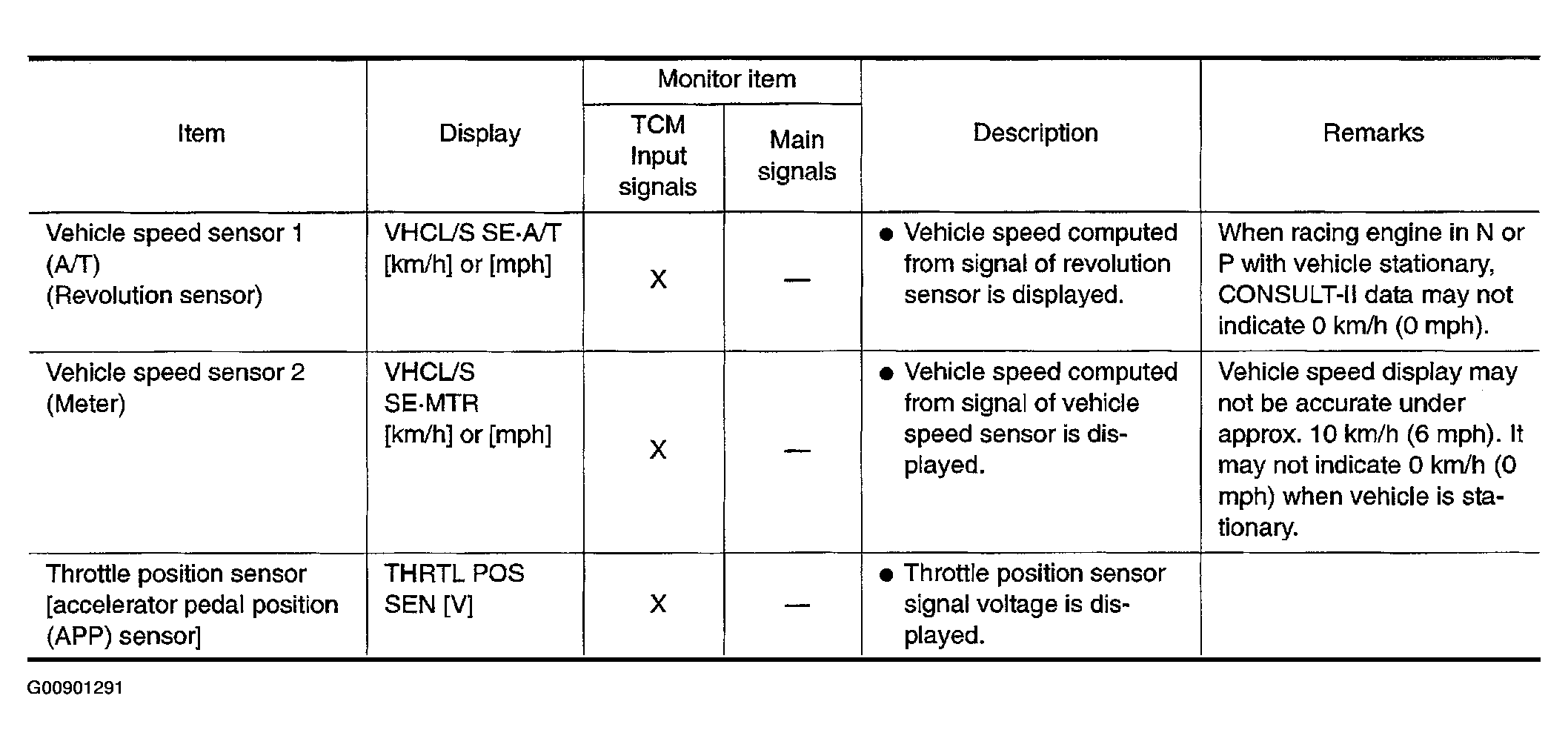

Fig 1: A/T Data Monitor Mode Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

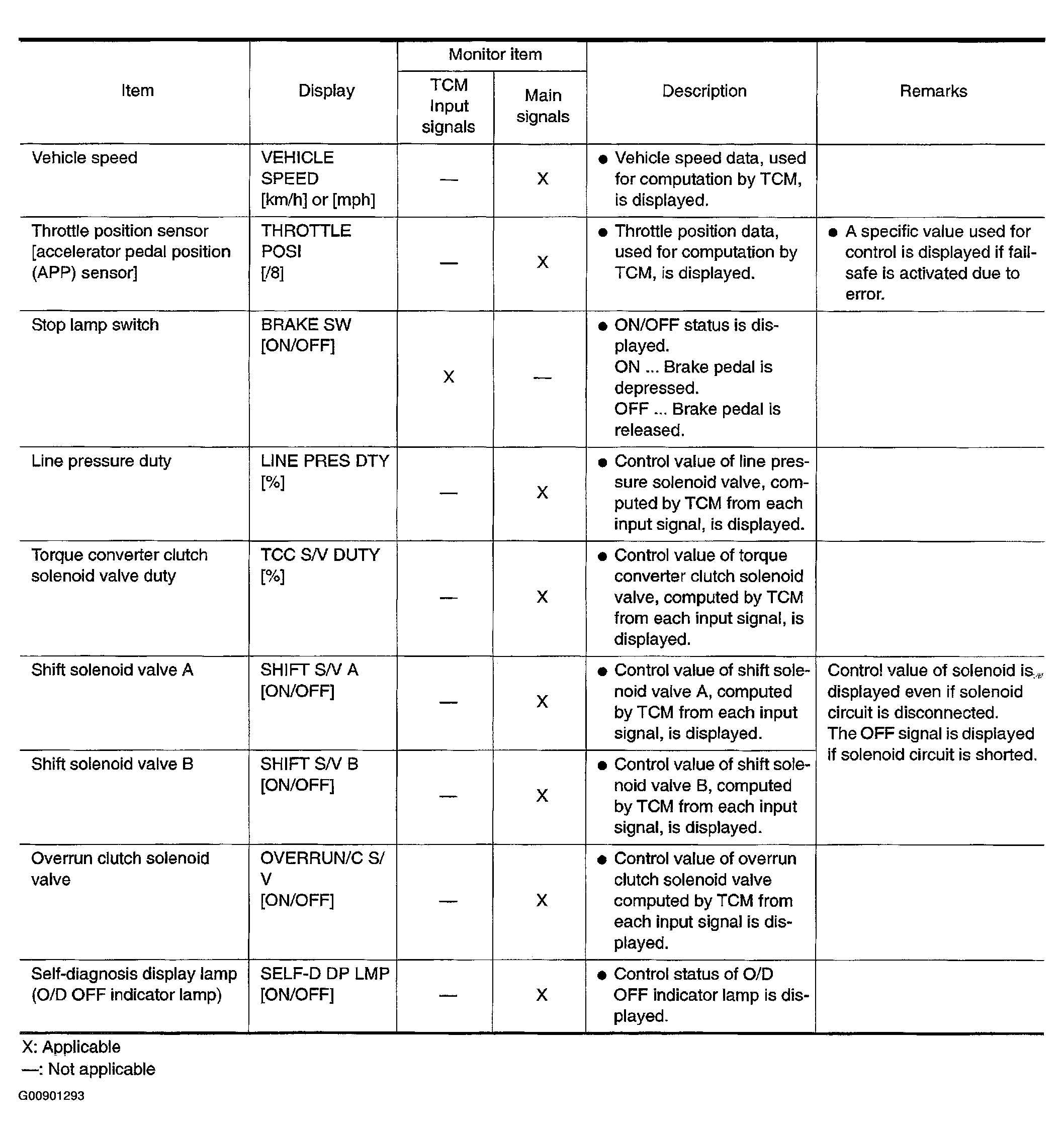

Fig 2: A/T Data Monitor Mode Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

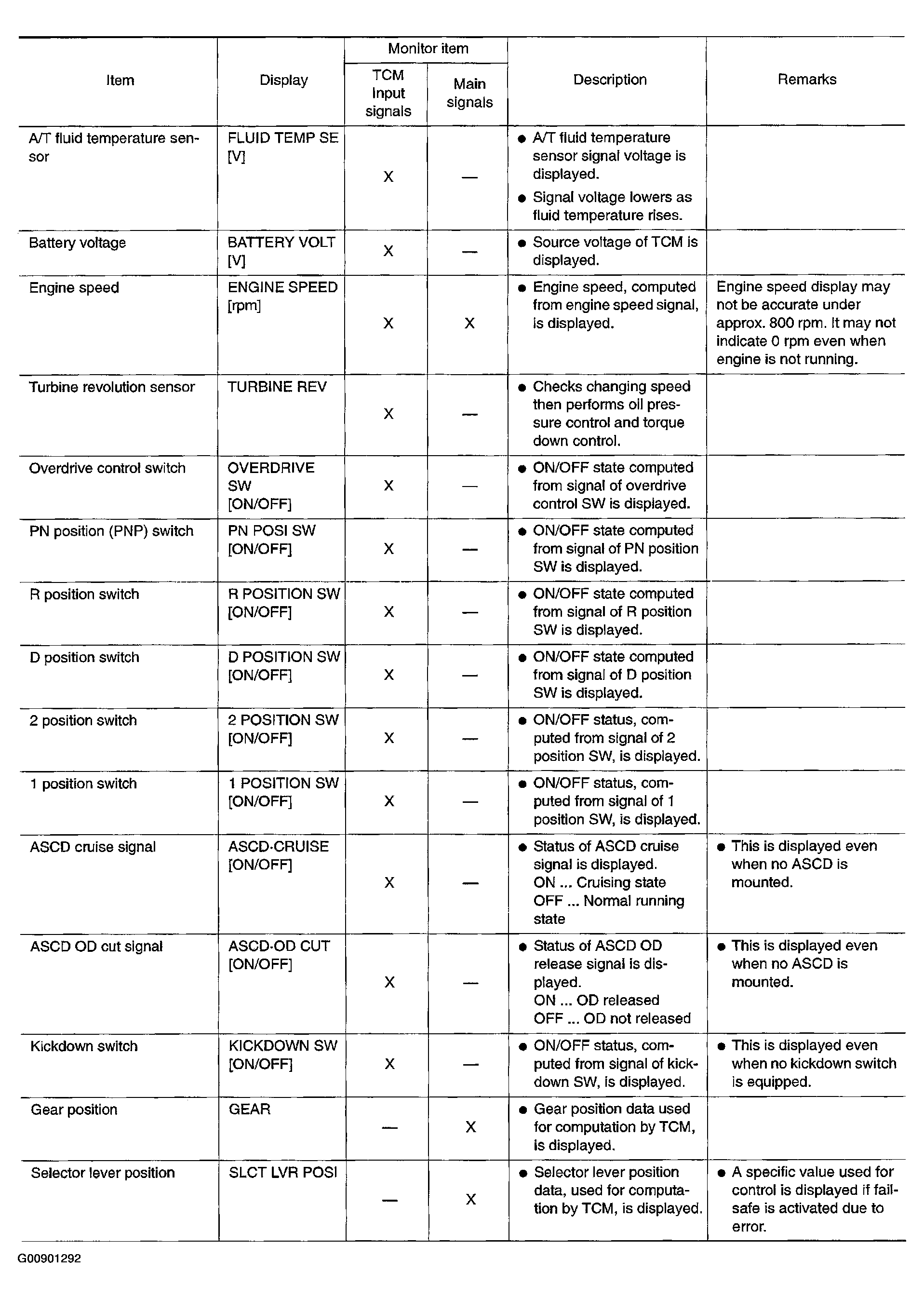

Fig 3: A/T Data Monitor Mode Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
