With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to ON position. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  3. Start engine and wait for at least 6 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

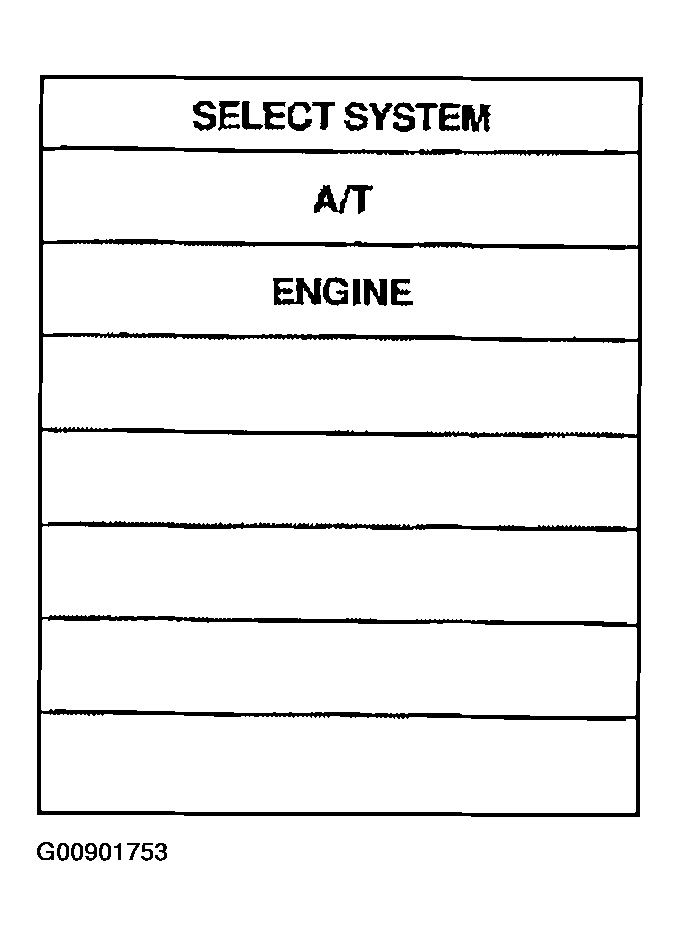

Fig 1: Consult II Display
G00901753Courtesy of NISSAN MOTOR CO., U.S.A.
