Turbine Revolution Sensor

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

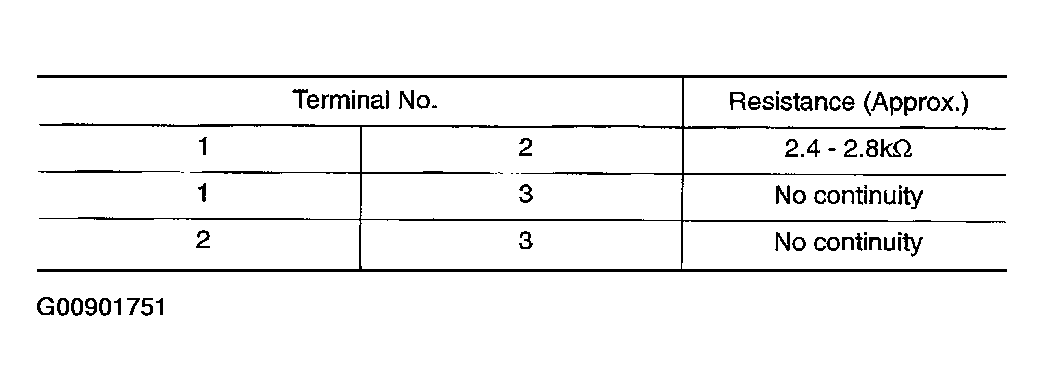

Fig 1: Checking Turbine Revolution Sensor Resistance (1 Of 2)
G00901751Courtesy of NISSAN MOTOR CO., U.S.A.

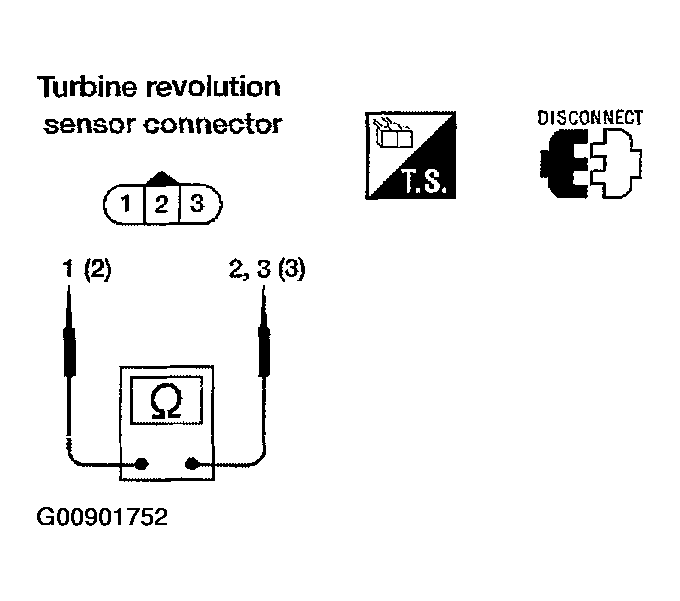

Fig 2: Checking Turbine Revolution Sensor Resistance (2 Of 2)
G00901752Courtesy of NISSAN MOTOR CO., U.S.A.
