With Consult-II
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

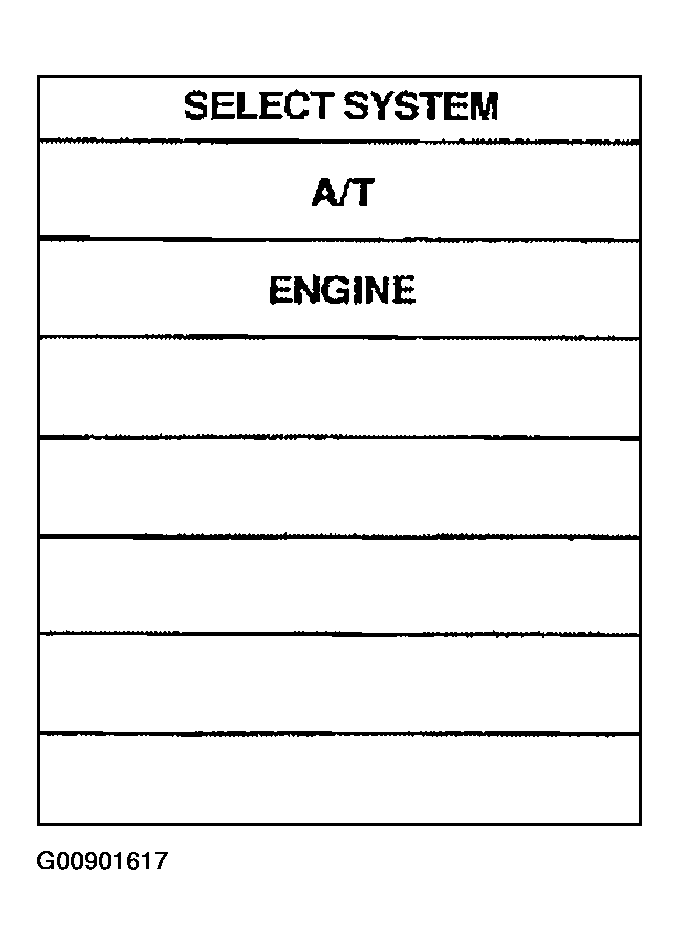

- Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

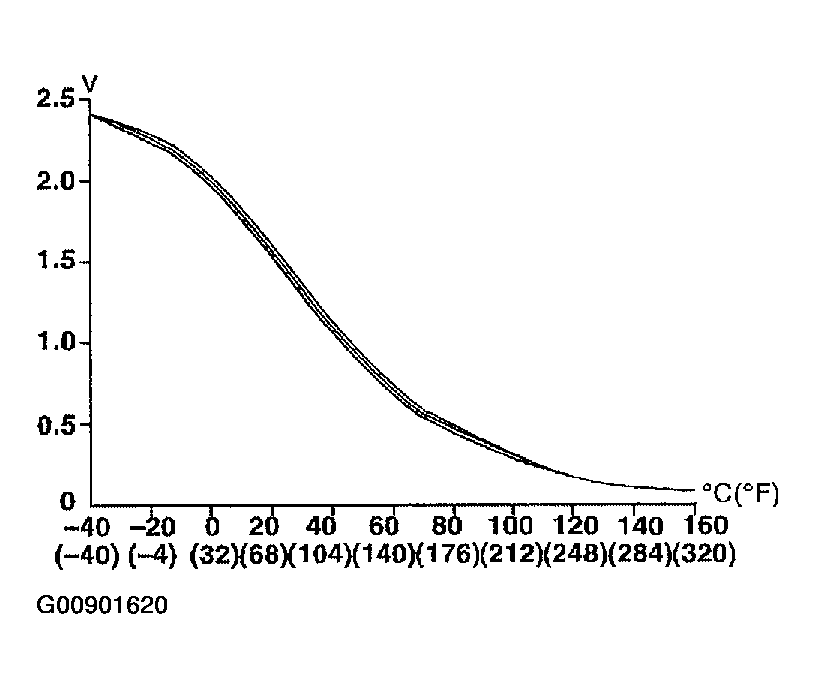

- Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).

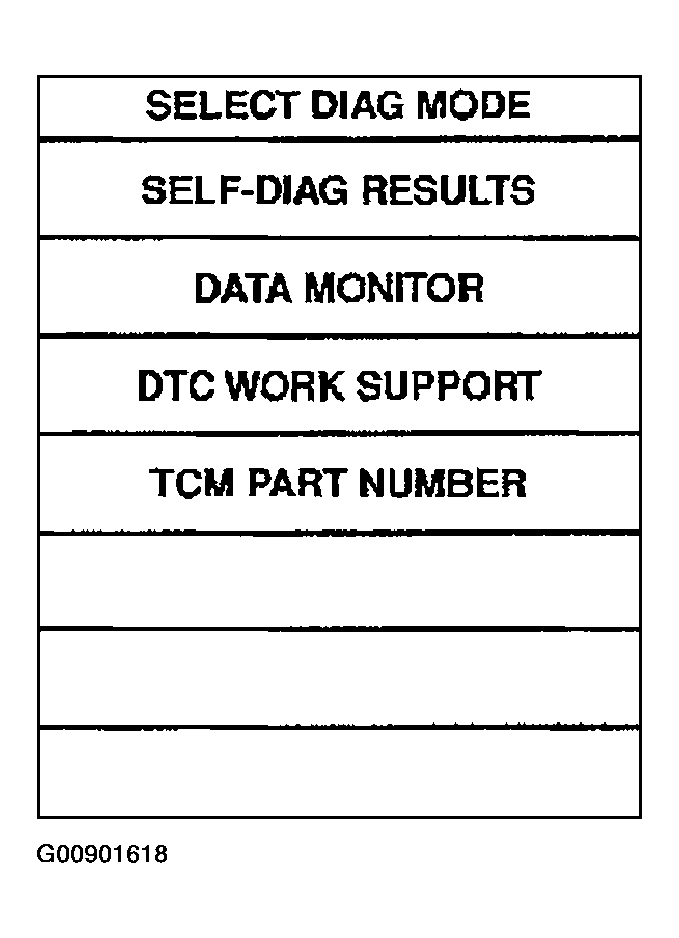

- Select "2ND GR FNCTN P0732" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
- Accelerate vehicle to 63 to 68 km/h (39 to 42 MPH) under the following condition and release the accelerator pedal completely.
THROTTLE POSI: Less than 1.0/8
Selector lever: D position (O/D ON)
- Check that "GEAR" shows "3" or "4" after releasing pedal.
- Depress accelerator pedal to WOT (more than 7.0/8 of "THROTTLE POSI") quickly from a speed of 63 to 68 km/h (39 to 42 MPH) until "TESTING" changes to "STOP VEHICLE" or "COMPLETE". (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to "DIAGNOSTIC PROCEDURE ".
If "STOP VEHICLE" appears on CONSULT-II screen, go to following step.
- Check that "GEAR" shows "2" when depressing accelerator pedal to WOT.
- If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS" for "ENGINE". In case a 1st trip DTC other than P0732 is shown, refer to applicable TROUBLE DIAGNOSIS FOR DTC.
- Stop vehicle.

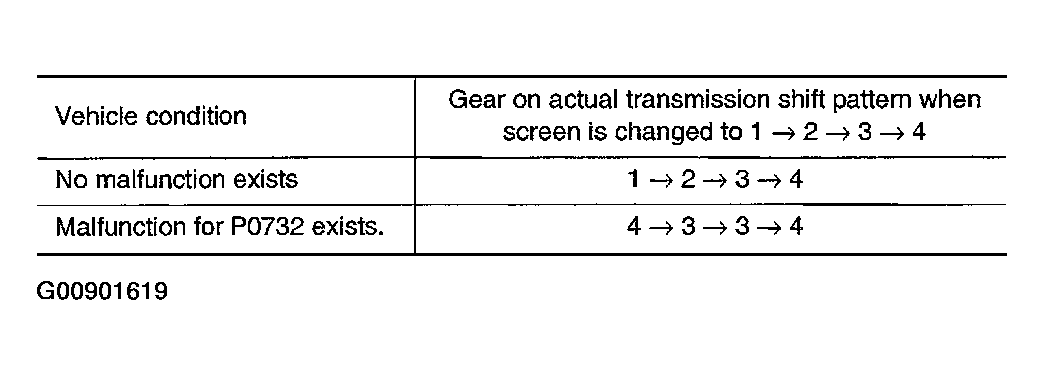

- Follow the instruction displayed. (Check for normal shifting referring to the table below.)
- Make sure that "OK" is displayed. (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".)
Refer to "DIAGNOSTIC PROCEDURE ".
Refer to "SHIFT SCHEDULE ".
