Wiring Diagram - AT - VSSA/T

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see SYSTEM WIRING DIAGRAMS - GROUND DISTRIBUTION and POWER DISTRIBUTION .

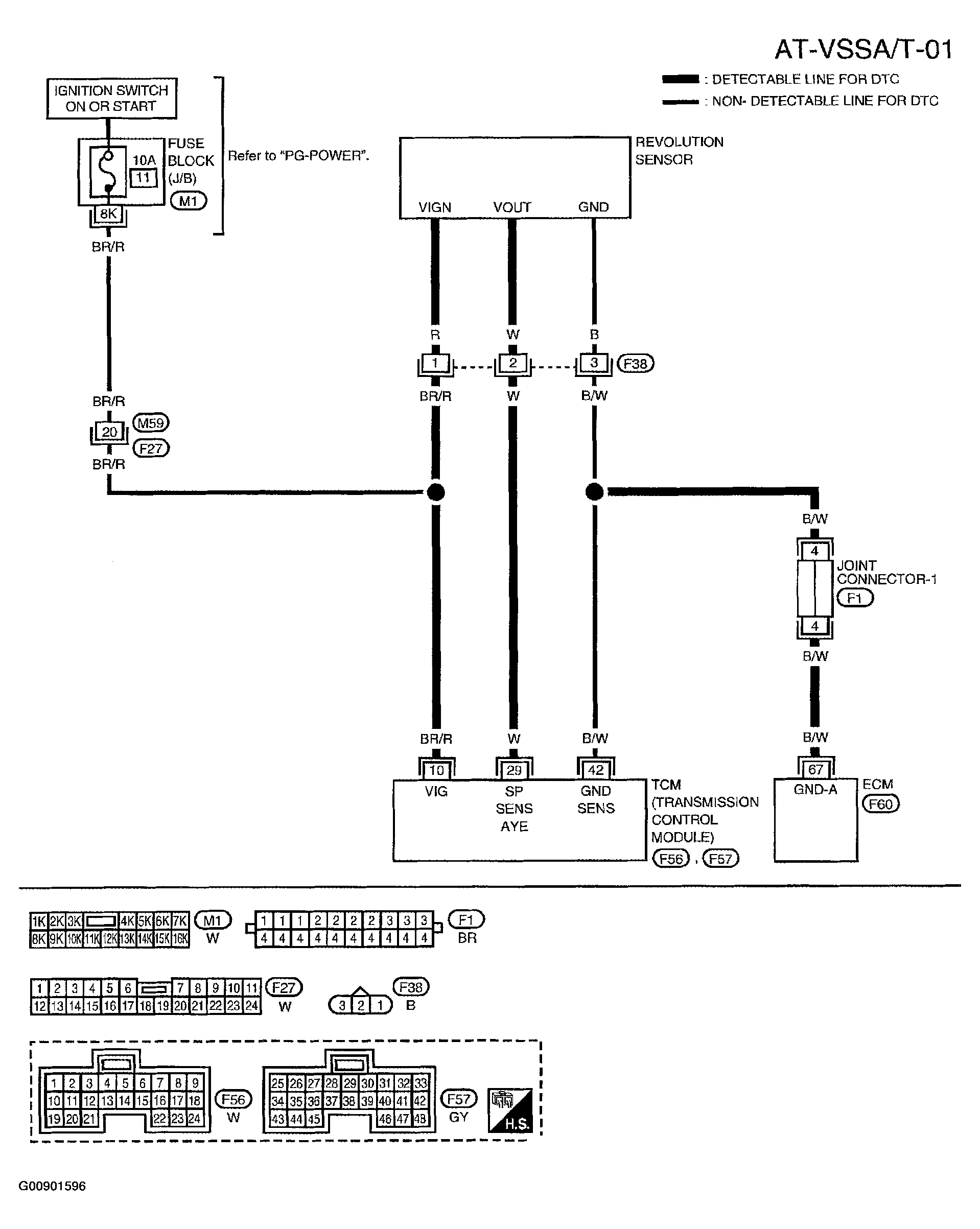

Fig 1: Wiring Diagram - AT-VSSA/T-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL

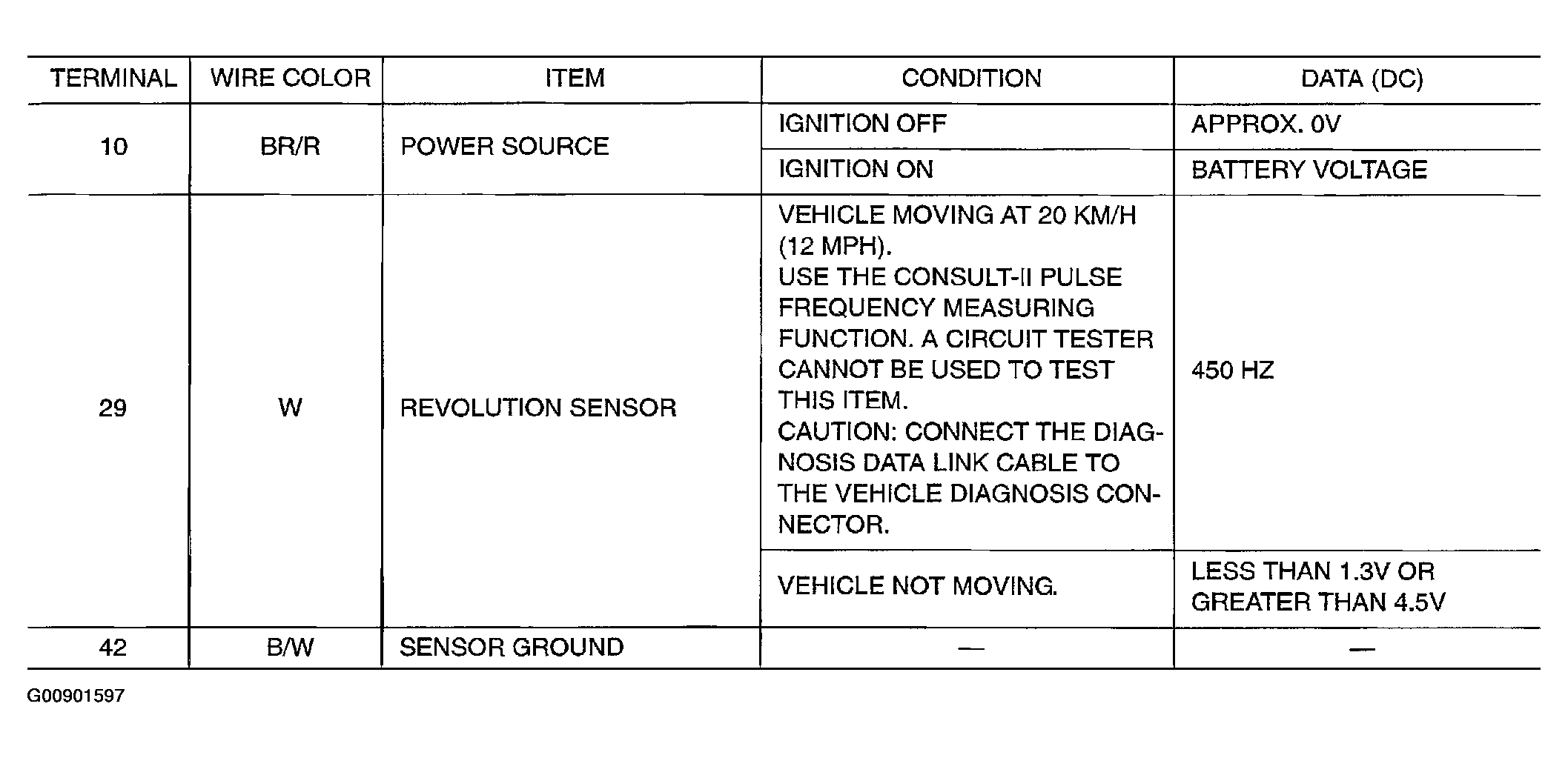

Fig 2: Terminal And Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
