With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

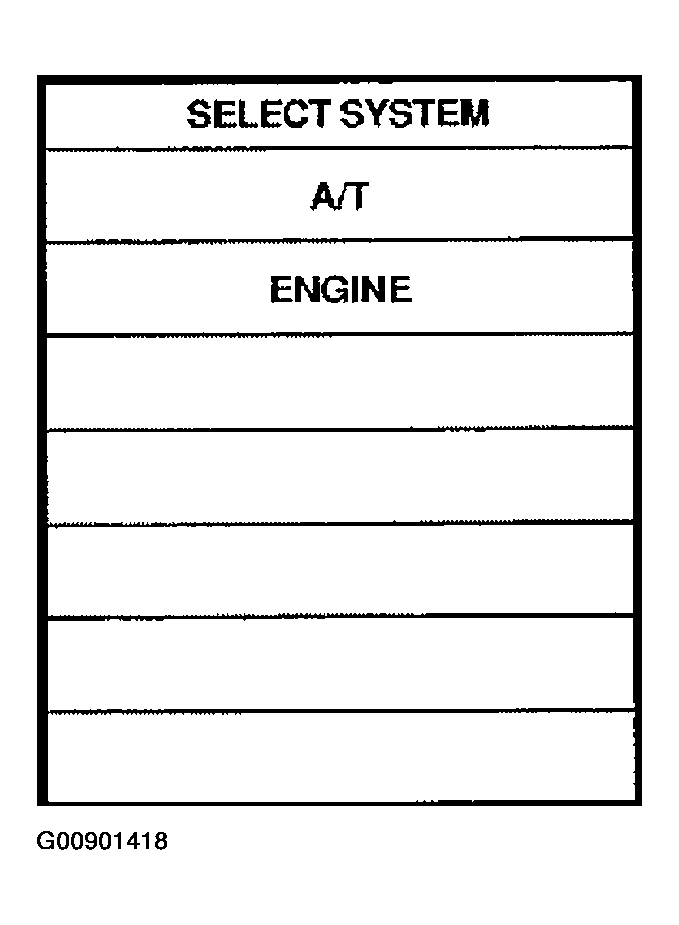

    Fig 1: Consult II Display (1 Of 2)
    G00901418Courtesy of NISSAN MOTOR CO., U.S.A.

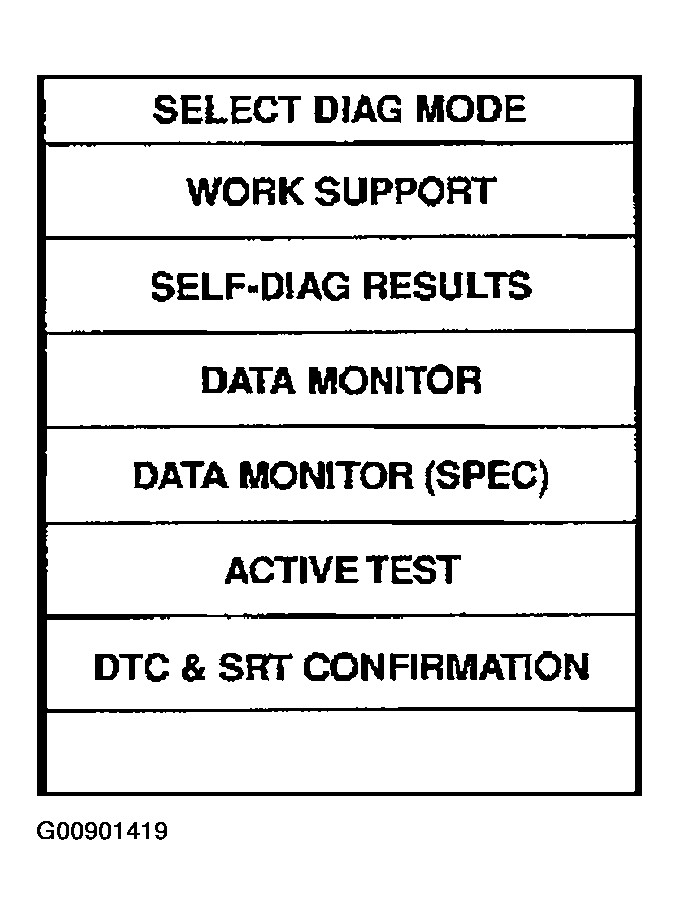

    Fig 2: Consult II Display (2 Of 2)
    G00901419Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)

    CMPS.RPM (REF): 450 RPM or more

    VHCL SPEED SE: 10 km/h (6 MPH) or more

    THRTL POS SEN: More than 1.2V

    Selector lever: D position (O/D ON)
