Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

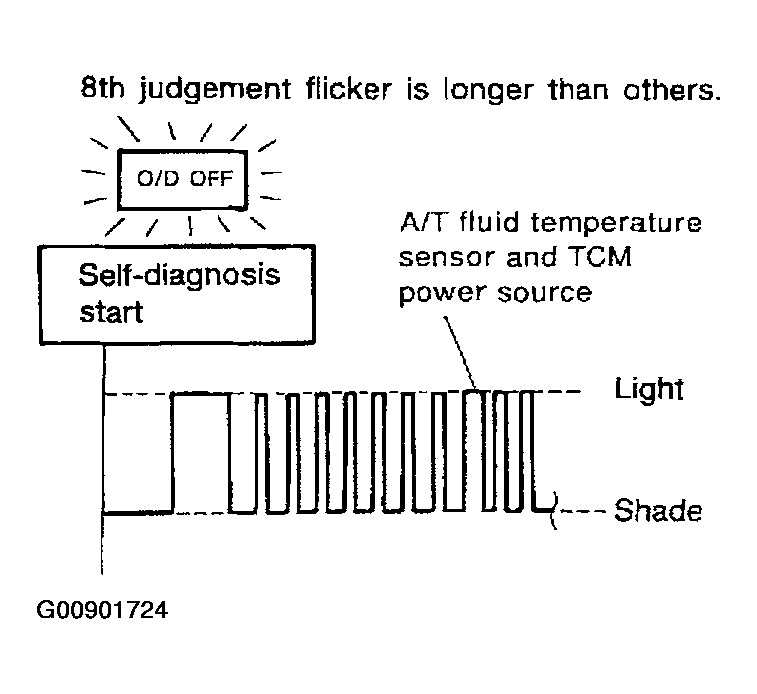

Fig 1: Identifying Blinking Pattern Of 8th Judgement Flicker
G00901724Courtesy of NISSAN MOTOR CO., U.S.A.
