With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

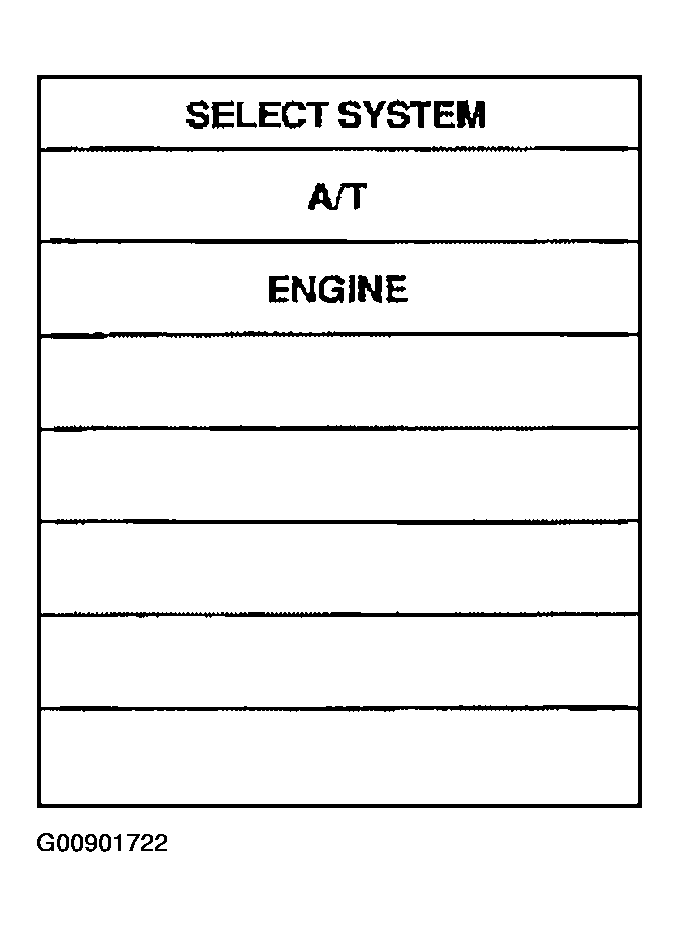

    Fig 1: Consult II Display (1 Of 2)
    G00901722Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle under the following conditions:

    Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

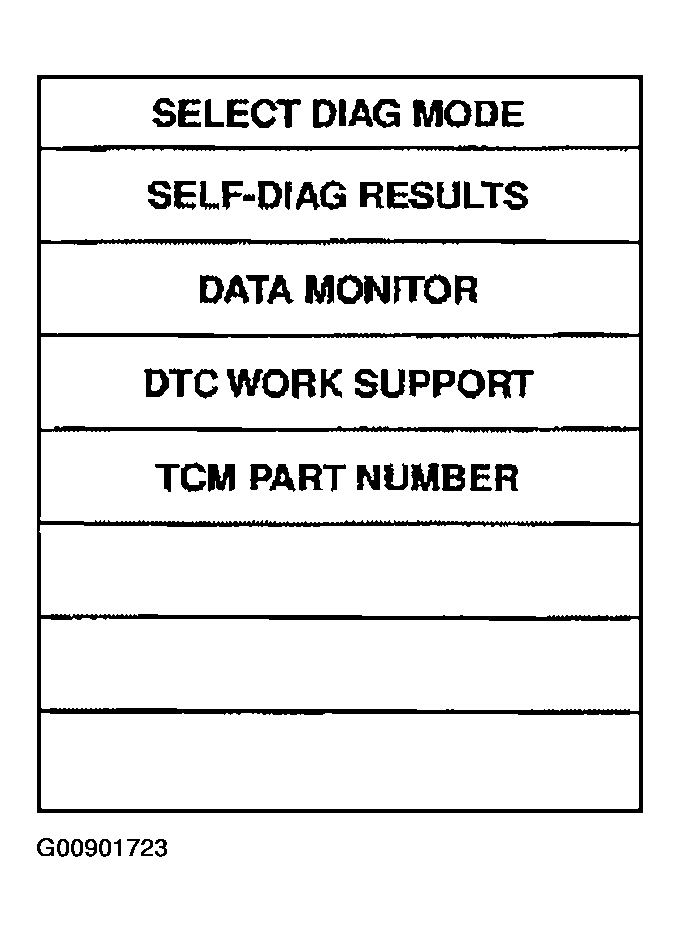

Fig 2: Consult II Display (2 Of 2)
G00901723Courtesy of NISSAN MOTOR CO., U.S.A.
