Output Shaft End Play

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

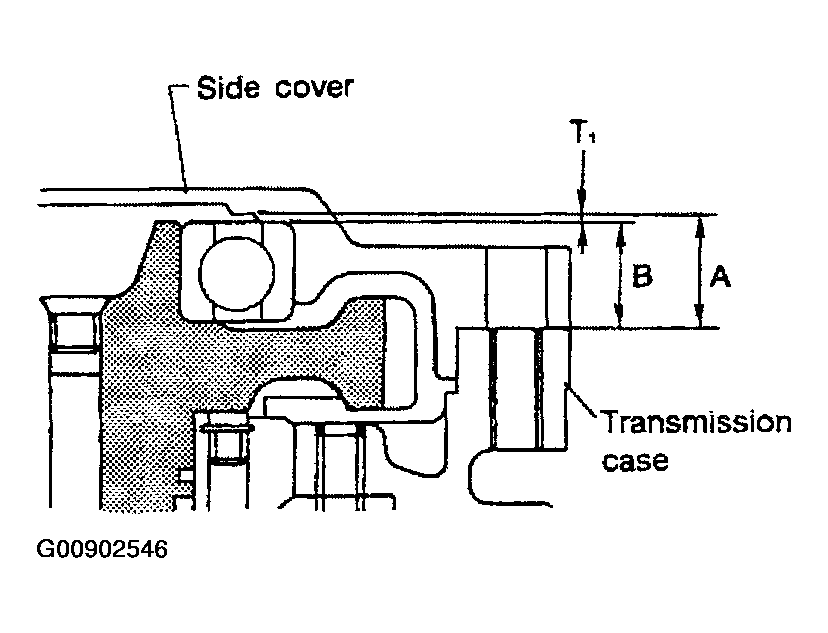

Fig 1: Measuring Clearance Between Side Cover And End Of Output Shaft Bearing
G00902546Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Install bearing retainer for output shaft.

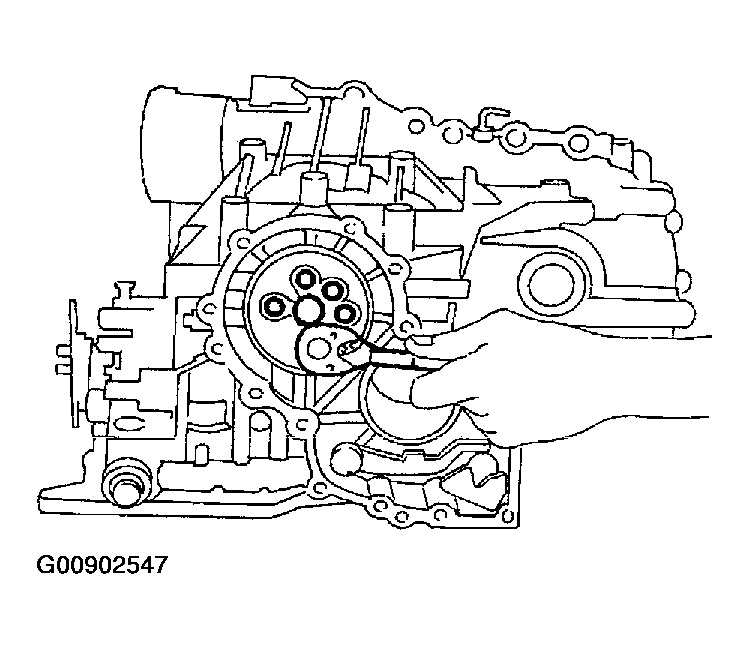

    Fig 2: Installing Bearing Retainer For Output Shaft
    G00902547Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install output shaft thrust needle bearing on bearing retainer.

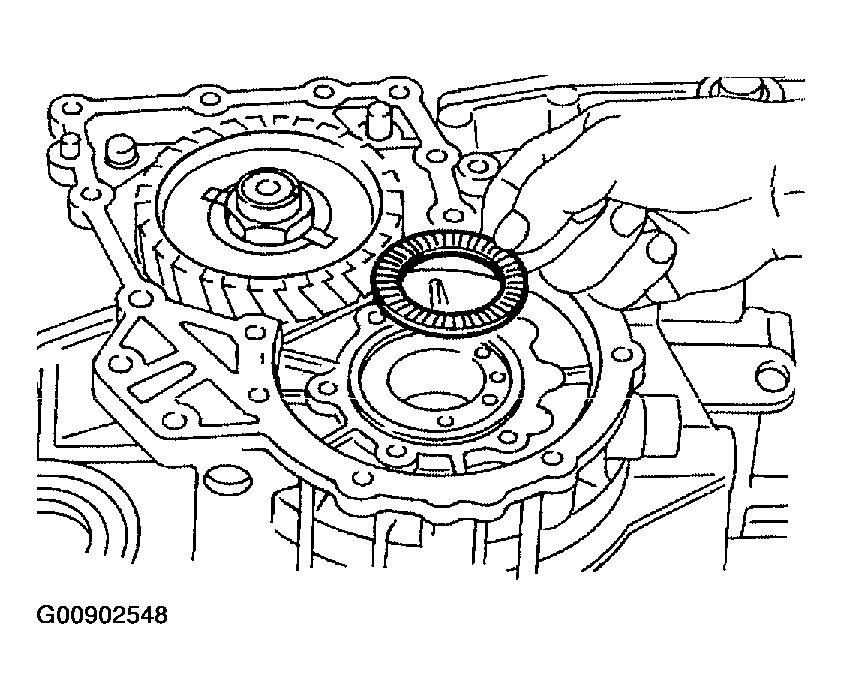

    Fig 3: Installing Output Shaft Thrust Needle Bearing On Bearing Retainer
    G00902548Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install output shaft on transmission case.

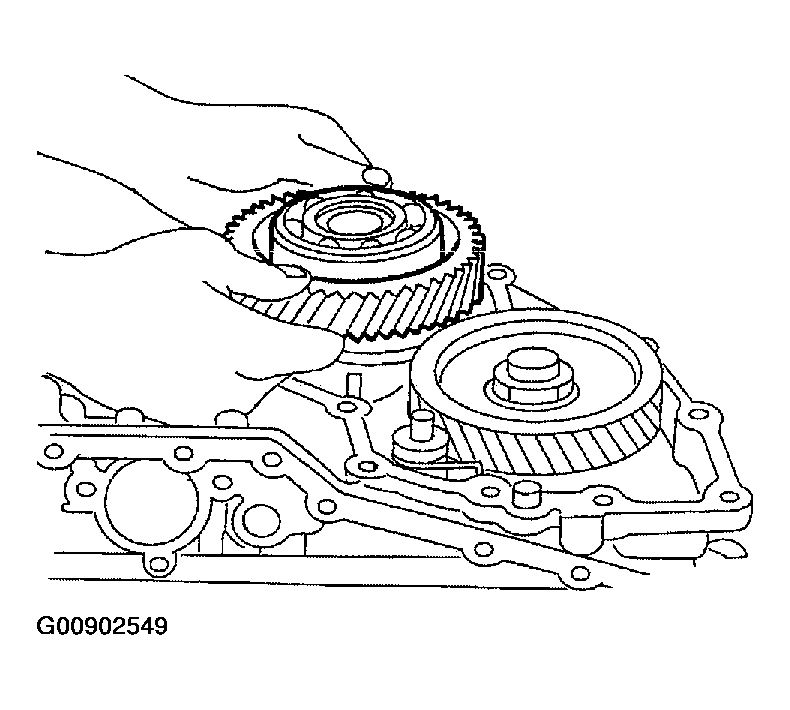

    Fig 4: Installing Output Shaft On Transmission Case
    G00902549Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Measure dimensions "ell1" and "ell2" at side cover and then calculate dimension "A".
    • Measure dimension "ell1" and "ell2" in at least two places.
      1. "A": Distance between transmission case fitting surface and adjusting shim mating surface.
      2. A = ell1 - ell2 ell2: Height of gauge

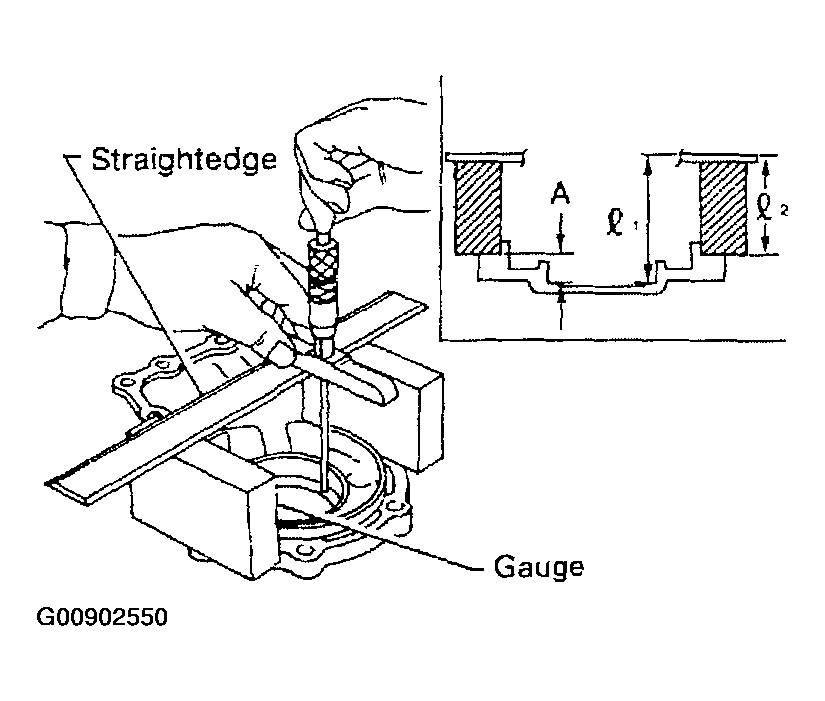

    Fig 5: Identifying Distance Between Transmission Case Fitting Surface And Adjusting Shim Mating Surface
    G00902550Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Measure dimensions "ell2" and "ell3" and then calculate dimension "B".
    • Measure "ell2" and "ell3" in at least two places.
      1. "B": Distance between the end of output shaft bearing outer race and the side cover fitting surface of transmission case.
      2. B = ell2 - ell3 ell2: Height of gauge

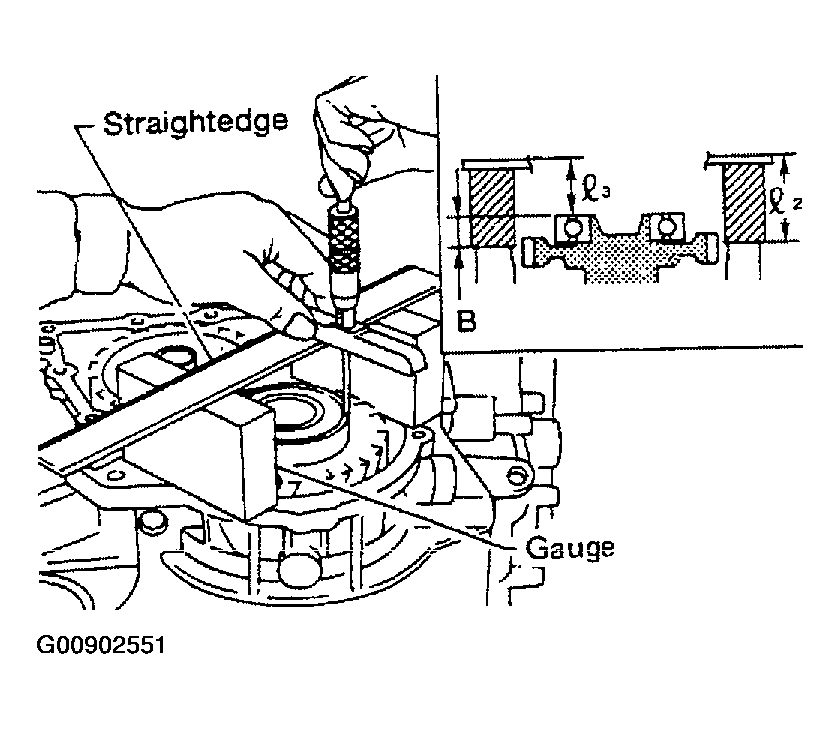

    Fig 6: Identifying Distance Between End Of Output Shaft Bearing Outer Race And Side Cover Fitting Surface
    G00902551Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select proper thickness of adjusting shim so that output shaft end play (clearance between side cover and output shaft bearing) is within specifications.
    1. Output shaft end play (A - B): 0 - 0.15 mm (0 - 0.0059 in)
    2. Output shaft end play adjusting shims:  Refer to "OUTPUT SHAFT ADJUSTING SHIMS ".
  7. Install adjusting shim on output shaft bearing.

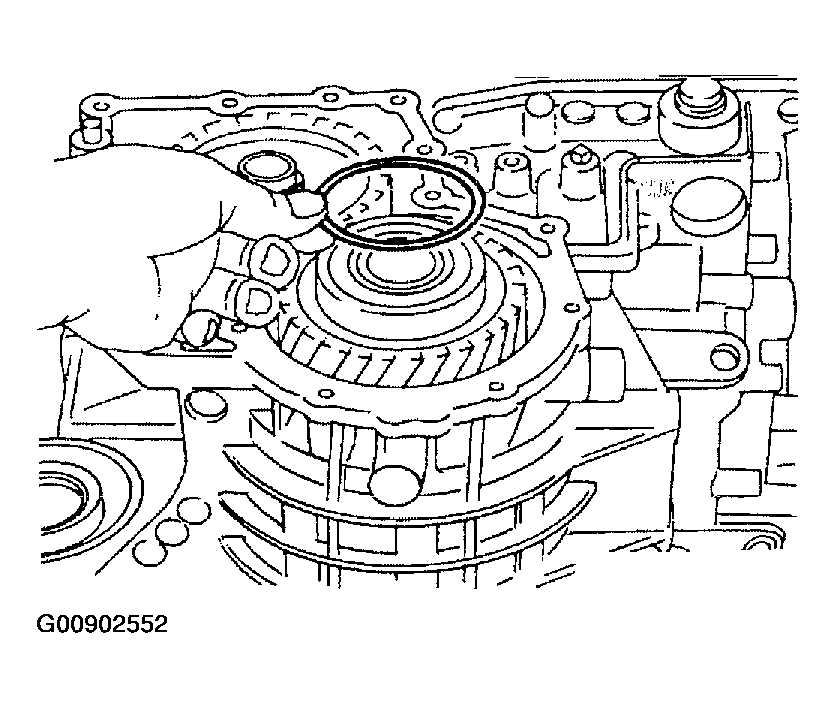

Fig 7: Installing Adjusting Shim
G00902552Courtesy of NISSAN MOTOR CO., U.S.A.
