Differential Side Bearing Preload

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install differential side bearing outer race without adjusting shim on transmission case.
  2. Install differential side bearing outer race on converter housing.

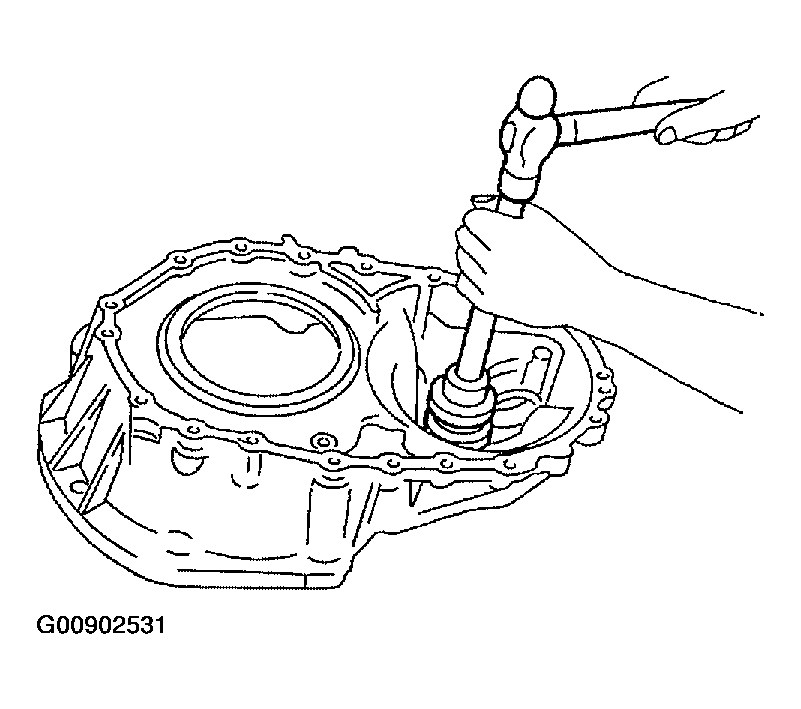

    Fig 1: Installing Differential Side Bearing Outer Race On Converter Housing
    G00902531Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place final drive assembly on transmission case.
  4. Install transmission case on converter housing. Tighten transmission case fixing bolts to the specified torque. Refer to "OVERHAUL ".

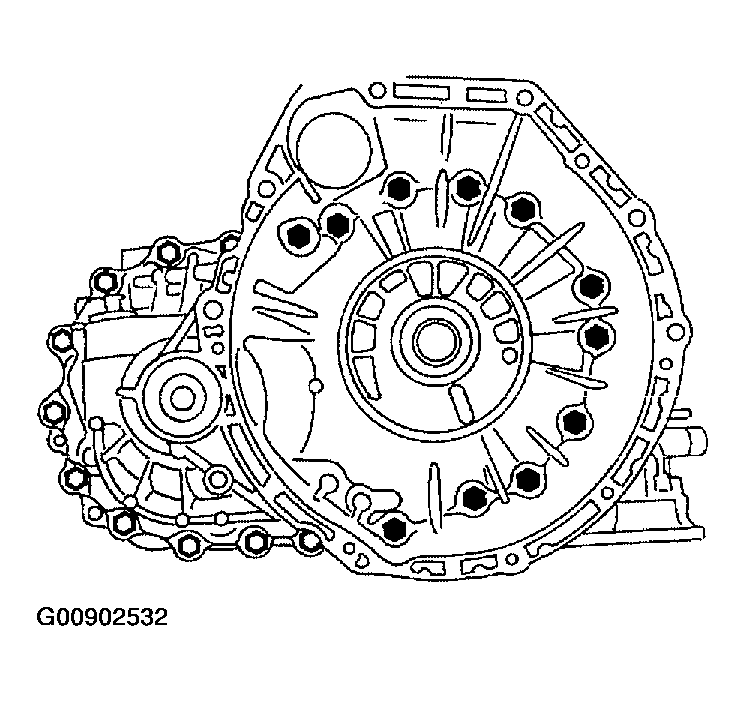

    Fig 2: Installing Transmission Case On Converter Housing
    G00902532Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Attach dial indicator on differential case at converter housing side.
  6. Insert Tool into differential side gear from transmission case side.
  7. Move Tool up and down and measure dial indicator deflection.
  8. Select proper thickness of differential side bearing adjusting shim(s).

    Suitable shim thickness = Dial indicator deflection + Specified bearing preload

    1. Differential side bearing preload adjusting shim:  Refer to "DIFFERENTIAL SIDE BEARING PRELOAD ADJUSTING SHIMS ".
    2. Bearing preload: 0.05 - 0.09 mm (0.0020 - 0.0035 in)

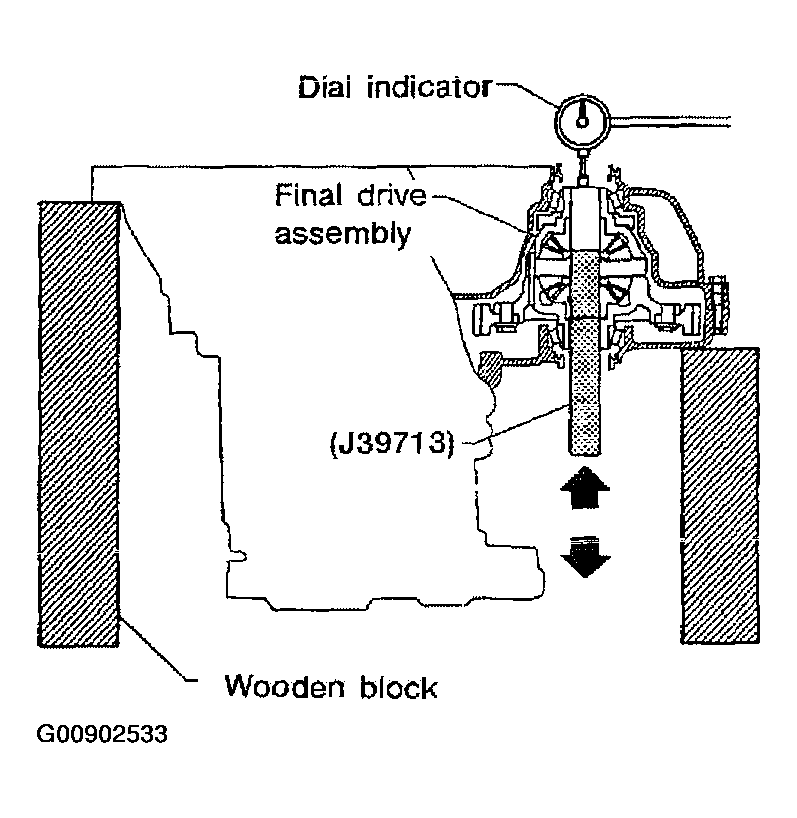

    Fig 3: Identifying Bearing Preload
    G00902533Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove converter housing from transmission case.
  10. Remove final drive assembly from transmission case.
  11. Remove differential side bearing outer race from transmission case.
  12. Reinstall differential side bearing outer race and shim(s) selected from SDS table on transmission case.
  13. Reinstall converter housing on transmission case and tighten transmission case fixing bolts to the specified torque. Refer to "OVERHAUL ".

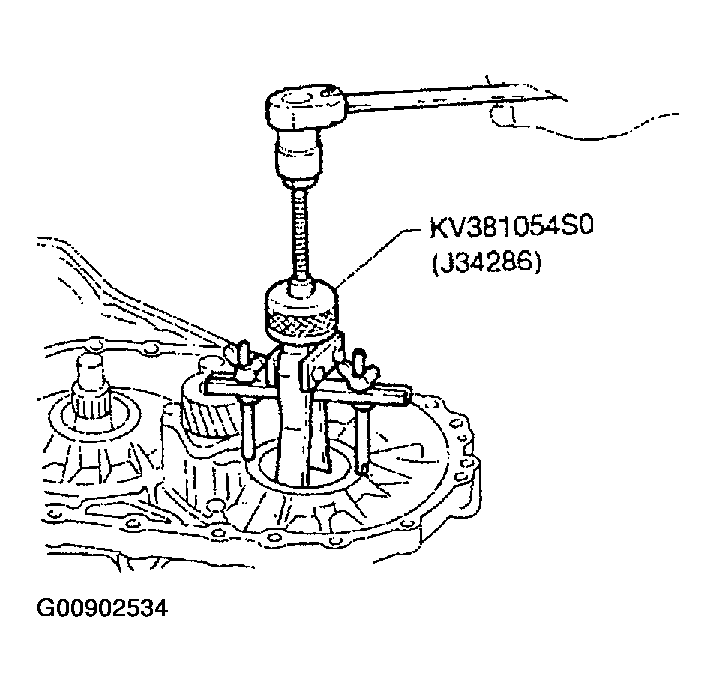

    Fig 4: Removing Final Drive Assembly From Transmission Case
    G00902534Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Insert Tool and measure turning torque of final drive assembly.
    • Turn final drive assembly in both directions several times to seat bearing rollers correctly.
      1. Turning torque of final drive assembly (New bearing): 0.78 - 1.37 N.m (8.0 - 14.0 kg-cm, 6.9 - 12.2 in-lb)
    • When old bearing is used again, turning torque will be slightly less than the above.
    • Make sure torque is close to the specified range.
      1. Preload adapter: J39713

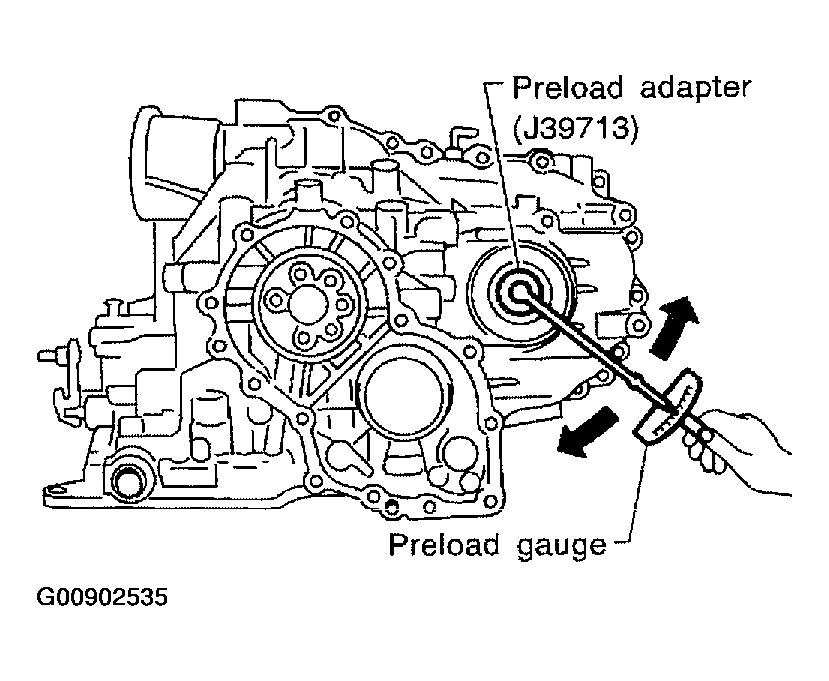

Fig 5: Measuring Turning Torque Of Final Drive Assembly
G00902535Courtesy of NISSAN MOTOR CO., U.S.A.
