TCM Terminals and Reference Value: Preparation
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

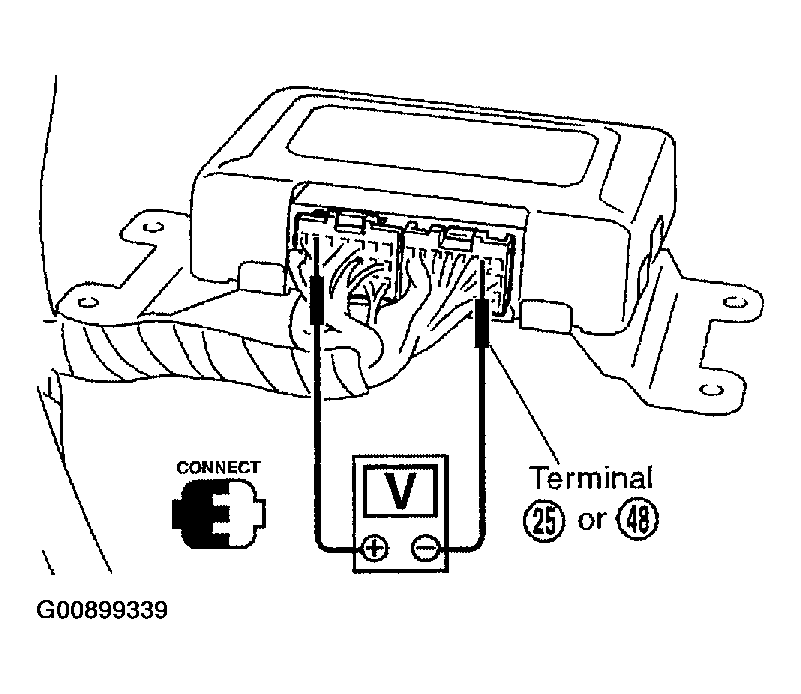

- Measure voltage between each terminal and terminal 25 or 48 by following TCM INSPECTION TABLE .
