Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections in numerical order.

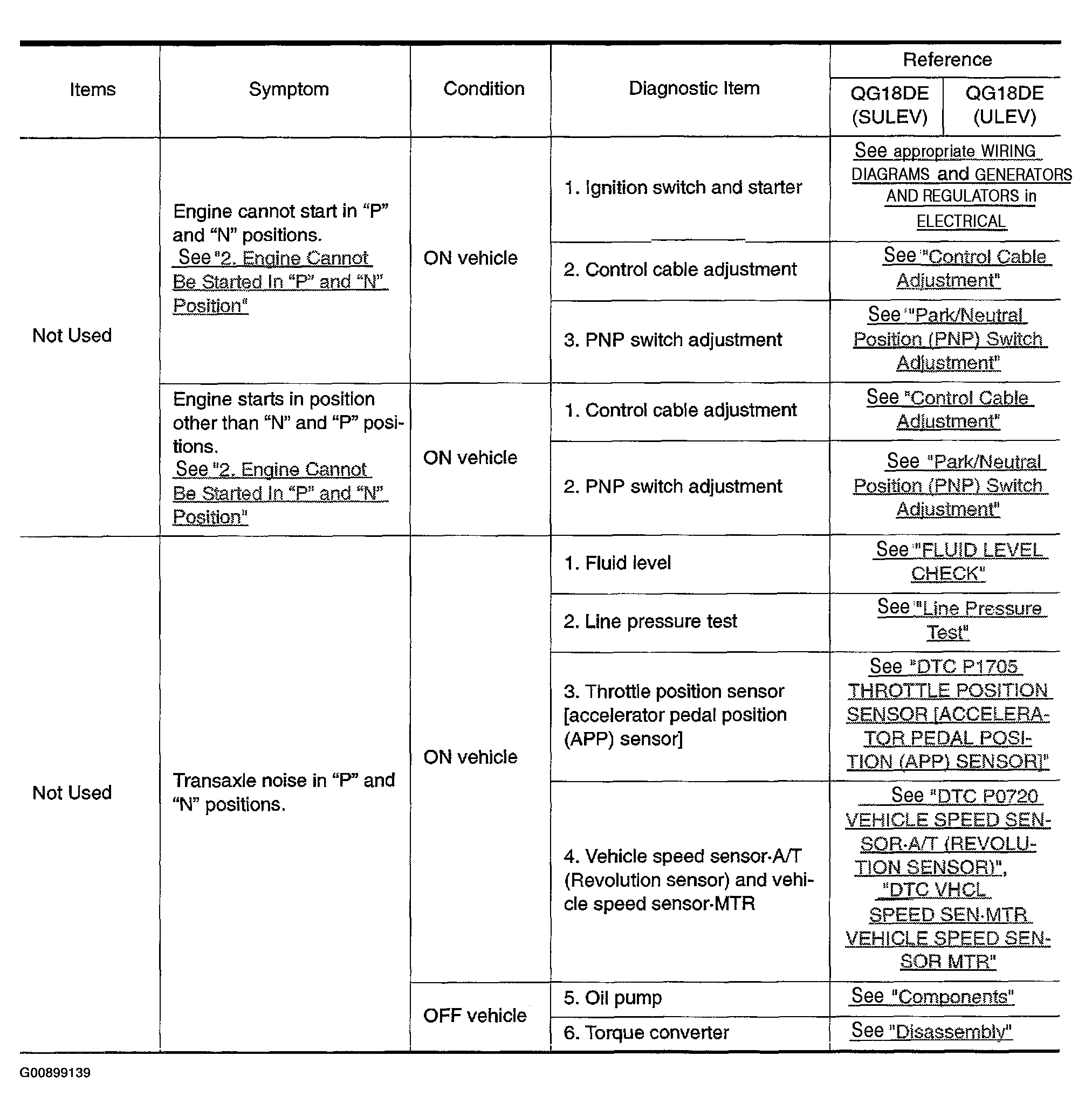

Fig 1: Symptom Chart (1 Of 25)

G00899139

Courtesy of NISSAN MOTOR CO., U.S.A.

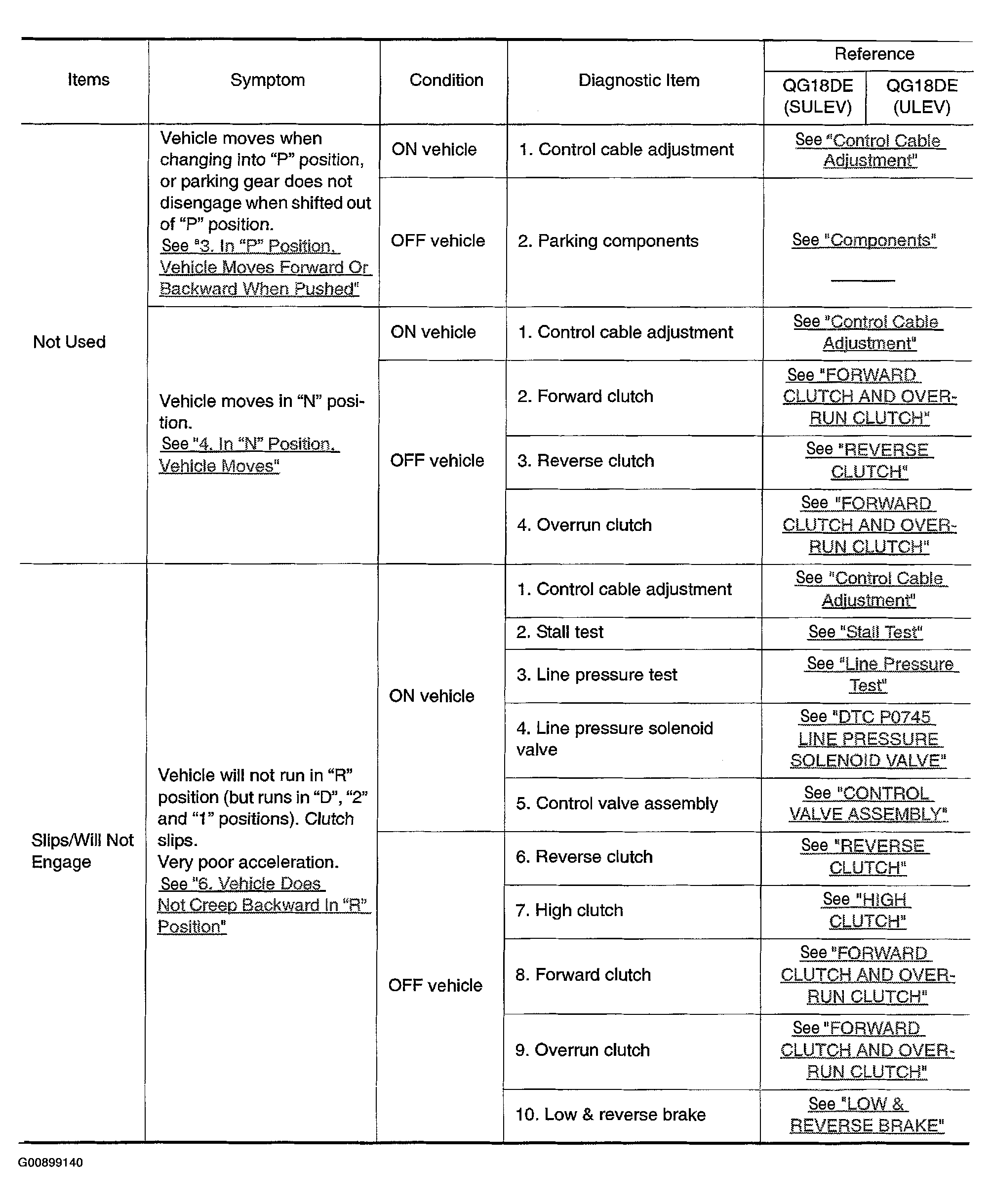

Fig 2: Symptom Chart (2 Of 25)

G00899140

Courtesy of NISSAN MOTOR CO., U.S.A.

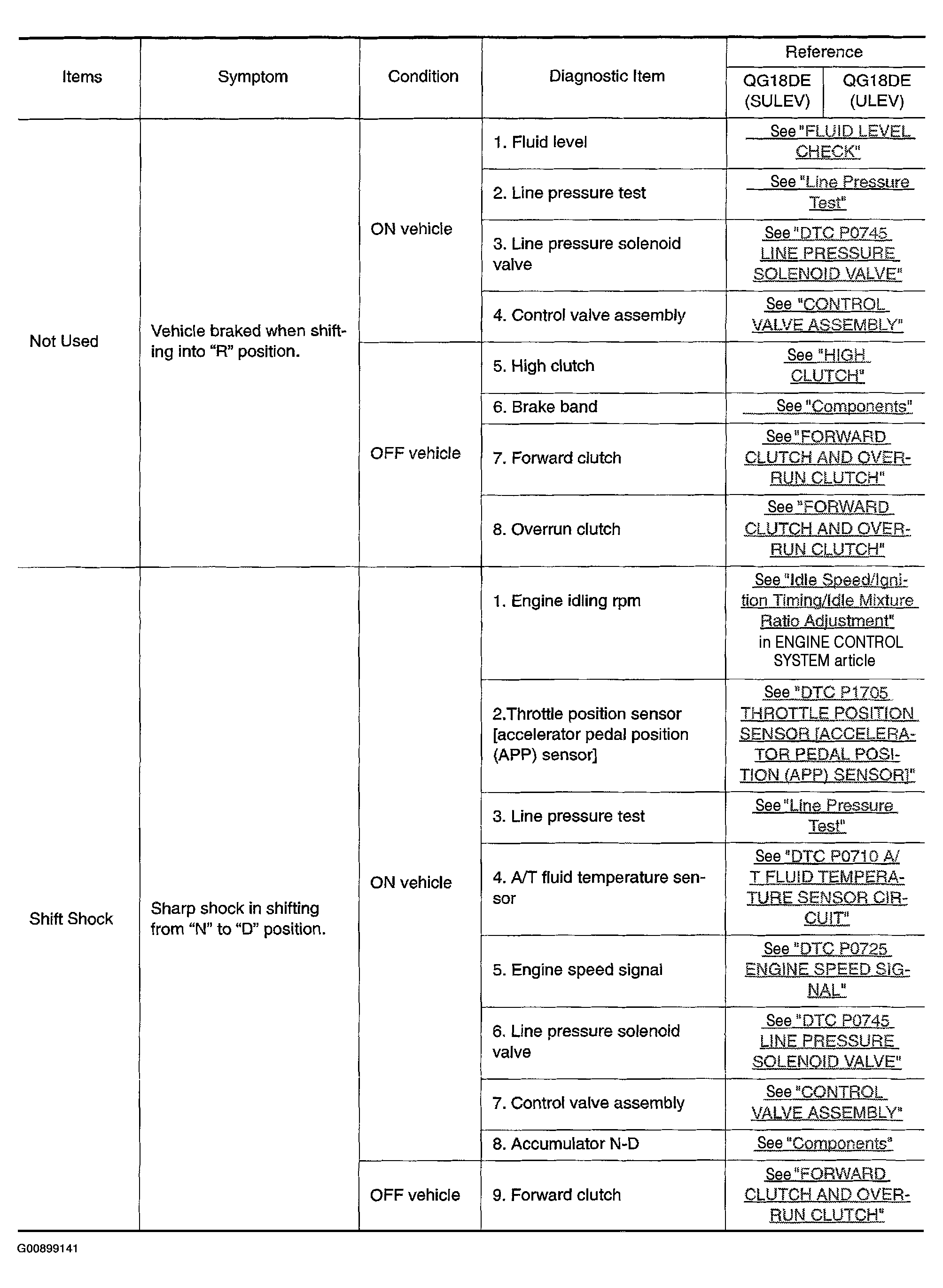

Fig 3: Symptom Chart (3 Of 25)

G00899141

Courtesy of NISSAN MOTOR CO., U.S.A.

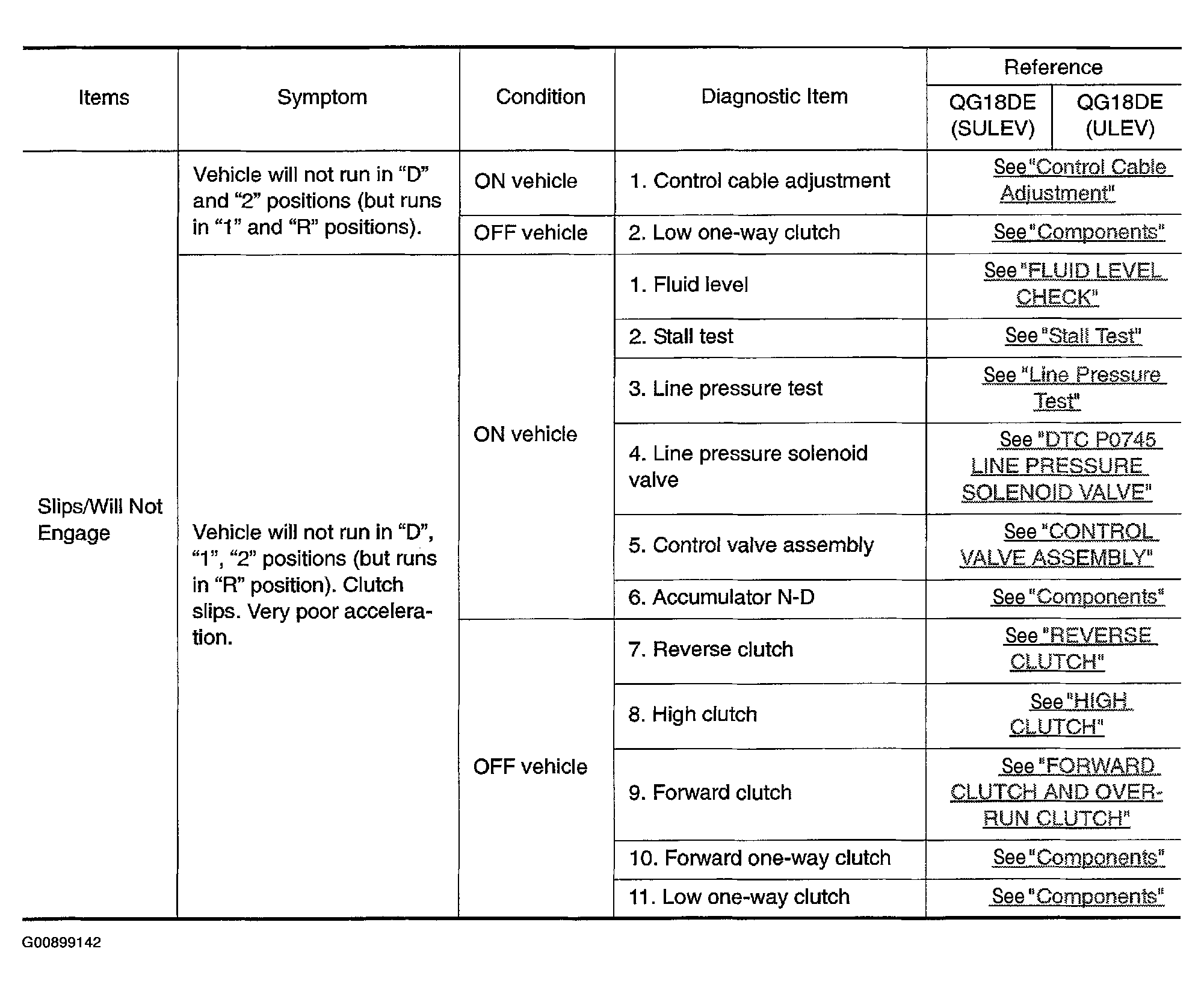

Fig 4: Symptom Chart (4 Of 25)

G00899142

Courtesy of NISSAN MOTOR CO., U.S.A.

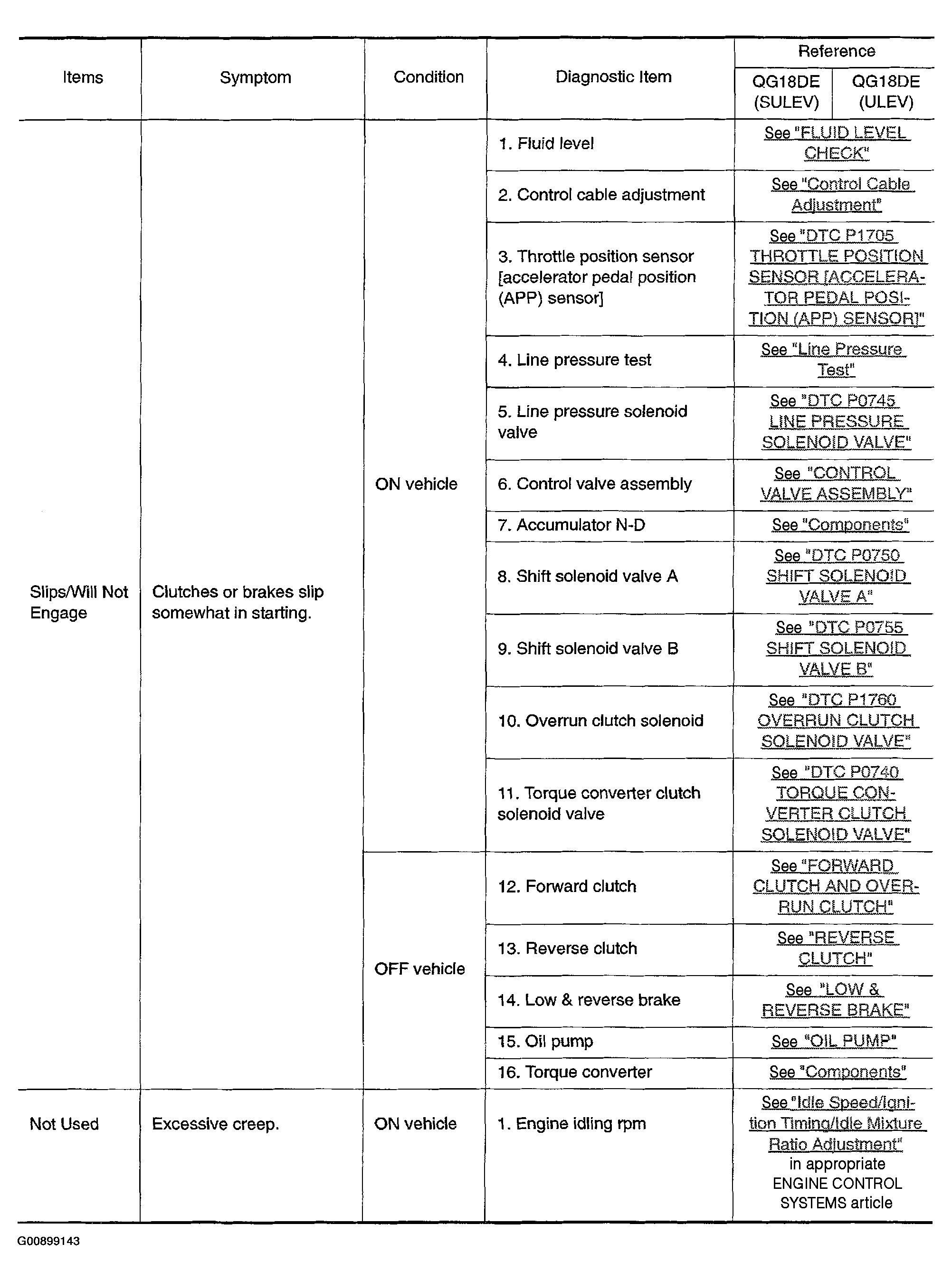

Fig 5: Symptom Chart (5 Of 25)

G00899143

Courtesy of NISSAN MOTOR CO., U.S.A.

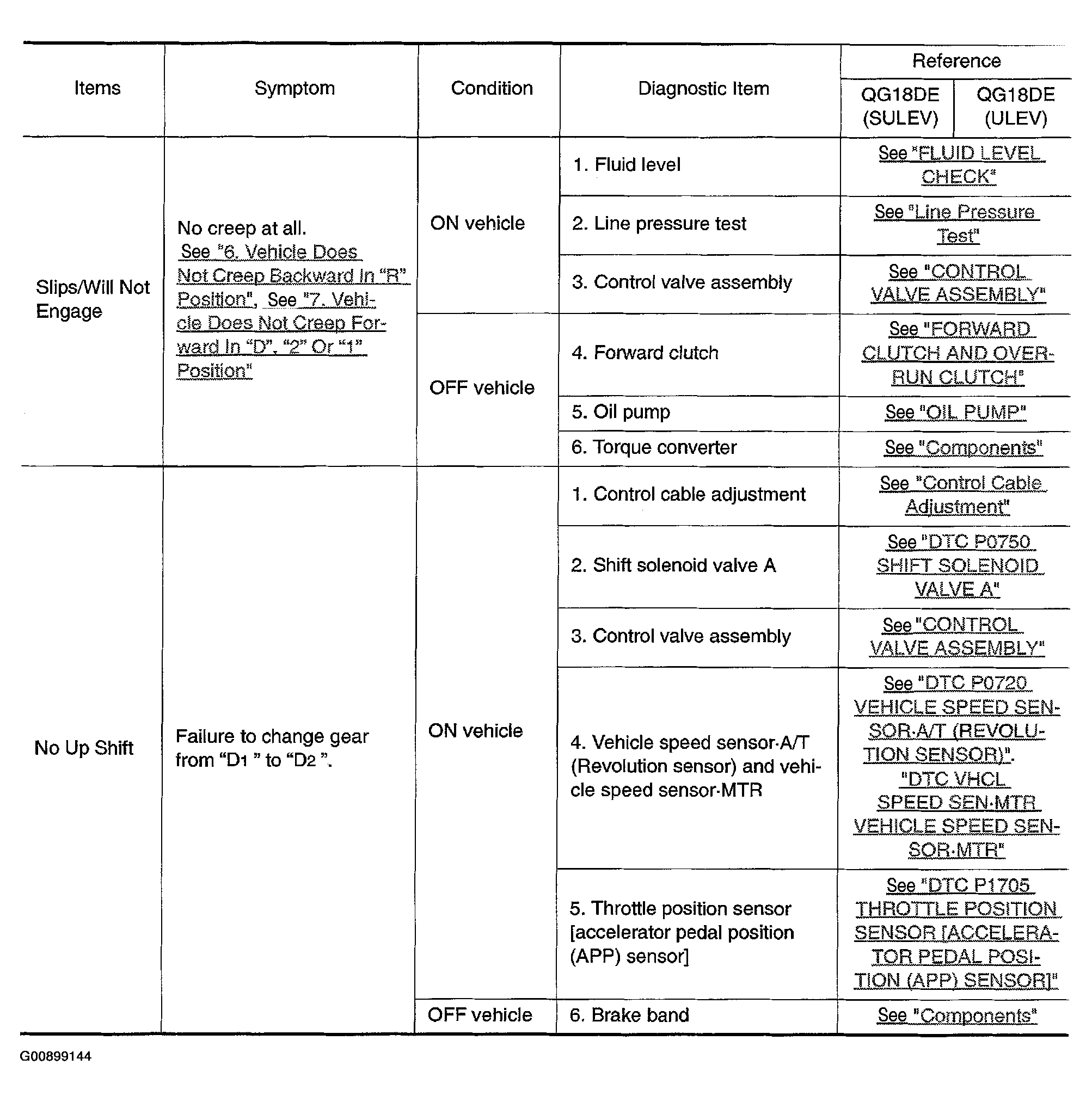

Fig 6: Symptom Chart (6 Of 25)

G00899144

Courtesy of NISSAN MOTOR CO., U.S.A.

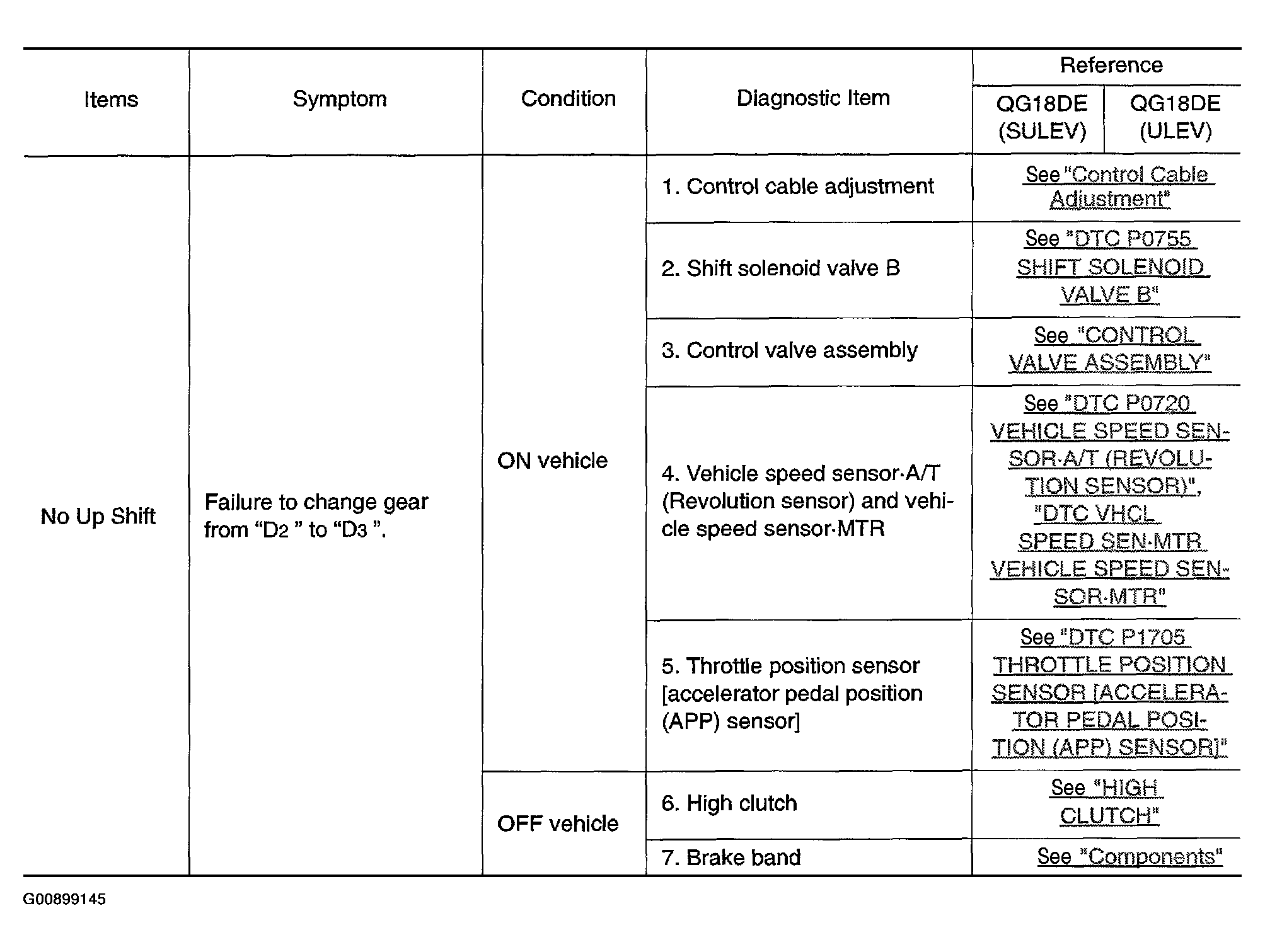

Fig 7: Symptom Chart (7 Of 25)

G00899145

Courtesy of NISSAN MOTOR CO., U.S.A.

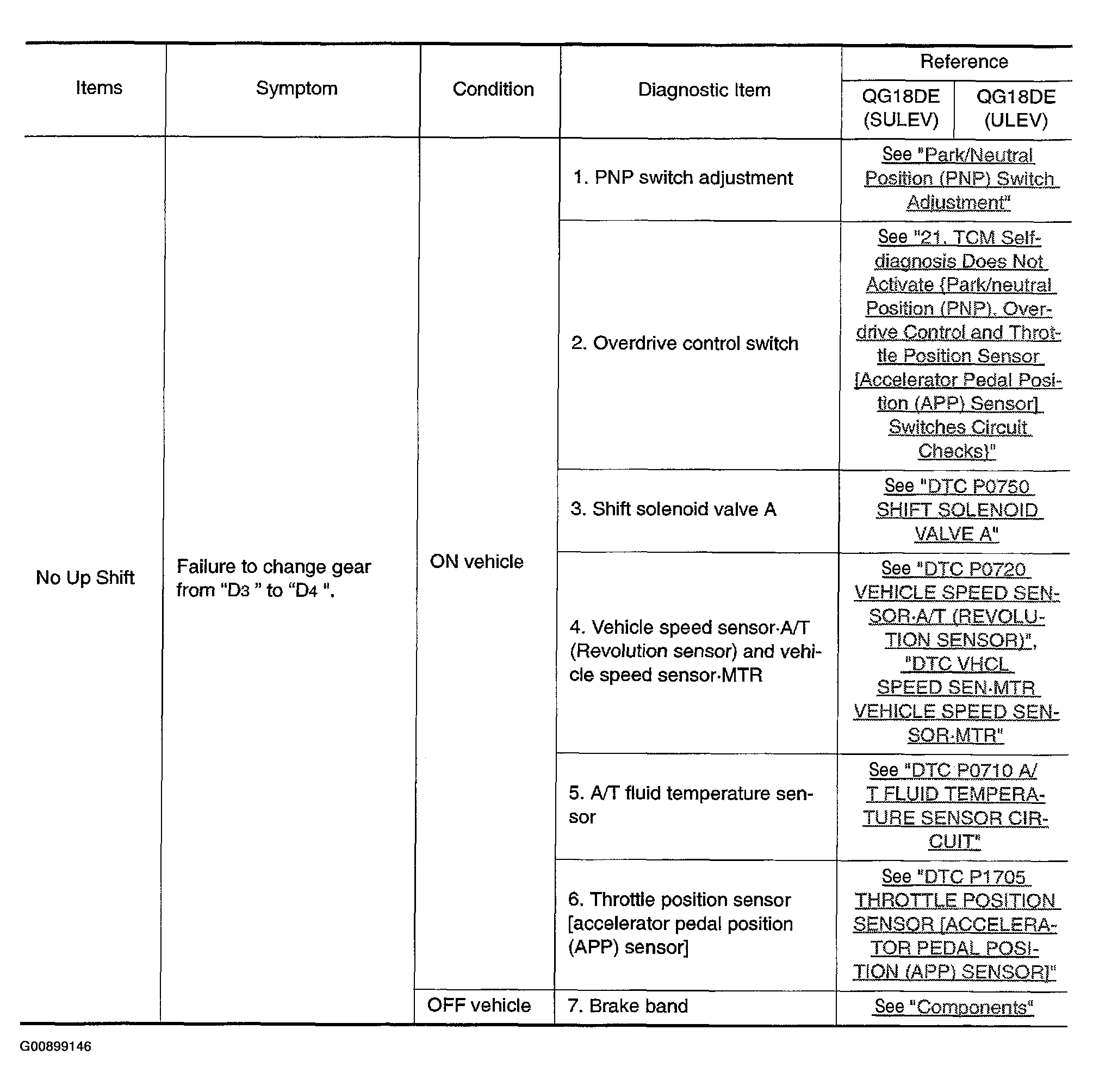

Fig 8: Symptom Chart (8 Of 25)

G00899146

Courtesy of NISSAN MOTOR CO., U.S.A.

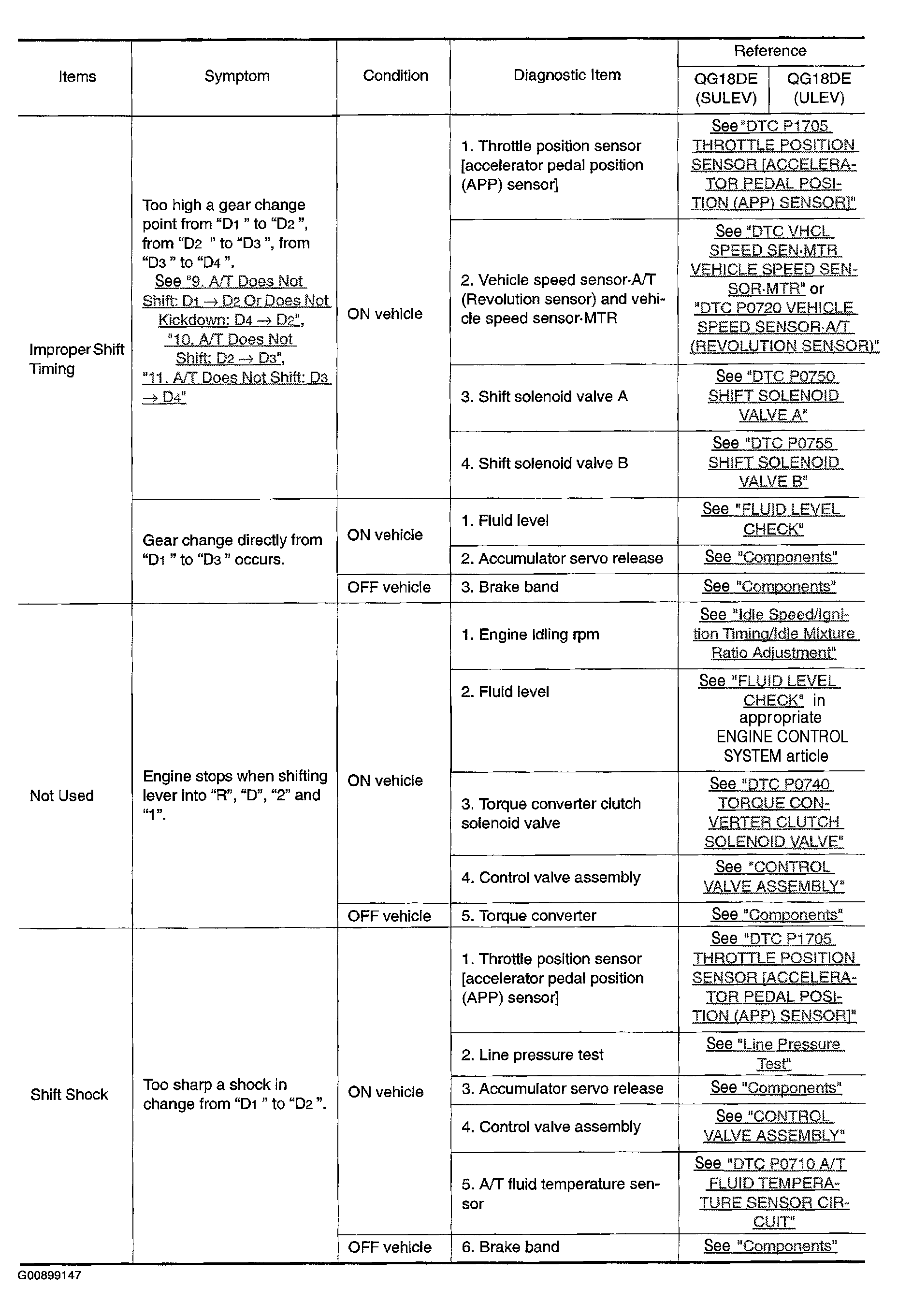

Fig 9: Symptom Chart (9 Of 25)

G00899147

Courtesy of NISSAN MOTOR CO., U.S.A.

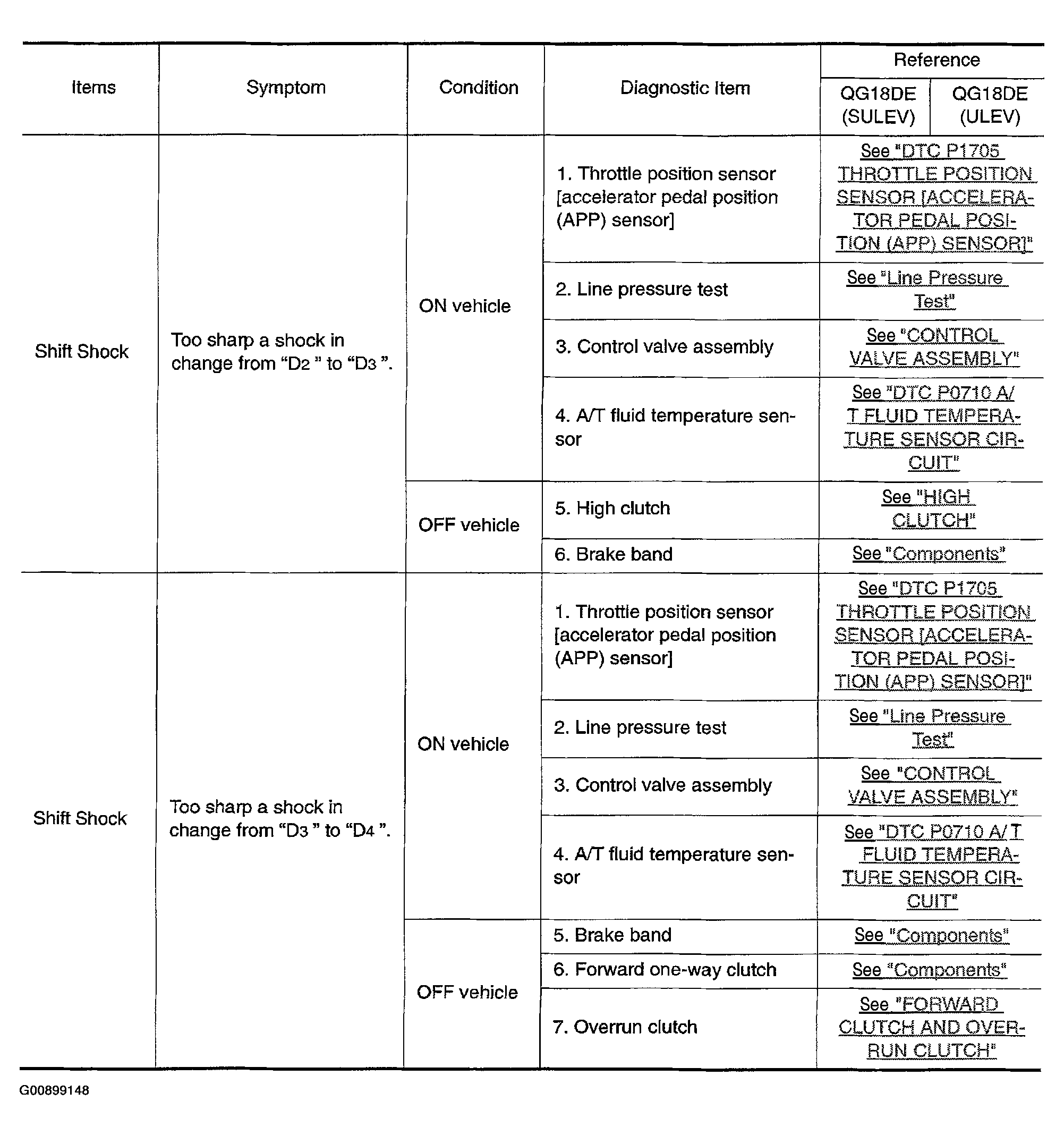

Fig 10: Symptom Chart (10 Of 25)

G00899148

Courtesy of NISSAN MOTOR CO., U.S.A.

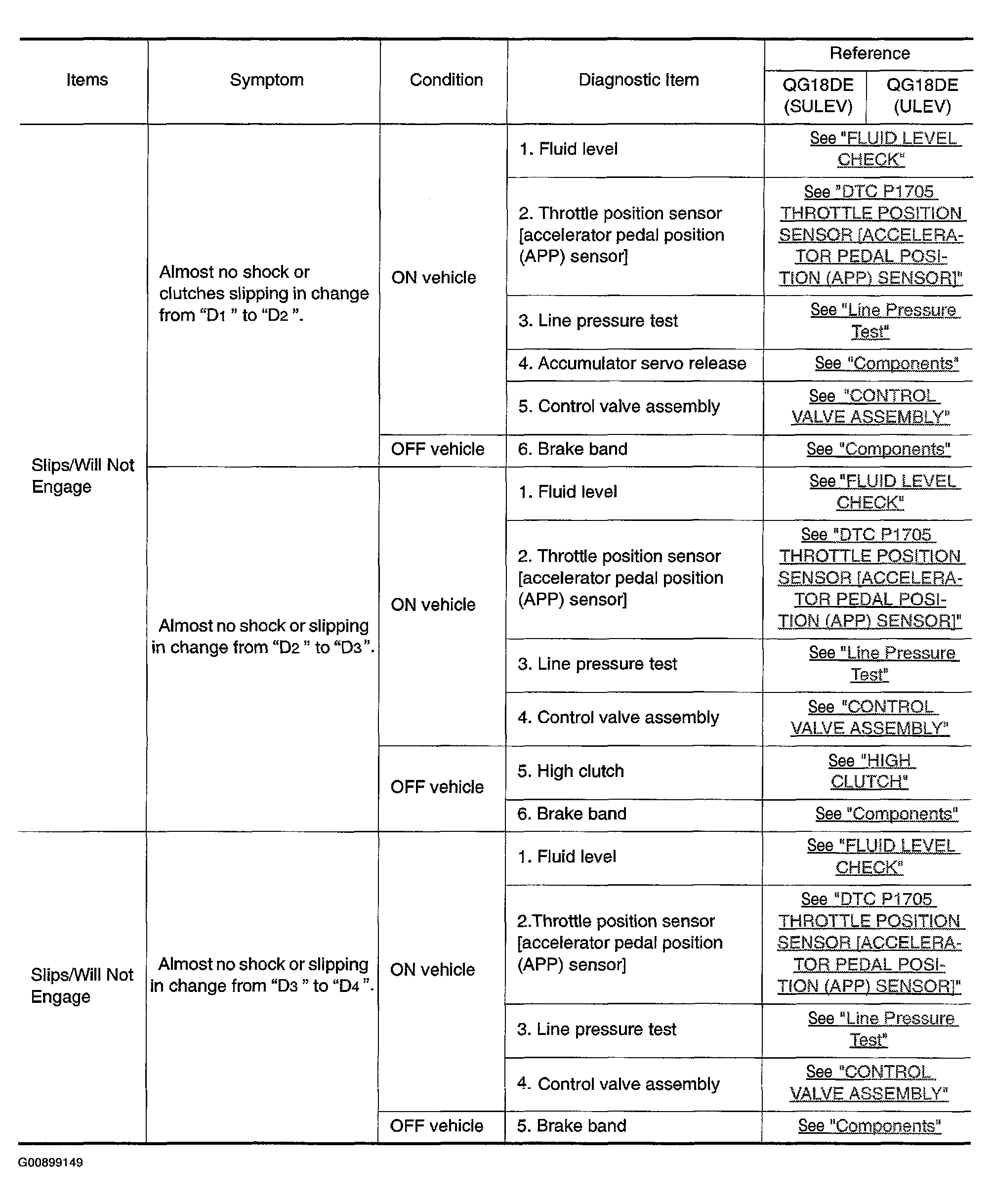

Fig 11: Symptom Chart (11 Of 25)

G00899149

Courtesy of NISSAN MOTOR CO., U.S.A.

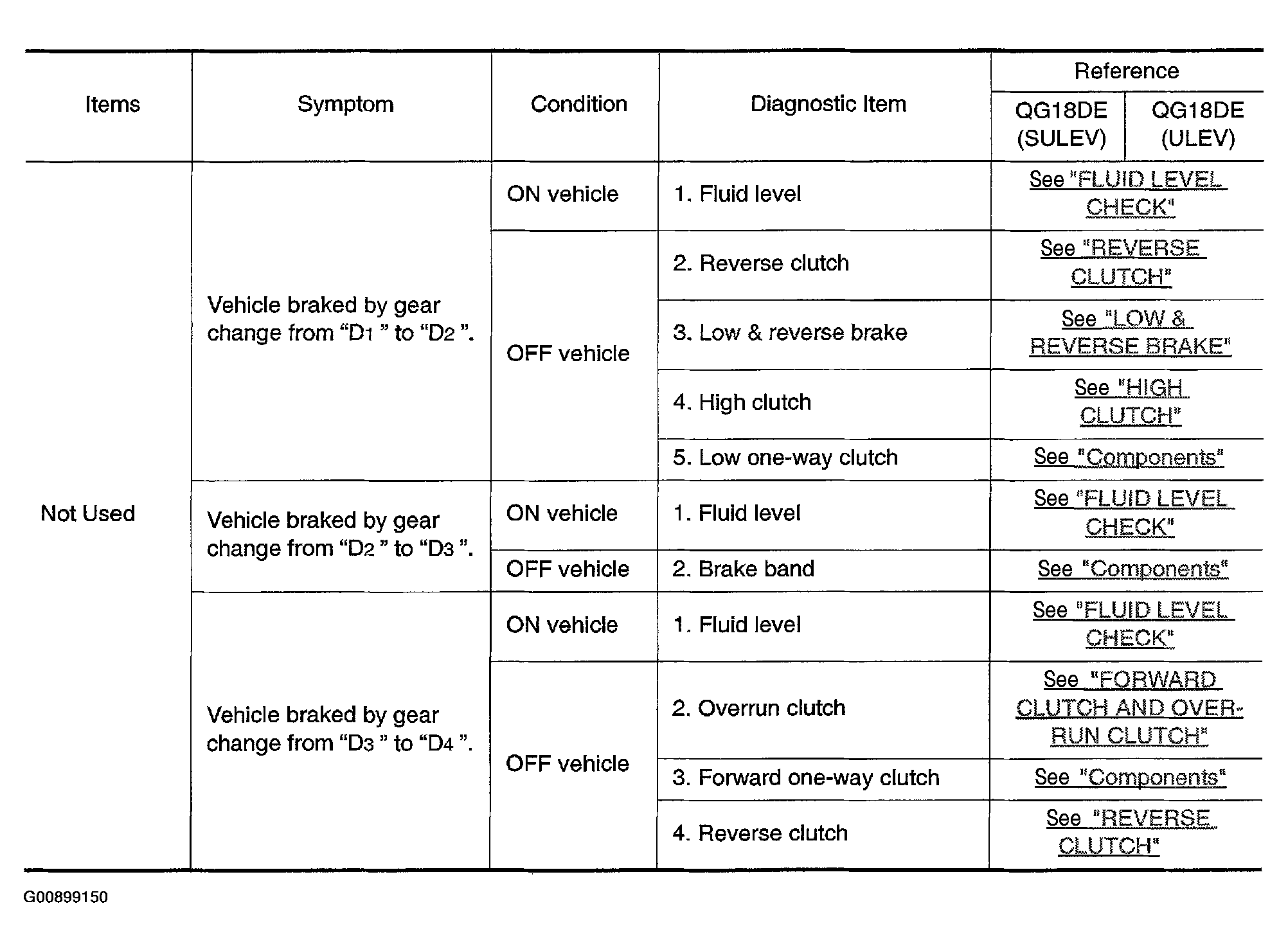

Fig 12: Symptom Chart (12 Of 25)

G00899150

Courtesy of NISSAN MOTOR CO., U.S.A.

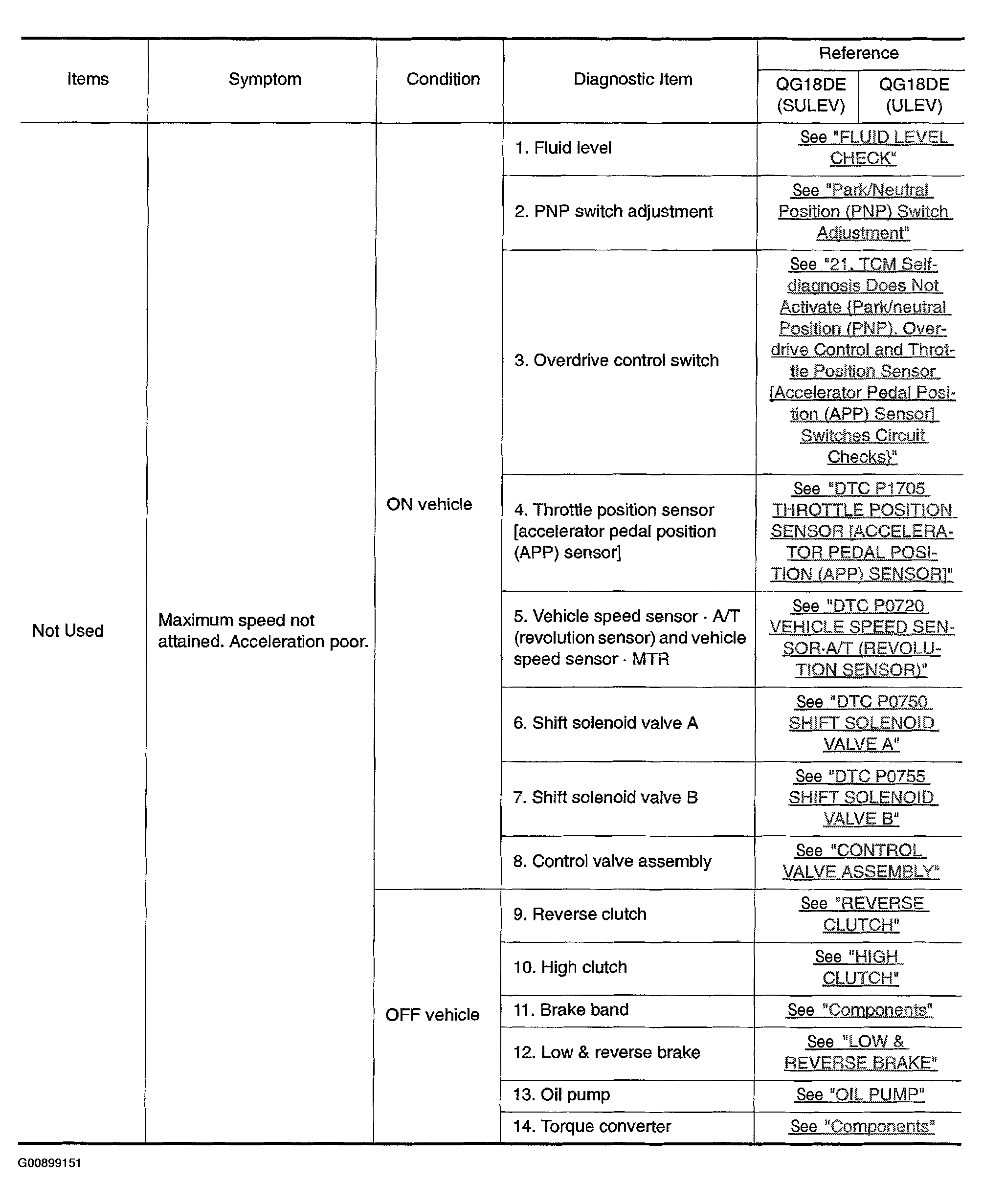

Fig 13: Symptom Chart (13 Of 25)

G00899151

Courtesy of NISSAN MOTOR CO., U.S.A.

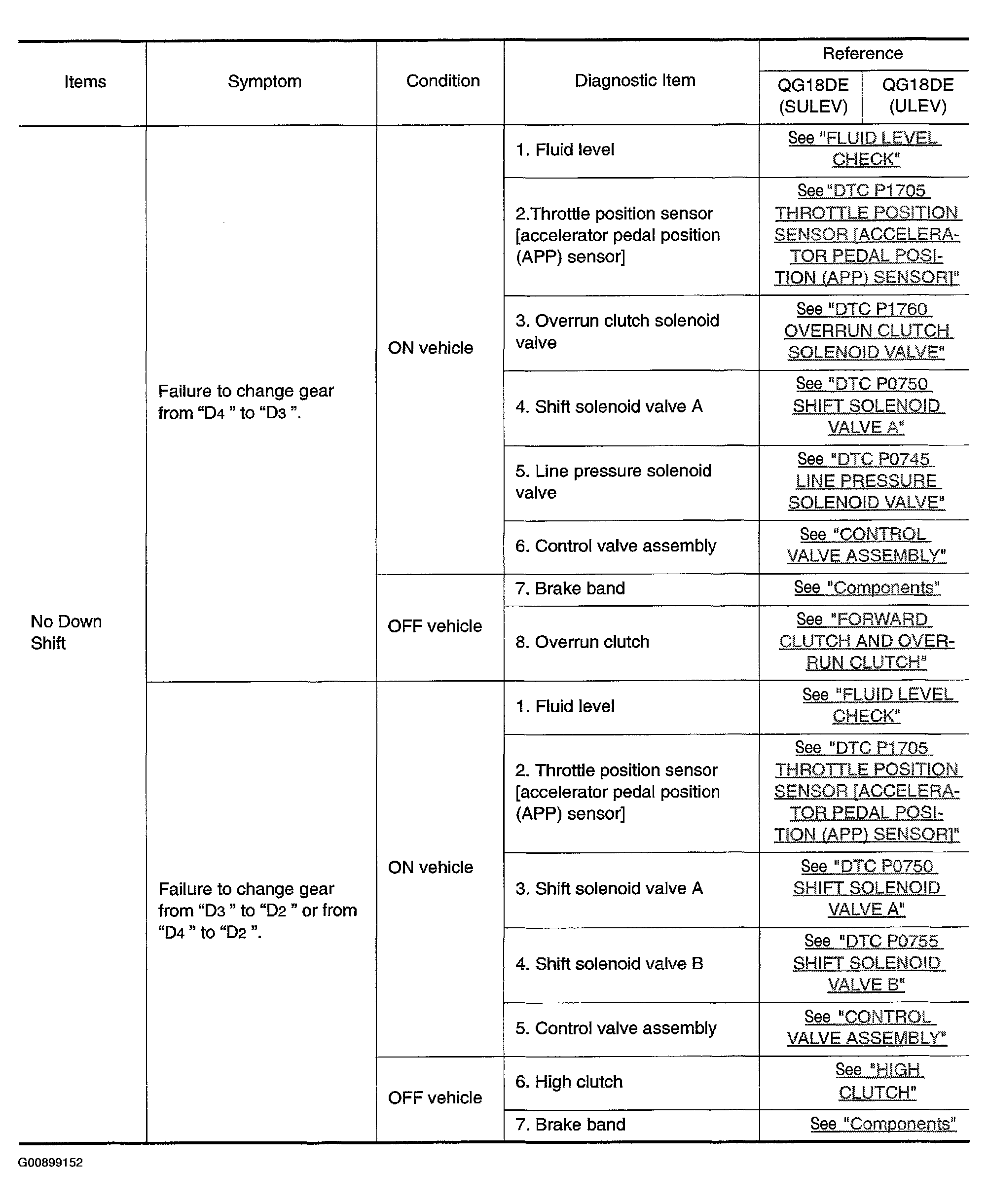

Fig 14: Symptom Chart (14 Of 25)

G00899152

Courtesy of NISSAN MOTOR CO., U.S.A.

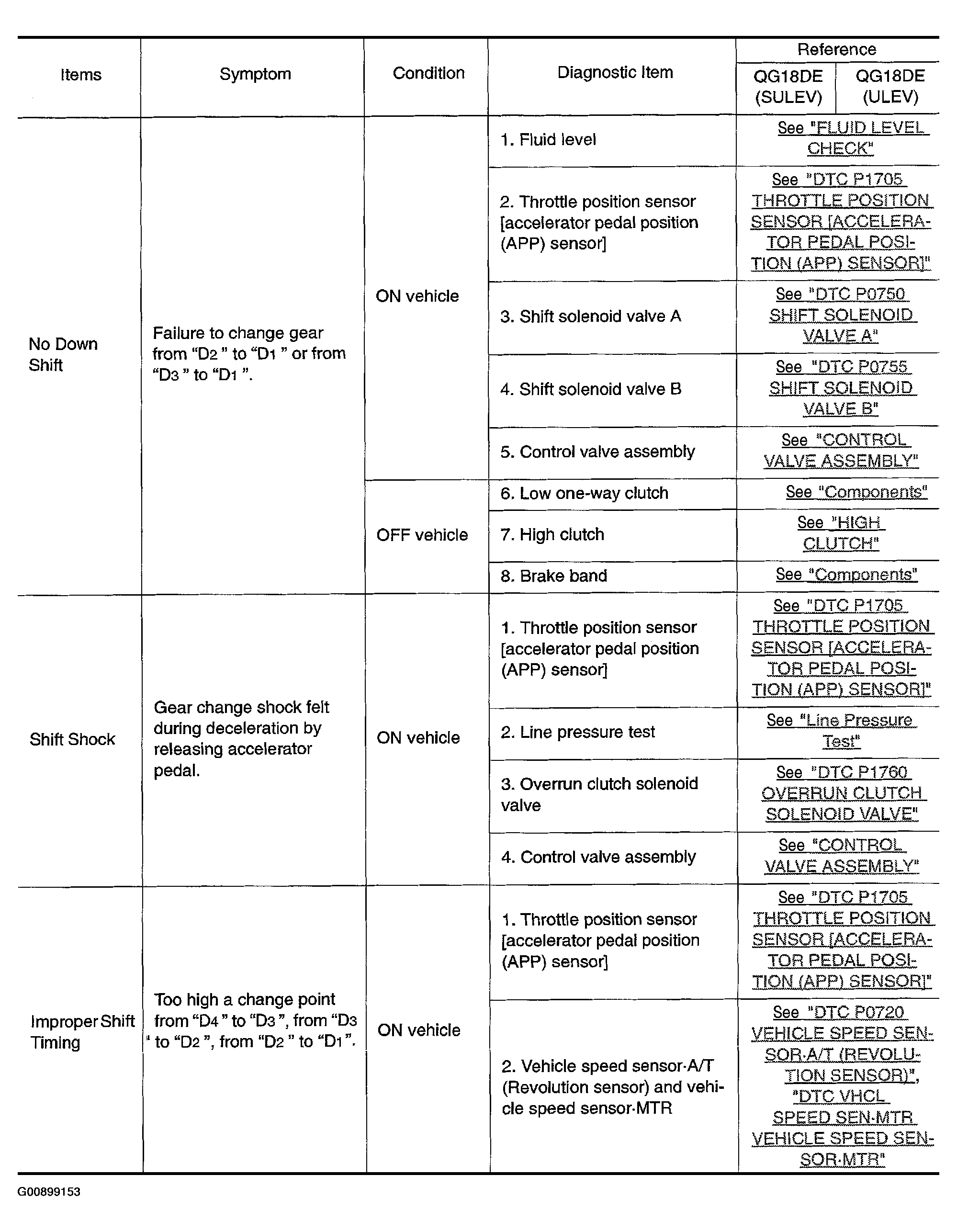

Fig 15: Symptom Chart (15 Of 25)

G00899153

Courtesy of NISSAN MOTOR CO., U.S.A.

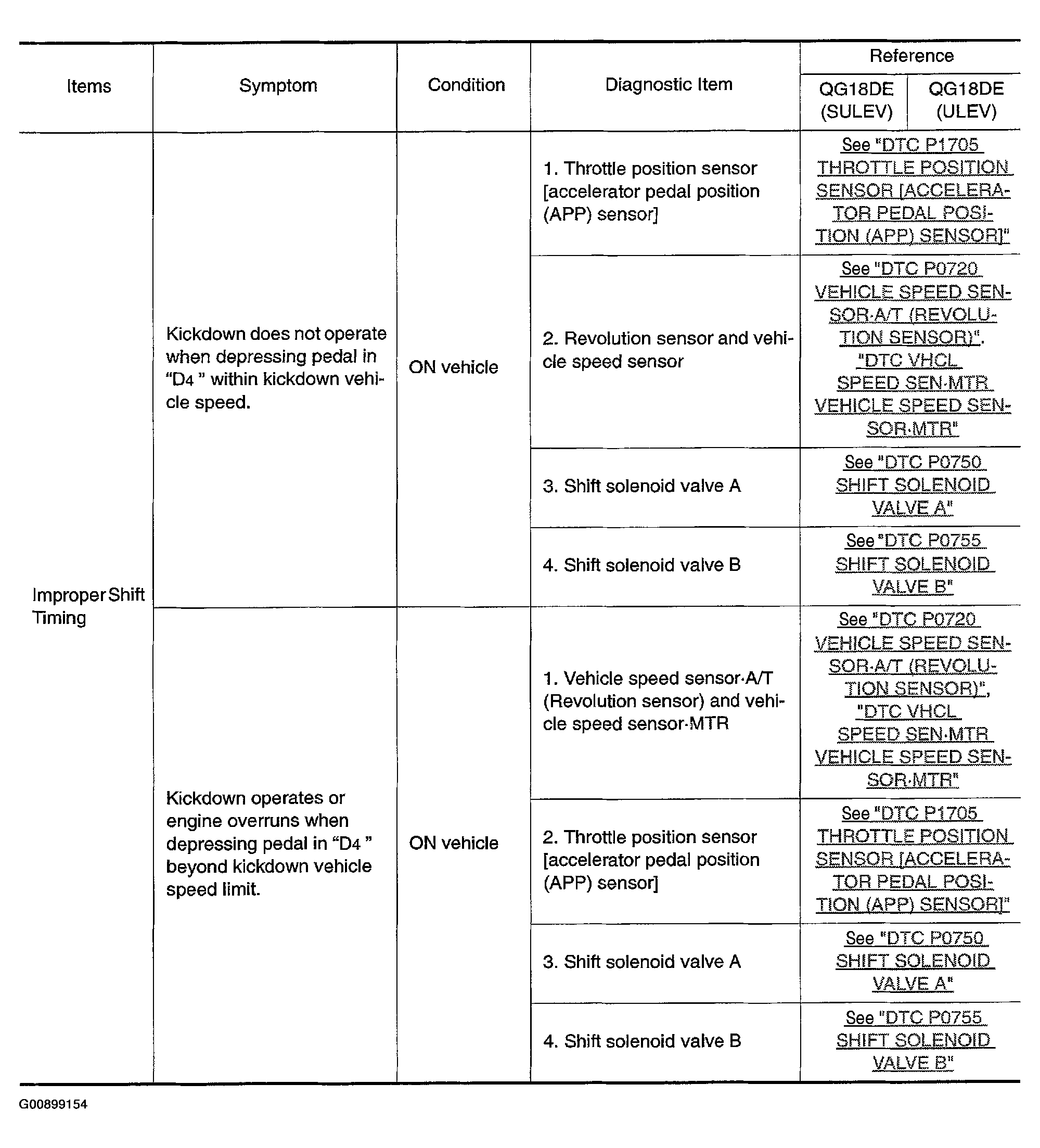

Fig 16: Symptom Chart (16 Of 25)

G00899154

Courtesy of NISSAN MOTOR CO., U.S.A.

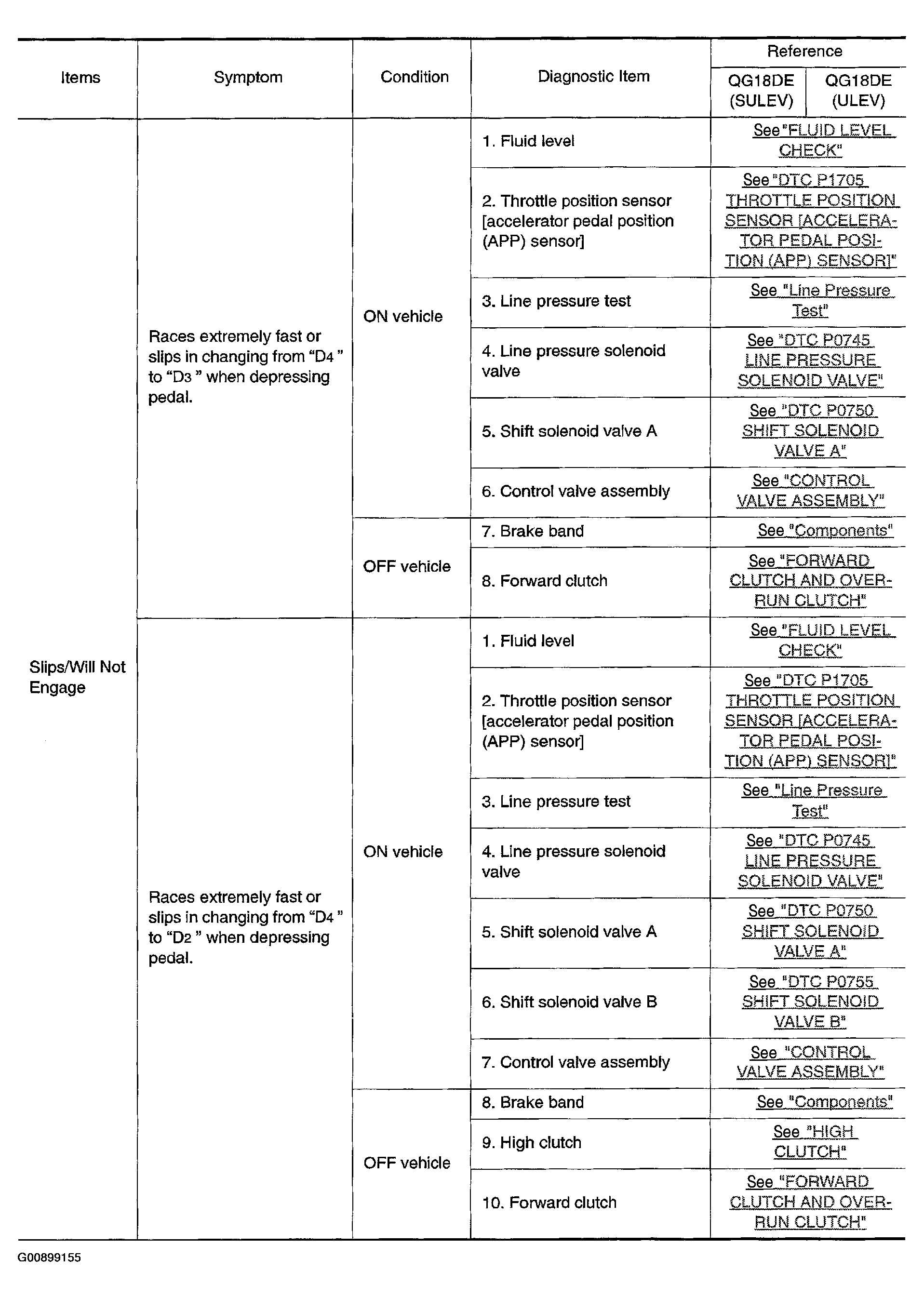

Fig 17: Symptom Chart (17 Of 25)

G00899155

Courtesy of NISSAN MOTOR CO., U.S.A.

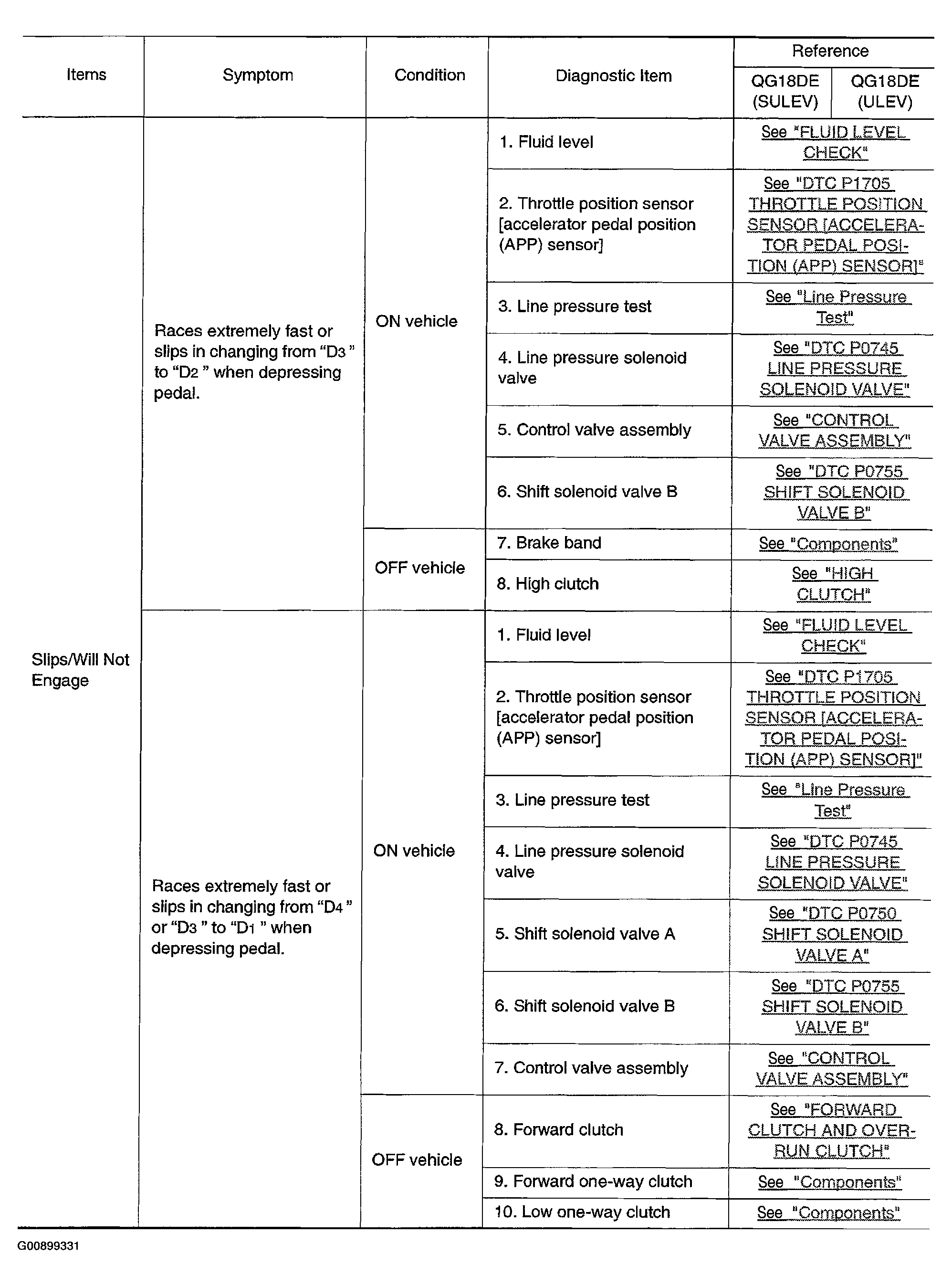

Fig 18: Symptom Chart (18 Of 25)

G00899331

Courtesy of NISSAN MOTOR CO., U.S.A.

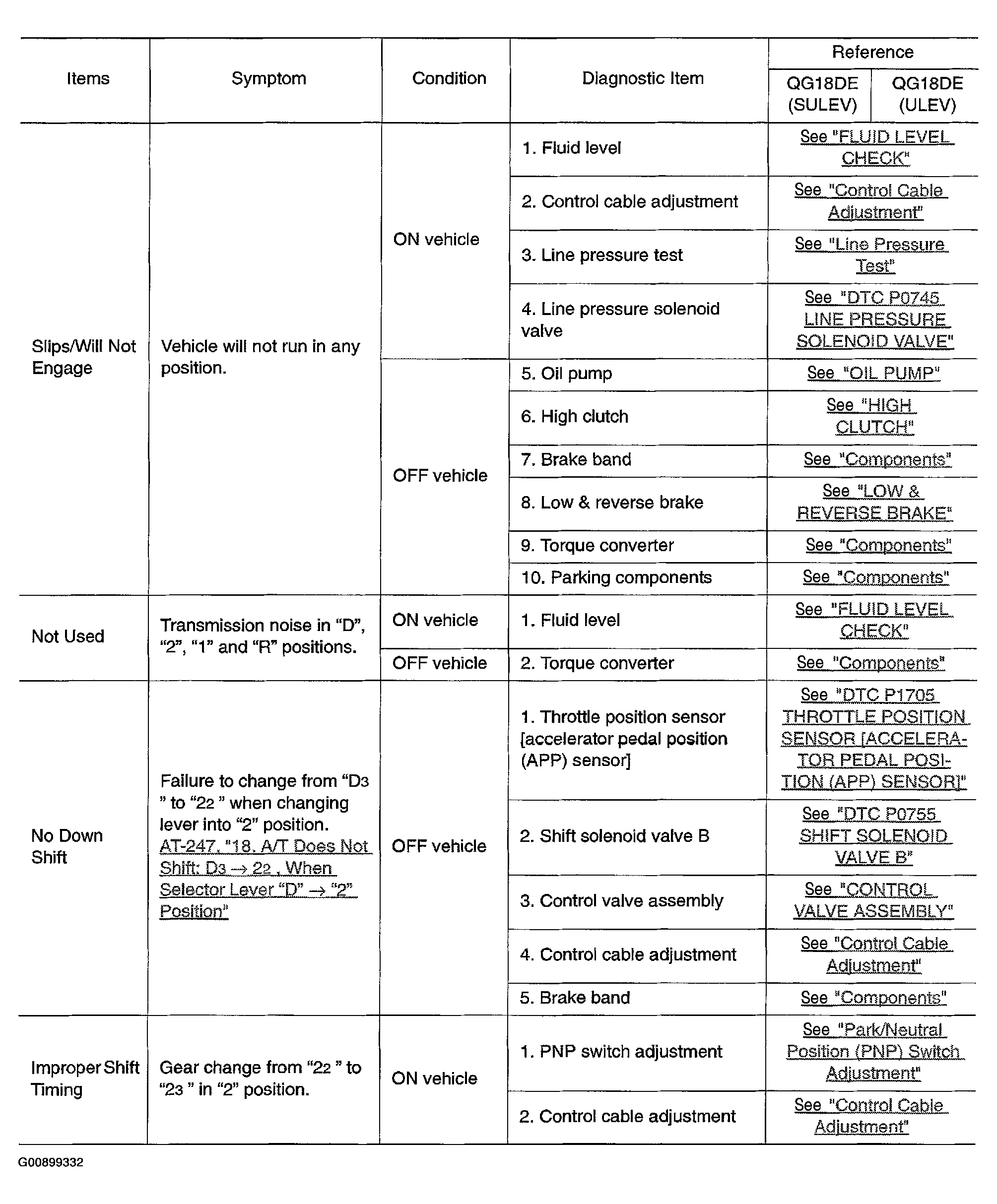

Fig 19: Symptom Chart (19 Of 25)

G00899332

Courtesy of NISSAN MOTOR CO., U.S.A.

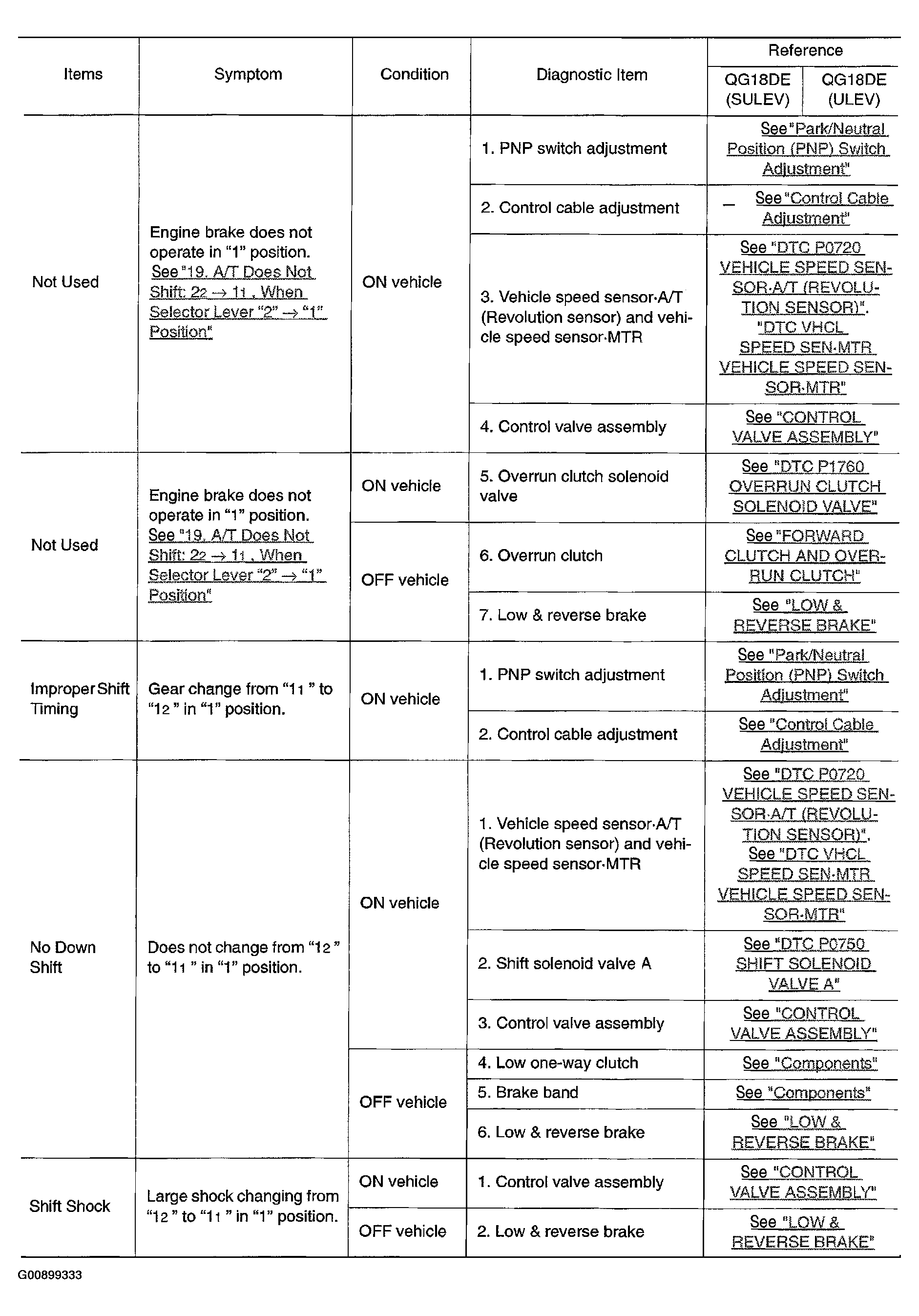

Fig 20: Symptom Chart (20 Of 25)

G00899333

Courtesy of NISSAN MOTOR CO., U.S.A.

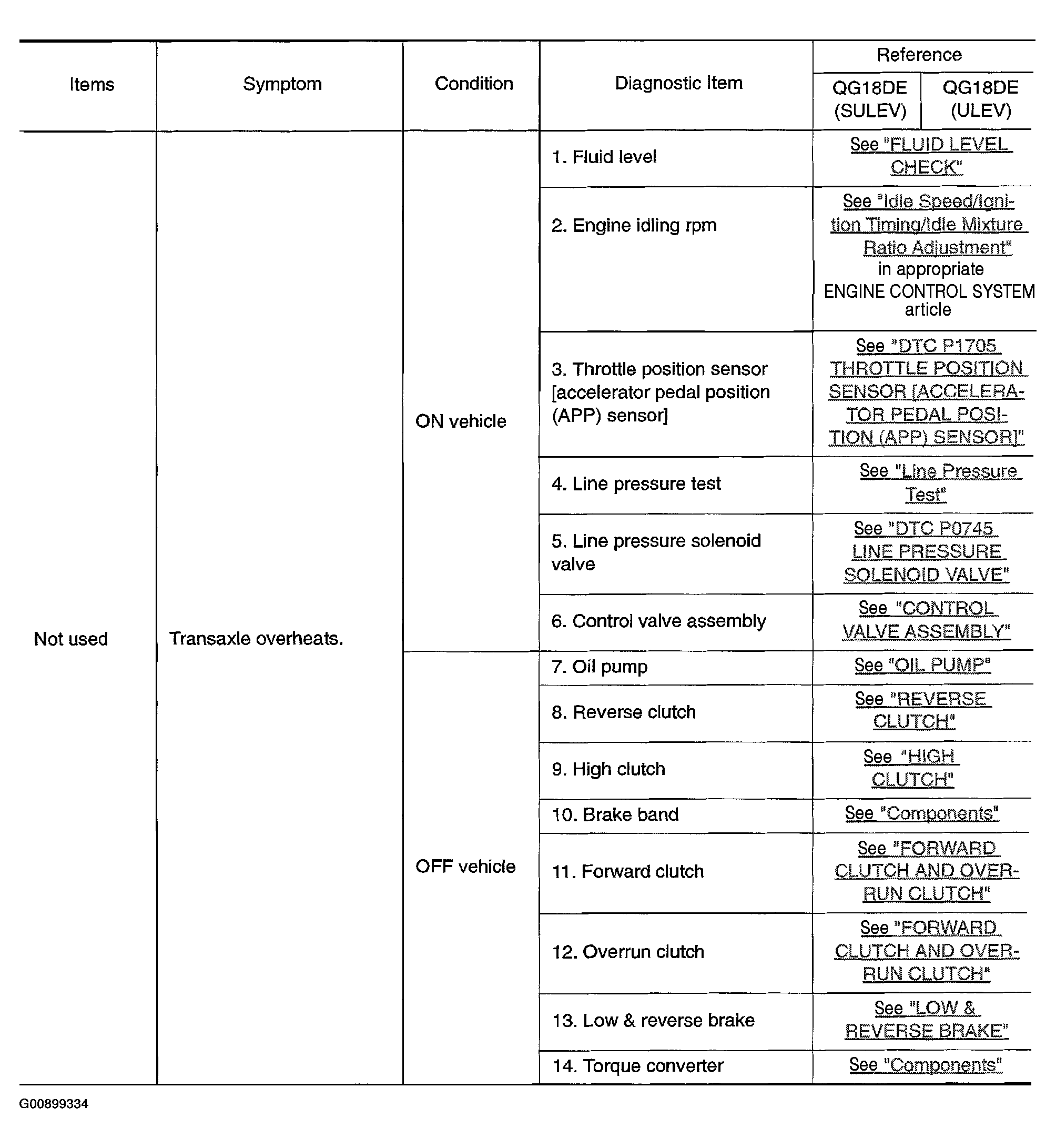

Fig 21: Symptom Chart (21 Of 25)

G00899334

Courtesy of NISSAN MOTOR CO., U.S.A.

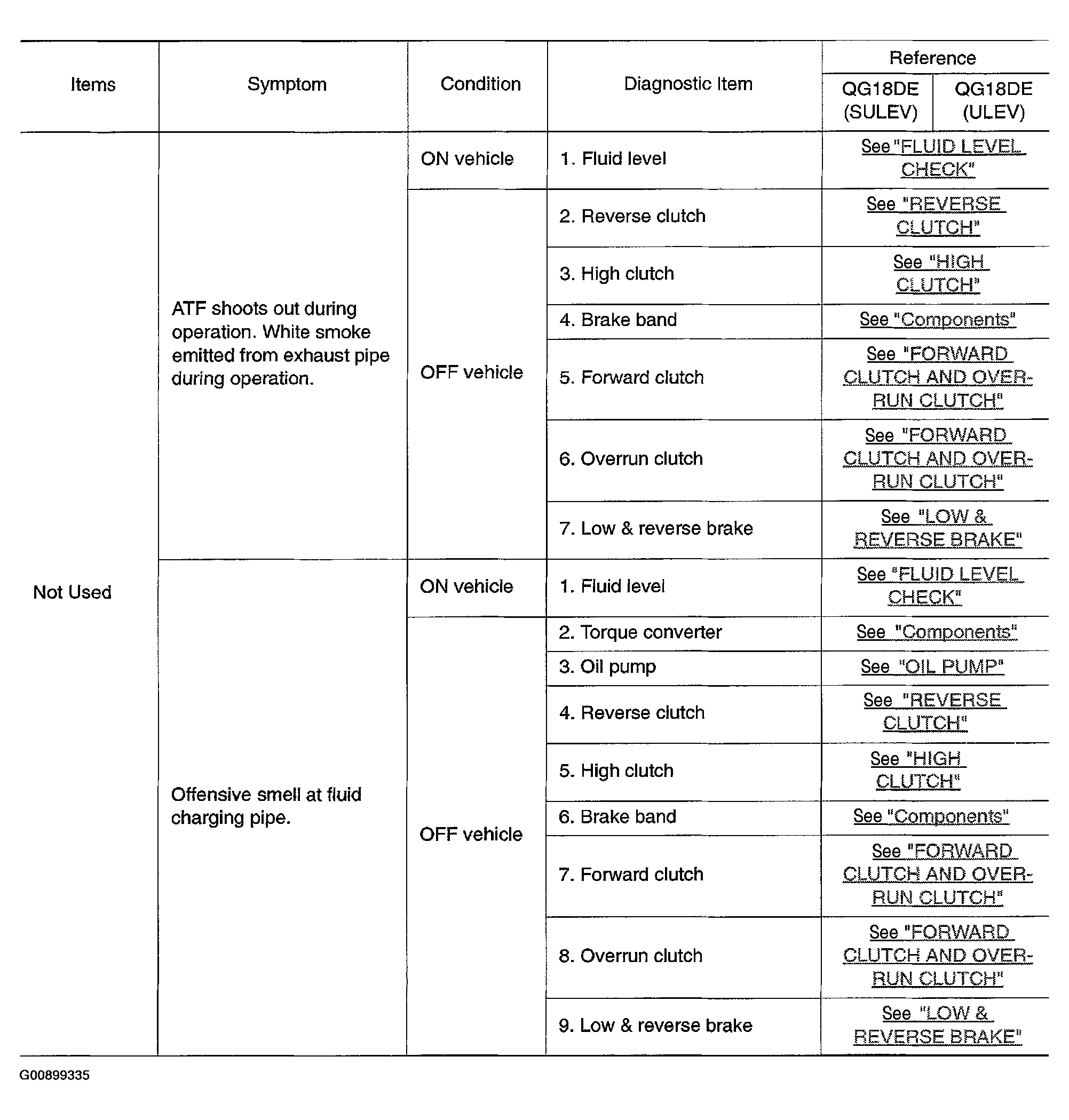

Fig 22: Symptom Chart (22 Of 25)

G00899335

Courtesy of NISSAN MOTOR CO., U.S.A.

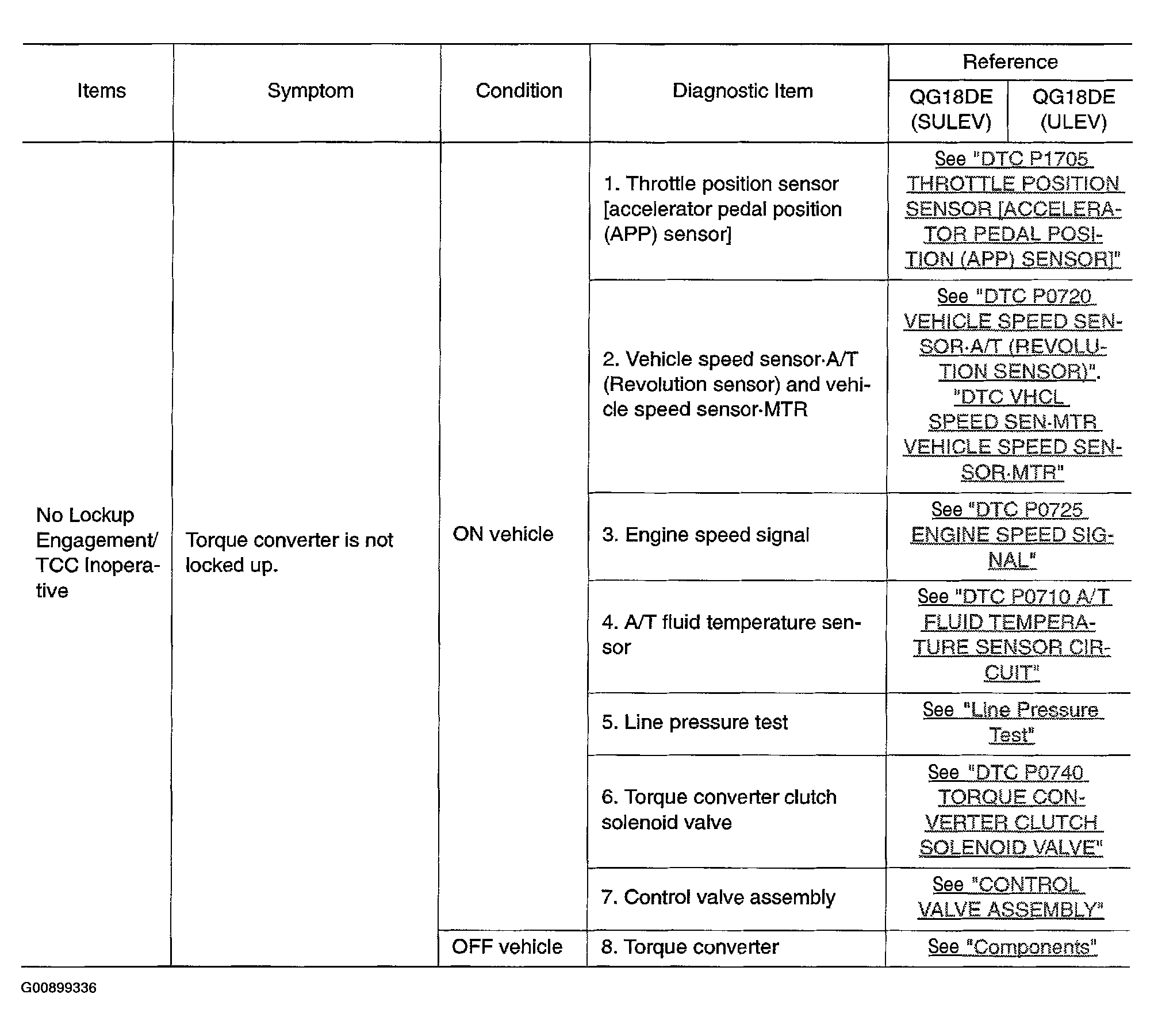

Fig 23: Symptom Chart (23 Of 25)

G00899336

Courtesy of NISSAN MOTOR CO., U.S.A.

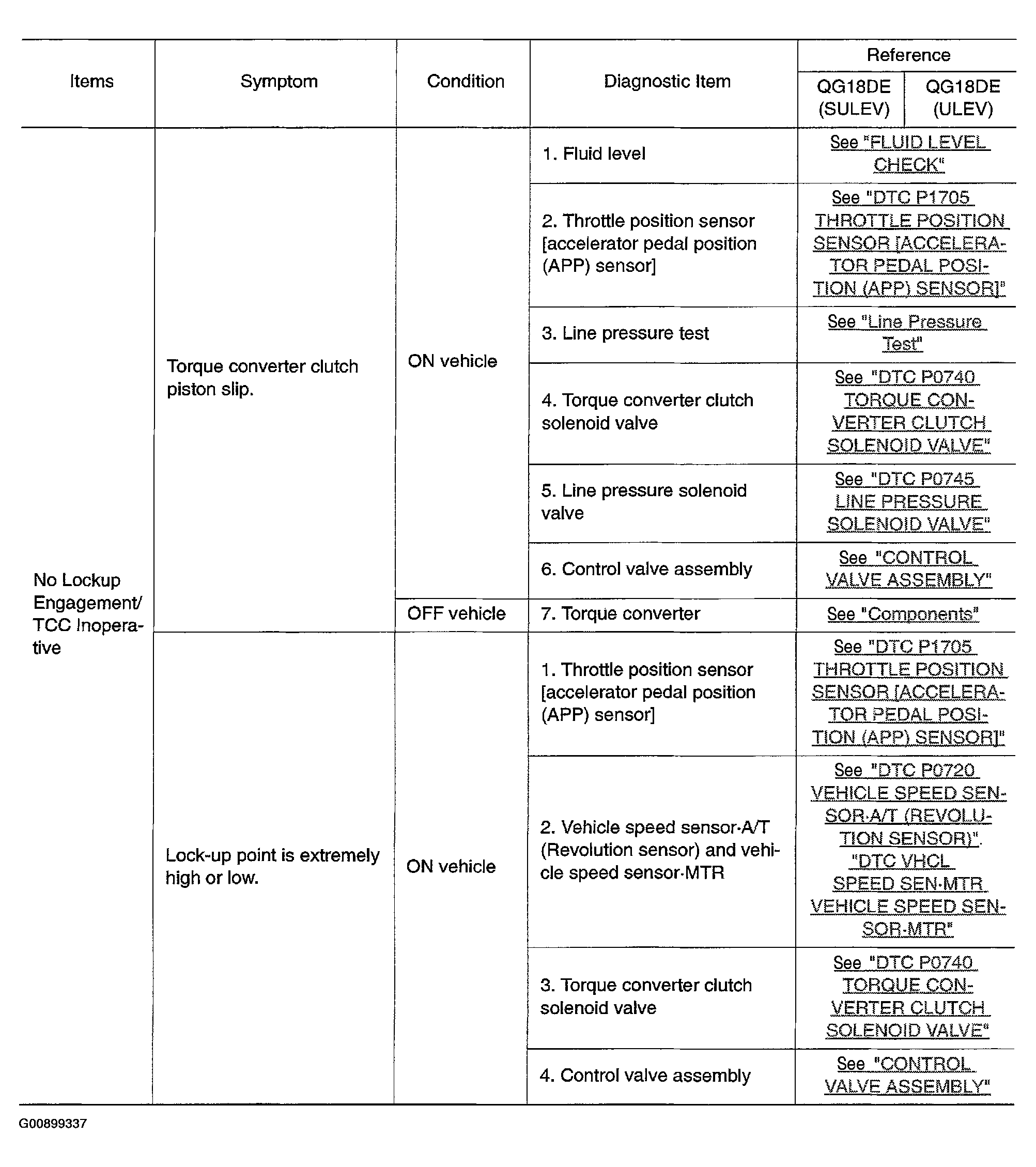

Fig 24: Symptom Chart (24 Of 25)

G00899337

Courtesy of NISSAN MOTOR CO., U.S.A.

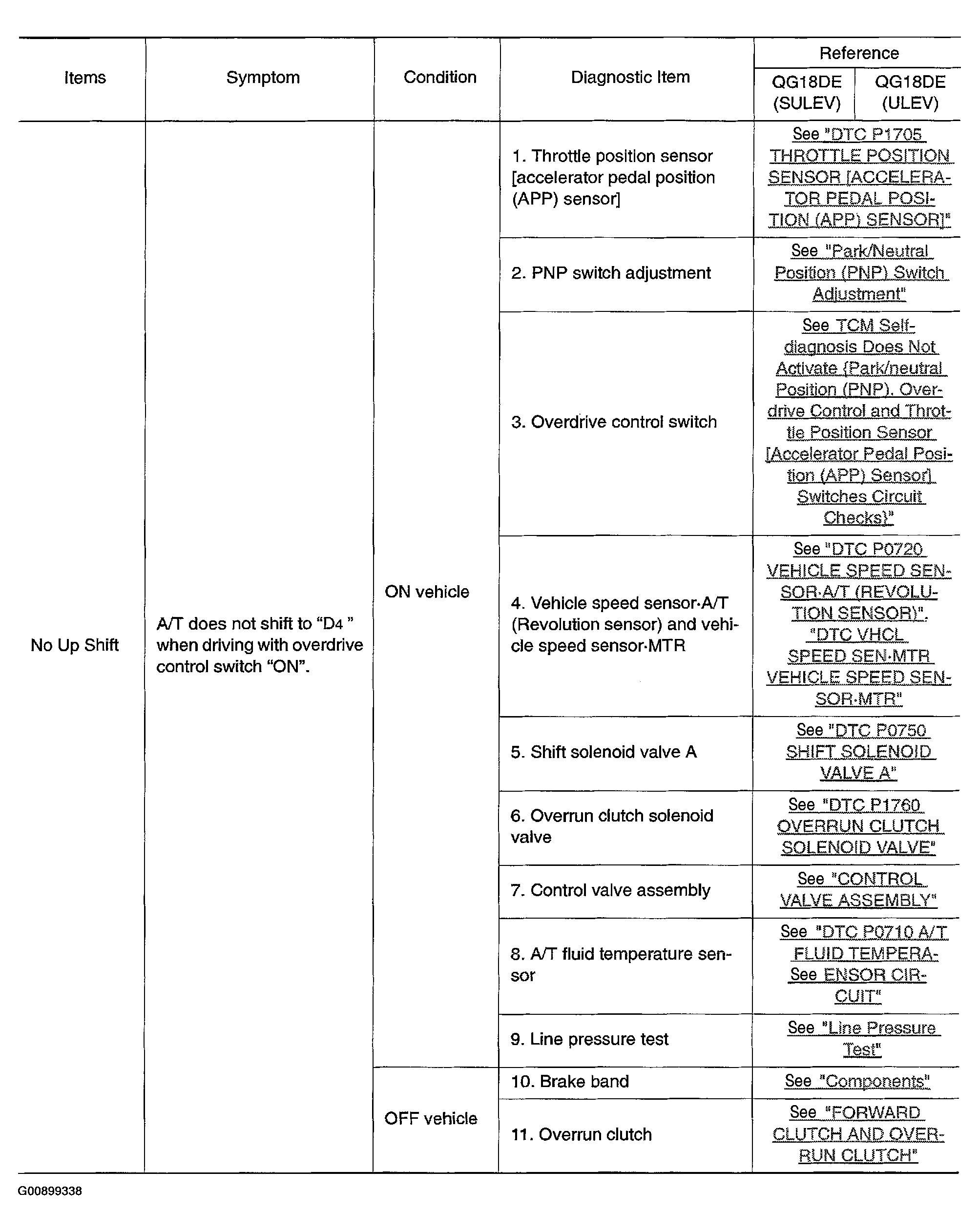

Fig 25: Symptom Chart (25 Of 25)

G00899338

Courtesy of NISSAN MOTOR CO., U.S.A.
