CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect CONSULT-II to Data link connector which is located in left side lower dash panel.

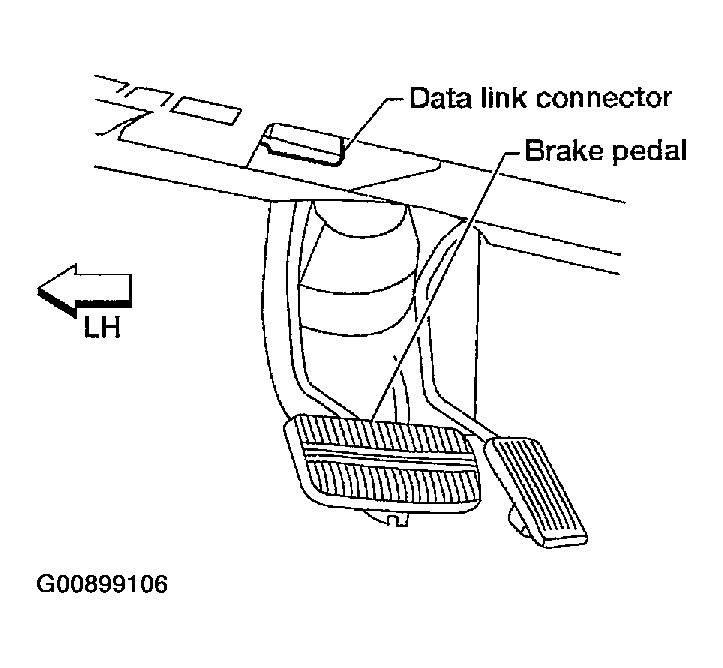

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".

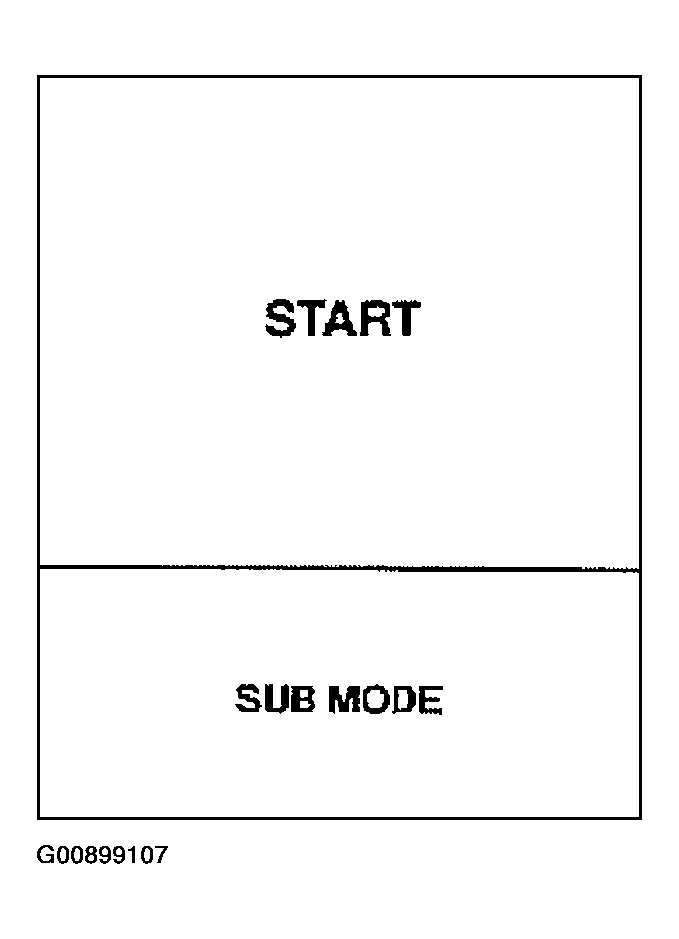

Touch "START".

Fig 2: Consult II Display (1 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

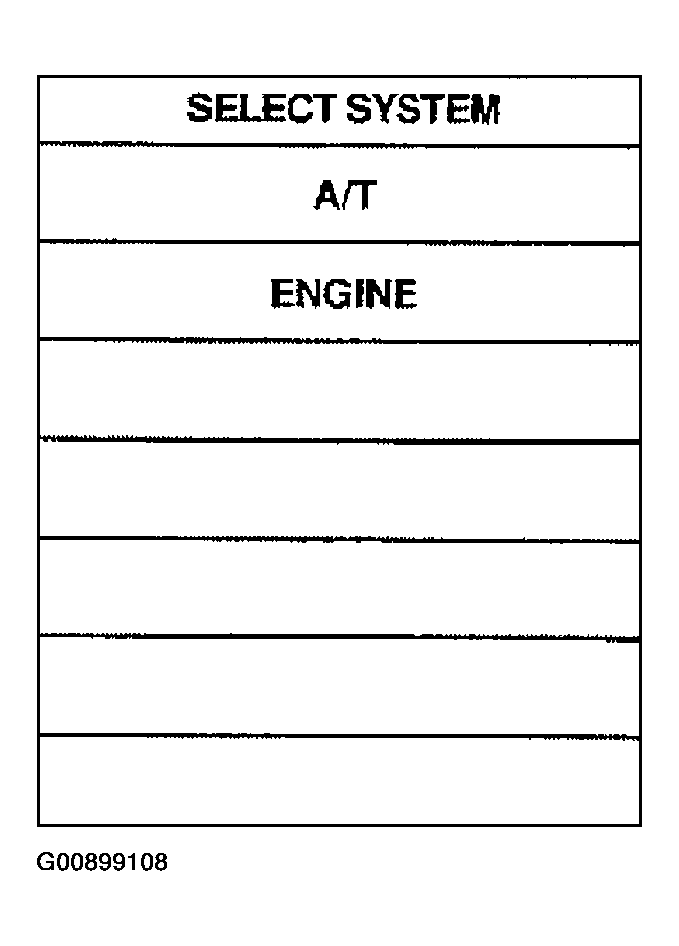

Touch "A/T".

Fig 3: Consult II Display (2 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

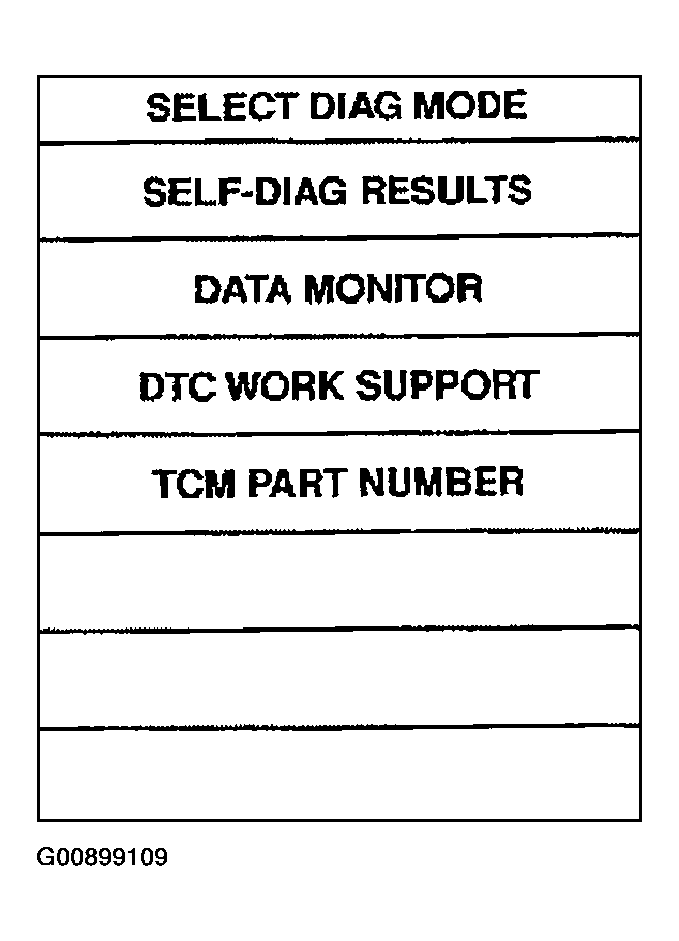

Touch "DATA MONITOR".

Fig 4: Consult II Display (3 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

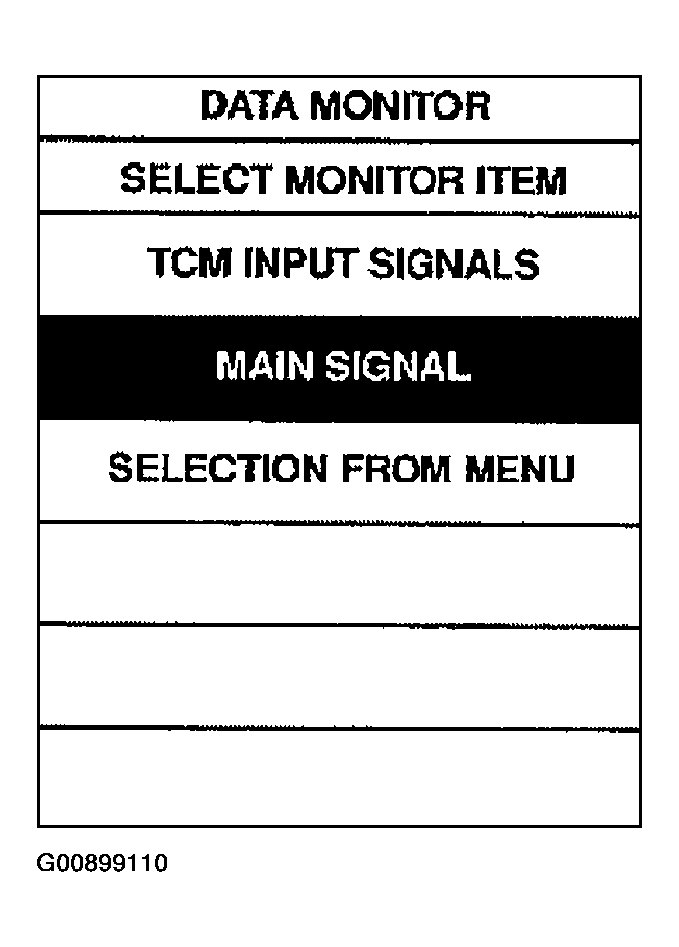

Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".
See "Numerical Display, Barchart Display or Line Graph Display.

Fig 5: Consult II Display (4 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

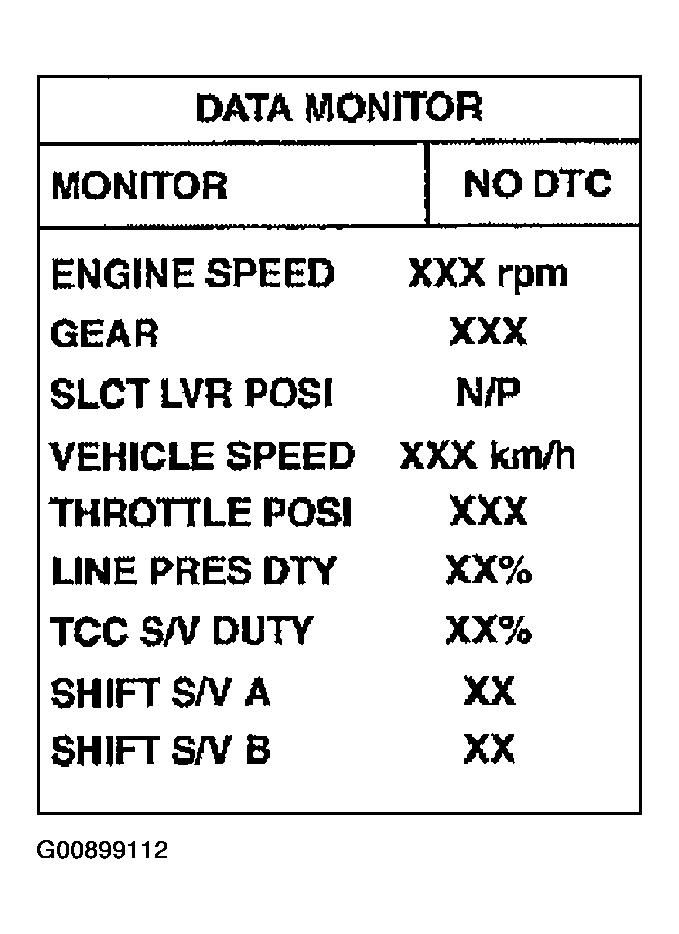

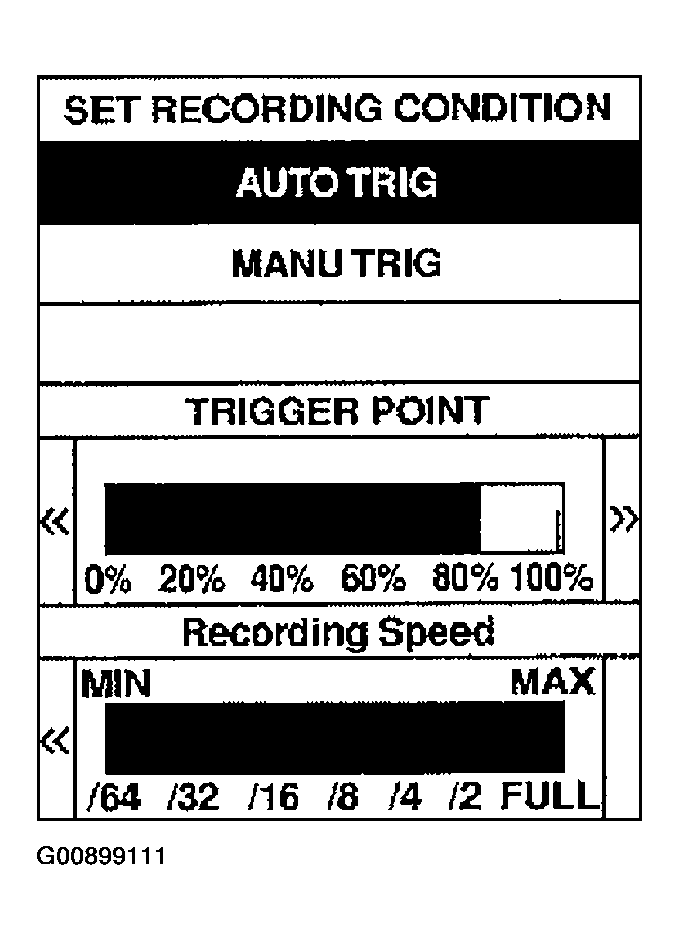

Touch "SETTING" to recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "START".

Fig 6: Consult II Display (5 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

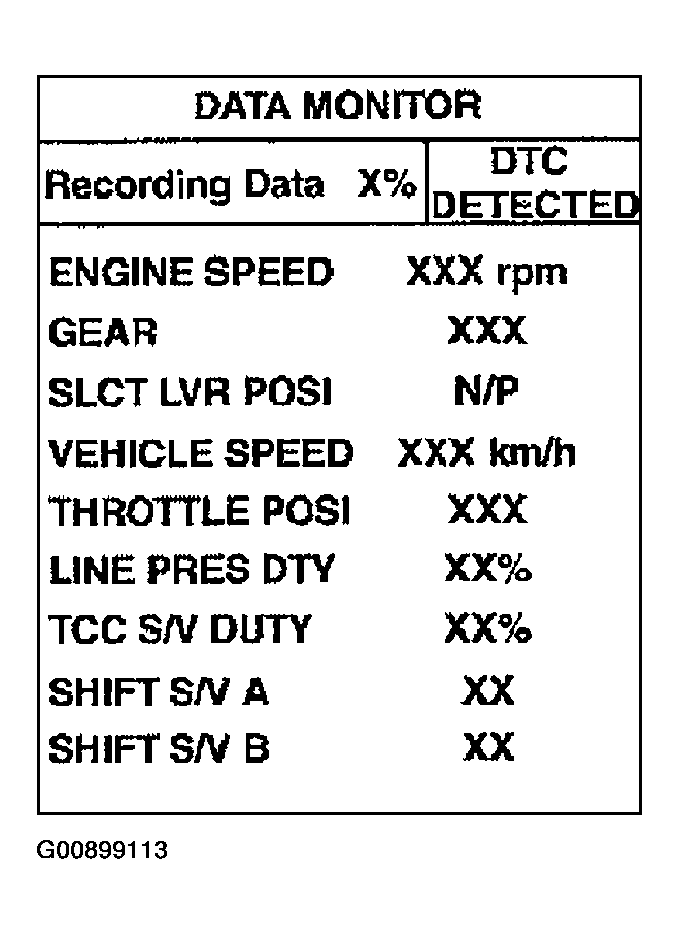

When performing cruise test, touch "RECORD".

Fig 7: Consult II Display (6 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

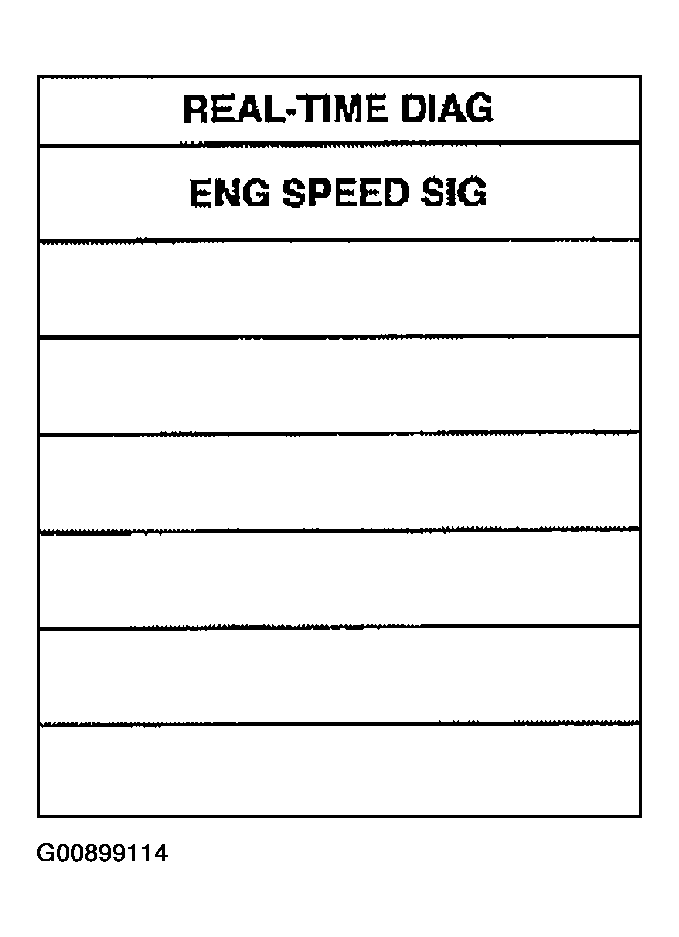

After finishing cruise test part 1, touch "STOP".

Fig 8: Consult II Display (7 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

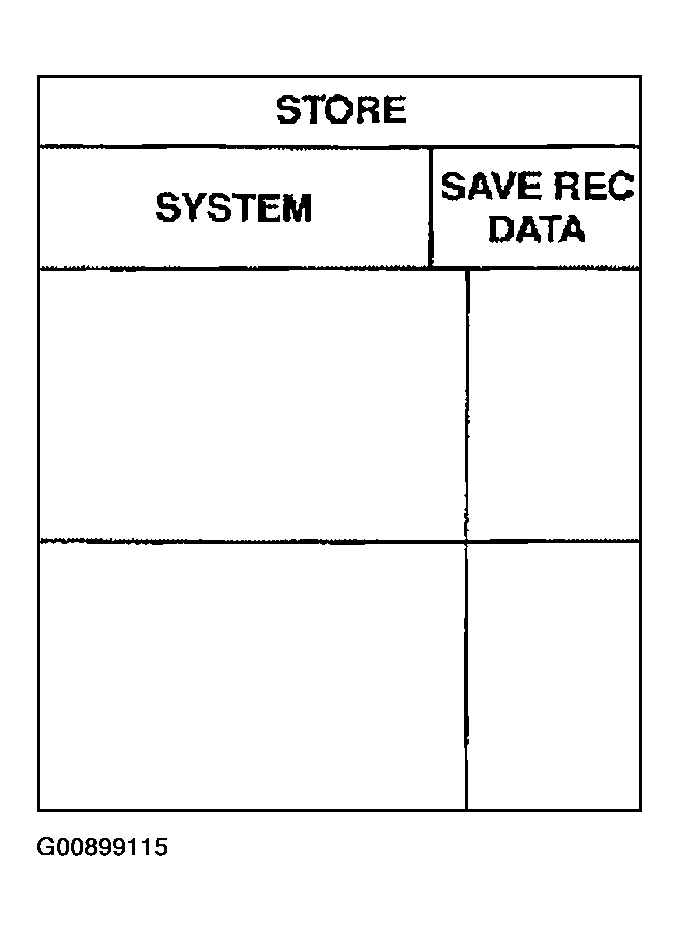

Touch "STORE" and touch "BACK".

Fig 9: Consult II Display (8 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Consult II Display (9 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

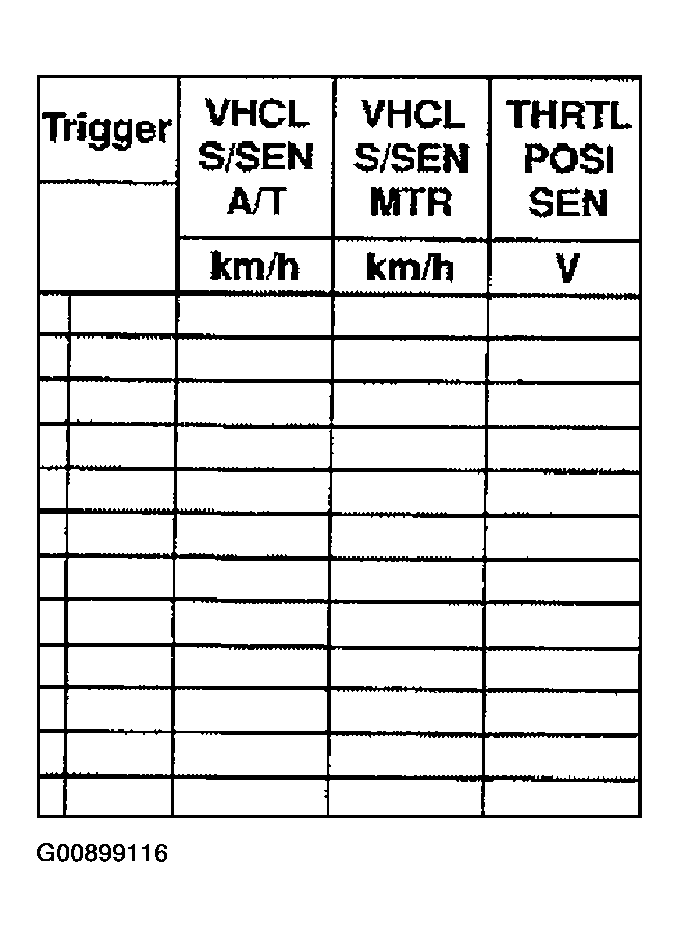

Touch "DISPLAY".
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.

Fig 11: Consult II Display (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
