Fluid Leakage Check

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean area suspected of leaking, for example, mating surface of converter housing and transmission case.
  2. Start engine, apply foot brake, place selector lever in "D" position and wait a few minutes.
  3. Stop engine.

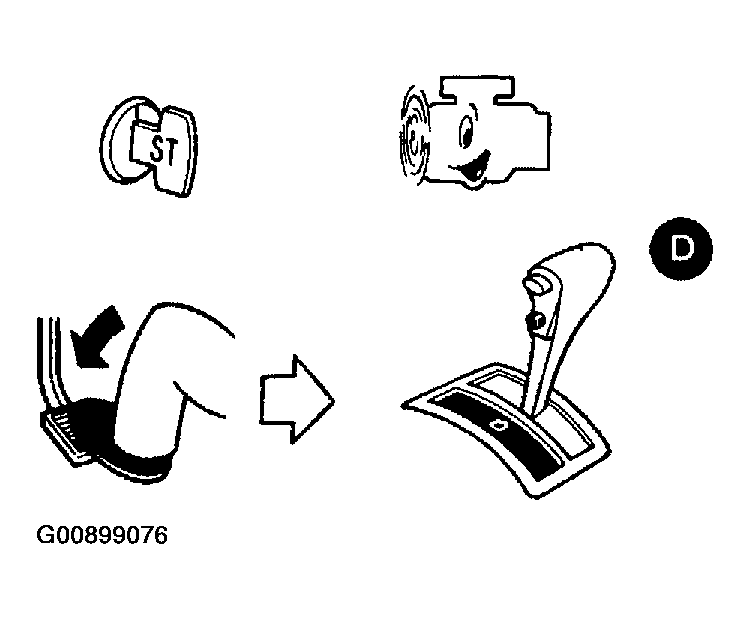

    Fig 1: Applying Foot Brake And Placing Selector Lever In "D" Position
    G00899076Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check for fresh leakage.

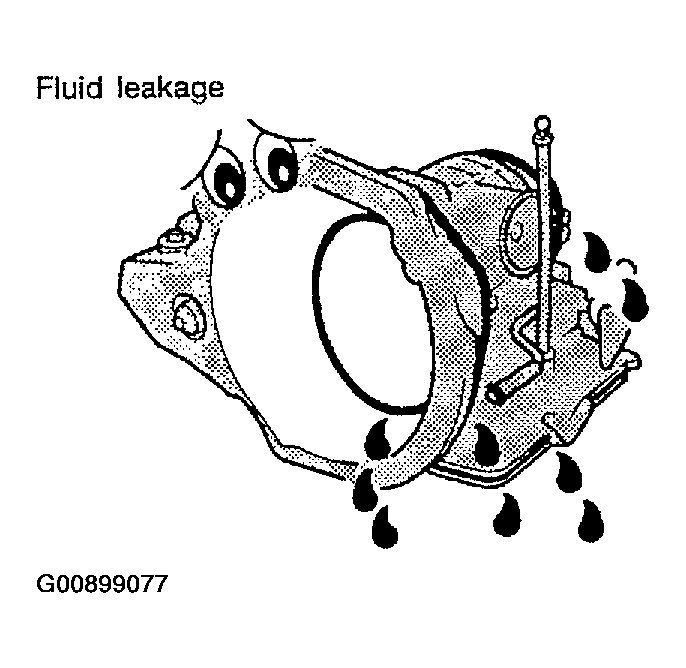

Fig 2: Checking A/T Fluid Leakage
G00899077Courtesy of NISSAN MOTOR CO., U.S.A.
