Rear Internal Gear, Forward Clutch Hub And Overrun Clutch Hub: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

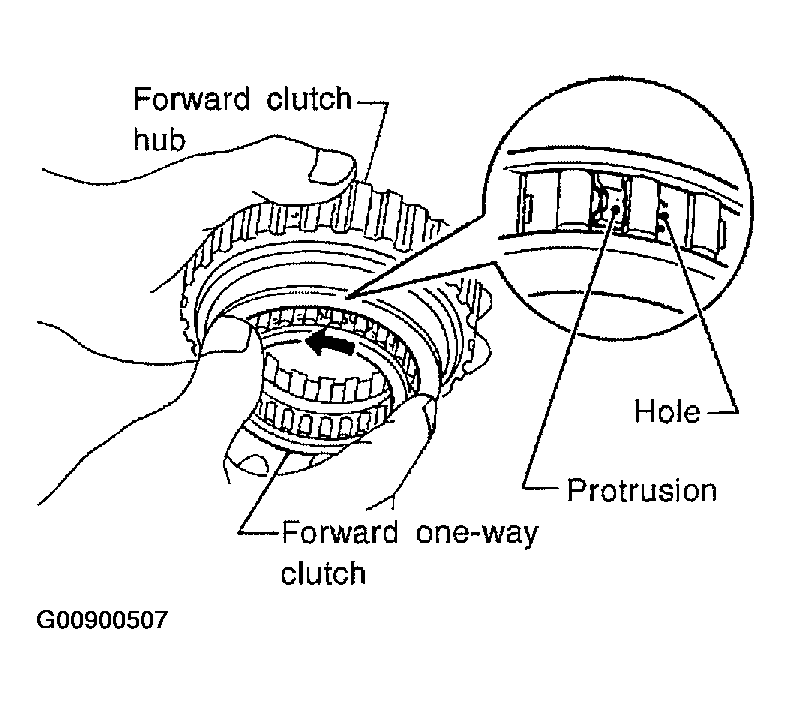

  1. Install forward one-way clutch on forward clutch.
    • Take care with the direction of forward one-way clutch.
    Fig 1: Installing Forward One-Way Clutch On Forward Clutch
    G00900507Courtesy of NISSAN MOTOR CO., U.S.A.

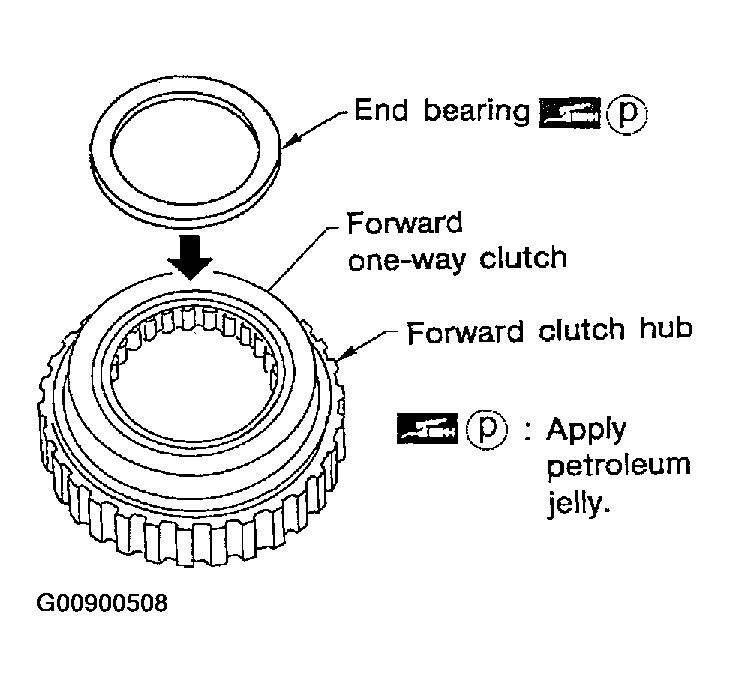

  2. Install end bearing on forward one-way clutch.
    • Apply petroleum jelly to end bearing.
    Fig 2: Installing End Bearing On Forward One-Way Clutch
    G00900508Courtesy of NISSAN MOTOR CO., U.S.A.

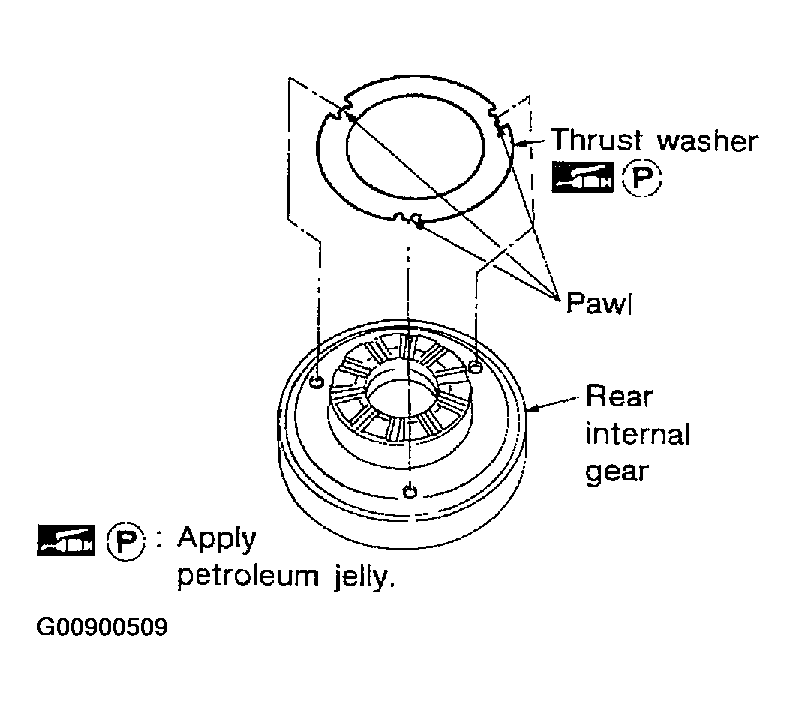

  3. Install thrust washer on rear internal gear.
    • Apply petroleum jelly to thrust washer.
    • Align pawls of thrust washer with holes of rear internal gear.
    Fig 3: Installing Thrust Washer On Rear Internal Gear
    G00900509Courtesy of NISSAN MOTOR CO., U.S.A.

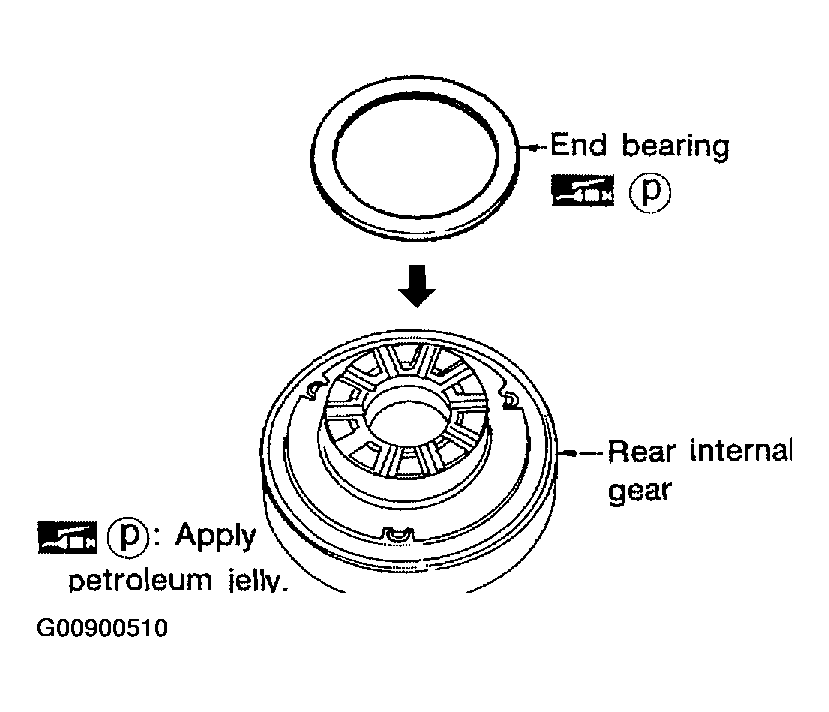

  4. Install end bearing on rear internal gear.
    • Apply petroleum jelly to end bearing.
    Fig 4: Installing End Bearing On Rear Internal Gear
    G00900510Courtesy of NISSAN MOTOR CO., U.S.A.

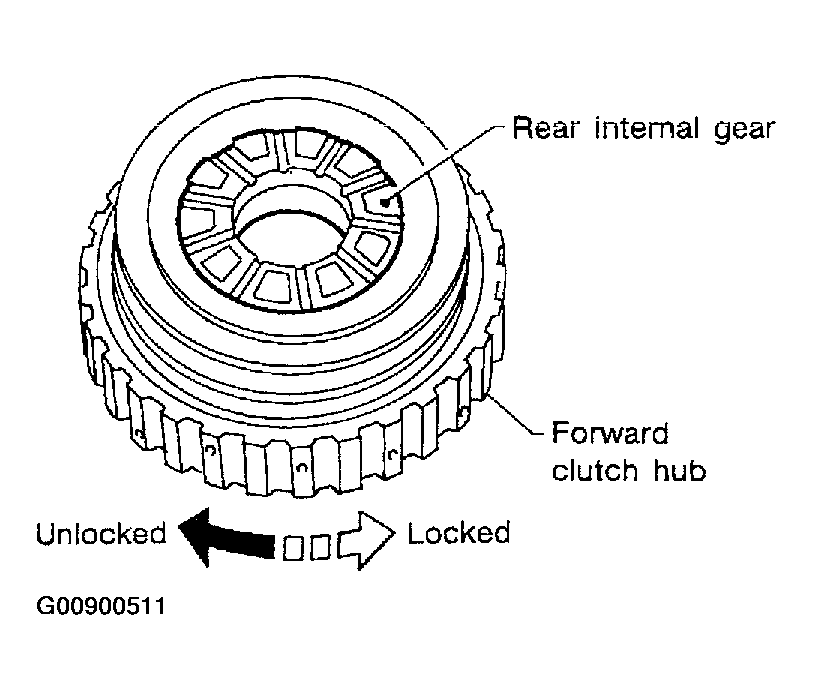

  5. Install forward clutch hub on rear internal gear.
    • Check operation of forward one-way clutch. Hold rear internal gear and turn forward clutch hub. Check forward clutch hub for correct locking and unlocking directions.
    • If not as shown in illustration, check installation direction of forward one-way clutch.
    Fig 5: Installing Forward Clutch Hub On Rear Internal Gear
    G00900511Courtesy of NISSAN MOTOR CO., U.S.A.

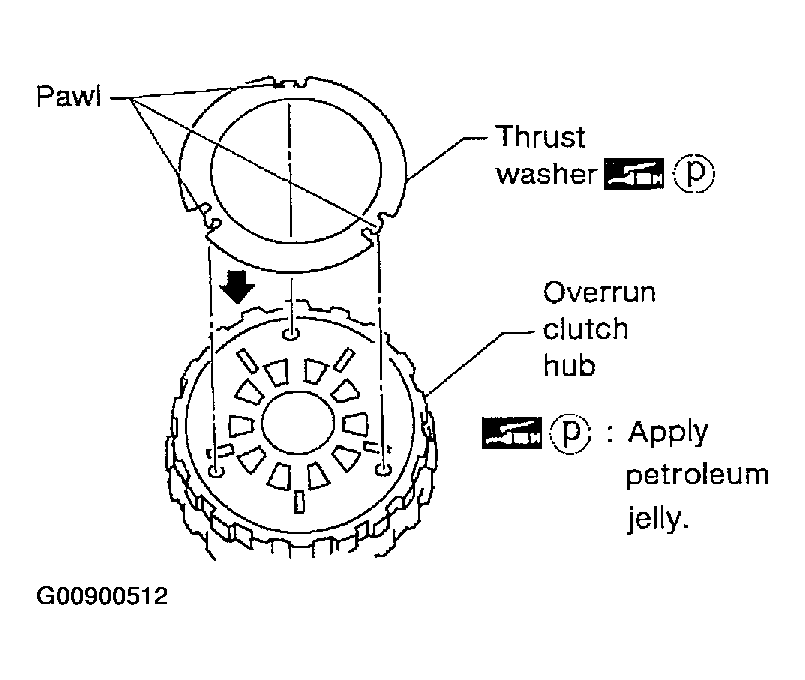

  6. Install thrust washer and overrun clutch hub.
    • Apply petroleum jelly to thrust washer.
    • Align pawls of thrust washer with holes of overrun clutch hub.
    Fig 6: Installing Thrust Washer And Overrun Clutch Hub
    G00900512Courtesy of NISSAN MOTOR CO., U.S.A.

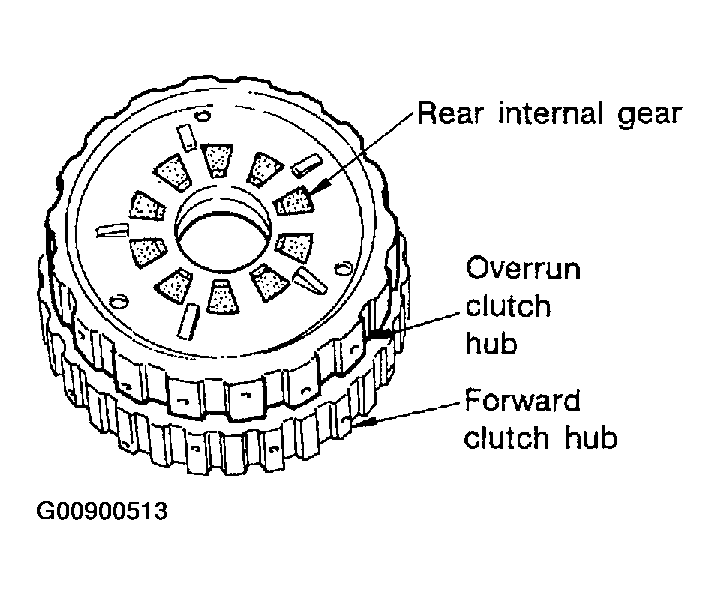

  7. Install overrun clutch hub on rear internal gear.
    • Align projections of rear internal gear with holes of overrun clutch hub.
    Fig 7: Installing Overrun Clutch Hub On Rear Internal Gear
    G00900513Courtesy of NISSAN MOTOR CO., U.S.A.

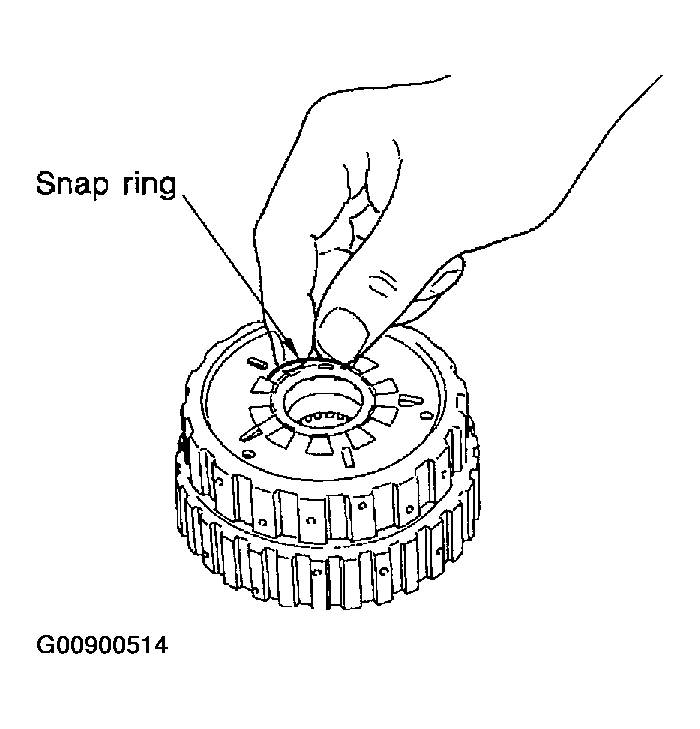

  8. Install snap ring to groove of rear internal gear.
    Fig 8: Installing Snap Ring To Groove Of Rear Internal Gear
    G00900514Courtesy of NISSAN MOTOR CO., U.S.A.
