Section 1174 (Automatic Transaxle - Re4F03B)
>>
Overall System
>>
Shift Mechanism
>>
Power Transmission
>>
"R" Position
"R" Position
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

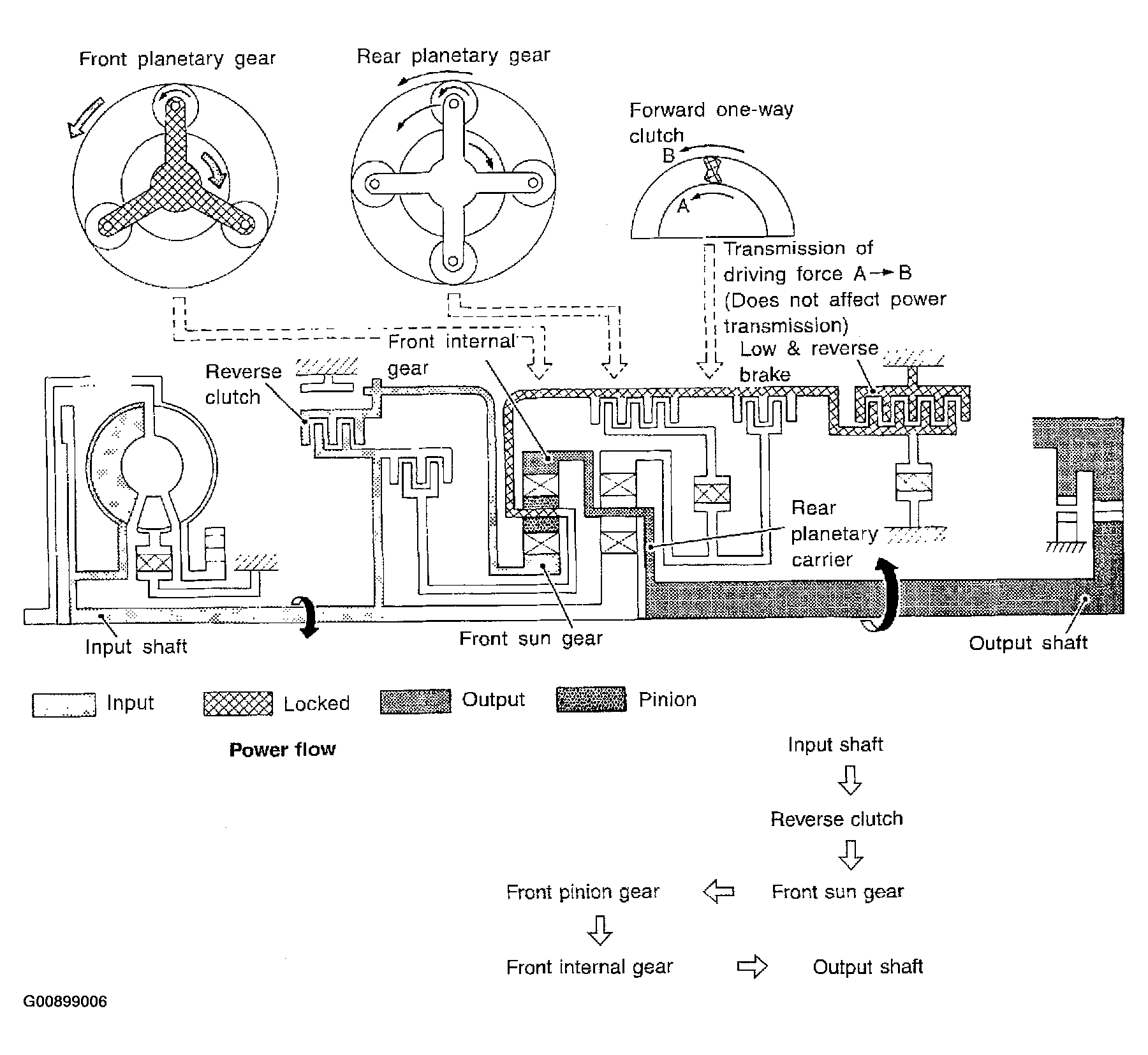

Fig 1: Power Transmission - "R" Position (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

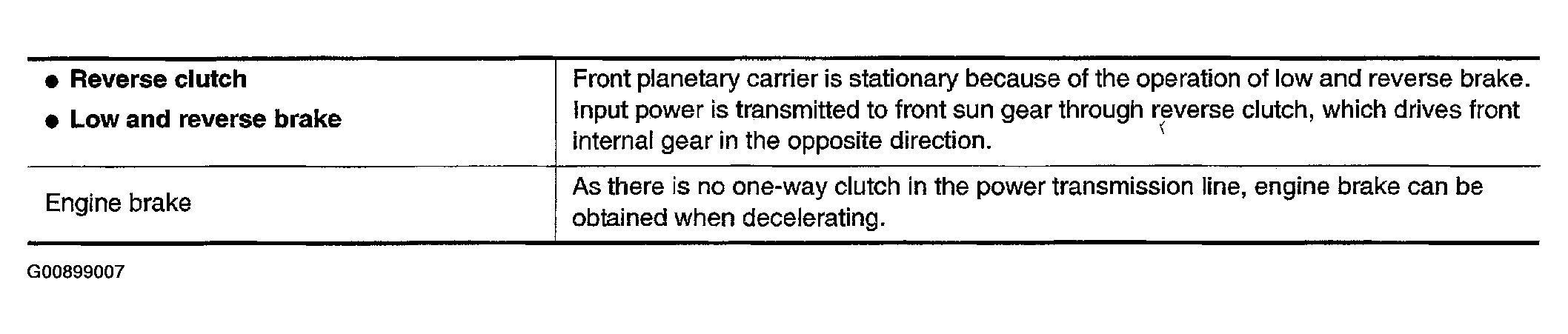

Fig 2: Power Transmission - "R" Position (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
