"D4" (OD) Position

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

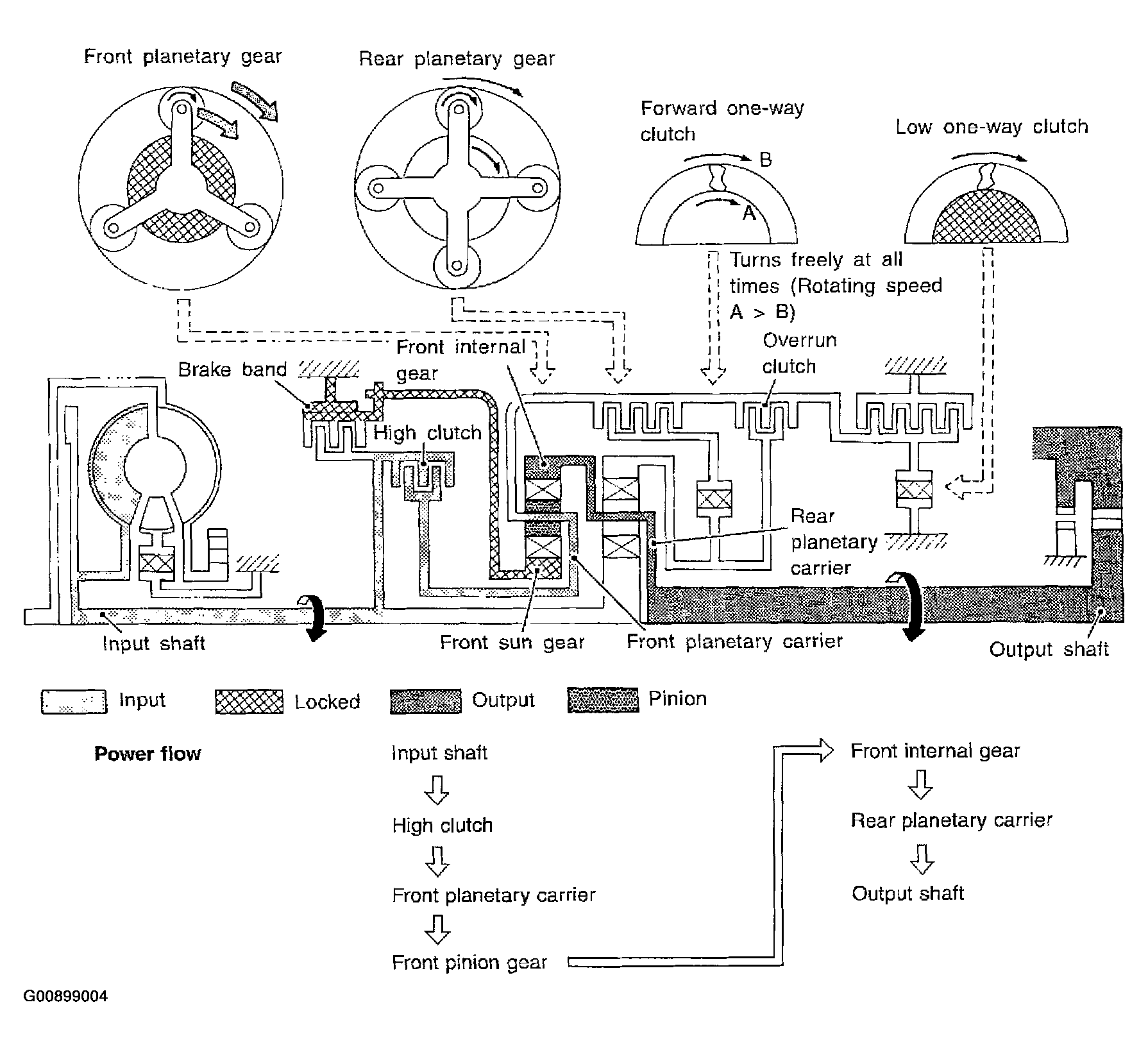

Fig 1: Power Transmission - "D4" (1 Of 2)
G00899004Courtesy of NISSAN MOTOR CO., U.S.A.

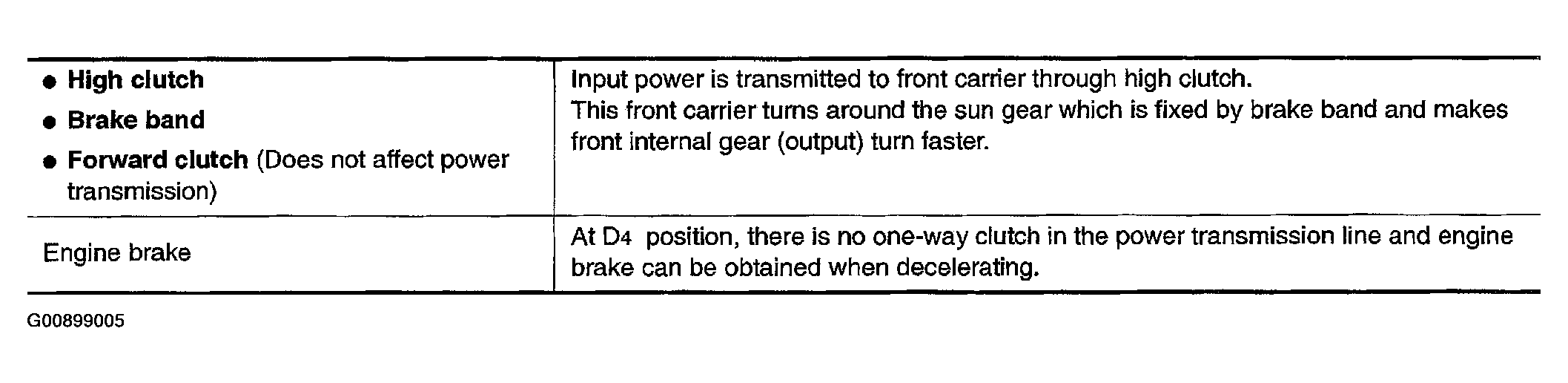

Fig 2: Power Transmission - "D4" (2 Of 2)
G00899005Courtesy of NISSAN MOTOR CO., U.S.A.
