"D1" and "21" Positions

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

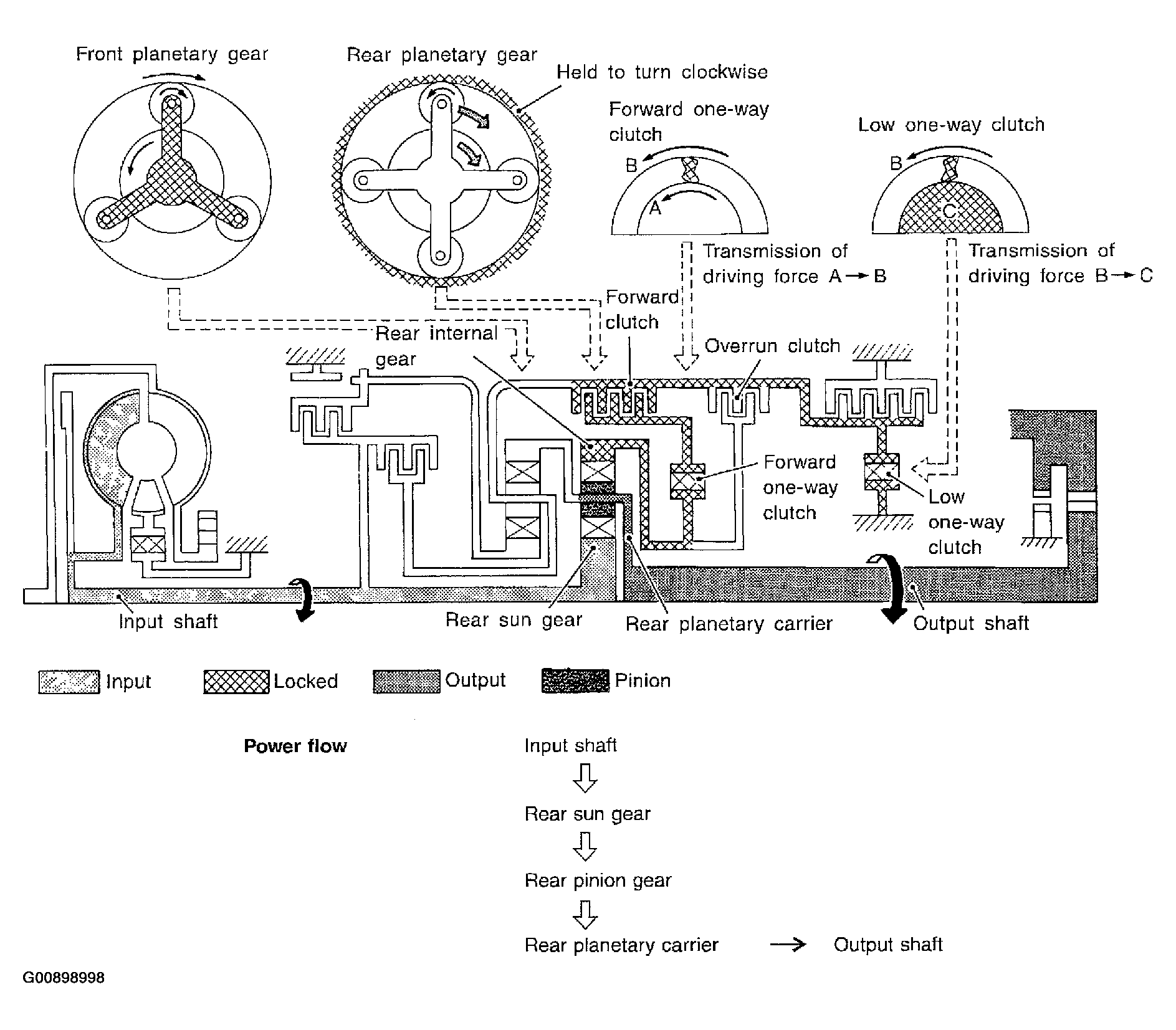

Fig 1: Power Transmission - "D1 & D2" (1 Of 2)
G00898998Courtesy of NISSAN MOTOR CO., U.S.A.

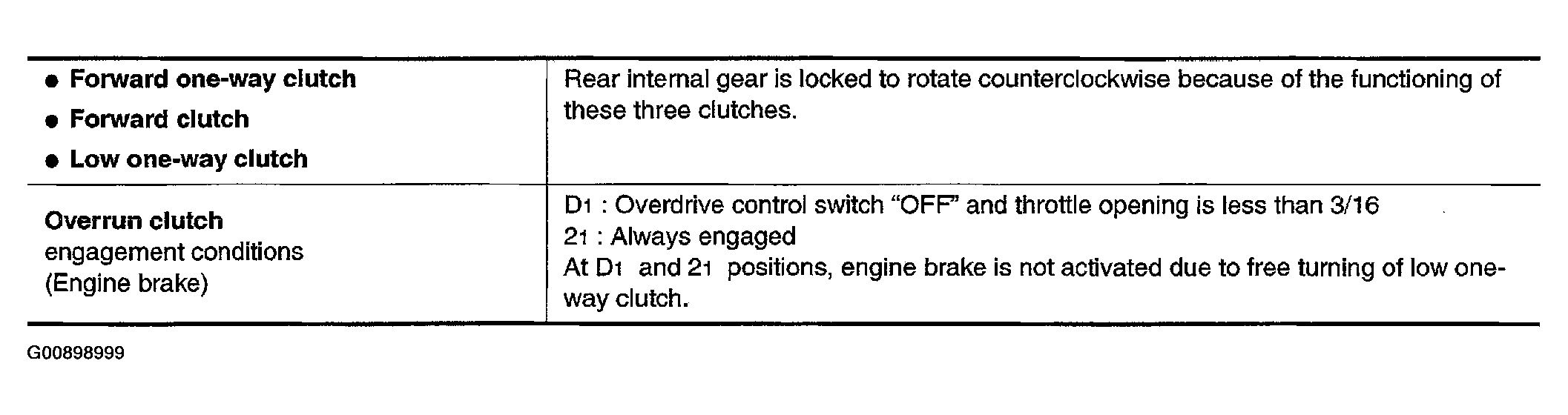

Fig 2: Power Transmission - "D1 & D2" (2 Of 2)
G00898999Courtesy of NISSAN MOTOR CO., U.S.A.
