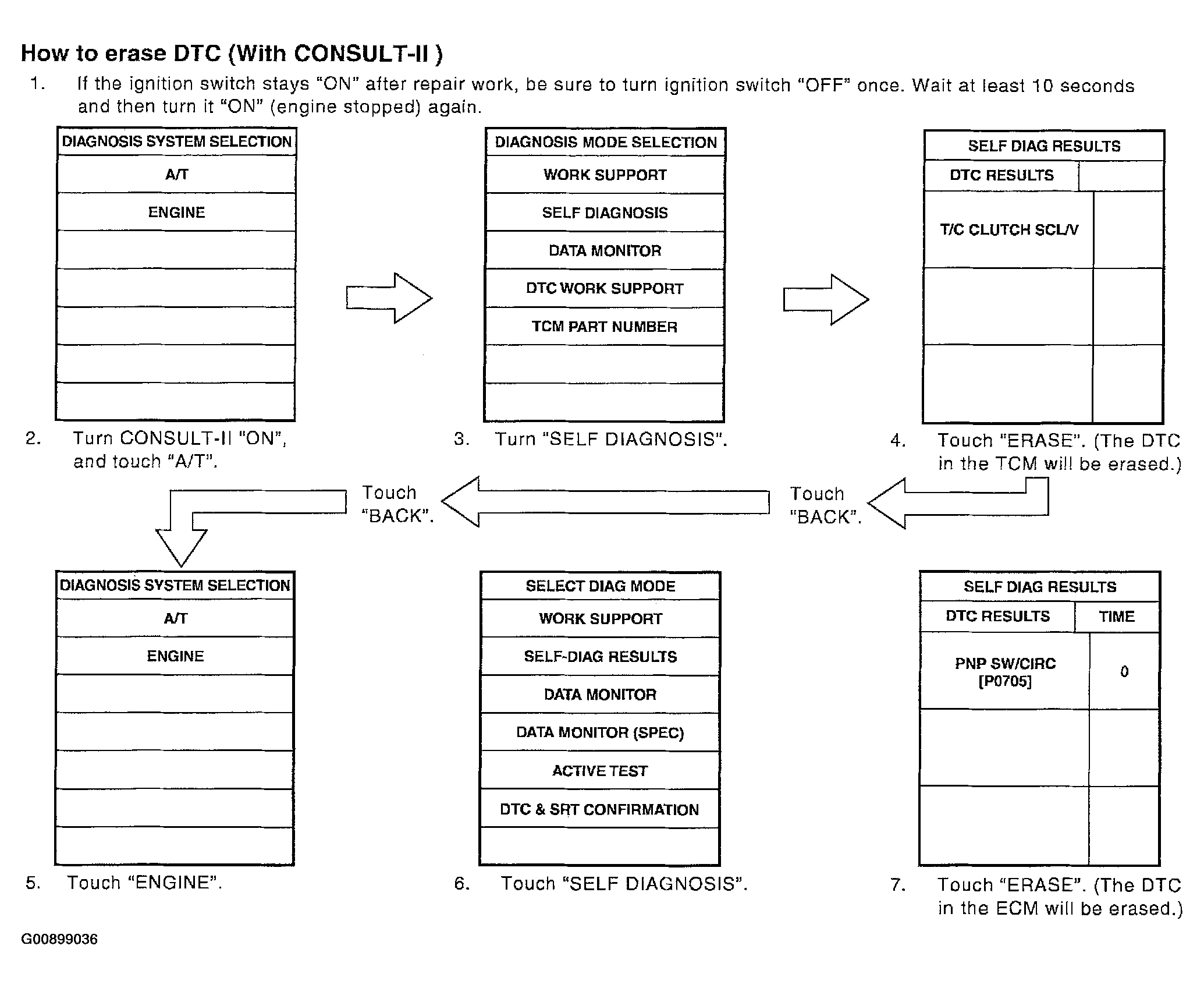

How To Erase DTC (With Consult-II)
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- If a DTC is displayed for both ECM and TCM, it needs to be erased for both ECM and TCM.
- If the ignition switch stays "ON" after repair work, be sure to turn ignition switch "OFF" once. Wait at least 10 seconds and then turn it "ON" (engine stopped) again.
- Turn CONSULT-II "ON" and touch "A/T".
- Touch "SELF DIAGNOSIS".
- Touch "ERASE". (The DTC in the TCM will be erased.) Then touch "BACK" twice.
- Touch "ENGINE".
- Touch "SELF DIAGNOSIS".
- Touch "ERASE". (The DTC in the ECM will be erased.)
