Judgement of Self-diagnosis Code

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

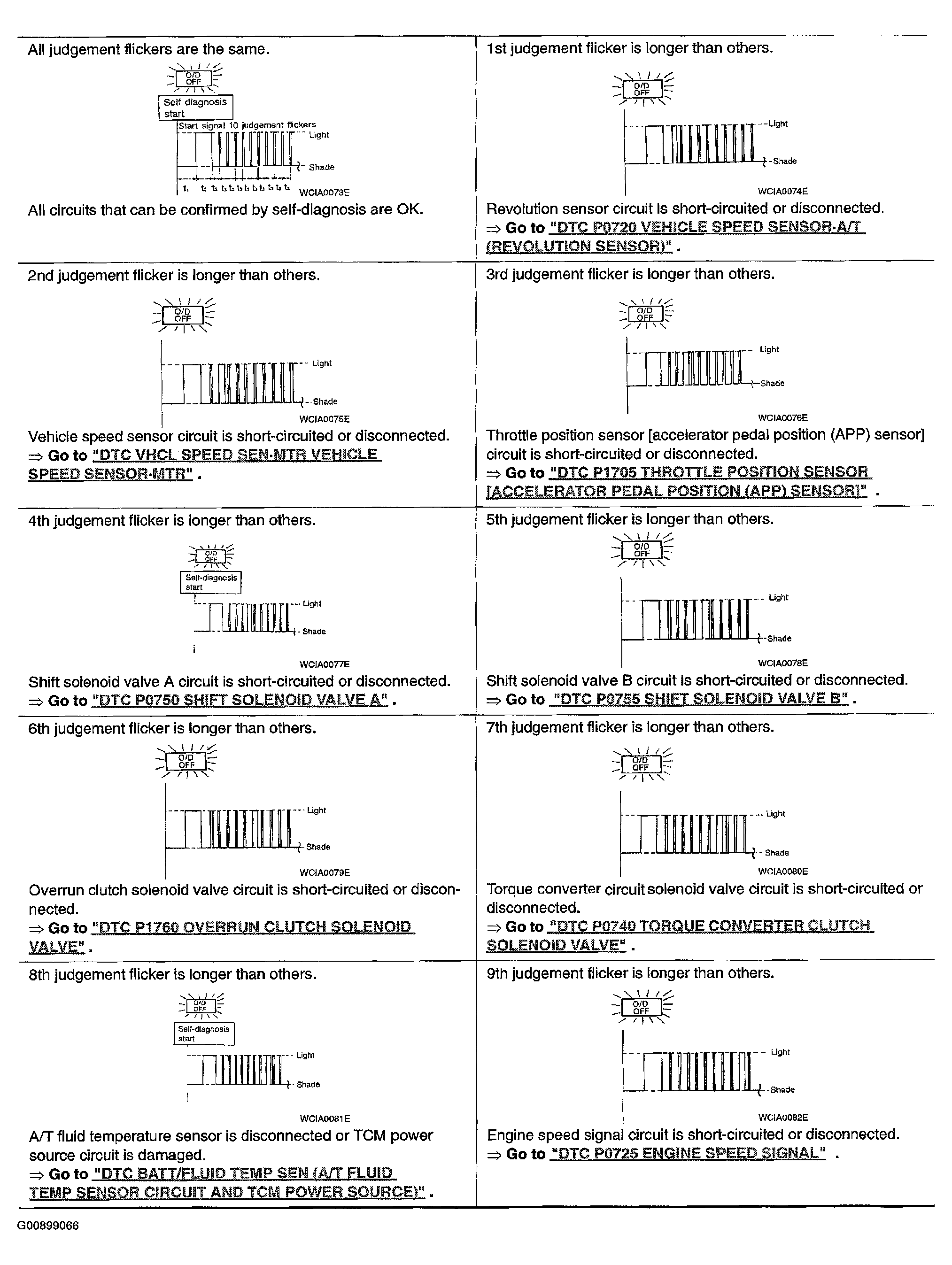

Fig 1: Self-Diagnosis Code Judgement Chart (1 Of 2)
G00899066Courtesy of NISSAN MOTOR CO., U.S.A.

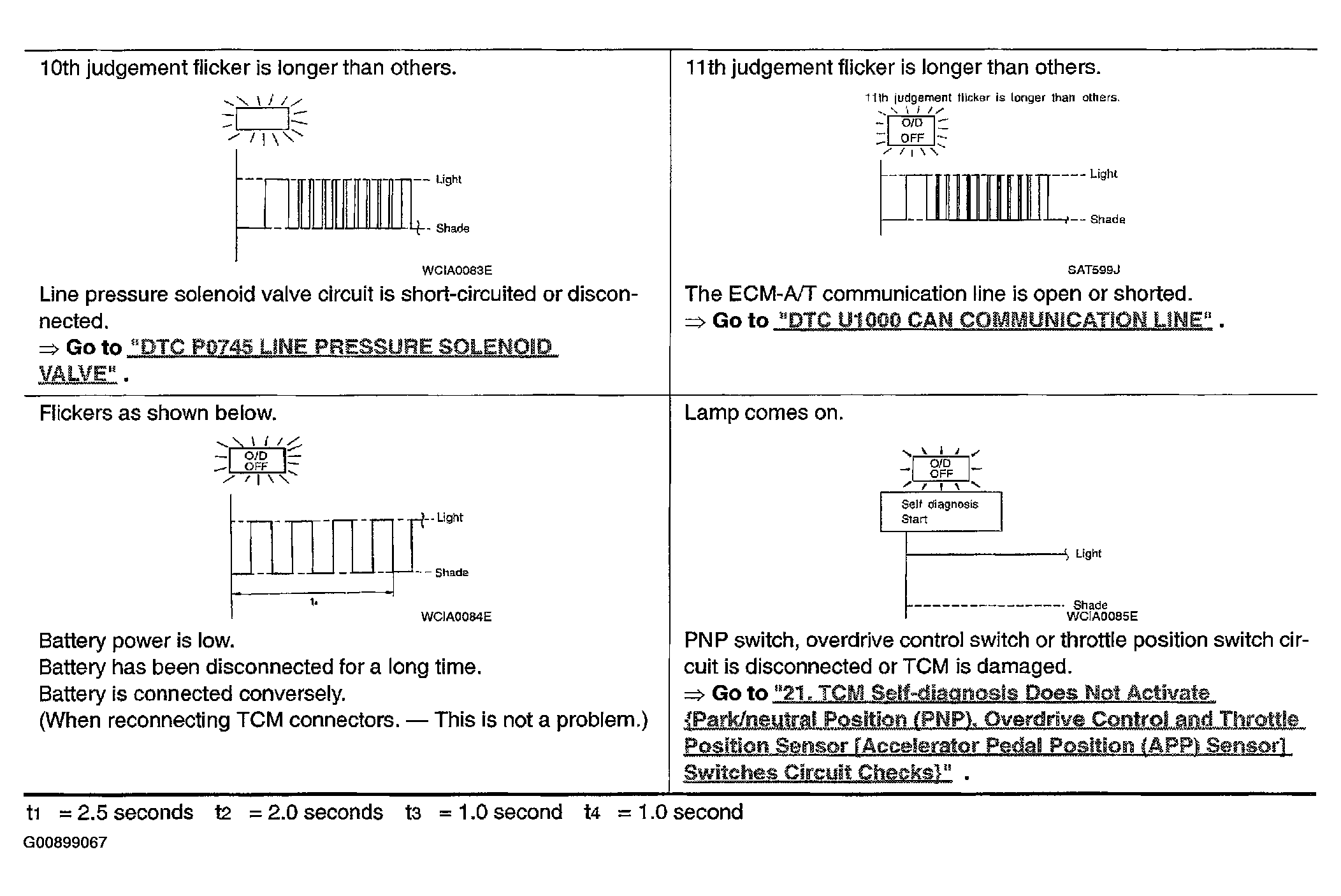

Fig 2: Self-Diagnosis Code Judgement Chart (2 Of 2)
G00899067Courtesy of NISSAN MOTOR CO., U.S.A.
