Low & Reverse Brake Drive Plates
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Check facing for burns, cracks or damage.

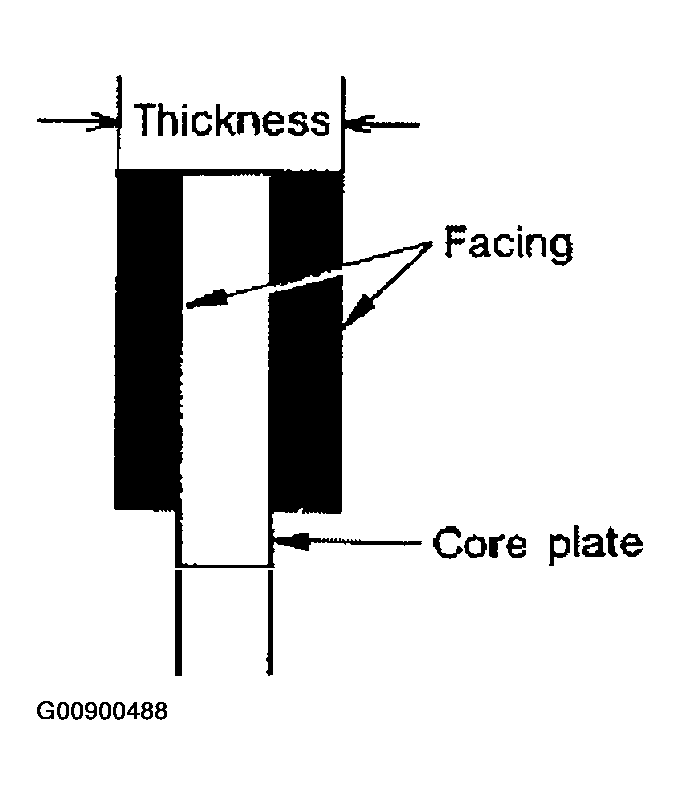

- Measure thickness of facing.
- Thickness of drive plate
- Standard value: 2.0 mm (0.079 in)
- Wear limit: 1.8 mm (0.071 in)
- If not within wear limit, replace.
Courtesy of NISSAN MOTOR CO., U.S.A.
