Low & Reverse Brake: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Install D-ring and oil seal on piston.
- Take care with the direction of the oil seal.
- Apply ATF to both parts.

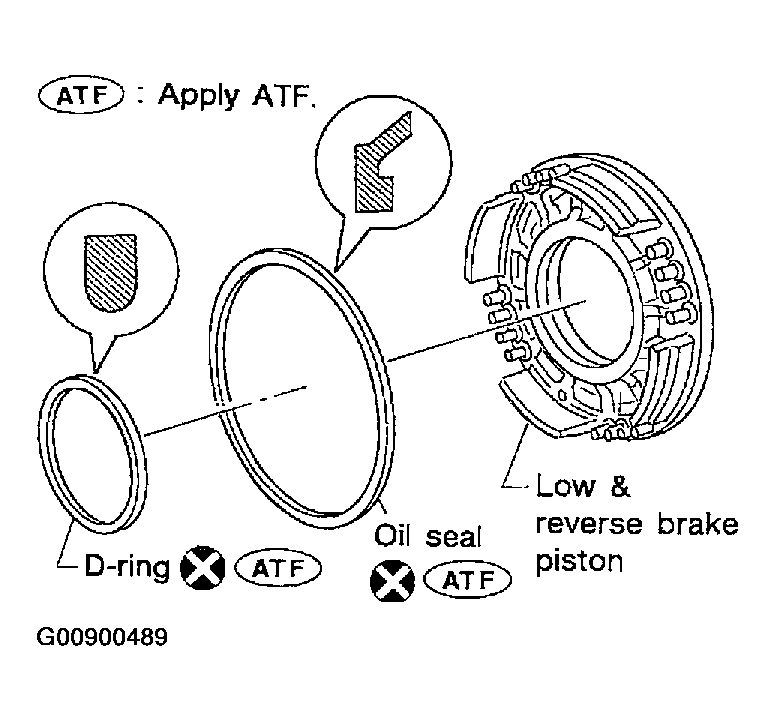

Fig 1: Installing D-Ring And Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Stand transmission case.
Install piston assembly on transmission case while turning it slowly.
- Apply ATF to inner surface of transmission case.

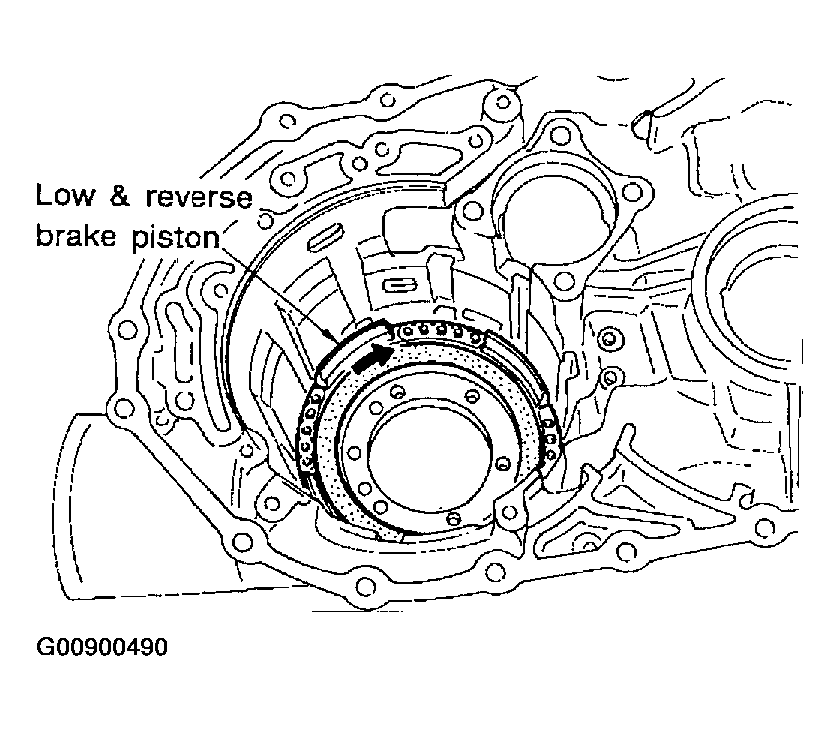

Fig 2: Installing Piston Assembly On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.
1. Return spring: Refer to "CLUTCH AND BRAKE RETURN SPRINGS ".

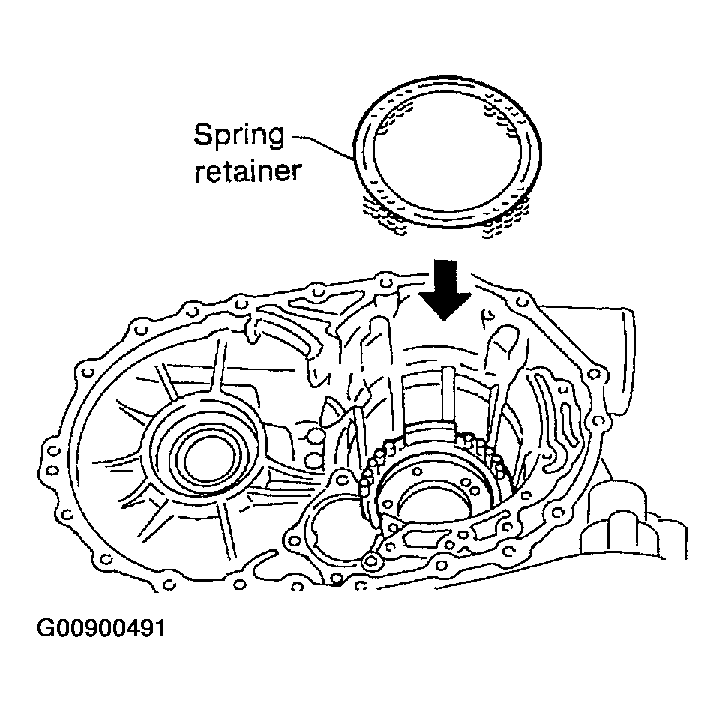

Fig 3: Installing Return Springs And Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring while compressing return springs.
- Set Tool directly above return springs.

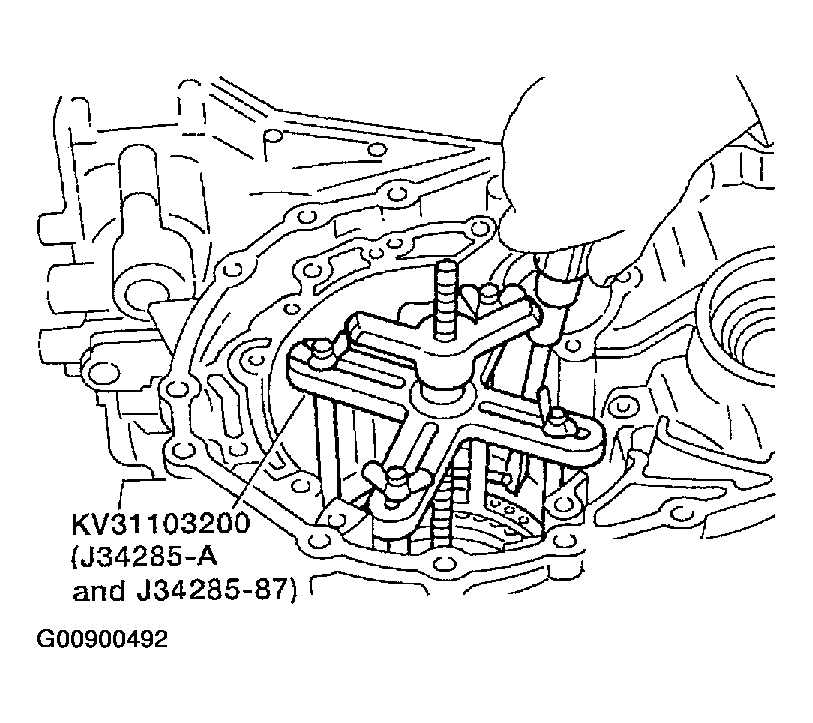

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plates and dished plates.
- Do not align the projections on the two dished plates.
- Make sure to put the plates in the correct order and direction.

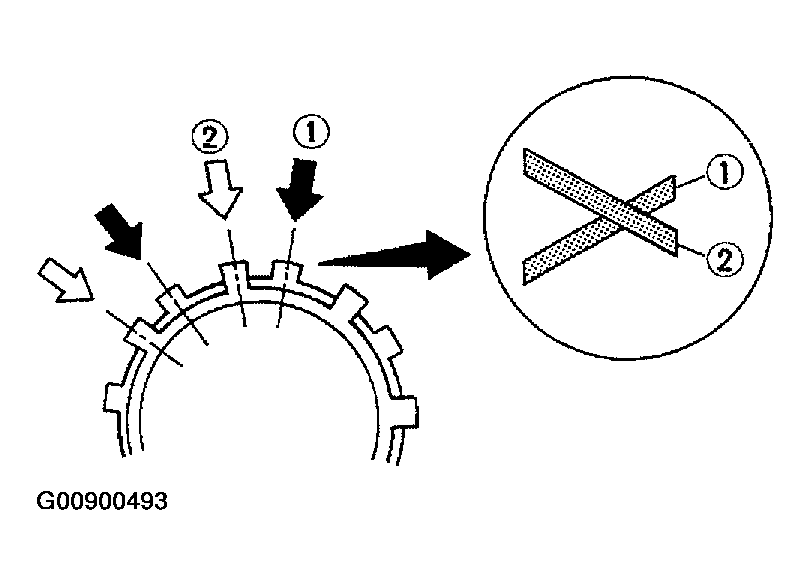

Fig 5: Identifying Projections On Dish Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring.
- Do not expand snap ring excessively.

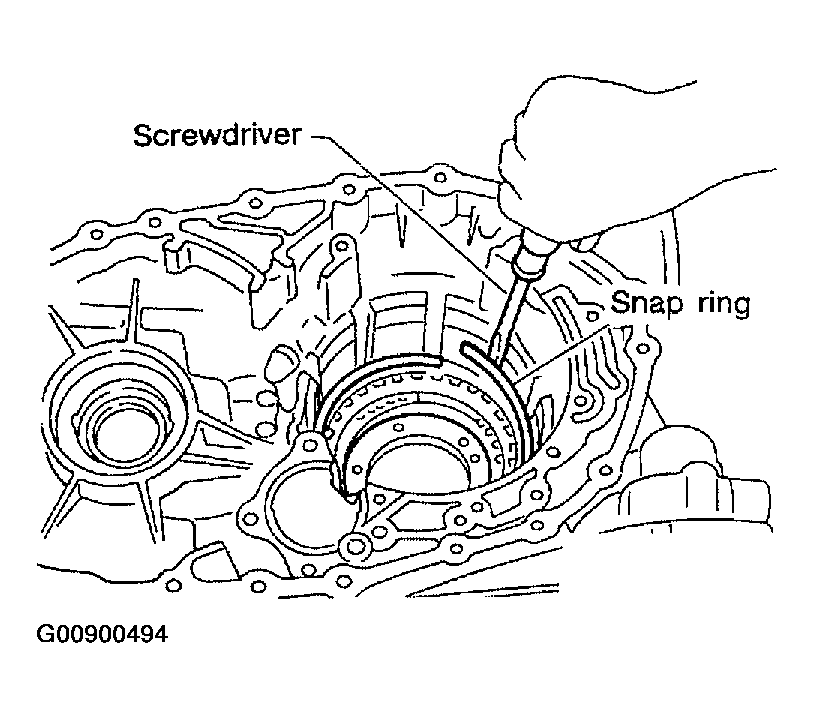

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate (front side).
1. Specified clearance
2. Standard: 1.4 - 1.8 mm (0.055 - 0.071 in)
3. Allowable limit: 2.8 mm (0.110 in)
4. Retaining plate: Refer to "LOW & REVERSE BRAKE ".

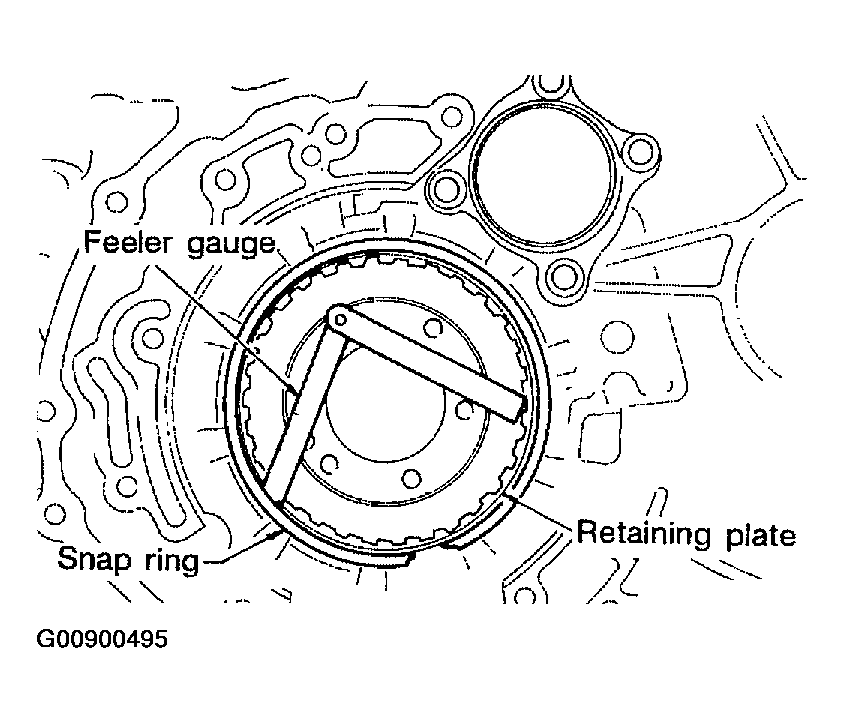

Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of low and reverse brake.
Refer to "LOW & REVERSE BRAKE ".

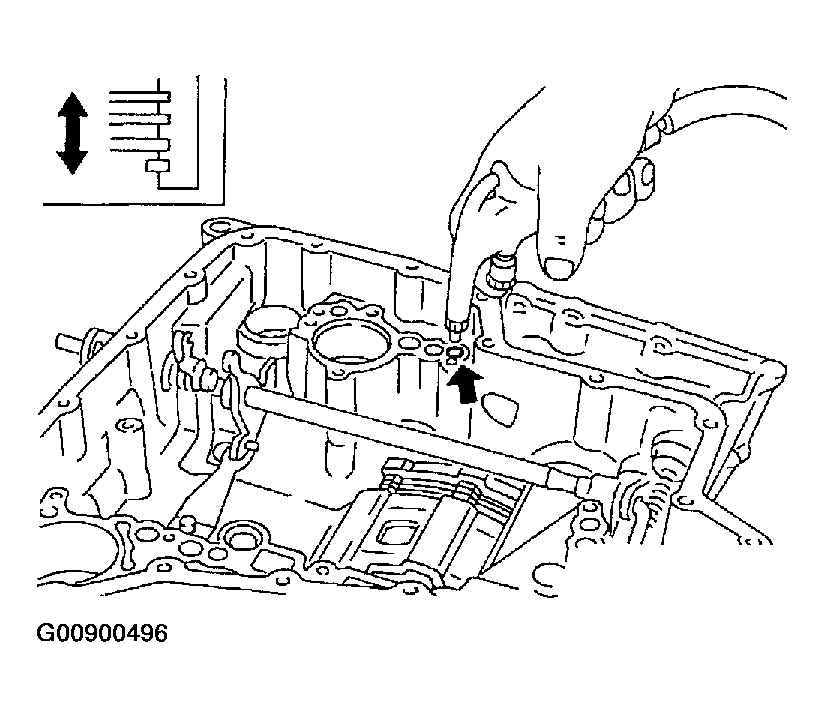

Fig 8: Checking Operation Of Low And Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
