Seal Ring Clearance

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Install new seal rings onto input shaft.
Measure clearance between seal ring and ring groove.
1. Standard clearance: 0.08 - 0.23 mm (0.0031 - 0.0091 in)
2. Allowable limit: 0.23 mm (0.0091 in)
If not within wear limit, replace input shaft assembly.

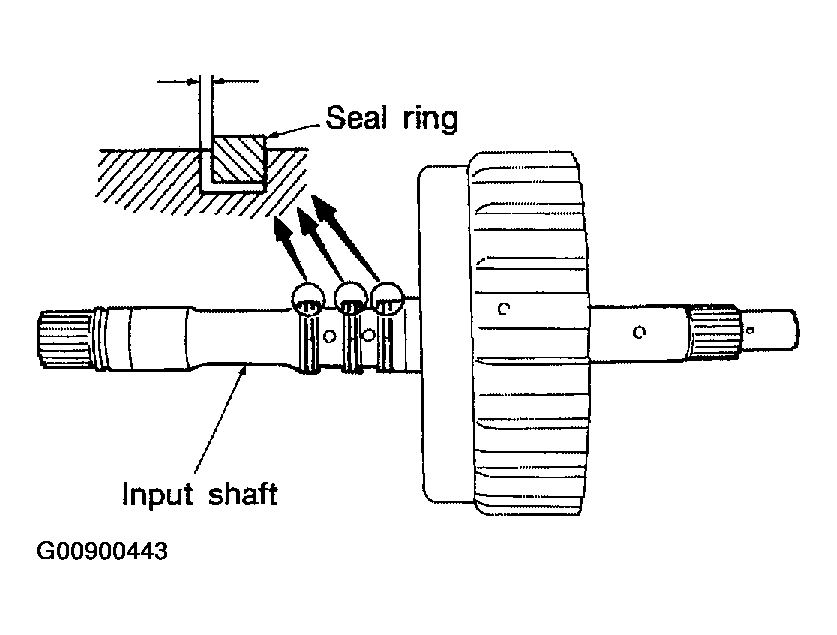

Fig 1: Measuring Clearance Between Seal Ring And Ring Groove
Courtesy of NISSAN MOTOR CO., U.S.A.
