Forward Clutch And Overrun Clutch Dish Plates

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check for deformation or damage.
Measure thickness of dish plate.
1. Thickness of dish plate "t"
2. Forward clutch: 2.5 mm (0.098 in)
3. Overrun clutch: 2.15 mm (0.0846 in)
If deformed or fatigued, replace.

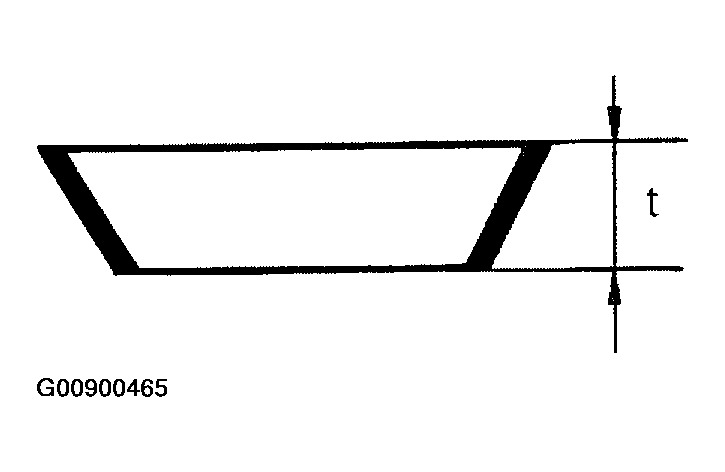

Fig 1: Identifying Thickness Of Forward Clutch And Overrun Clutch Dish Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
