Forward Clutch And Overrun Clutch: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Install D-rings and oil seals on forward clutch piston and overrun clutch piston.
- Take care with direction of oil seal.
- Apply ATF to both parts.

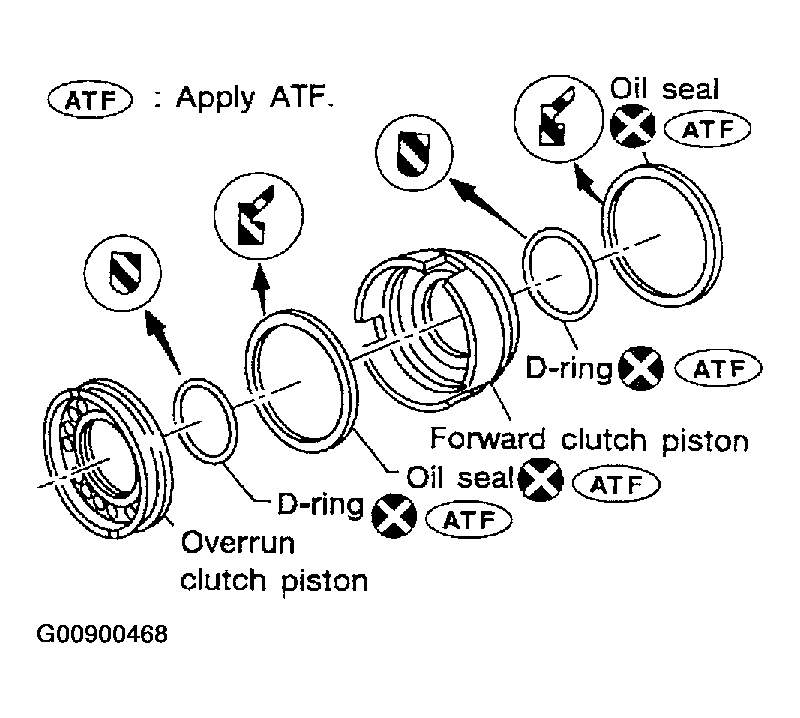

Fig 1: Installing D-Rings And Oil Seals On Forward Clutch Piston And Overrun Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

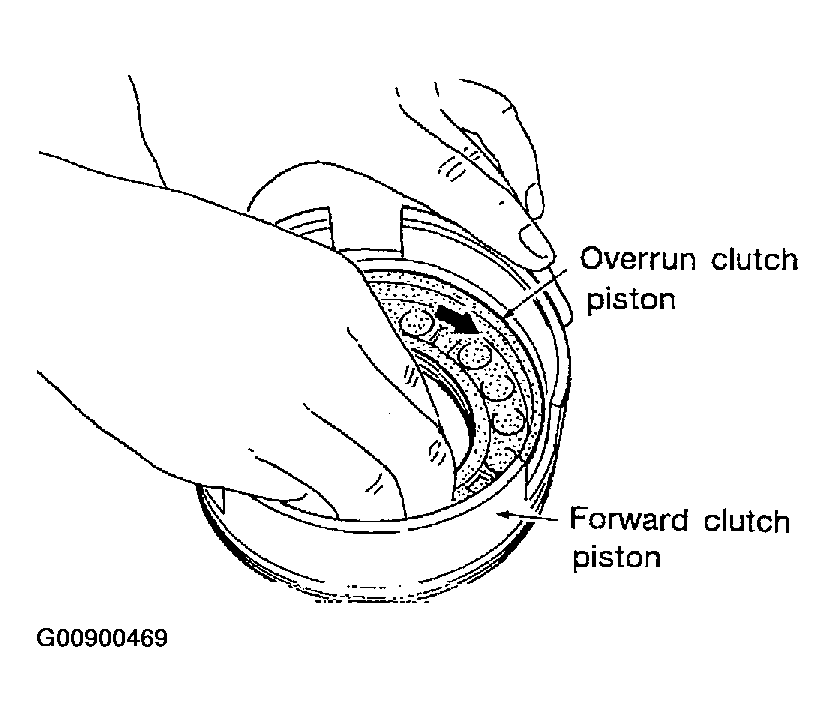

Install overrun clutch piston assembly on forward clutch piston while turning it slowly.
- Apply ATF to inner surface of forward clutch piston.
Fig 2: Installing Overrun Clutch Piston Assembly On Forward Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

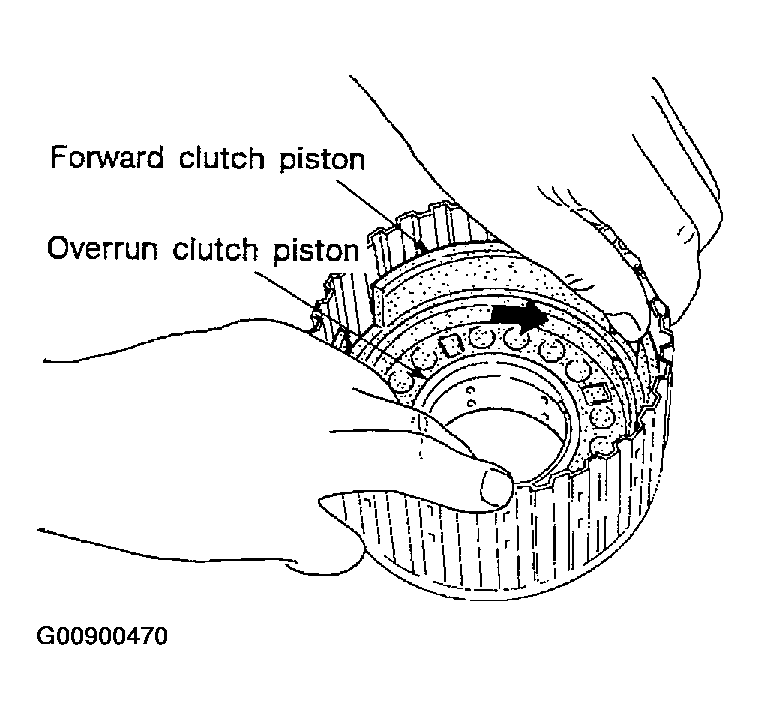

Install forward clutch piston assembly on forward clutch drum while turning it slowly.
- Apply ATF to inner surface of drum.
Fig 3: Installing Forward Clutch Piston Assembly On Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.

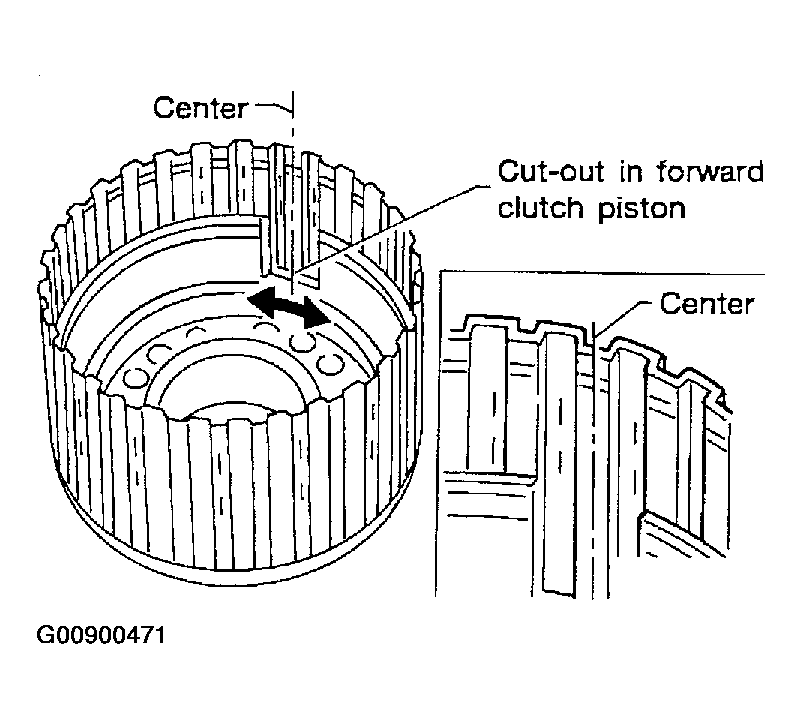

Align notch in forward clutch piston with groove in forward clutch drum.

Fig 4: Aligning Notch In Forward Clutch Piston With Groove In Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring on piston.

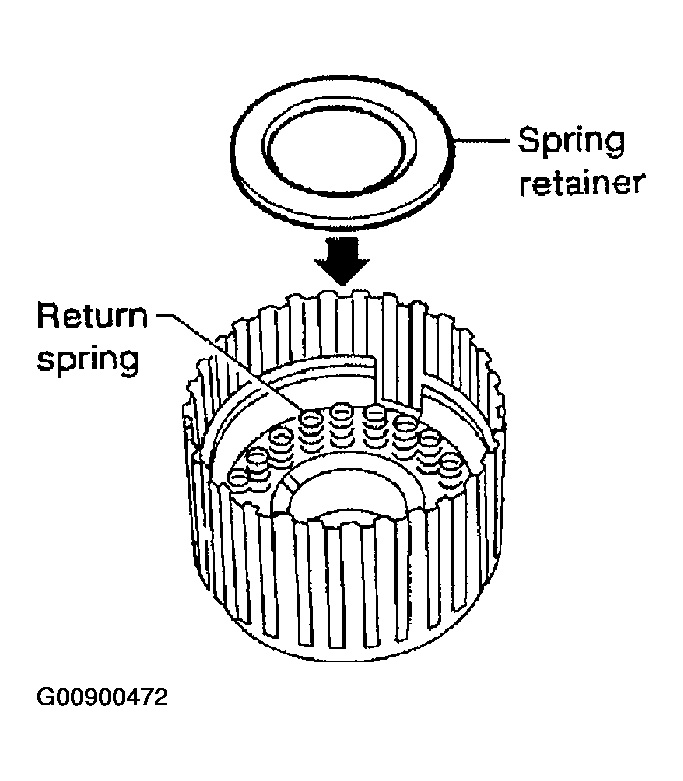

Install spring retainer on return springs.
1. Return spring: Refer to "CLUTCH AND BRAKE RETURN SPRINGS ".
Fig 5: Installing Spring Retainer On Return Springs
Courtesy of NISSAN MOTOR CO., U.S.A.

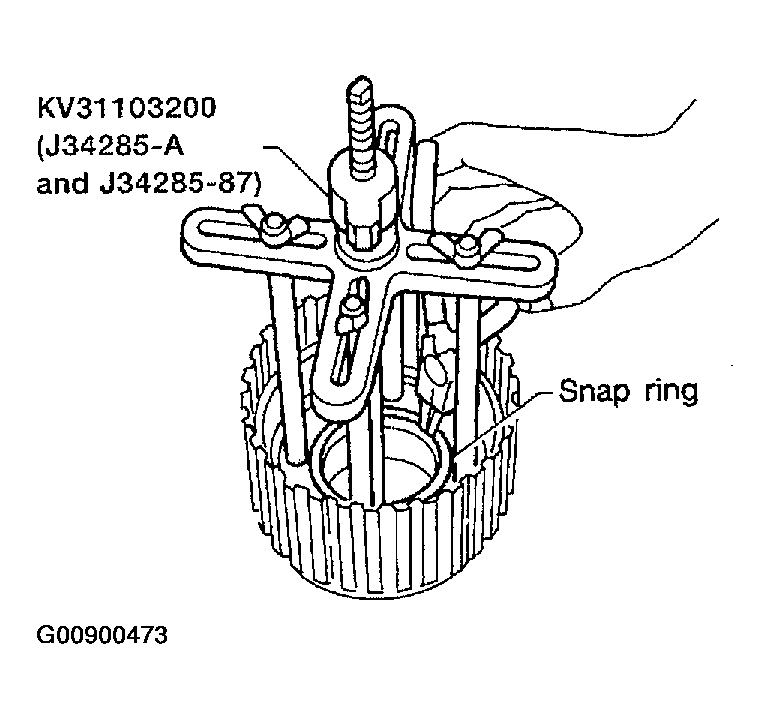

Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly above return springs.
- Do not expand snap ring excessively.

  Fig 6: Installing Snap Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.

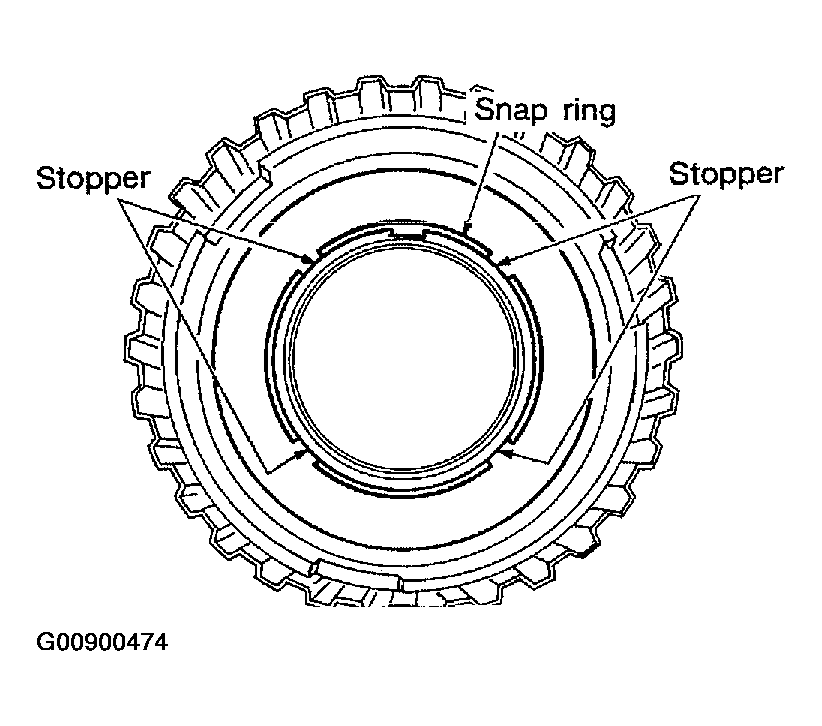

- Do not align snap ring gap with spring retainer stopper.
Fig 7: Identifying Snap Ring And Spring Retainer Stopper
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for overrun clutch.

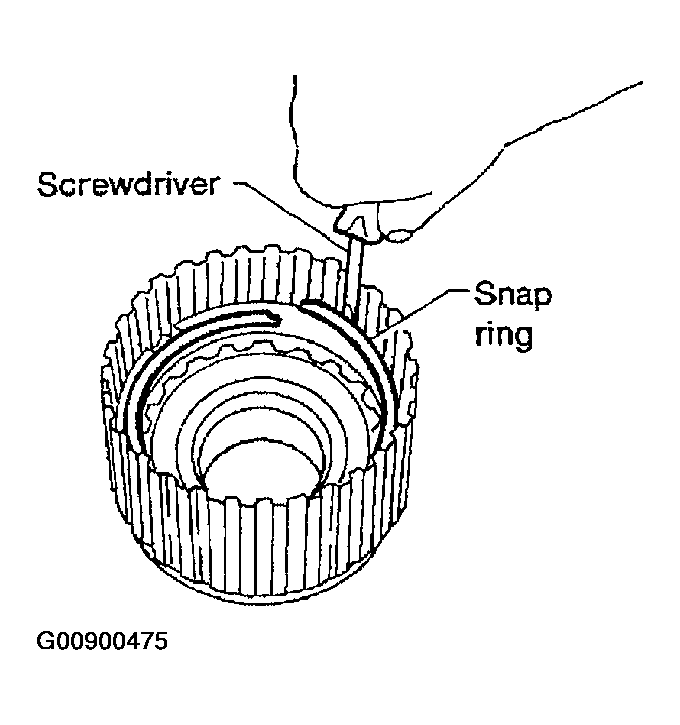

Install snap ring for overrun clutch.
- Do not expand snap ring excessively.

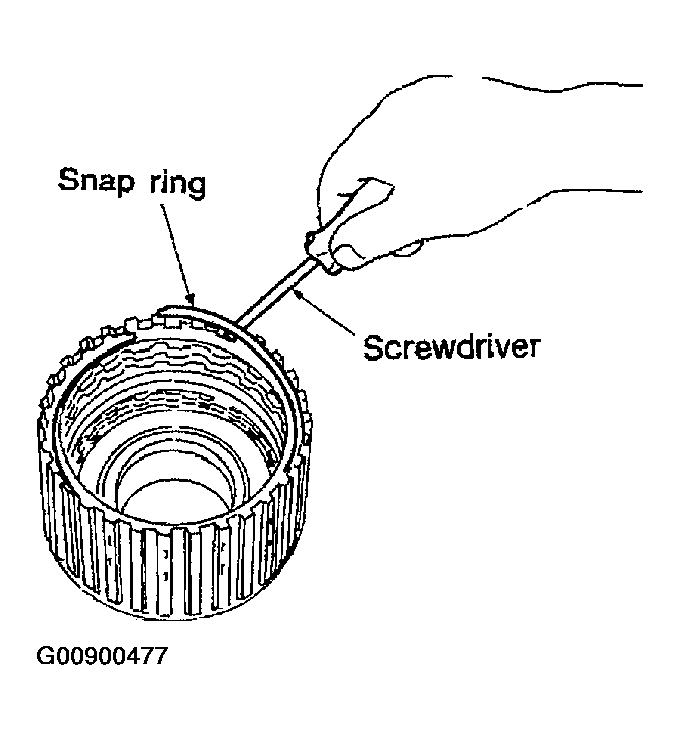

Fig 8: Installing Snap Ring On Overrun Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between overrun clutch retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.
1. Specified clearance
2. Standard: 1.0 - 1.4 mm (0.039 - 0.055 in)
3. Allowable limit: 2.0 mm (0.079 in)
4. Overrun clutch retaining plate: Refer to "OVERRUN CLUTCH ".

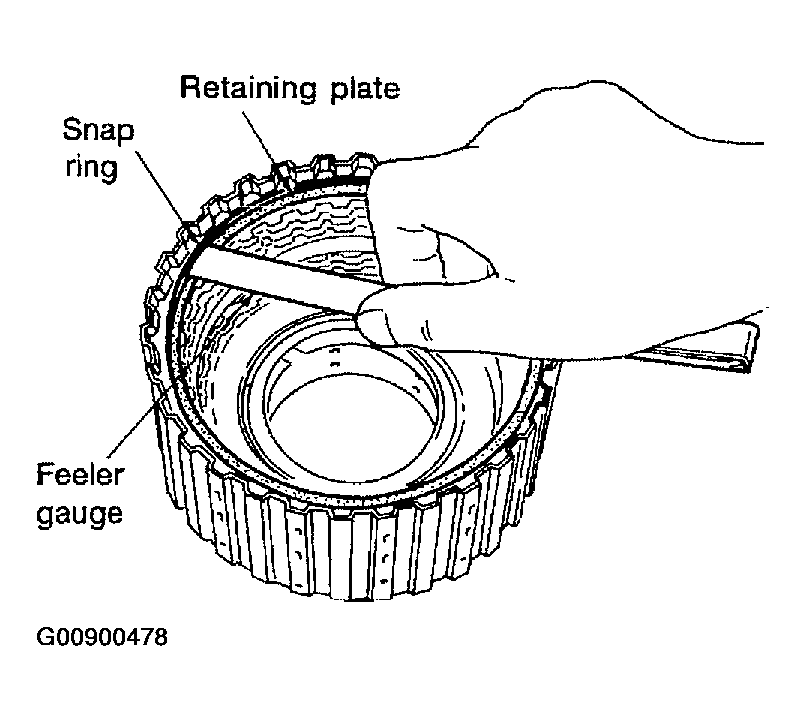

Fig 9: Measuring Clearance Between Overrun Clutch Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for forward clutch.
Take care with the order and direction of plates.
Install snap ring for forward clutch.
- Do not expand snap ring excessively.
Fig 10: Installing Snap Ring On Forward Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between forward clutch retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.
1. Specified clearance
2. Standard: 0.45 - 0.85 mm (0.0177 - 0.0335 in)
3. Allowable limit: 1.85 mm (0.0728 in)
4. Forward clutch retaining plate: Refer to "FORWARD CLUTCH "

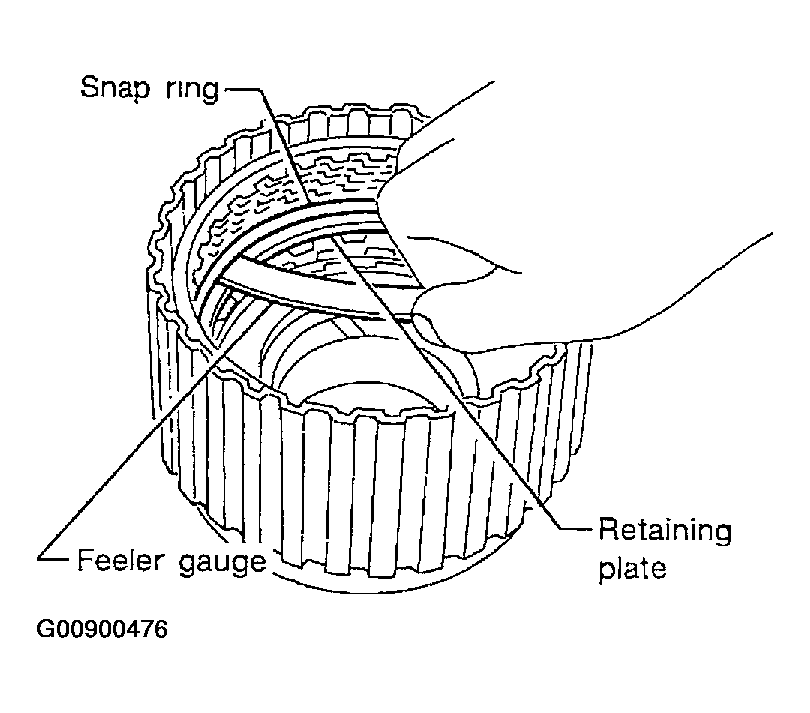

Fig 11: Measuring Clearance Between Forward Clutch Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of forward clutch.
Refer to "FORWARD CLUTCH AND OVERRUN CLUTCH ".

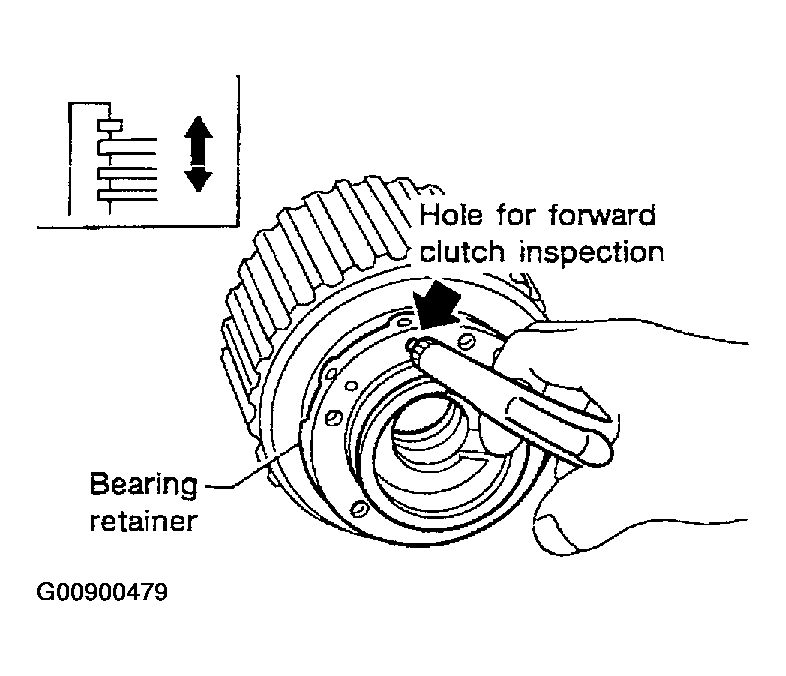

Fig 12: Checking Operation Of Forward Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.

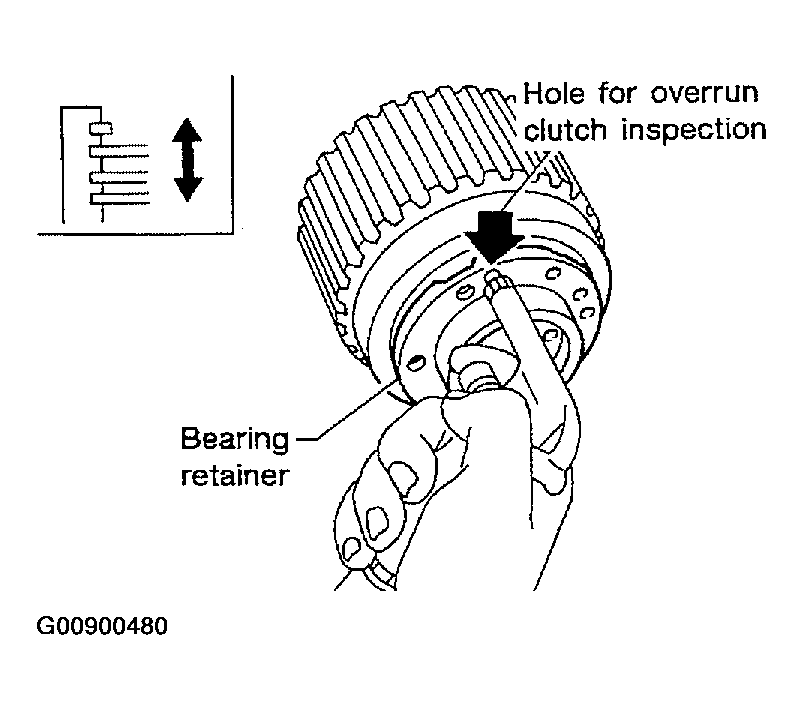

Check operation of overrun clutch.
Refer to "FORWARD CLUTCH AND OVERRUN CLUTCH ".

Fig 13: Checking Operation Of Overrun Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
