DTC P1760: Overrun Clutch Solenoid Valve: Description: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the inhibitor switch, overdrive control switch, vehicle speed and throttle position sensors. The overrun clutch operation will then be controlled.

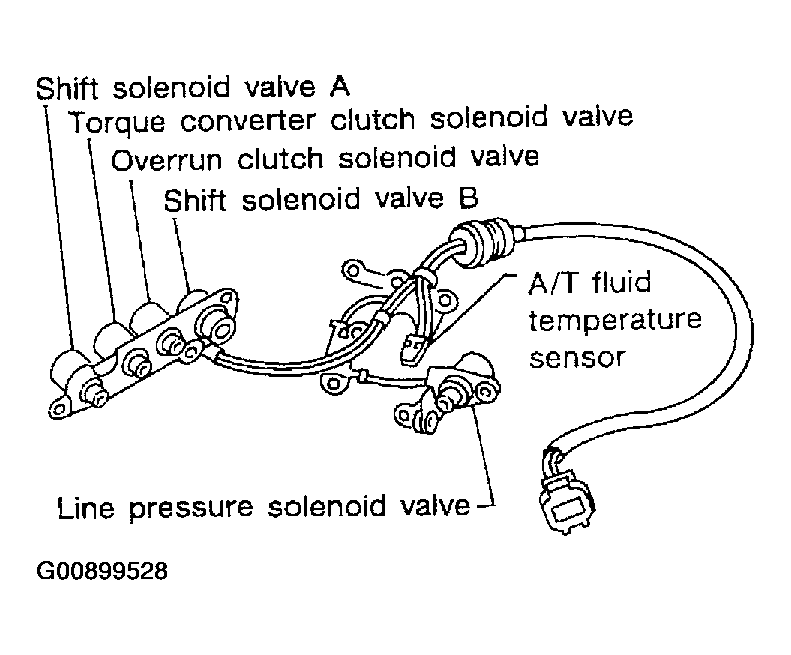

Fig 1: Identifying Solenoid Valves And A/T Fluid Temperature Sensor
G00899528Courtesy of NISSAN MOTOR CO., U.S.A.
