DTC P0755: Shift Solenoid Valve B: Description: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Shift solenoid valves A and B are turned "ON" or "OFF" by the TCM in response to signals sent from the PNP switch, vehicle speed and throttle position sensors. Gears will then be shifted to the optimum position.

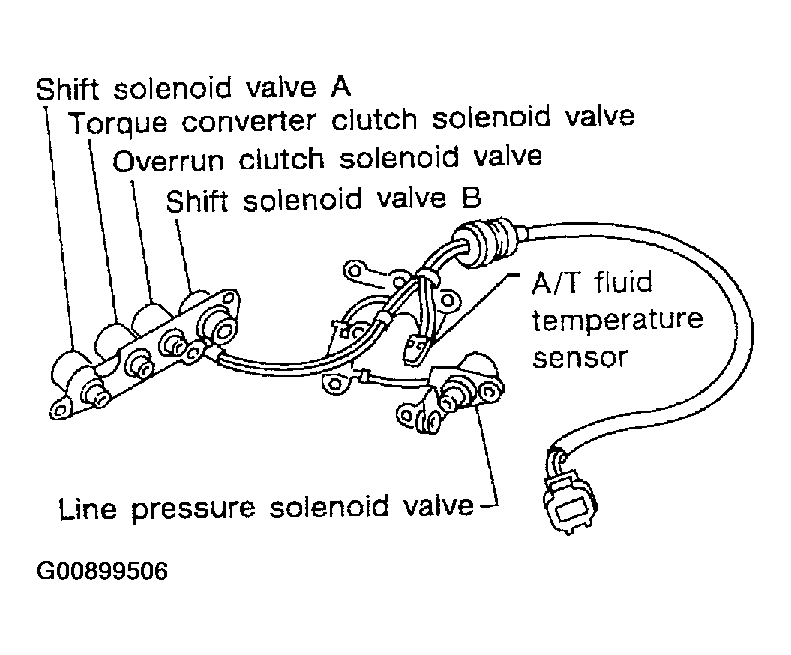

Fig 1: Identifying Solenoid Valves And A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

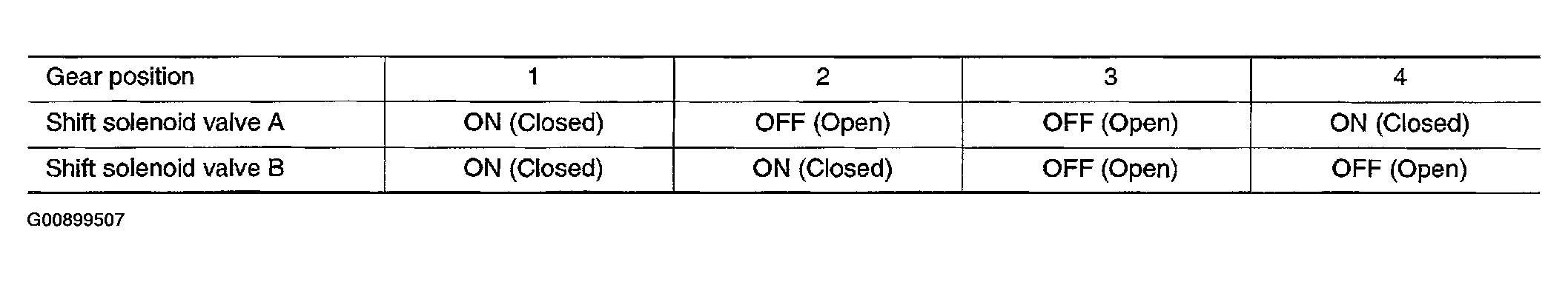

Fig 2: Gear And Shift Solenoid Valves Positions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
