Resistance Check

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

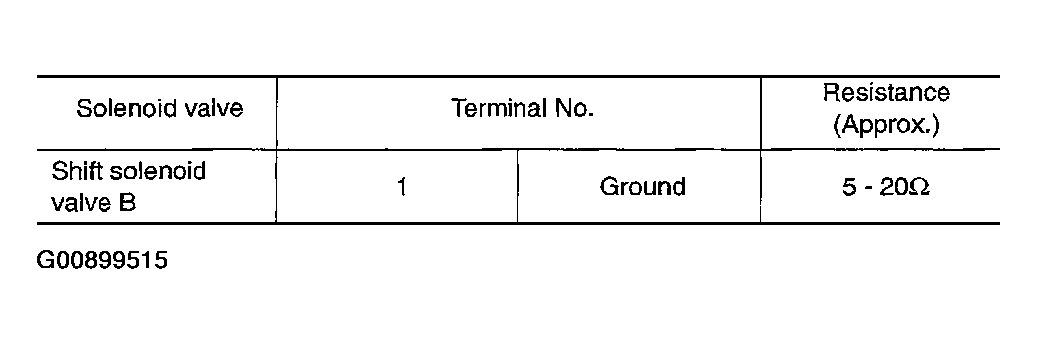

Fig 1: Checking Resistance Of Shift Solenoid Valve B (1 Of 2)
G00899515Courtesy of NISSAN MOTOR CO., U.S.A.

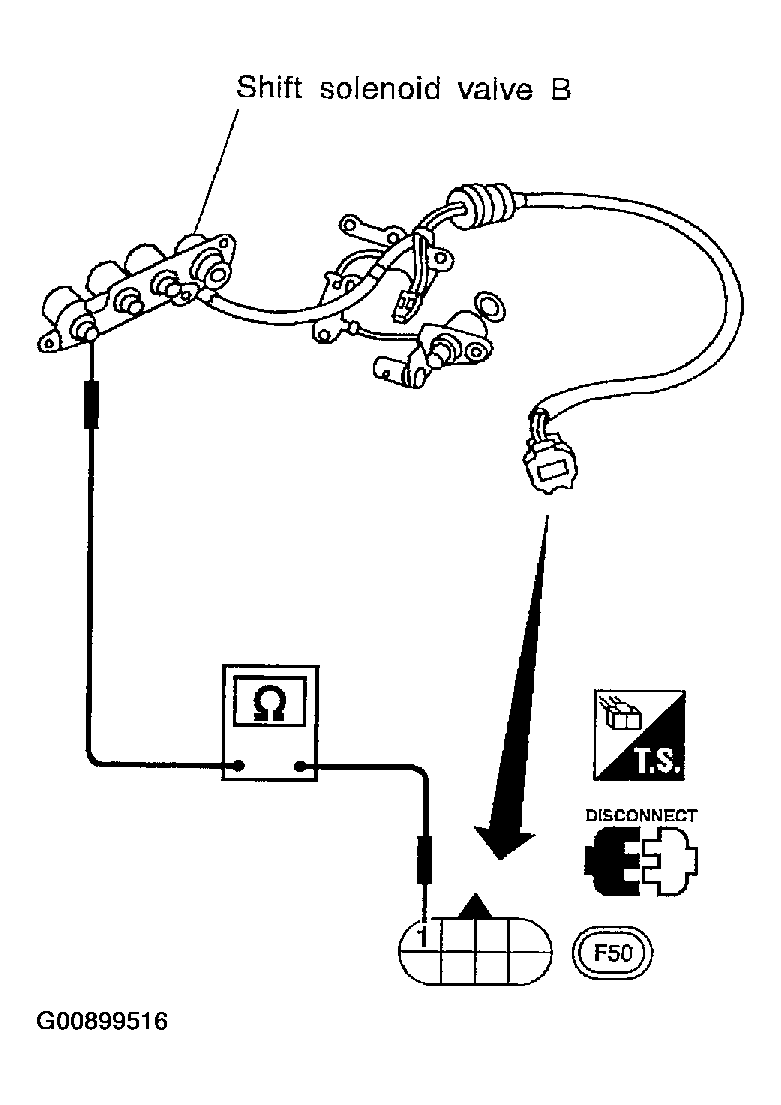

Fig 2: Checking Resistance Of Shift Solenoid Valve B (2 Of 2)
G00899516Courtesy of NISSAN MOTOR CO., U.S.A.
