DTC P0750: Shift Solenoid Valve A: Description: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Shift solenoid valves A and B are turned "ON" or "OFF" by the TCM in response to signals sent from the PNP switch, vehicle speed sensor and throttle position sensor [accelerator pedal position (APP) sensor]. Gears will then be shifted to the optimum position.

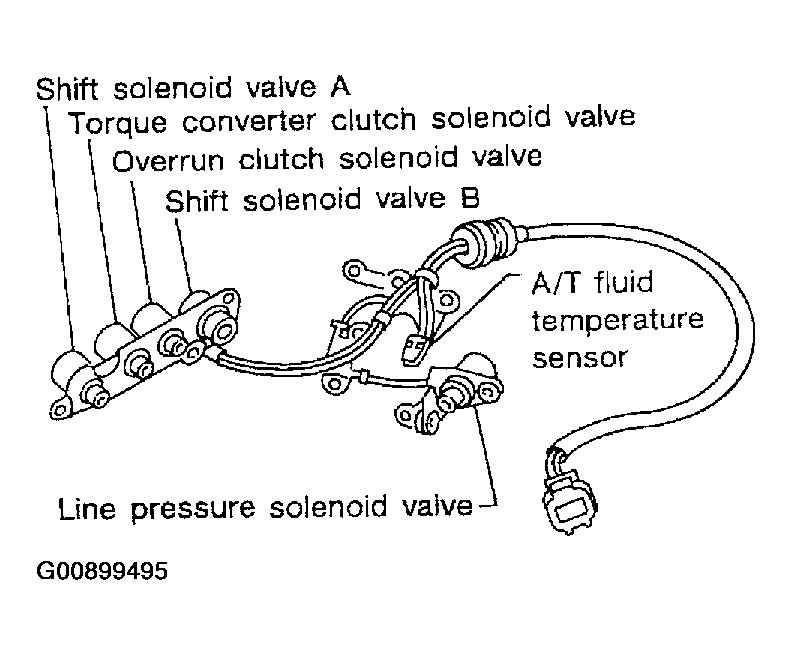

Fig 1: Identifying Solenoid Valves And A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

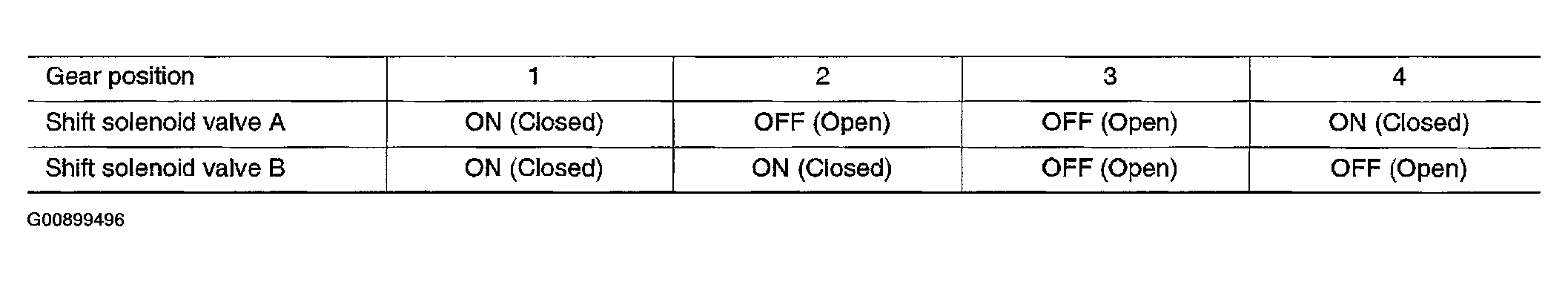

Fig 2: Gear And Shift Solenoid Valves Positions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
