Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

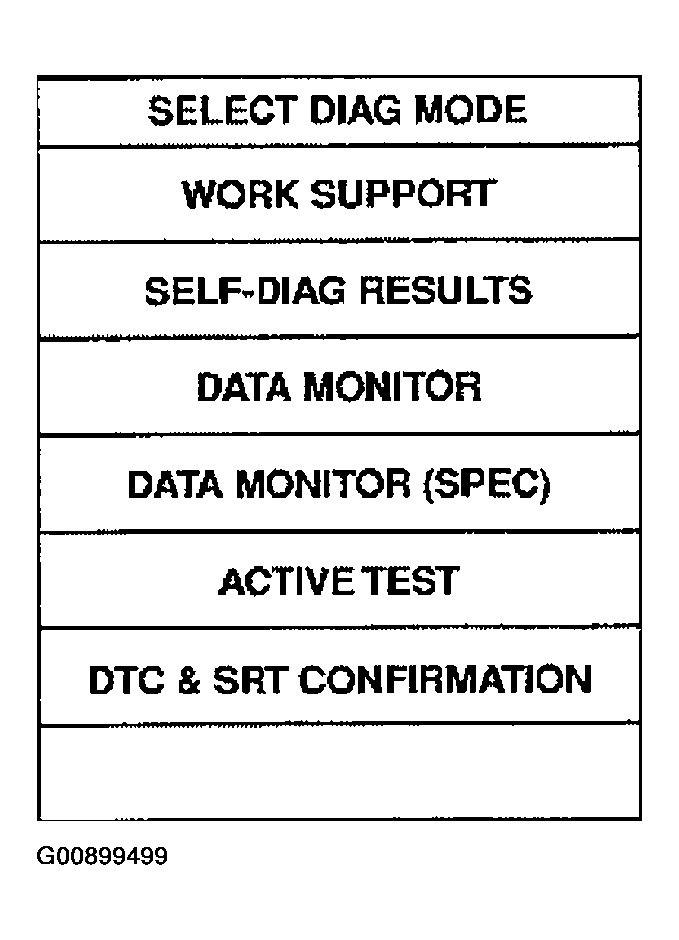

Fig 1: Consult II Display (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Start engine.
Drive vehicle in D position and allow the transmission to shift "1" -> "2" ("GEAR").

With GST

Follow the procedure "With CONSULT-II".

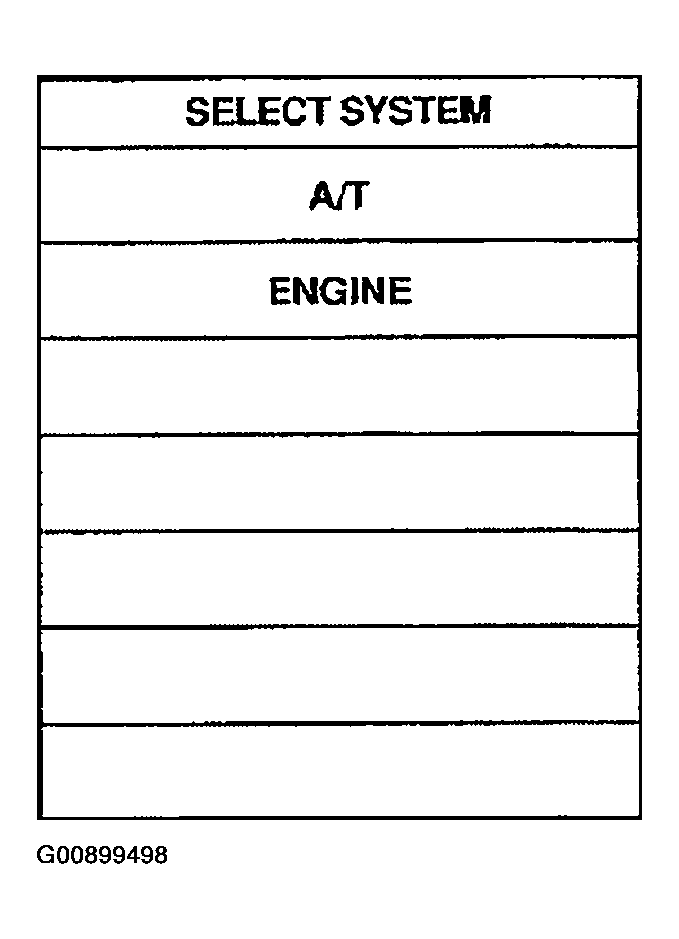

Fig 2: Consult II Display (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
