Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

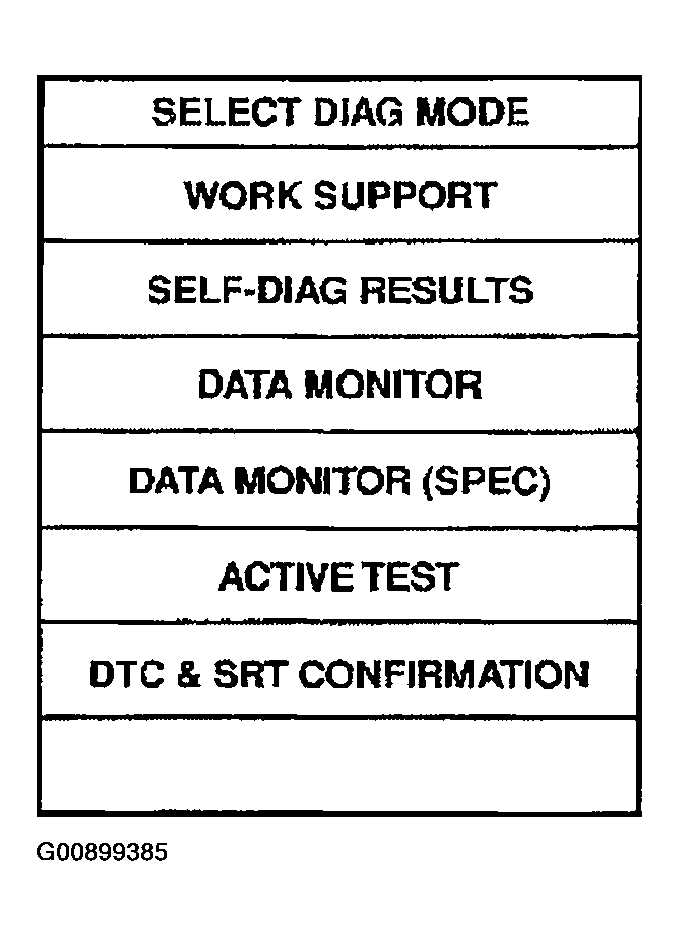

Fig 1: Consult II Display (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Start engine and maintain the following conditions for at least 10 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position (OD "ON")

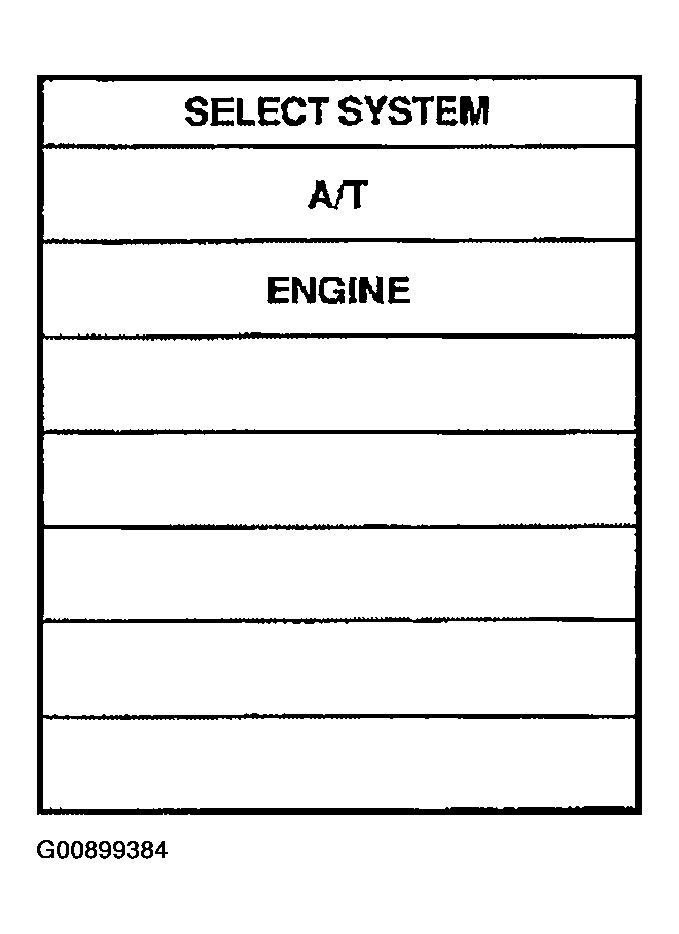

Fig 2: Consult II Display (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "With CONSULT-II".
