Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

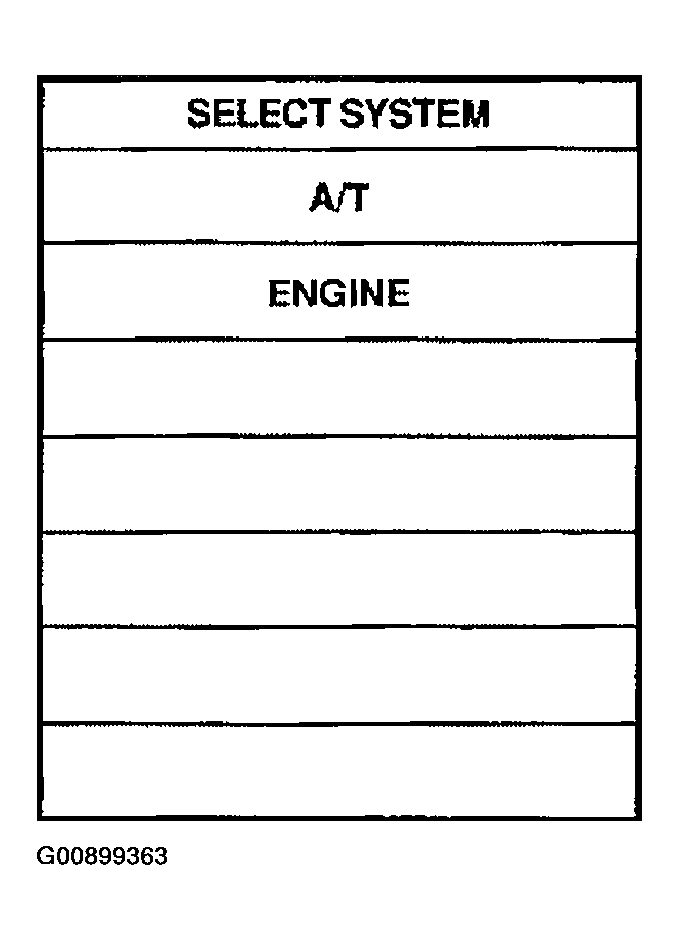

Fig 1: Consult II Display (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

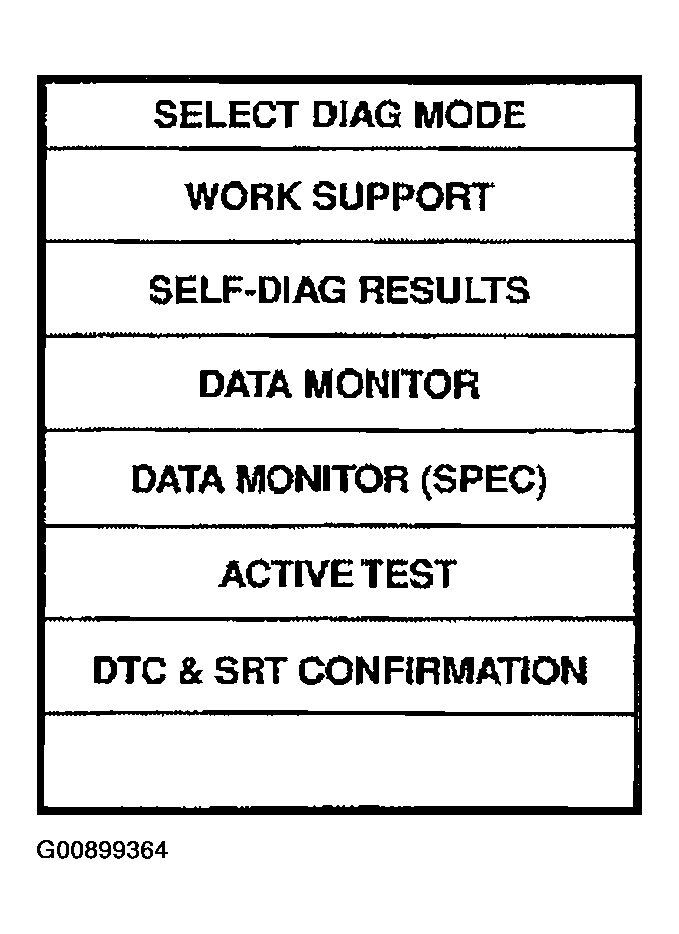

Fig 2: Consult II Display (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)
CMPS.RPM (REF): 450 RPM or more

VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position (OD "ON")

With GST

Follow the procedure "With CONSULT-II"
