A/T Fluid Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For removal, refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
Check resistance between two terminals while changing temperature as shown at left.

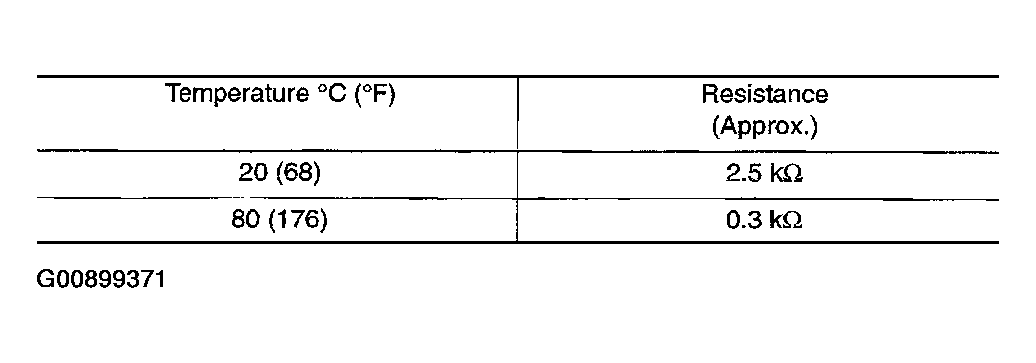

Fig 1: Temperature Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

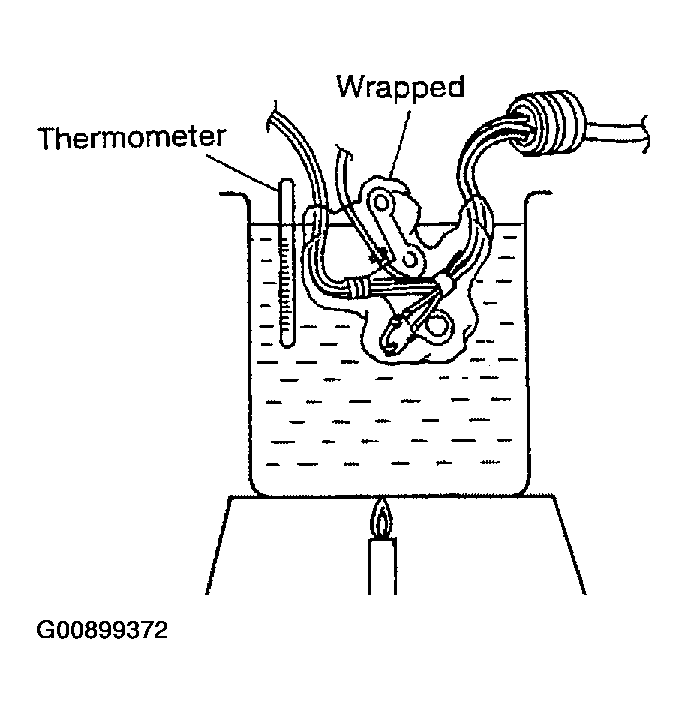

Fig 2: Checking A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
