Wiring Diagram - AT - NONDTC

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see SYSTEM WIRING DIAGRAMS - GROUND DISTRIBUTION and POWER DISTRIBUTION .

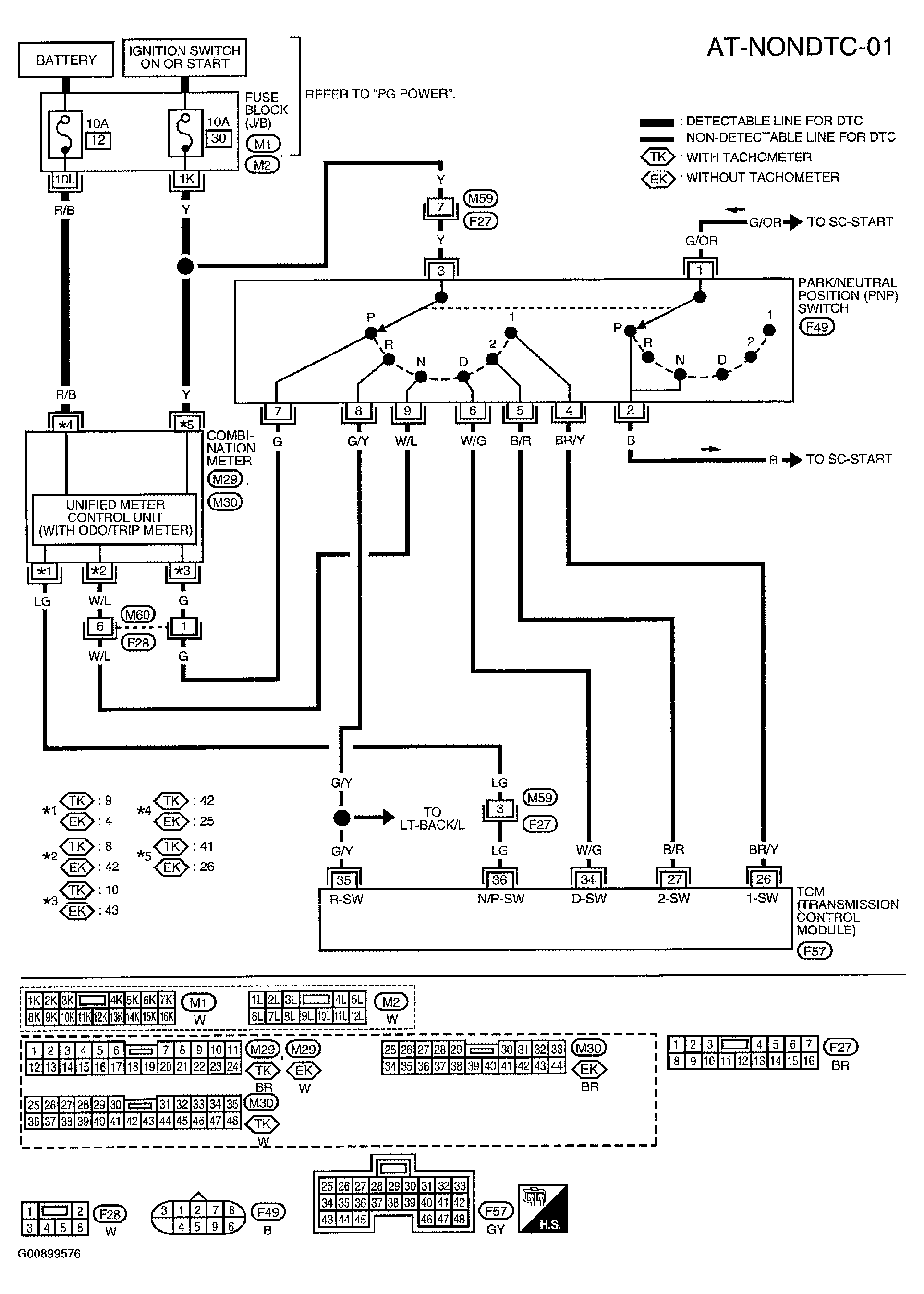

Fig 1: Wiring Diagram - AT-NONDTC-01

G00899576

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND

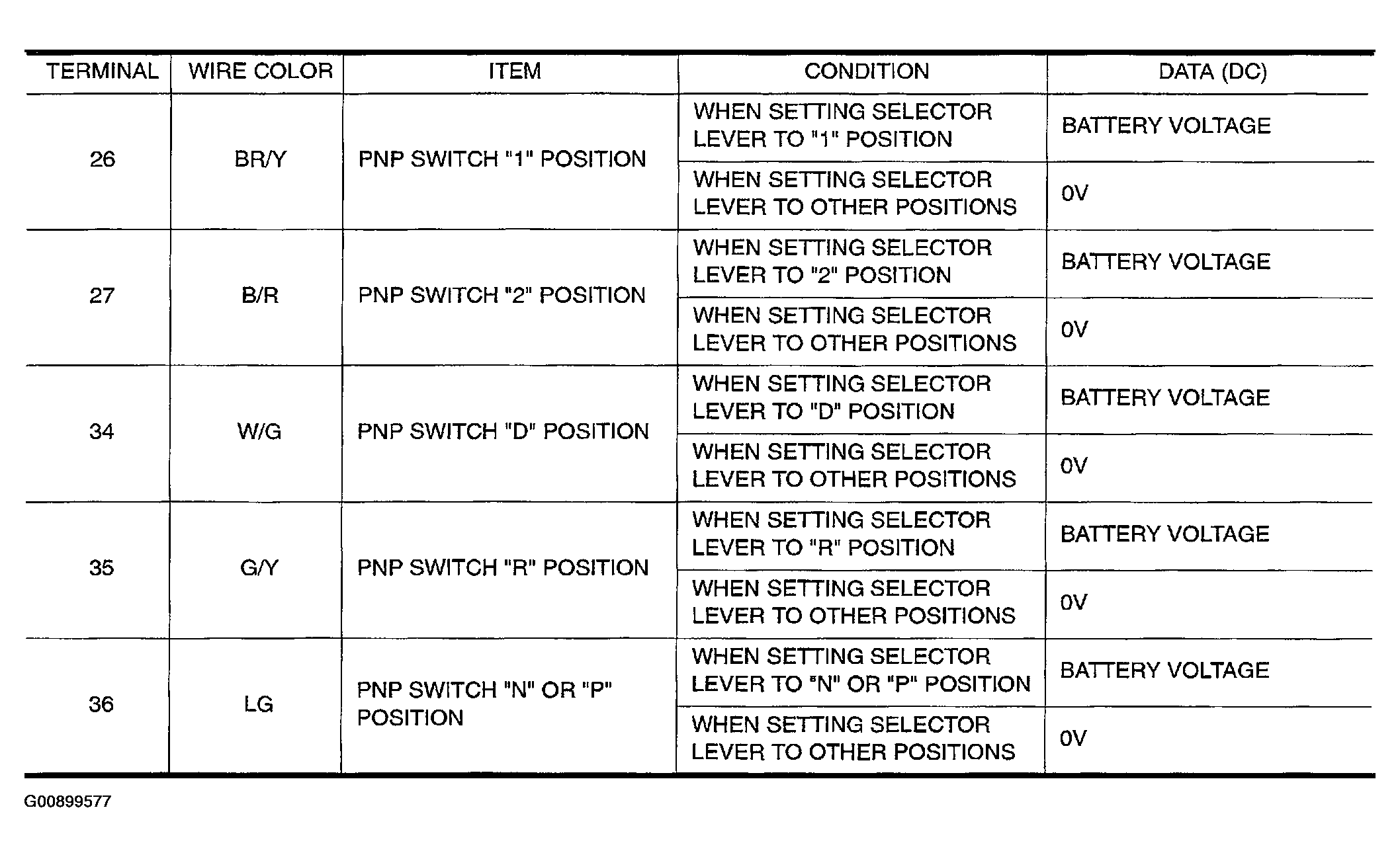

Fig 2: TCM Terminals And Reference Value Chart

G00899577

Courtesy of NISSAN MOTOR CO., U.S.A.

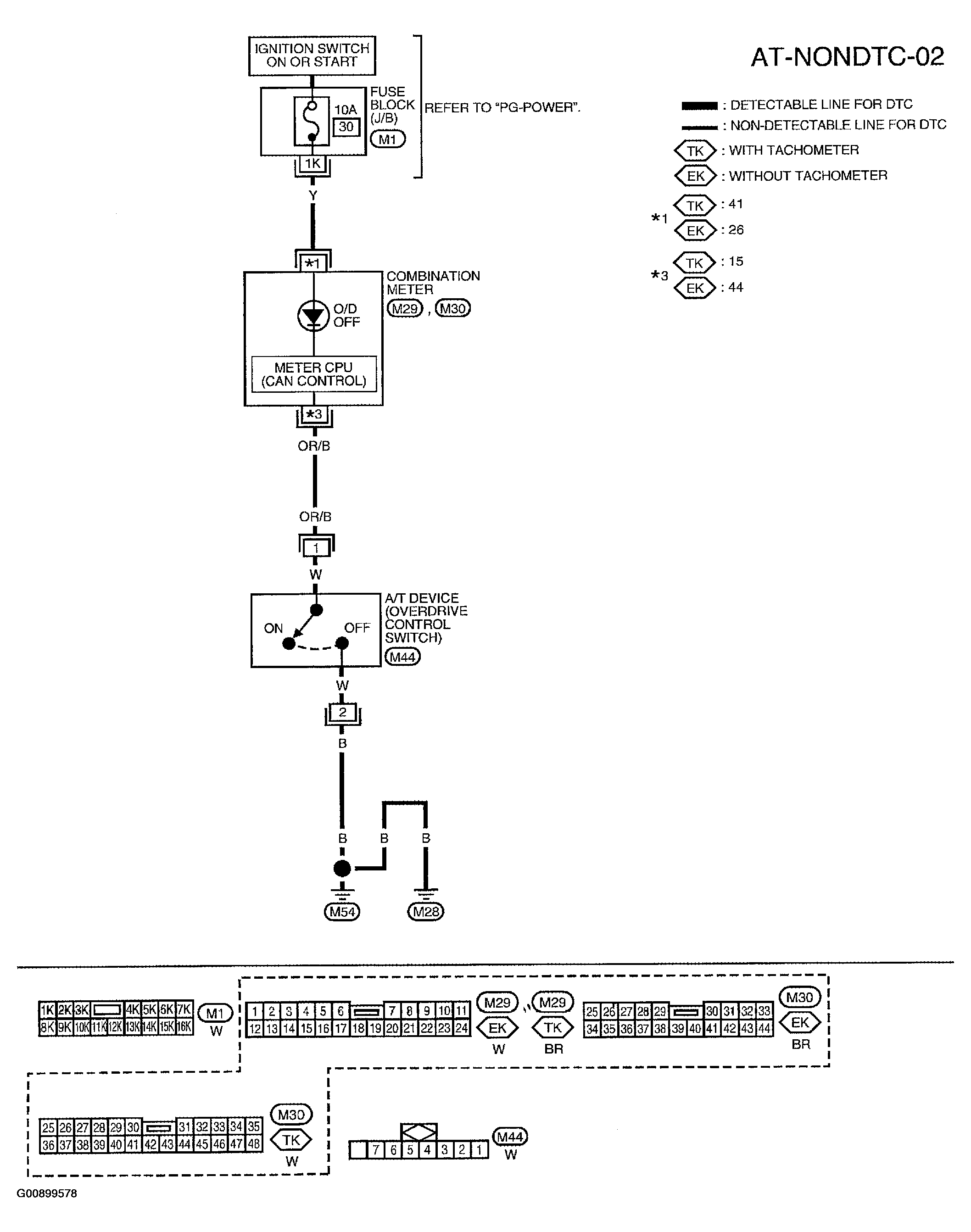

Fig 3: Wiring Diagram - AT-NONDTC-02

G00899578

Courtesy of NISSAN MOTOR CO., U.S.A.

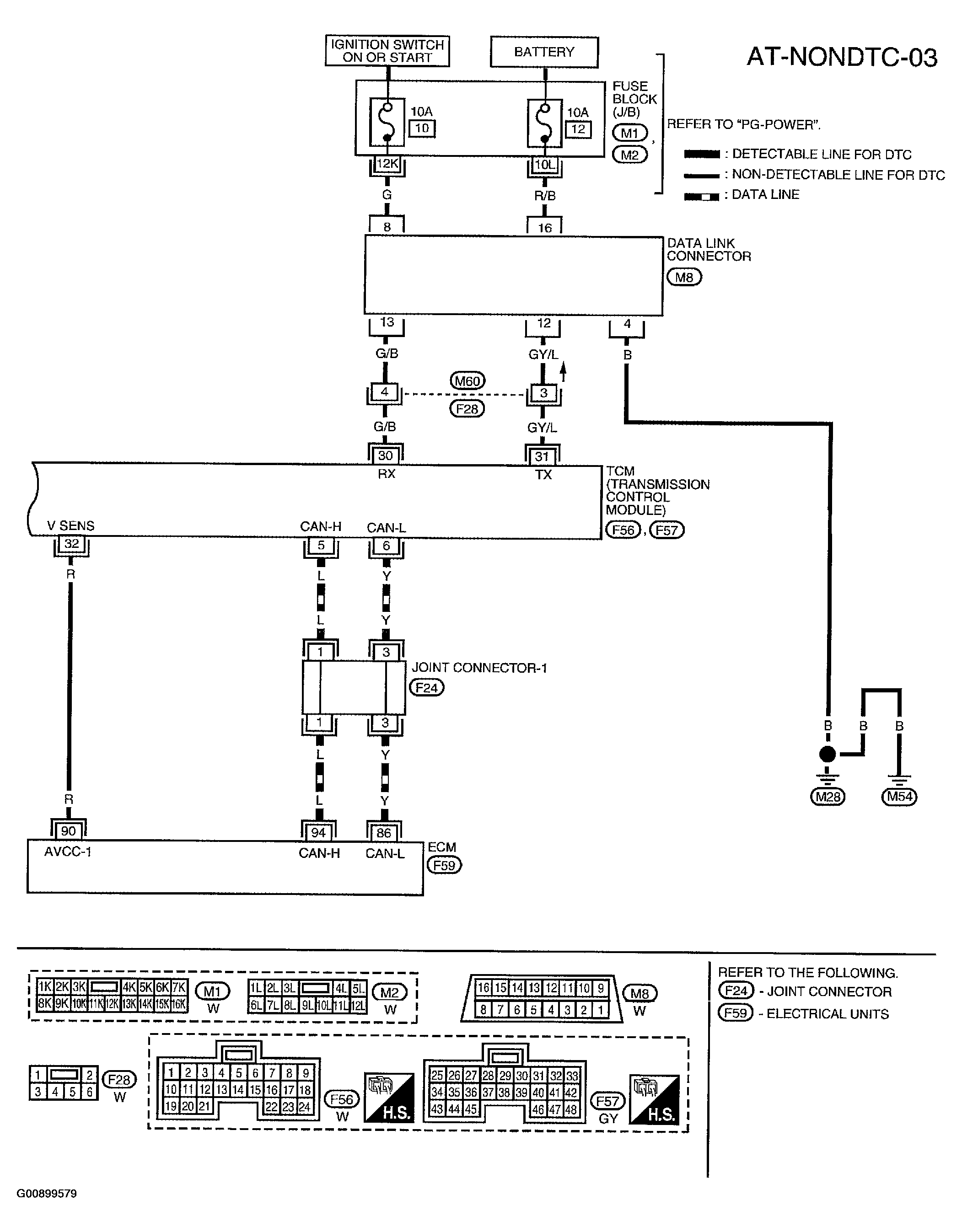

Fig 4: Wiring Diagram - AT-NONDTC-03

G00899579

Courtesy of NISSAN MOTOR CO., U.S.A.

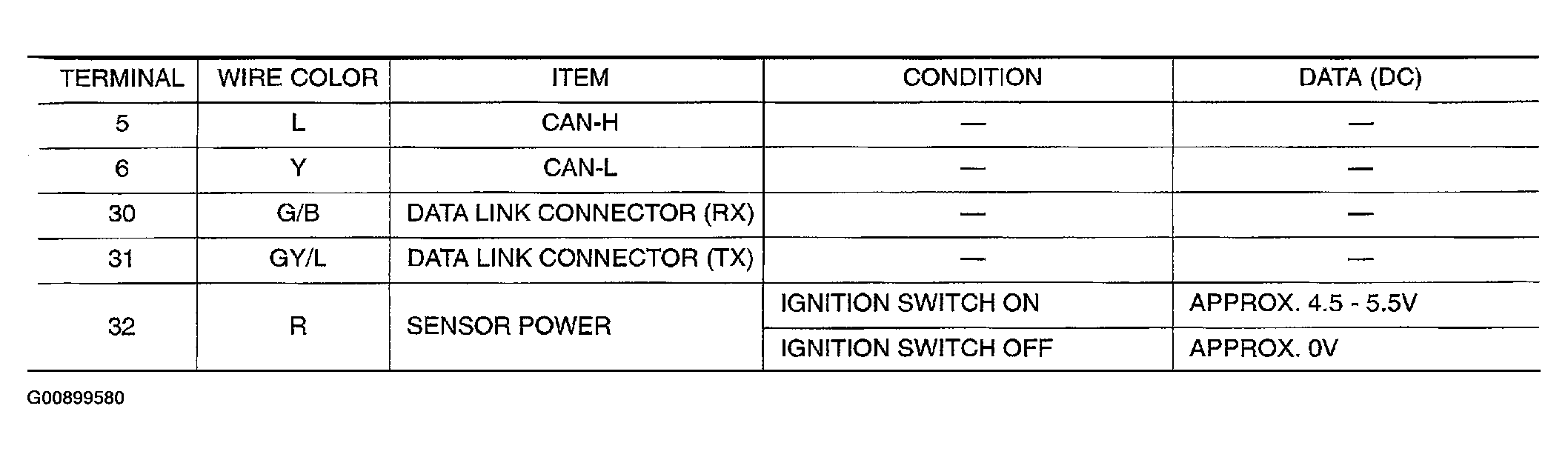

Fig 5: TCM Terminals And Reference Value Chart

G00899580

Courtesy of NISSAN MOTOR CO., U.S.A.
