1. O/D OFF Indicator Lamp Does Not Come On

SYMPTOM:

O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to "ON".

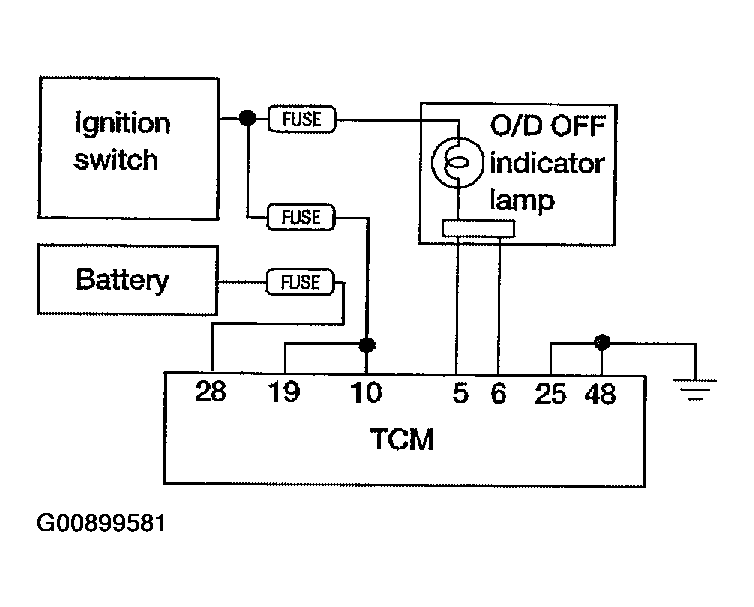

Fig 1: O/D Off Indicator Lamp Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

1. CHECK TCM POWER SOURCE
   1. Turn ignition switch to "ON" position.

      (Do not start engine.)

   2. Check voltage between TCM terminals 10, 19, 28 and ground.
      1. Voltage: Battery voltage
   3. Turn ignition switch to "OFF" position.
   4. Check voltage between TCM terminal 28 and ground.
      1. Voltage: Battery voltage

   OK or NG

   1. OK: GO TO 2.
   2. NG: Check the following items:

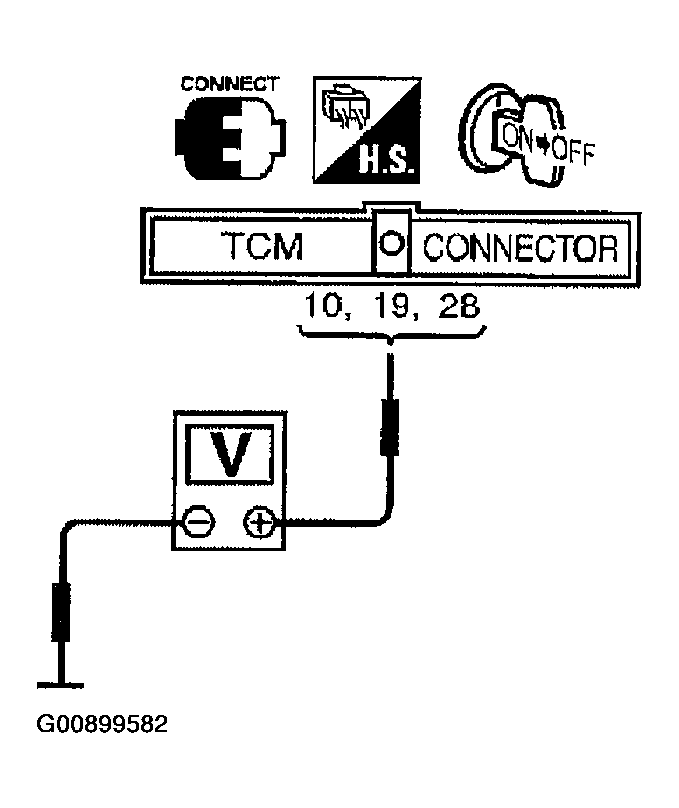

      Fig 2: Checking Voltage Between TCM Terminals 10, 19, 28 And Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.
      • Harness for short or open between ignition switch and TCM (Main harness). Refer to "WIRING DIAGRAM - AT - MAIN ".
      • Harness for short or open between battery and TCM (Main harness) Refer to "WIRING DIAGRAM - AT - MAIN ".
      • Ignition switch and fuse. Refer to POWER DISTRIBUTION .
2. CHECK TCM GROUND CIRCUIT
   1. Turn ignition switch to "OFF" position.
   2. Disconnect TCM harness connector.
   3. Check continuity between TCM terminals 25, 48 and ground.
      1. Continuity should exist.

      If OK, check harness for short to ground and short to power.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair open circuit or short to ground or short to power in harness or connectors. Refer to "WIRING DIAGRAM - AT - MAIN ".

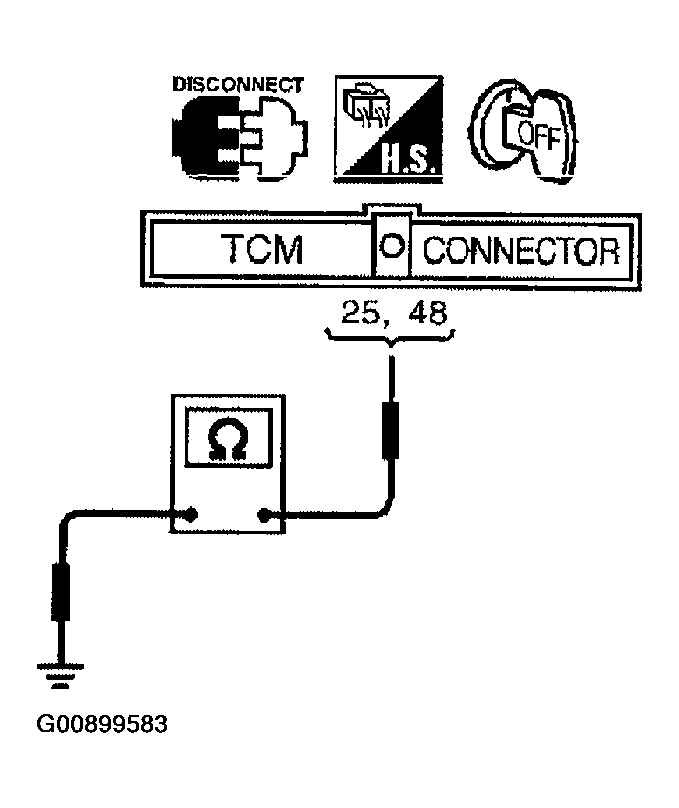

   Fig 3: Checking Continuity Between TCM Terminals 25, 48 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. CHECK SELF-DIAGNOSIS RESULTS

   With CONSULT-II

   Does "SELECTION FORM MENU" in "DATA MONITOR" show damage to O/D OFF indicator lamp (SELF D DP LMP) signal circuit?

   No Tools

   Execute the self-diagnosis. Is a malfunction in the CAN communication indicated in the results?

   YES or NO

   1. YES: Check the CAN communication line. Refer to "DTC U1000 CAN COMMUNICATION LINE ".
   2. NO: GO TO 4.
4. CHECK O/D OFF INDICATOR LAMP CIRCUIT
   1. Turn ignition switch to "OFF" position.
   2. Check the combination meter.

      Refer to COMBINATION METER .

   OK or NG

   1. OK: GO TO 5.
   2. NG: Replace the combination meter.
5. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG:
      1. Perform TCM input/output signal inspection. See INPUT/OUTPUT SIGNAL OF TCM .
      2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
