Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

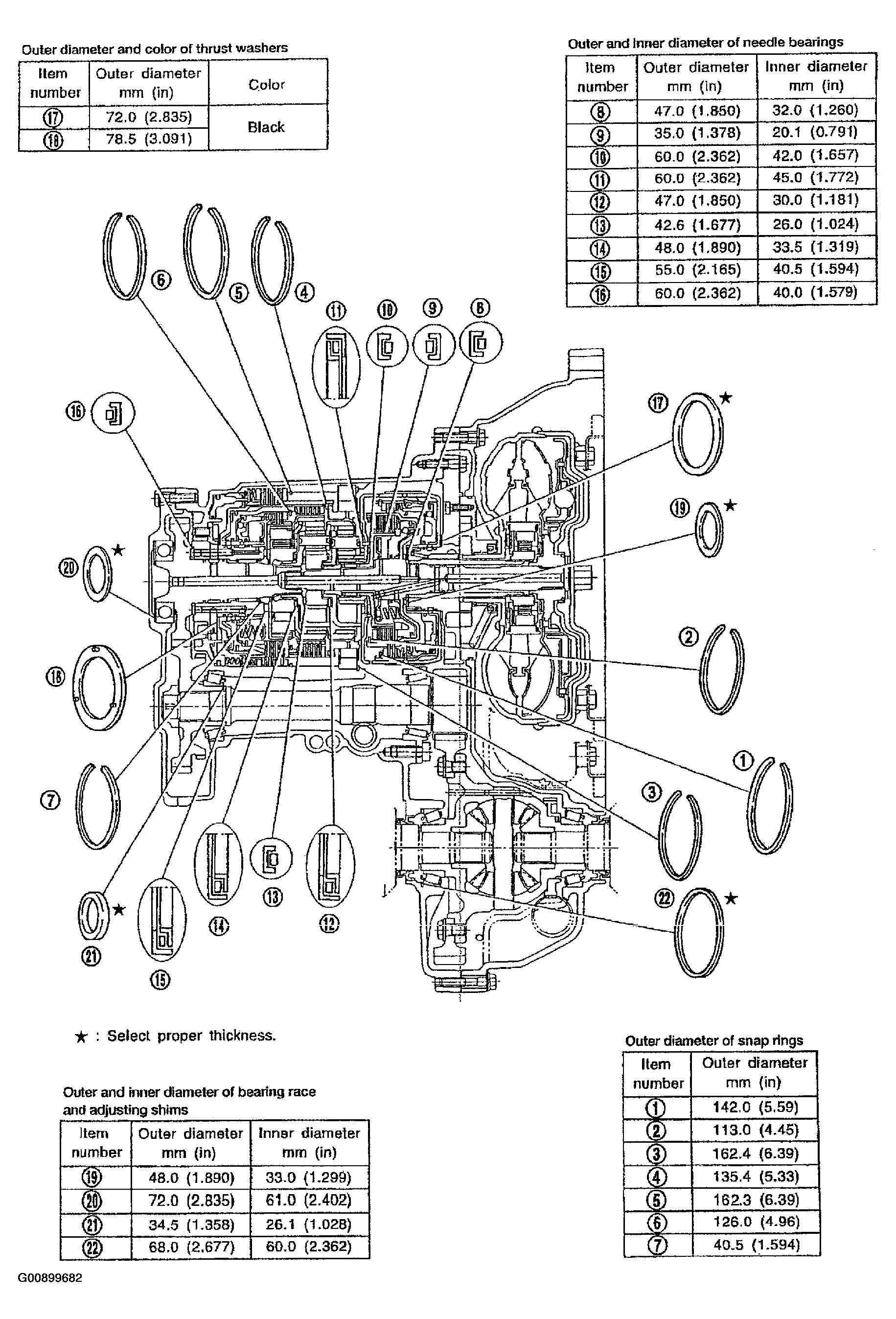

Fig 1: Identifying Locations Of Adjusting Shims, Needle Bearings, Thrust Washers And Snap Rings
G00899682Courtesy of NISSAN MOTOR CO., U.S.A.
