Differential Side Oil Seal Replacement

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove drive shaft assemblies using Tool. Refer to DRIVE SHAFT .
  2. Remove oil seals.

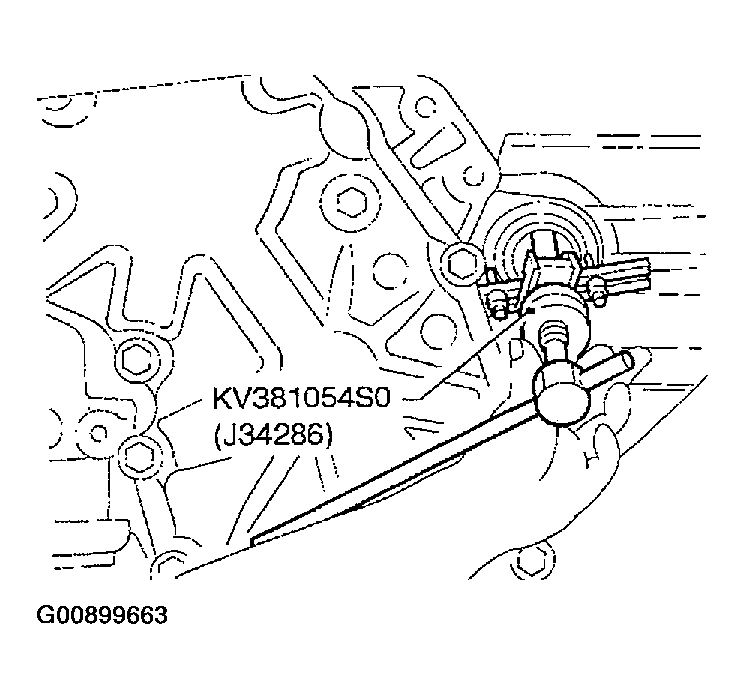

    Fig 1: Removing Oil Seal
    G00899663Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil seals using Tool.
    • Apply ATF to oil seal surface before installing.

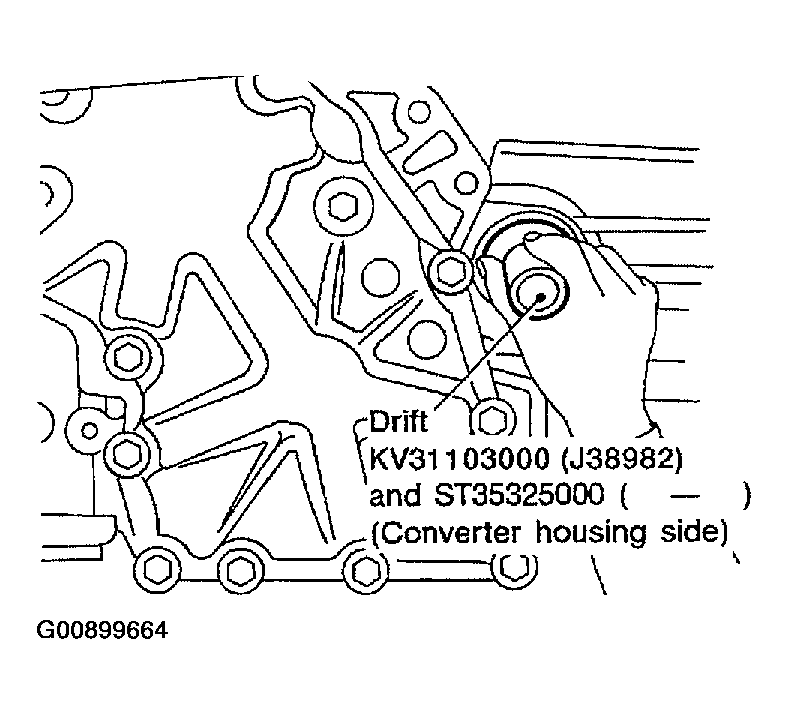

      Fig 2: Installing Oil Seal
      G00899664Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install oil seals so that dimensions "A" and "B" are within specifications.

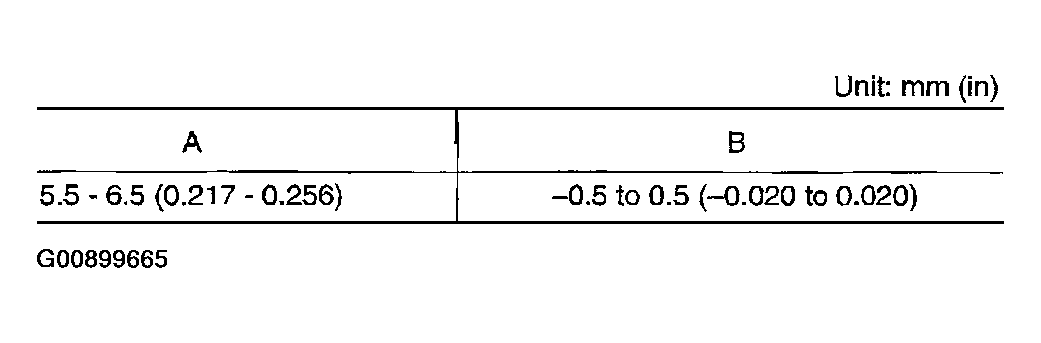

    Fig 3: Oil Seal Dimension Chart
    G00899665Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Reinstall any part removed.

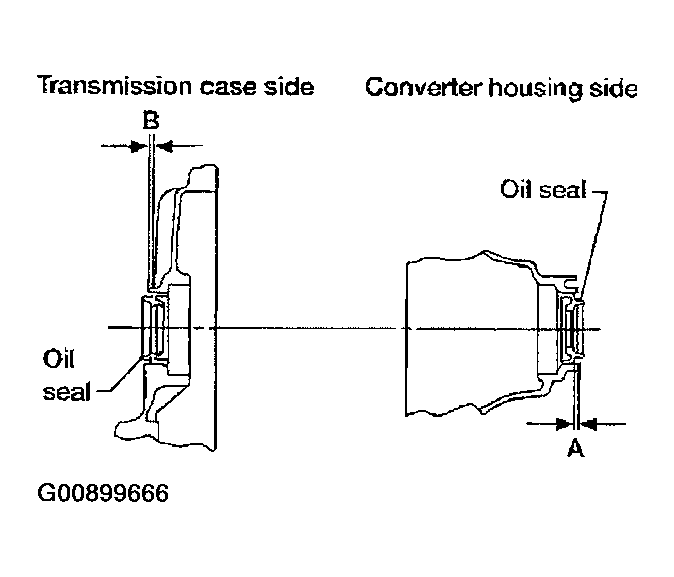

    Fig 4: Identifying Oil Seal Dimensions
    G00899666Courtesy of NISSAN MOTOR CO., U.S.A.
