Oil Pump: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

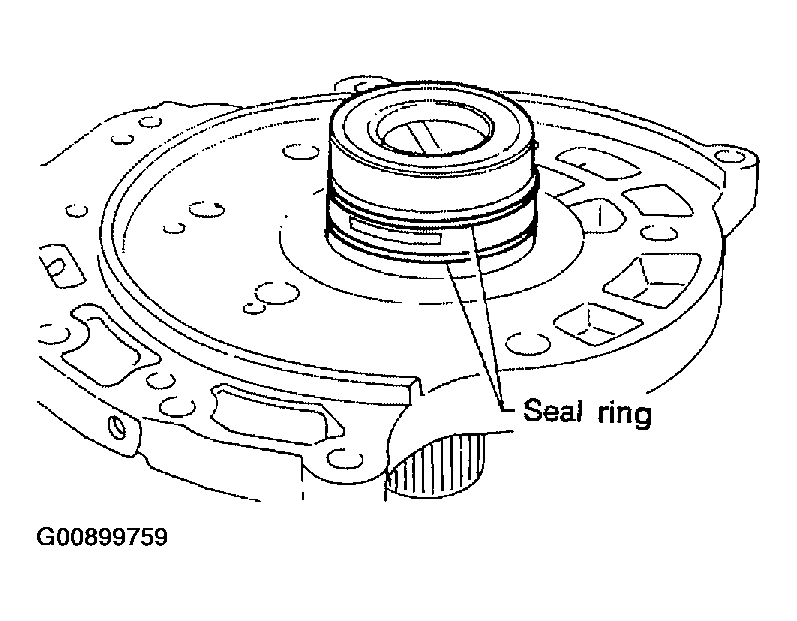

  1. Remove seal rings.
    Fig 1: Removing Seal Rings
    G00899759Courtesy of NISSAN MOTOR CO., U.S.A.

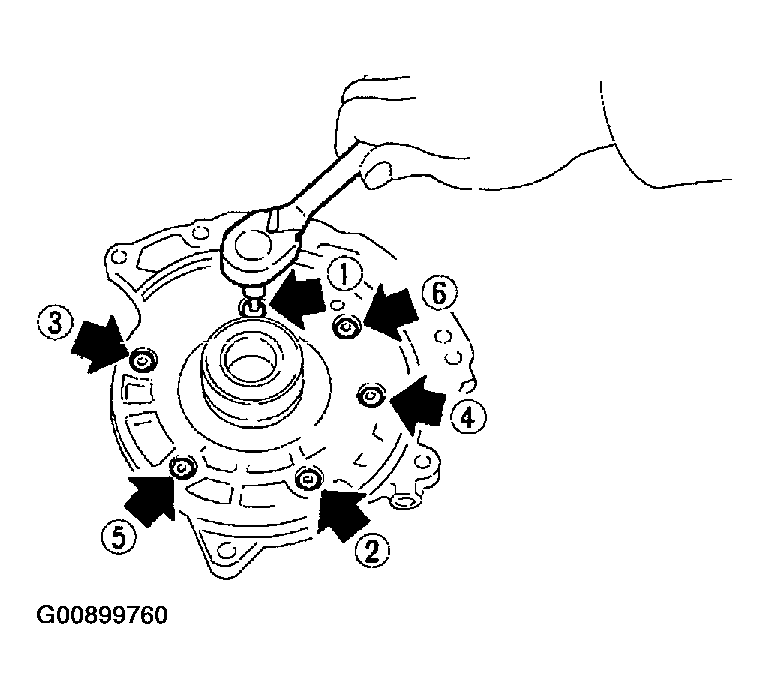

  2. Loosen bolts in numerical order and remove oil pump cover.
    Fig 2: Identifying Removal Sequence Of Oil Pump Cover Bolts
    G00899760Courtesy of NISSAN MOTOR CO., U.S.A.

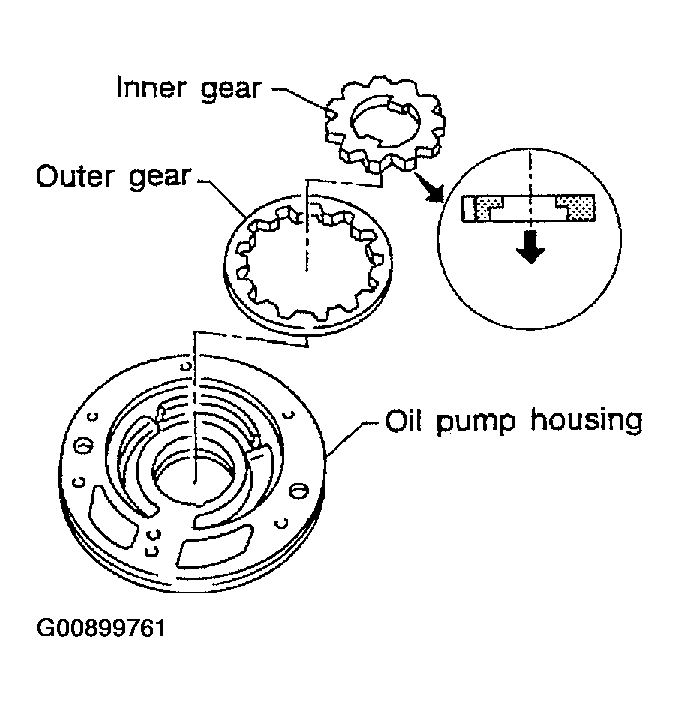

  3. Remove inner and outer gear from oil pump housing.
    Fig 3: Removing Inner And Outer Gear From Oil Pump Housing
    G00899761Courtesy of NISSAN MOTOR CO., U.S.A.

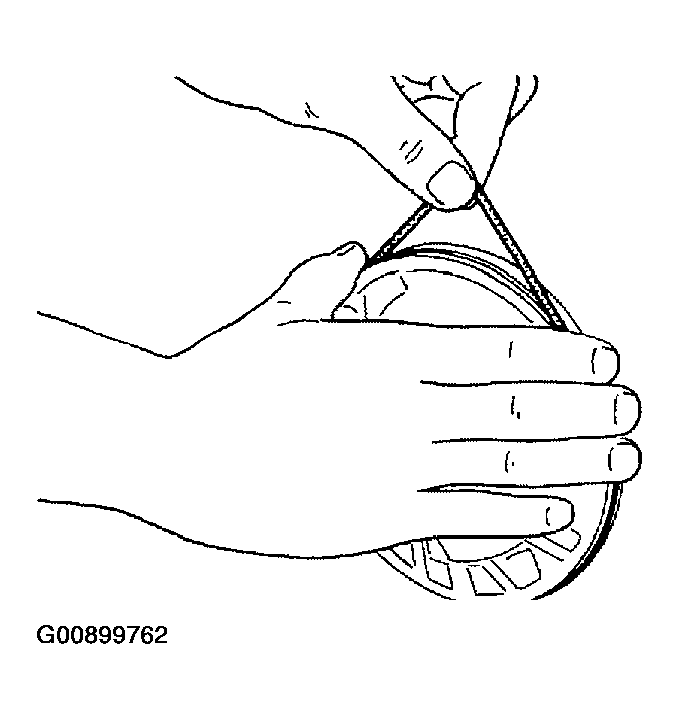

  4. Remove O-ring from oil pump housing.
    Fig 4: Removing O-Ring From Oil Pump Housing
    G00899762Courtesy of NISSAN MOTOR CO., U.S.A.

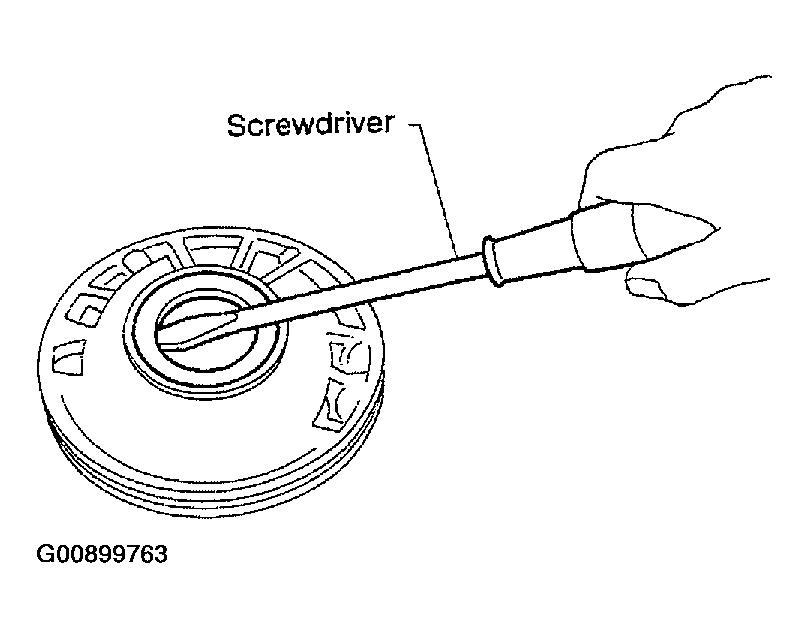

  5. Remove oil pump housing oil seal.
    Fig 5: Removing Oil Pump Housing Oil Seal
    G00899763Courtesy of NISSAN MOTOR CO., U.S.A.
