Manual Shaft: Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install manual shaft oil seal using a suitable tool.
    • Apply ATF to outer surface of oil seal.

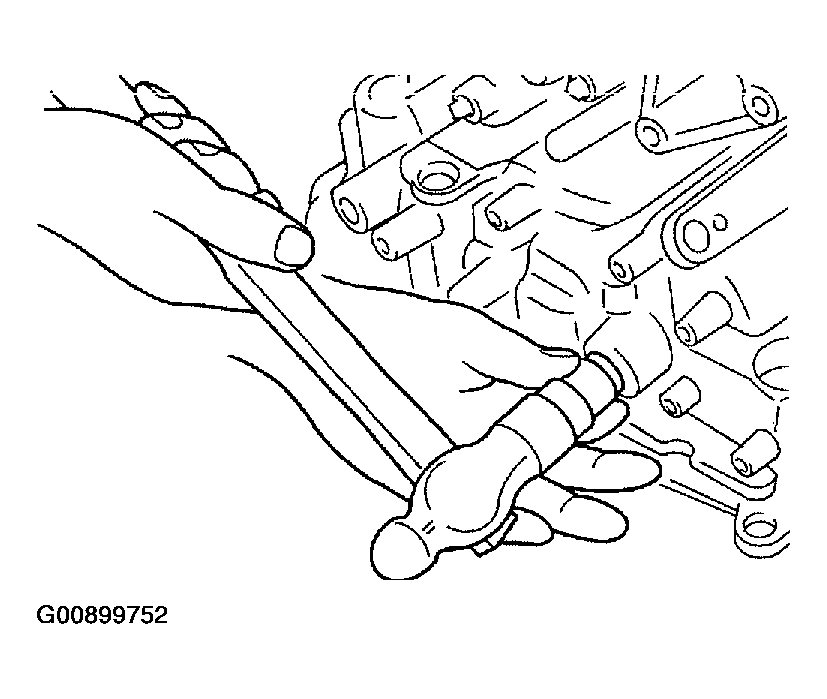

    Fig 1: Installing Manual Shaft Oil Seal
    G00899752Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install manual shaft and manual plate.

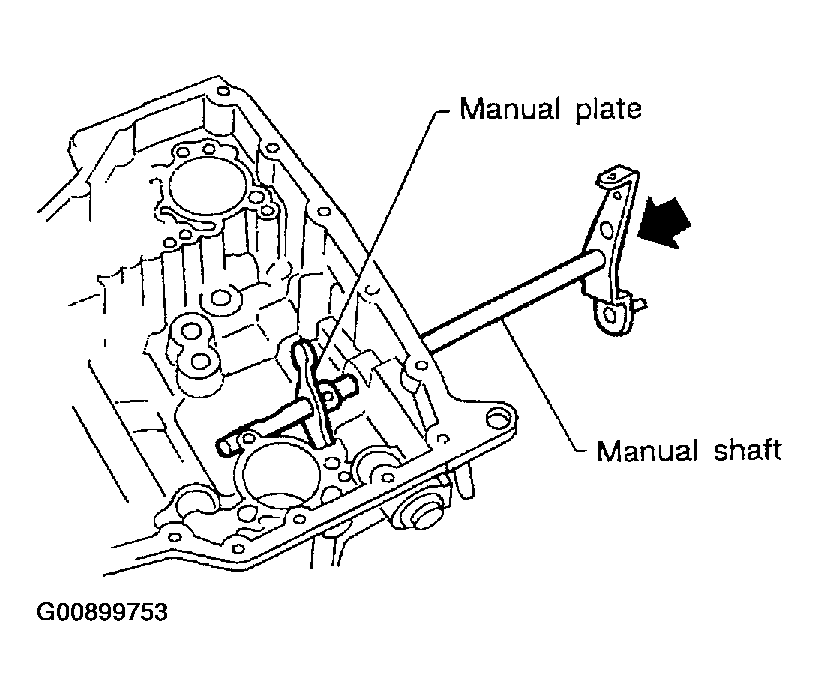

    Fig 2: Installing Manual Shaft And Manual Plate
    G00899753Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Align groove of manual shaft and hole of transmission case.
  4. Install manual shaft retaining pin using Tool.

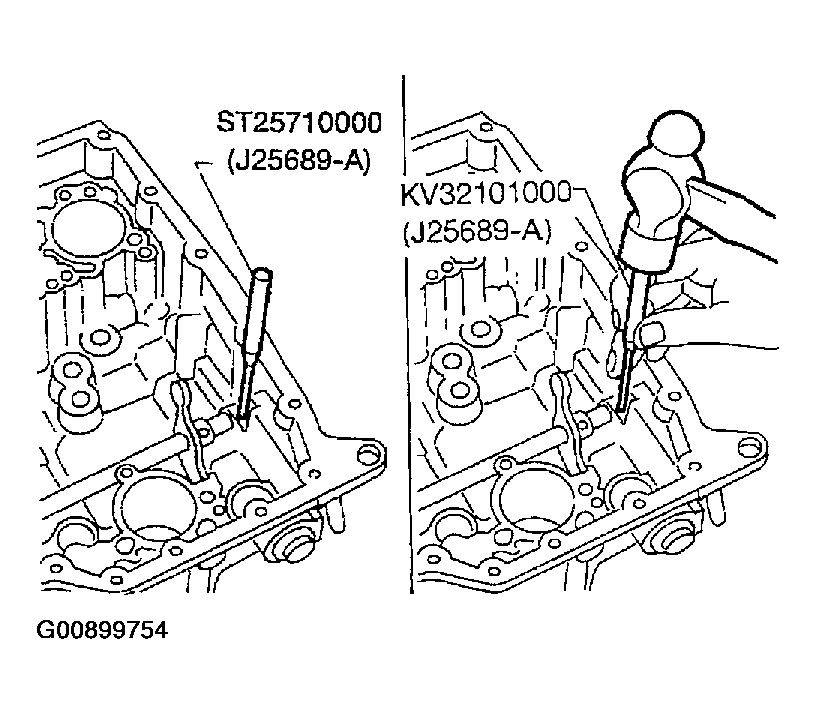

    Fig 3: Installing Manual Shaft Retaining Pin
    G00899754Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install parking rod to parking rod plate.
  6. Set parking rod assembly onto manual shaft.

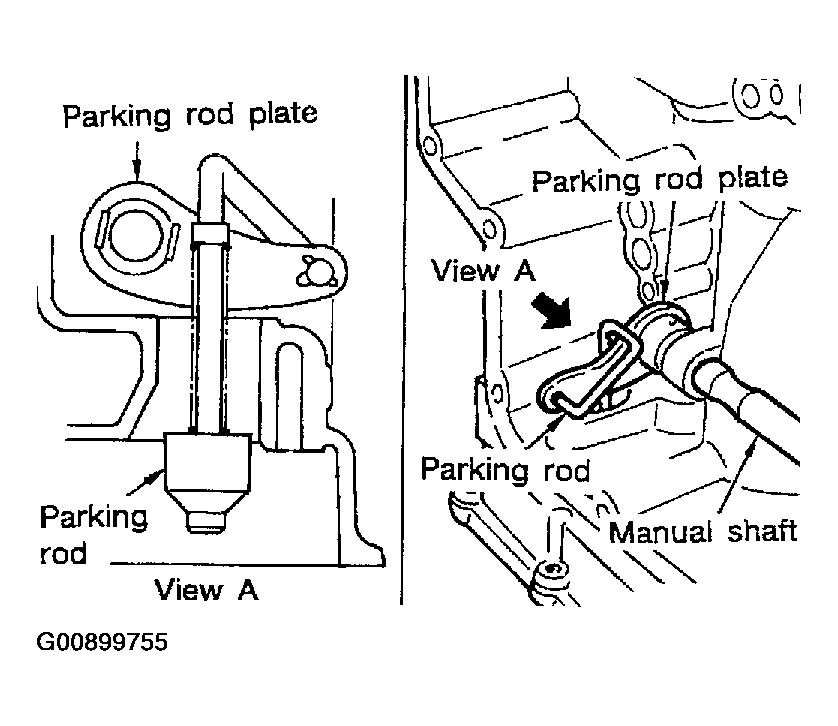

    Fig 4: Installing Parking Rod To Parking Rod Plate
    G00899755Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Drive in manual plate retaining pin and parking rod plate retaining pin using Tool.

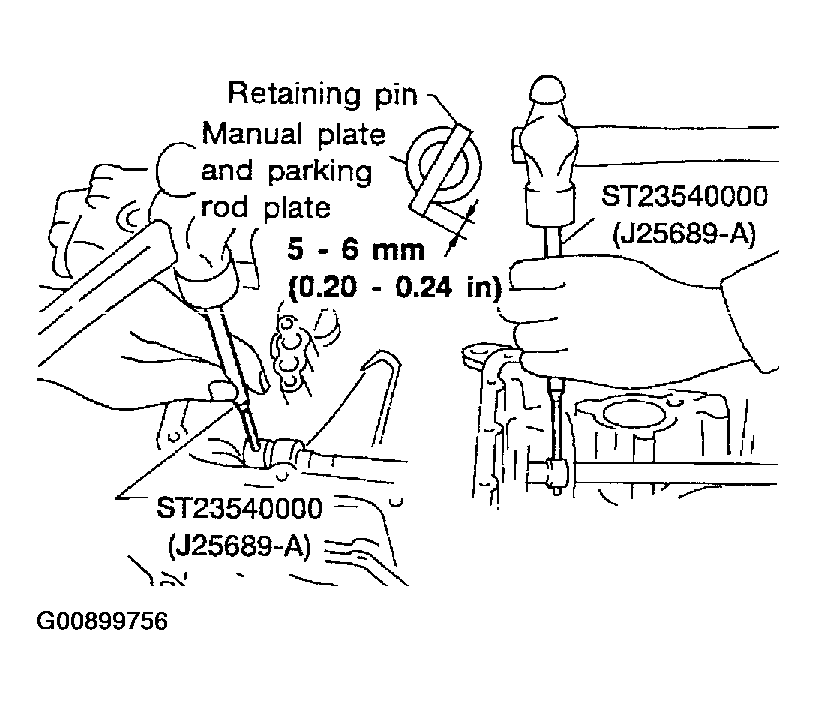

    Fig 5: Driving In Manual Plate Retaining Pin And Parking Rod Plate Retaining Pin
    G00899756Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install detent spring.
    1. : 6.4 - 7.5 N.m (0.65 - 0.76 kg-m, 56.4 - 66.0 in-lb)

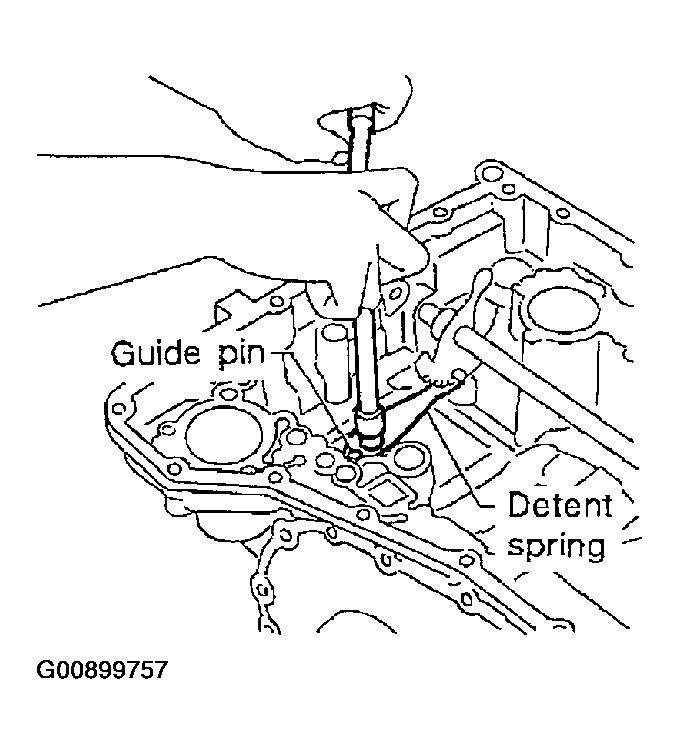

    Fig 6: Installing Detent Spring
    G00899757Courtesy of NISSAN MOTOR CO., U.S.A.
